Bazooka ELW1014P Bedienungsanleitung
1
ENGLISH
Dear customer,
Congratulations on your purchase of a Bazooka ELW high-performance
subwoofer. At Bazooka we are fanatics about accurate music reproduction.
Your selection of our products for your sound system indicates that quality
sound is also important to you too. At SAS, we take great pride in
manufacturing revolutionary audio products, and through the years of
engineering expertise, hand craftsmanship and critical testing procedures,
we have created the ELW high-performance series of subwoofers. We hope
that you will take as much pride in owning and using one of these high-quality
audio products as we do designing and manufacturing them.
When properly installed and operated, your Bazooka ELW subwoofer will give
you years of clean uninterrupted sound reproduction. Therefore, we urge you
to take a few minutes to carefully read through this manual. It will explain
how to properly build an enclosure to optimize performance and longevity of
the subwoofer.
Sound can be deceiving. Over time your hearing comfort level adapts to
higher volumes of sound. What may have sounded normal can actually be too
loud and harmful to your hearing. Guard against this by setting your
equipment at a safe level before your hearing adapts.
To establish a “safe level”,
Start with your volume control at a low setting.
Slowly increase the volume control until you can hear comfortably,
clearly and without distortion.
Once you have established a comfortable “sound level”, make a note
of this position and do not go above this setting
Taking a minute to do this will help prevent your hearing from being damaged
and allow you to enjoy listening to music throughout your lifetime.
2ELW SUBWOOFERS
ENGLISH
CALCULATING ENCLOSURE VOLUME
It is difficult to give exact box dimensions that are universal for all cars and
trucks. It is for this reason that you must be able to calculate the space in
which you have available in order to achieve the proper air volume required.
It is recommended to build your enclosure from 3/4” thick MDF (medium
density fiberboard). Make sure the enclosure is sealed air tight.
Calculating External Volume
1.) To calculate box volume, measure the outside Width x Height x Depth of the
enclosure.
Example 12” x 14” x 9” = 1512”.
2.) Next you must convert cubic inches into cubic feet. To do this, you must
divide the cubic inch total by 1728”.
Example 1512 1728 = .875 Cubic feet.
Calculating Internal Volume
1.) To calculate the internal (net) volume of the above box you must first
multiply the thickness of the wood you are using by Two (2).
Example 3/4” x 2 = 1.5”.
2.) Next subtract 1.5 from each of the outside measurements of the box.
Width Height Depth
12-1.5=10.5 14 -1.5 = 12.5 9 -1.5 = 7.5
3.) Multiply the new totals (H x W x D)
Example: 10.5 x 12.5 x 7.5 = 984.375
4.) Next you must convert cubic inches into cubic feet. To do this, you must
divide the cubic inch total by 1728”
Example 984.375 1728 = .5696 Cubic feet.
ENGLISH
3
ELW1214P
Free Air Resonance. (FS) 34
Total Q of driver @ FS including all resistance. (Qts) .47
Q of driver @ FS including non electrical resistance only. (Qms) 6.67
Q of driver @ FS including electrical resistance only. (Qes) .51
The driver's compliance expressed as an equivalent (Vas) 2.16
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) .31
The DC resistance of the driver's voice coil (ohms). (Re) 3.4
RMS Power Handling (Standard/ With Liquid Cooling) (W) 300/450
Max Power handling (Standard/ With Liquid Cooling) (W) 400/600
The driver's voice coil inductance (millihenries). (Le) 1.9
The drivers sensitivity (dB @ 1W 1M). (Sens) 92
PRODUCT SPECIFICATIONS
ELW1014P
Free Air Resonance. (FS) 34
Total Q of driver @ FS including all resistance. (Qts) .46
Q of driver @ FS including non electrical resistance only. (Qms) 5.84
Q of driver @ FS including electrical resistance only. (Qes) .50
The driver's compliance expressed as an equivalent (Vas) 1.39
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) .29
The DC resistance of the driver's voice coil (ohms). (Re) 3.4
RMS Power Handling (Standard/ With Liquid Cooling) (W) 200/300
Max Power handling (Standard/ With Liquid Cooling) (W) 350/525
The driver's voice coil inductance (millihenries). (Le) 1.4
The drivers sensitivity (dB @ 1W 1M). (Sens) 91
ELW SUBWOOFERS
ENGLISH
4
PRODUCT SPECIFICATIONS
ELW1514P
Free Air Resonance. (FS) 32
Total Q of driver @ FS including all resistance. (Qts) .74
Q of driver @ FS including non electrical resistance only. (Qms) 7.99
Q of driver @ FS including electrical resistance only. (Qes) .82
The driver's compliance expressed as an equivalent (Vas) 4.0
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) .47
The DC resistance of the driver's voice coil (ohms). (Re) 3.4
RMS Power Handling (Standard/ With Liquid Cooling) (W) 400/600
Max Power handling (Standard/ With Liquid Cooling) (W) 600/900
The driver's voice coil inductance (millihenries). (Le) 1.9
The drivers sensitivity (dB @ 1W 1M). (Sens) 92
ENGLISH
5
Ported Enclosure
Box Volume *1.6 Cu Ft.
Port Frequency (Fb) 40Hz
Port Diameter 3 Inches
Port Length 5.8 Inches
* Box is given as internal air volume including port and driver displacement.

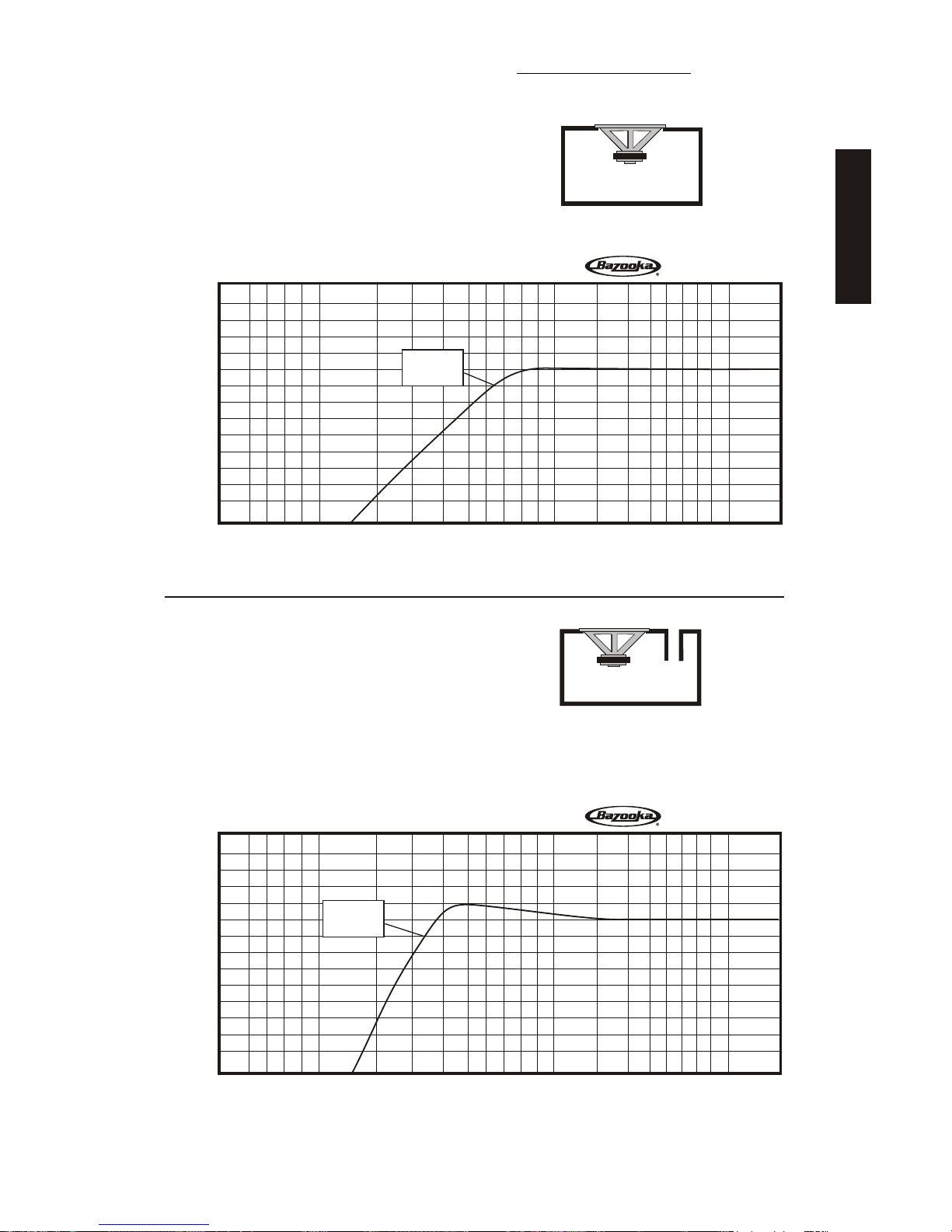

ELW1014P RECOMMENDED ENCLOSURES
Please Note: Our suggested box volumes are given as internal air requirements
Sealed Enclosure
Box Volume * 0.56 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 34F3 = 34
Ported EnclosurePorted Enclosure
Sealed EnclosureSealed Enclosure
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
ELW1014P Amplitude Response (dB/Hz)ELW1014P Amplitude Response (dB/Hz)
ELW1014P Amplitude Response (dB/Hz)ELW1014P Amplitude Response (dB/Hz)
F3 = 63F3 = 63
ELW SUBWOOFERS
ENGLISH
6
Ported Enclosure
Box Volume *2.0 Cu Ft.
Port Frequency (Fb) 40Hz
Port Diameter 4 Inches
Port Length 8.25 Inches
* Box is given as internal air volume including port and driver displacement.
ELW1214P RECOMMENDED ENCLOSURES
Please Note: Our suggested box volumes are given as internal air requirements
Sealed Enclosure
Box Volume * 1.0 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
ELW1214P Amplitude Response (dB/Hz)ELW1214P Amplitude Response (dB/Hz) Sealed EnclosureSealed Enclosure
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 60F3 = 60
ELW1214P Amplitude Response (dB/Hz)ELW1214P Amplitude Response (dB/Hz) Ported EnclosurePorted Enclosure
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 35F3 = 35
ENGLISH
7
Ported Enclosure
Box Volume *3.0 Cu Ft.
Port Frequency (Fb) 40Hz
Port Quantity 2
Port Diameter 4 Inches
Port Length 12.2 Inches
* Box is given as internal air volume including port and driver displacement.
ELW1514P RECOMMENDED ENCLOSURES
Please Note: Our suggested box volumes are given as internal air requirements
Sealed Enclosure
Box Volume * 1.7 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 36F3 = 36
Ported EnclosurePorted Enclosure
Sealed EnclosureSealed Enclosure
ELW1514P Amplitude Response (dB/Hz)ELW1514P Amplitude Response (dB/Hz)
ELW1514P Amplitude Response (dB/Hz)ELW1514P Amplitude Response (dB/Hz)
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 45F3 = 45
ELW SUBWOOFERS
ENGLISH
8
The innovative design of the ELW component Woofers allows you to
liquid cool the voice coil motor assembly for maximum power handling
capability. With the addition of the CHIL PLUG and the CHIL KIT from your
local dealer, or directly from SAS, you can easily add liquid cooling to
your ELW Series Component Woofer.
CHIL Plug
Utilizing the optional CHIL plug
can increase the ELW
woofers power handling up
to 50%.
LIQUID COOLING
ENGLISH
9
