Dear customer,
Congratulations on your purchase of a Bazooka RSW high-performance
subwoofer. At Bazooka we are fanatics about accurate music
reproduction. Your selection of our products for your sound system
indicates that quality sound is also important to you too. At SAS, we
take great pride in manufacturing revolutionary audio products, and
through the years of engineering expertise, hand craftsmanship and
critical testing procedures, we have created the RSW high-performance
series of subwoofers. We hope that you will take as much pride in
owning and using one of these high-quality audio products as we do
designing and manufacturing them.
When properly installed and operated, your Bazooka RSW subwoofer
will give you years of clean uninterrupted sound reproduction.
Therefore, we urge you to take a few minutes to carefully read through
this manual. It will explain how to properly build an enclosure to
optimize performance and longevity of the subwoofer.
Sound can be deceiving. Over time your hearing comfort level adapts
to higher volumes of sound. What may have sounded normal can
actually be too loud and harmful to your hearing. Guard against this by
setting your equipment at a safe level before your hearing adapts.
To establish a “safe level”,
Start with your volume control at a low setting.
Slowly increase the volume control until you can hear
comfortably, clearly and without distortion.
Once you have established a comfortable “sound level”, make a
note of this position and do not go above this setting
Taking a minute to do this will help prevent your hearing from being
damaged and allow you to enjoy listening to music throughout your
lifetime.
1
CALCULATING ENCLOSURE VOLUME
It is difficult to give exact box dimensions that are universal for all cars
and trucks. It is for this reason that you must be able to calculate the
space in which you have available in order to achieve the proper air
volume required. It is recommended to build your enclosure from 3/4”
thick MDF (medium density fiberboard). Make sure the enclosure is
sealed air tight.
Calculating External Volume
1.) To calculate box volume, measure the outside Width x Height x
Depth of the enclosure.
Example 12” x 14” x 9” = 1512”.
2.) Next you must convert cubic inches into cubic feet. To do this, you
must divide the cubic inch total by 1728”.
Example 1512 1728 = .875 Cubic feet.
Calculating Internal Volume
1.) To calculate the internal (net) volume of the above box you must
first multiply the thickness of the wood you are using by Two (2).
Example 3/4” x 2 = 1.5”.
2.) Next subtract 1.5 from each of the outside measurements of the box.
Width Height Depth
12-1.5=10.5 14 -1.5 = 12.5 9 -1.5 = 7.5
3.) Multiply the new totals (H x W x D)
Example: 10.5 x 12.5 x 7.5 = 984.375
4.) Next you must convert cubic inches into cubic feet. To do this, you
must divide the cubic inch total by 1728”
Example 984.375 1728 = .5696 Cubic feet.
2
3
PRODUCT SPECIFICATIONS
RSW1024DVC-PM
Free Air Resonance. (FS) 34 34 34
Total Q of driver @ FS including all resistance. (Qts) .77 .40 .40
Q of driver @ FS including non electrical resistance. (Qms) 8.93 8.93 8.93
Q of driver @ FS including electrical resistance. (Qes) .84 .42 .43
The driver's compliance expressed as an equivalent (Vas) 1.08 1.08 1.08
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) 1.12 1.12 1.12
The DC resistance of the driver's voice coil (ohms). (Re) 3.4 1.7 6.8
RMS Power Handling (Standard/ With Liquid Cooling) (W) 300/400 300/400 300/400
Max Power handling (Standard/ With Liquid Cooling) (W) 500/500 500/500 500/500
The driver's voice coil inductance (millihenries). (Le) 1.09 1.13 4.59
The drivers sensitivity (dB @ 1W 1M). (Sens) 84 86 86
INDIVIDUAL
PARALLEL
SERIES
RSW1224DVC-PM
Free Air Resonance. (FS) 32 32 32
Total Q of driver @ FS including all resistance. (Qts) .87 .48 .48
Q of driver @ FS including non electrical resistance. (Qms) 8.05 8.05 8.05
Q of driver @ FS including electrical resistance. (Qes) .98 .50 .51
The driver's compliance expressed as an equivalent (Vas) 2.34 2.34 2.34
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) 1.12 1.12 1.12
The DC resistance of the driver's voice coil (ohms). (Re) 3.4 1.7 6.8
RMS Power Handling (Standard/ With Liquid Cooling) (W) 300/400 300/400 300/400
Max Power handling (Standard/ With Liquid Cooling) (W) 500/500 500/500 500/500
The driver's voice coil inductance (millihenries). (Le) 1.06 1.09 4.39
The drivers sensitivity (dB @ 1W 1M). (Sens) 86 88 88
Ported Enclosure
Box Volume *1.4 Cu Ft.
Port Frequency (Fb) 40Hz
Port Diameter 3 Inches
Port Length 7.31 Inches
* Box is given as internal air volume including port and driver displacement.
RSW1024DV RECOMMENDED ENCLOSURES
Please Note: Our suggested box volumes are given as internal air requirements with
voice coils in parallel.
Sealed Enclosure
Box Volume * 0.56 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 34F3 = 34
4

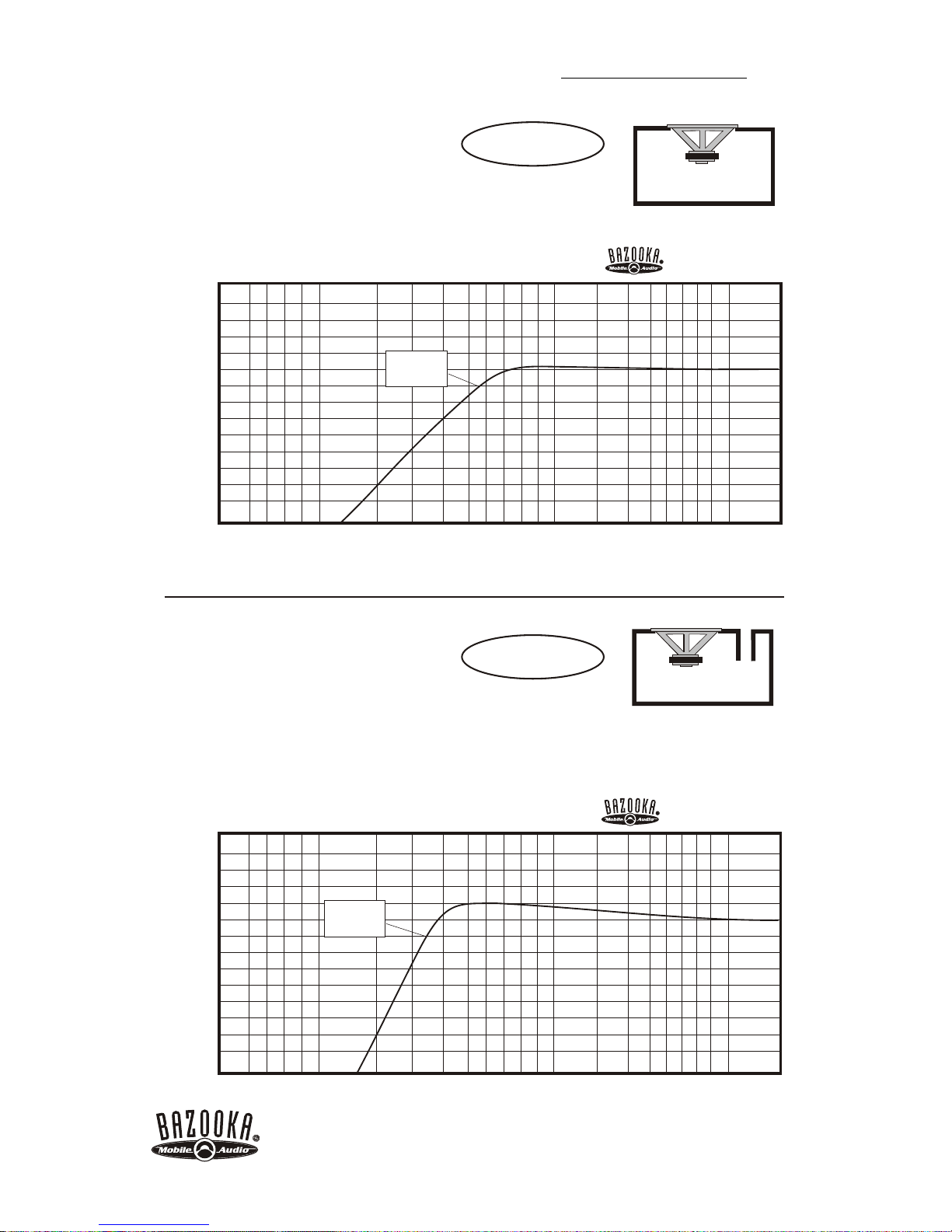

Ported EnclosurePorted Enclosure
RSW1024DVC-PM Amplitude Response (dB/Hz)RSW1024DVC-PM Amplitude Response (dB/Hz)
Sealed EnclosureSealed Enclosure
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 68F3 = 68
RSW1024DVC-PM Amplitude Response (dB/Hz)RSW1024DVC-PM Amplitude Response (dB/Hz)
Maximum Power
Handling 500 Watts
Maximum Power
Handling 400 Watts
Ported Enclosure
Box Volume *2.0 Cu Ft.
Port Frequency (Fb) 40Hz
Port Diameter 4 Inches
Port Length 8.35 Inches
* Box is given as internal air volume including port and driver displacement.
RSW1224DV RECOMMENDED ENCLOSURES
Please Note: Our suggested box volumes are given as internal air requirements with
voice coils in parallel.
Sealed Enclosure
Box Volume * 1.00 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 35F3 = 35
5
Ported EnclosurePorted Enclosure
RSW1224DVC-PM Amplitude Response (dB/Hz)RSW1224DVC-PM Amplitude Response (dB/Hz)
Sealed EnclosureSealed Enclosure
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 58F3 = 58
RSW1224DVC-PM Amplitude Response (dB/Hz)RSW1224DVC-PM Amplitude Response (dB/Hz)
Maximum Power
Handling 500 Watts
Maximum Power
Handling 400 Watts
The innovative design of the RSW component Woofers allows
you to liquid cool the voice coil motor assembly for maximum
power handling capability. With the addition of the CHIL
PLUG and the CHIL KIT from your local dealer, or directly from
SAS, you can easily add liquid cooling to your RSW Series
Component Woofer.
CHIL Plug
Utilizing the optional CHIL
plug can increase the RSW
woofers power handling up
to 50%.
6
