P4 Socket 478 Motherboard

IN845GV

User’s Manual

http://www.bcmcom.com

Declaration

Rights:

No part of this manual, including but not limited to the products and software described in it, may

be reproduced, transmitted, transcribes, stored in a retrieval system, or translated in any form or by

any means without the expressed written permission from the manufacturer.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies and are used only for identification or explanation

purposes without intent to infringe.

zIntel, Pentium4 are registered trademarks of Intel Corporation.

zMicrosoft and Windowsare registered trademarks of Microsoft Corporation.

zPhoenixand Awardare registered trademarks of Phoenix Technologies LTD..

Responsibility:

This manual is provided “As-Is” with no warranties of any kind, either expressed or implied,

including, but not limited to the implied warranties or conditions of this product’s fitness for any

particular purpose. In no event shall we be liable for any loss of profits, loss of business, loss of

data, interruption of business, or indirect, special, incidental, or consequential damages of any kind,

even the possibility of such damages arising from any defect or error in this manual or product.

We reserve the right to modify and update the user manual without prior notice.

WARNING:

Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin

cell (or equivalent) battery type to avoid risk of personal injury or physical damage to your

equipment. Always dispose of used batteries according to the manufacturer’s instructions, or as

required by the local ordinance (where applicable).

References:

This manual is created and written by BCM Technical Dept., but not limited, to the information

from the IN845GV External Production Specifications, and IN845GV Specifications. If any

comments, suggestions, or errors for this manual, please write an e-mail to support@bcmcom.com.

Compliance & Certificate

ISO 9001 Certificate:

This device was produced in our plant with advanced quality system certified by DNV QA Ltd. in

according to ISO 9001. This Certificate is valid for:

DESIGN & MANUFACTURE OF MOTHERBOARD AND PERSONAL COMPUTERS.

CE Declaration:

CE marking is a visible declaration by the manufacturer or his authorized representatives that the

electrical equipment to which it relates satisfies all the provisions of the 1994 Regulations.

FCC Compliance:

FCC stands for Federal Communications Commission.

This product complies with FCC Rules Part 15 and has been tested, and complied with the EMI

rules by a certified body. In normal operation, there shall be no harmful interference caused by this

device nor shall this device accept any interference received, including interference that may cause

undesired operation of this product.

Year 2000 Compliance:

This product is test to be qualified to bear the NSTL Year 2000 Compliant logo. Year 2000

problem is mainly a problem of computer software (OS), and the hardware issue. With the support

of BIOS on motherboard, the Y2K problem can be thoroughly conquered.

Easy Installation

Easy Installation Steps

The following “Easy Installation” steps are for users

accustomed to the assembly of a computer system. For those

individuals requiring more specific information, please refer

to the more detailed descriptions located within the latter

chapters of this manual.

Note: You must keep your power cable unplugged until the

following installation steps are completed.

Getting Started

Touch a grounded metal surface to release static electricity

stored in your body before unpacking your motherboard. For

details please refer to Precaution.

Install the CPU by correctly aligning the CPU with the socket

478 as noted in the motherboard diagram. Once aligned,

press down on the CPU gently but firmly and lock it. Next,

install the 3.3 volt un-

uffered DDR SDRAM into the 184

pin DIMM slots.

Plug in any peripheral card(s) that you want to be included in

the setup.

Plug in all cables included in the package except for the

power cord.

Please recheck all steps to ensure no mistakes have been

made and then plug in the power cord and turn on the power

to enter the BIOS setup, Chapter 3.

USER’S NOTICE 1

MANUAL REVISION INFORMATION 1

COOLING SOLUTIONS 1

CHAPTER 1 INTRODUCTION OF IN845GV MOTHERBOARD

1-1 FEATURE OF MOTHERBOARD 2

1-2 SPECIFICATION 2

1-3 PERFORMANCE LIST 4

1-4 LAYOUT DIAGRAM & JUMPER SETTING 5

CHAPTER 2 HARDWARE INSTALLATION

2-1 HARDWARE INSTALLATION STEPS 7

2-2 CHECKING MOTHERBOARD'S JUMPER SETTING 7

2-3 INSTALL CPU 9

2-3-1 GLOSSARY 9

2-3-2 ABOUT INTEL PENTIUM 4 478-PIN CPU 10

2-4 INSTALL MEMORY 11

2-5 EXPANSION CARD 12

2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION 12

2-5-2 ASSIGNING IRQ FOR EXPANSION CARD 12

2-5-3 INTERRUPT REQUEST TABLE FOR THIS MOTHERBOARD 13

2-5-4 AGP SLOT 14

2-6 CONNECTORS, HEADERS 15

2-6-1 CONNECTORS 15

2-6-2 HEADERS 18

2-7 STARTING UP YOUR COMPUTER 22

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERING SETUP 23

3-2 GETTING HELP 23

3-3 THE MAIN MENU 24

3-4 STANDARD CMOS FEATURES 26

3-5 ADVANCED BIOS FEATURES 28

3-6 ADVANCED CHIPSET FEATURES 31

3-6-1 DRAM TIMING SETTINGS 32

3-7 INTEGRATED PERIPHERALS 33

3-7-1 ONBOARD IDE FUNCTION 34

3-7-2 ONBOARD DEVICE FUNCTION 35

3-7-3 ONBOARD SUPER IO FUNCTION 36

3-8 POWER MANAGEMENT SETUP 38

3-8-1 PM TIMER RELOAD EVENTS 40

3-9 PNP/PCI CONFIGURATION SETUP 40

3-9-1 IRQ RESOURCES 41

3-10 PC HEALTH STATUS 42

3-11 MISCELLANEOUS CONTROL 43

3-12 LOAD STANDARD/OPTIMIZED DEFAULTS 44

3-13 SET SUPERVISOR/USER PASSWORD 44

TABLE OF CONTENT

USER’S NOTICE

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED

OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN

PERMISSION OF THE MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION NECESSARY TO USE OF RX845GL/IN845GL MOTHER-

BOARD AND WE DO ASSURE THIS MANUAL CONTENT AS MANY INFORMATION AS POSSIBLE, BUT WE

RESERVE RIGHT TO CHANGE, UPDATE ANYTIME WITHOUT PRIOR NOTICE. MANUFACTURER PROVIDES

THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY

INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS

OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS OF ANY KIND

ALIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE

REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE

USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT

INTENT TO INFRINGEMENT.

Manual Revision Information

Reversion Revision History Date

1.0 First Release Nov. 2003

Item Checklist

5IN845GV

5Cable for IDE/Floppy

5CD for motherboard utilities

□Cable for USB Port 3/4 (Optional)

5IN845GV User’s Manual

Intel Pentium 4 Processor Family

Cooling Solutions

As processor technology pushes to faster speeds and higher performance, thermal management becomes

increasingly crucial when building computer systems. Maintaining the proper thermal environment is key to

reliable, long-term system operation. The overall goal in providing the proper thermal environment is keeping the

processor below its specified maximum case temperature. Heatsinks induce improved processor heat dissipation

through increased surface area and concentrated airflow from attached fans. In addition, interface materials allow

effective transfers of heat from the processor to the heatsink. For optimum heat transfer, Intel recommends the

use of thermal grease and mounting clips to attach the heatsink to the processor.

When selecting a thermal solution for your system, please refer to the website below for collection of heatsinks

evaluated and recommended by Intel for use with Intel processors. Note, those heatsinks are recommended for

maintaining the specified Maximum T case requirement. In addition, this collection is not intended to be a

comprehensive listing of all heatsinks that support Intel processors.

For vendor list of heatsink and fan, please visit :

http://developer.intel.com/design/Pentium4/components/index

Chapter 1

Introduction of IN845GV Motherboard

1-1 Feature of motherboard

The IN845GV motherboard is design for use Intel Pentium 4 Processor in 478 Pin Package Processor

with Hyper-Threading Technology support, the Intel 845GV Chipset delivers a high performance and

professional desktop platform solution. Which utilize the Socket 478 design and the memory size

expandable to 2.0GB.

IN845GV motherboard use the Intel 845GV Chipset Supports 400/533MHz System Bus in data transfer

rate, This motherboard provided a wide range of memory choices with 133MHz SDRAM clock

frequency to support DDR333/266/200 SDRAM. This motherboard offers ULTRA ATA 100 to

provide speedier HDD throughout that boosts overall system performance.

With integrated 2D/3D Graphics Accelerator which supports 256 bit graphics core, and supports hardware

motion compensation assist for software MPEG/DVD decode, makes this board a low cost alternative to a

add on video card. The IN845GV also provide an AGP connector for those who wish to use of a digital

display equip with DVI , the IN845GV support digital channel via an AGP Digital Display card (ADD)

The AGP connector support ADD card Only.

The IN845GV motherboard including PCI LAN Controller chip support 10/100 Mb/sec Base transfer

rate.

Its also has integrated onboard an AC’97 2.1 CODEC support 3D surround positioning Audio, which is

fully compatible with Sound Blaster Prothat gives you the best sound quality and compatibility.

With USB control as well as capability of expanding to 6 USB2.0 function ports to meet faster data

transfer, built-in hardware monitor function. This enable system monitor and protect your computer.

These motherboards provided design in hardware to protect BIOS from virus crash BIOS data.

These motherboards provides special function in BIOS Setup to setting CPU Host clock step by step

increasing.

IN845GV provides high performance & meets future specification and needs. It is really wise choice of

computing solution.

1-2 Specification

Spec Description

Design ∗Micro ATX form factor 4 layers PCB size: 9.5”(W) x 9(D)

(24.4x23.0cm)

Chipset ∗Intel 845GV Graphics Memory Controller Hub (GMCH)

Chipset for IN845GV

∗Intel 82801DB I/O Controller Hub (ICH4) Chipset

CPU Socket

(mPGA478B Socket)

∗Support Intel Pentium 4 478 Pin package utilizes Flip-Chip Pin

Grid Array (FC-PGA2) package processor

∗Support CPU Frequency 400MHz & 533MHz for IN845GV

∗Support 1.5G∼3.0G (IN845GV) 478 Pin Pentium 4 processor

∗Reserves support for future Intel Pentium 4 processors

Memory Socket ∗184-pin DDR SDRAM module socket x2

∗Support Memory Type 64Mb to 512Mb Technology

∗Support Only 8x and 16x SDRAM device with 4 banks

∗Support DDR333/DDR266/DDR200 SDRAM (DDR333 at

533MHz FSB Only)

∗Expandable to 2.0GB

Expansion Slot &

Headers

∗Supports AGP slot x1 (“ADD” Card ONLY)

∗32-bit PCI slot x3

∗CNR slot x1

Integrate IDE ∗Two PCI IDE controllers support PCI Bus Mastering, ATA

PIO/DMA and the ULTRA DMA 33/66/100 functions that

deliver the data transfer rate up to 100 MB/s

LAN On Board

∗Realtek RTL8100BL PCI LAN Controller chip

∗Supports 10/100 Mb/sec data transfer rate

Audio ∗AC’97 Digital Audio controller integrated

∗AC’97 2.1 Audio CODEC on board

∗Sound Blaster Pro compliant

∗Audio driver and utility included

BIOS ∗Award 2MB Flash ROM

Multi I/O ∗PS/2 keyboard and PS/2 mouse connectors

∗Floppy disk drive connector x1

∗Parallel port x1, Serial port x2

∗USB 2.0 connector x2

∗USB 2.0 headers x2 (connecting cable option)

∗Audio connector Line-in, Line-out, MIC & Game Port

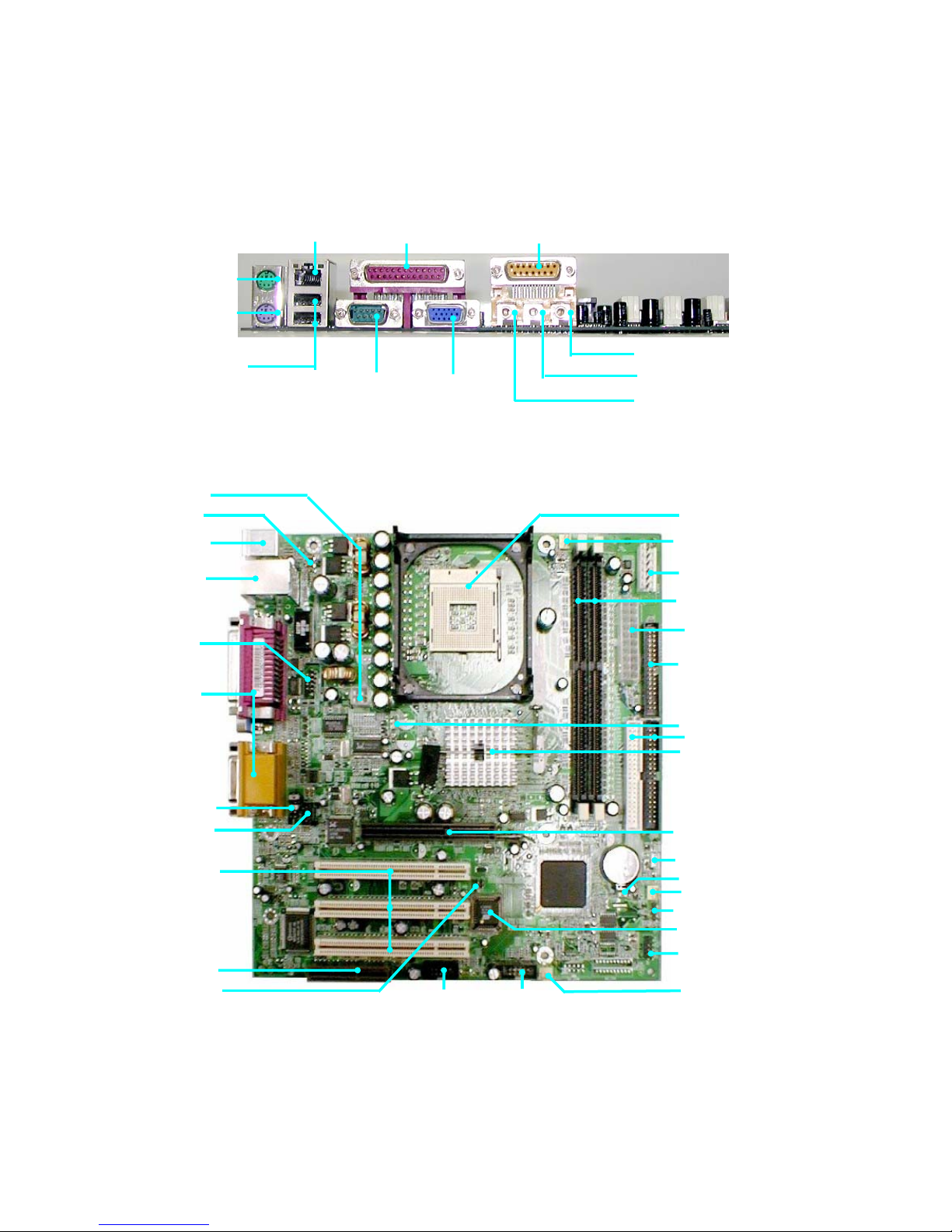

1-4 Layout Diagram & Jumper Setting

IR Connector

CNR Slot

Front Panel Audio

PC99 Back Panel

CD Audio

PCI Slot

AGP Slot

(Supports “ADD” Card ONLY)

K/B Power ON

Jumper (JP1)

Floppy Connector

Intel 845GV Chip

Front Panel Connector

ATA 100 IDE Conn.

Clear CMOS (JP4)

ATX Power Conn.

(USB3, USB2)

USB Port

CPU FAN

2MBit Flash ROM BIOS

CPU 478 Socket

DDR DIMM X2

Wake On LAN

SYSFAN

ATX 12V Power Conn.

USB Port

/LAN Connector

PS2 KB/Mouse Port

LINE-OUT

LINE-IN

MIC

GAME/MIDI PORT

COM1 VGA

PS/2 MOUSE

PS/2 Keyboard

USB

LAN

ATX P9 Power Conn.

SYSFAN2

COM2 Connector

Speaker

(JP2)

CPU Frequency Select

Inhaltsverzeichnis

Andere BCM Hauptplatine Handbücher

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
