Beamz LCB-384 Bedienungsanleitung



Ref. Nr. 150.560

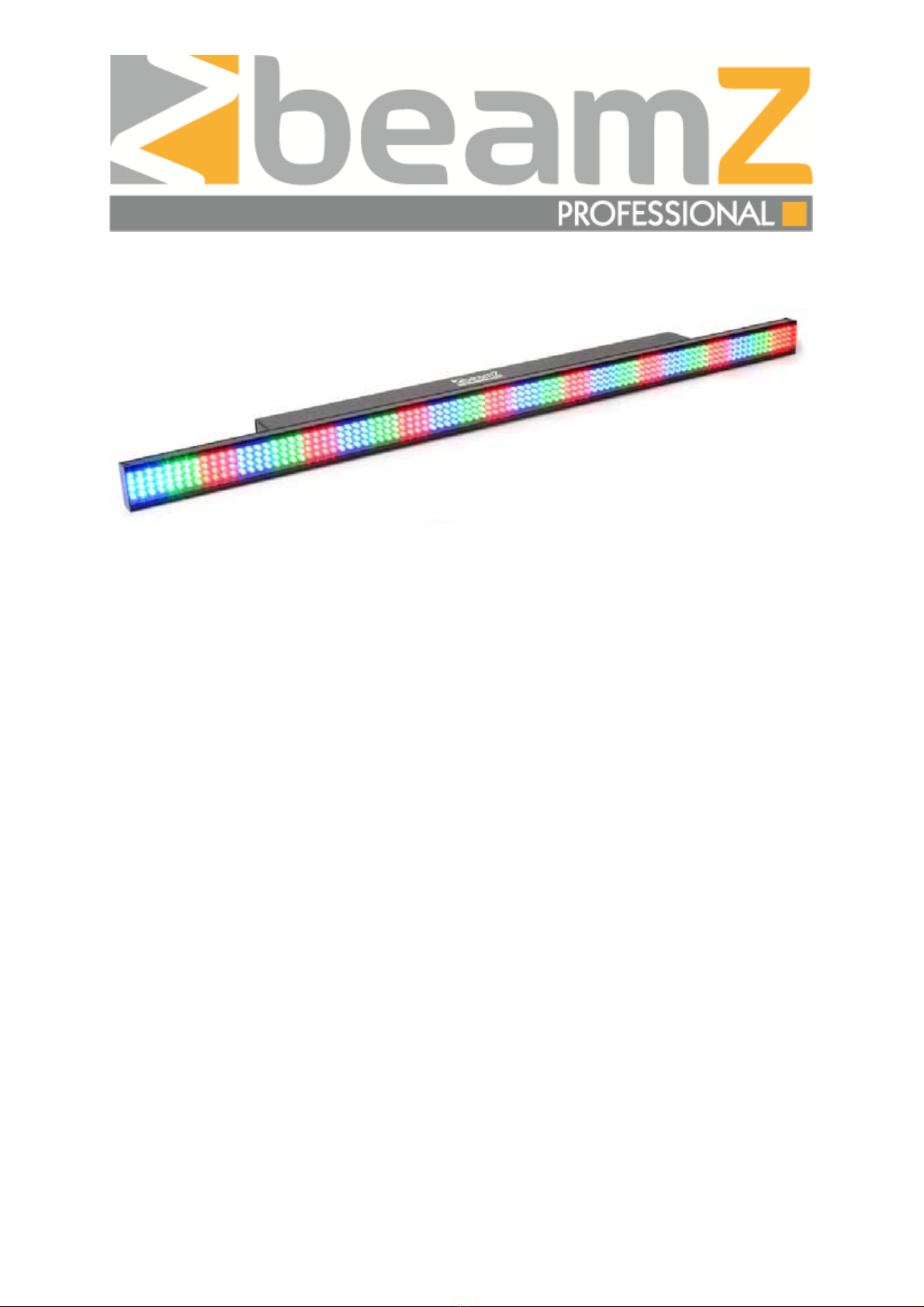

LED COLORLINE BAR LCB-384

MANUAL

‐2‐



Thank you for purchasing our company products.

Please read these instructions carefully to enjoy optimum performance and a longer service life before

you start to use.

CONTENTS

CONTENTS...............................................................................................................................................2

UnpackingInspections............................................................................................................................3

Unpackinginstructions........................................................................................................................3

Checkingthecontentsofthecarton:..................................................................................................3

SafetyInstructions...................................................................................................................................3

ProductOverview....................................................................................................................................4

FunctionsIntroductions..........................................................................................................................4

MainFunctions....................................................................................................................................4

OperationInstructions........................................................................................................................4

Powersupplyconnecting：............................................................................................................4

SetparameterintheActionMode..................................................................................................5

SetparameterintheSystemSetupmode:.....................................................................................5

FunctionsforActionmodeandsystemsetupmode：..................................................................6

PowersupplybystoragebatteryofWi‐Powerhouse.....................................................................6

Master/Slavemode.........................................................................................................................7

Automatic........................................................................................................................................7

ControlledbyDMX512....................................................................................................................7

Maintenance.........................................................................................................................................10

Specification..........................................................................................................................................10

CE&R&TTEDeclarationofConformity.................................................................................................11

‐3‐



UNPACKING INSPECTIONS

Unpacking instructions

Please unpack the carton and check the goods carefully when you receive it , if discover

packing damage, shortage or quality problem, please notify the shipper and reject the goods.

Before using this product, please read the instructions carefully and keep it in a safe place for

future reference.

Checking the contents of the carton:

The product, Power cord, Instruction Manual, Mounting Braket *2, Screws

SAFETY INSTRUCTIONS

Safety and regulatory power socket with high quality output should be used .

Always connect the product to a grounded circuit to avoid the risk of electrocution.

Never put tiny metal objects such as a screwdriver, iron wire and coins, etc. into the internal or

stretch into the machine in case of short circuit .

Please make sure to connect the proper voltage and do not higher or lower than that stated on

the decal or rear panel of the product .

Avoid hitting, crashing or squeezing with other objects in transportation. Never carry the

product from the power cord or any moving part . Always use the hanging / mounting bracket

or the handles.

The product is used in door only .

Never pull or tug on the cord and change it for another one , stop using it when it is damaged

or becomes hot .

Stop using the product once there is sparks when connecting with the power plug .

Can not operate product with wet hands and never place it near the water or other liquid.

Make sure there are no flammable materials close to the fixture while operating . Always install

it in a location with adequate ventilation.

Never replace the lighting source with different specification and rating when the original one

is damaged.

Make sure to power off before replacing the light source or the fuse. Never do it while it is on.

The ambient temperature is no more than 40°C(104°F) .

Never clean the fixture by water, thinner or other dissolved agent .

Stop using the product in case of a serious operating problem and send it to our maintenance

agent immediately. Never repair by non-professional workers .

Avoid direct eye exposure to the light source while the product is on.

‐4‐



PRODUCT OVERVIEW

1. Power Input

2. Power Output

3. DMX signal input

4. DMX signal output

5. Control panel

6. Six-pin Connetor

7. Sound Sensitivity Adjustment

8. Microphone

9. Safety Eyebolt

10. Four-pin Connector

11. Master/Slave signal output

12. LEDs

13. Back Cover

14.Mounting Bracket

FUNCTIONS INTRODUCTIONS

Main Functions

4 DMX channels .

Automatic, sound active, 32 units via master/slave mode .

Built-in 23 actions, run speed and strobe speed can be ajusted .

With static colors, strobe, dimmer, color mixing and changing effects .

Operation Instructions

Power supply connecting：

Two sockets in the product, Power In and Power Out , the product can be supplied power by the

power out. Maximum output power of the socket is 480W .

‐5‐



Set parameter in the Action Mode

1. Power on until it resets ok and press Up or Down to display Act.

2. Press Enter and then press UP or Down to choose which kind of action mode you need.

3. Press Enter and then press UP or Down for adjustment , press Enter to the next parameter

when there are many parameters .

4. Press Mode to exit .

Note: Digital means the parameters.

Axxx action mode.

Fxxx Flash Speed, F=000 no flash, F=100 Flash

by sound.

Pxxx Run Speed, P=000 Stop running P=50

Fastest speed P=051-100 Sound Active.

A021 Digital means functions：

P000-P100, Red

F000-F100, Green

C000-C100, Blue

Set parameter in the System Setup mode:

1. Power on until it resets ok and press Up or Down to display SYS .

2. Press Enter and then press UP or Down to choose which kind of parameter you need.

3. Press Enter and then press UP or Down to adjust .

4. Press Mode to exit .

Note：

When display S DAD and press Enter to set up DMX value .

When display S AAD and press Enter to display 8888, it resets ok with all light on.

5. Factory parameter Settings

With the factory parameter setting function, users can go back the factory parameter setting

after adjusting by pressing the button of Mode for five seconds or so.

Maximum connecting machines are

15 units with the same model

POWER OUT

POWER IN

‐6‐



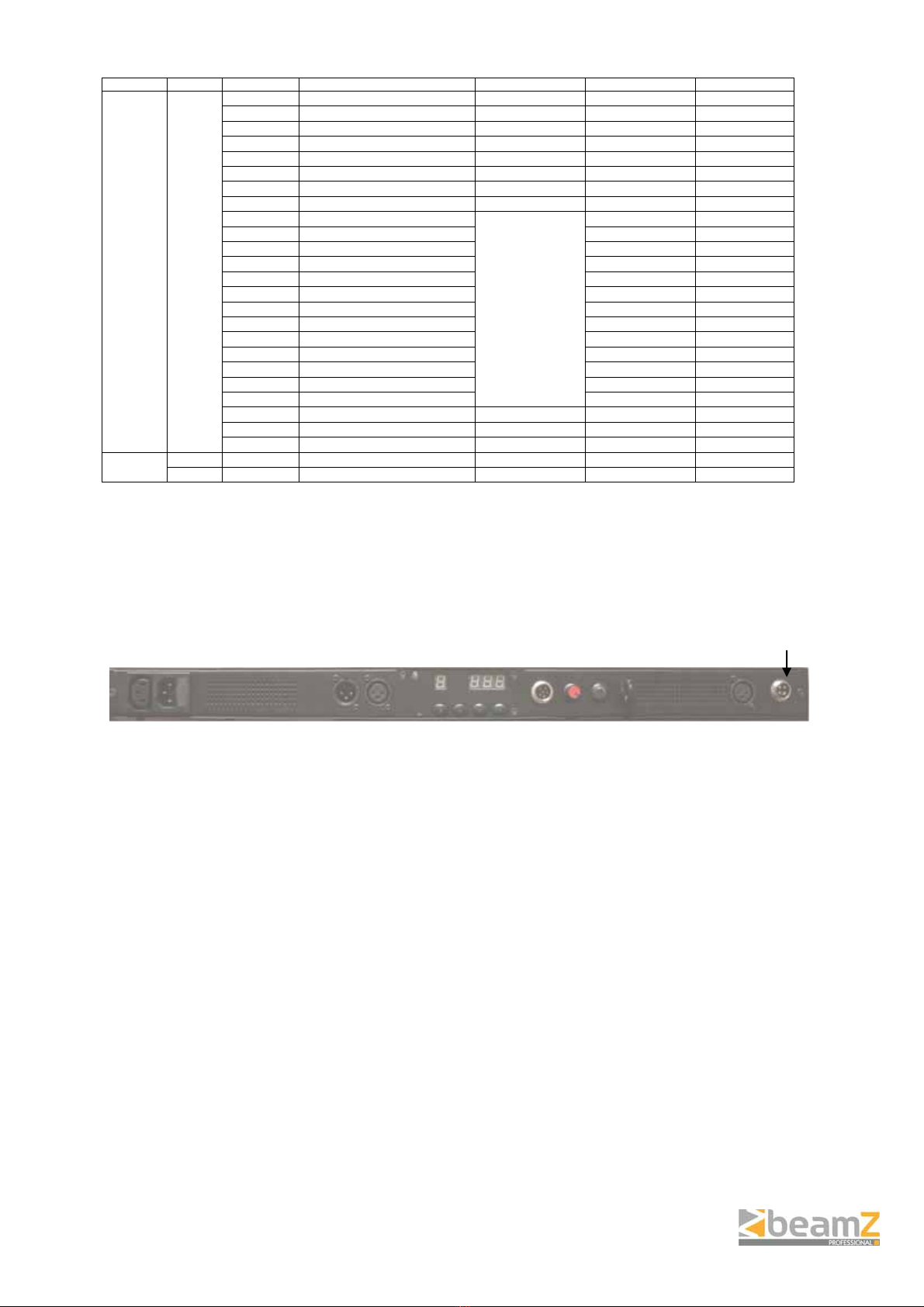

Functions for Action mode and system setup mode：

MODE FUNC PROGRAM FUNTION/PROGRAM (P)RUN SPEED (F) FLASH SPEED (C) COLOR

ACt A 000

000 Blackout

001 Red 000 – 100

002 Green 000 – 100

003 Blue 000 – 100

004 Yellow 000 – 100

005 Purple 000 – 100

006 Cyan 000 – 100

007 White 000 – 100

008 Color Change 1

Automatic

000-050

Sound Active

051-100

000 – 100

009 Color Change 2 000 – 100

010 Color Change 3 000 – 100

011 Color Change 4 000 – 100

012 Color Change 5

013 Color Change 6

014 Sequential Color Chase 1

015 Sequential Color Chase 2

016 Sequential Color Chase 3

017 Sequential Color Chase 4

018 Sequential Color Chase 5

019 Sequential Color Chase 6

020 Sequential Color Chase 7

021 RGB Red (000-100) Green (000-100) Blue (000-100)

022 Color Fader 000-100

023 Automatic Program (Sound) 001-100

SYS S dAd DMX Channel Adressing 001-509

S Aad RESET

Power supply by storage battery of Wi-Powerhouse

The storage battery of the Wi-Powerhouse provide DC 12V can be connected through four-pin

connector without other power supply when plug power 220V AC, the Wi-Powerhouse will stop

supplying power .

Wi-Powerhouse input

‐7‐



Master/Slave mode

Connect the LCB-384 as below picture and power on all the connecting products. Control panel of

master displays current saved mode and slave displays L005.L009.L013.Number of products

connected can be shown on the slave control panel, slaves follow the actions of master.

Master/Slave connecting：

Automatic

LCB-384 will display current actions automatically without music or when sound sensitivity is turned

off.

Controlled by DMX512

Follow below picture and power on all connected products. The products will be controlled once the

address is set up.

DMX512 signal is received and transmitted by the first product, the others follow the actions of the first

one.

Master/Slave mode by DMX512:

DMX INDMX OUT Master/Slave link

Slave

DMX IN

DMX OUT

DMX IN

DMX OUT

Continue

‐8‐



Multi-groups connecting with DMX

Wonderful colors and beautiful lighting effect can be displayed by multi-groups of products controlled

by DMX512, DMX512 signal is received and transmitted by the the first product for each groups.

Maximum connecting groups are 32.

Operation Instructions for DMX512：

In the mode of System setup, press Up or Down, and then choose “SDAD”to set up DMX value.

The channels for LCB-384：

DMX IN

SLAVE

DMX

No.1 No.2 No.3 No. ..

DMX

‐9‐



CH1 Mode （0-23）

CH2 Run Speed （0-100%）

CH3 Strobe Speed （0-100%）

CH4 Color （0-100%）

DMX Value Functions

CHANNEL VALUE FUNCTION CH 2 CH 3 CH 4

Static colors

Flash

speed

000 – 249

Sound

Active

249 – 255

000 – 009 Blackout

010 – 019 Red

020 – 029 Green

030 – 039 Blue

040 – 049 Yellow

050 – 059 Purple

060 – 069 Cyan

070 – 079 White

Color Changes

Run Speed

Automatic

000 – 127

Sound Active

128 – 255

Flash

speed

000 – 249

Sound

Active

249 – 255

080 – 089 Color change 1

090 – 099 Color change 2

100 – 109 Color change 3

110 – 119 Color change 4

120 – 129 Color change 5

130 – 139 Color change 6

Sequential Color

Chases

140 – 149 Color chase 1

150 – 159 Color chase 2

160 – 169 Color chase 3

170 – 179 Color chase 4

180 – 189 Color chase 5

190 – 199 Color chase 6

200 – 209 Color chase 7

210 – 219 RGB Color Mix mode Red

0-100% Green

0-100% Blue

0-100%

220 – 229 Color Fade Fade speed

0-100%

230 – 255 Auto Run (sound active

only)

Note: CH1 DMX Value is 080-209, 230-255, CH2 000-127 for auto run speed,128-255 for sound

active with music,auto display without music.

‐10‐



MAINTENANCE

The unit should be cleaned periodically to ensure the optimum performance, the smudginess can

decrease the life of light and the output of light is affected by the dust which can make the machine

overheating. In general, make the maintenance at least two times a month. Be sure to power off the

unit before cleaning .

Do not clean until the unit recovers normal temperature since high temperature for using, use the lens

tissue or soft cotton cloth with alcohol to wipe gently.

Cleaning frequency depends on the environment in which the fixture operates, damp, smoky or dirty

surrounding can cause greater accumulation of dirt on the optics. Never rub or press strongly on the

panel.

SPECIFICATION

Voltage...............100-240V AC 50/60Hz

Input current ...................................0.4A

Power..............................................32W

Fuse..........................................2A 250V

Light source........................384pcs LED

............................................ 128 pcs red

......................................... 128pcs green

............................................128pcs blue

Beam Angle.............................65° x 30°

Weight............................................2.5kg

Size...................L965 x W90 x H120mm

Inhaltsverzeichnis

Andere Beamz Beleuchtungsausrüstung Handbücher

Beamz

Beamz MadMax 5x10W COB LED Matrix Bedienungsanleitung

Beamz

Beamz 150.493 Bedienungsanleitung

Beamz

Beamz Matrix 22 Quad Moving Head Bedienungsanleitung

Beamz

Beamz LED PARBAR 4Way Tricolor Bedienungsanleitung

Beamz

Beamz 152.909 Bedienungsanleitung

Beamz

Beamz 152.918 Bedienungsanleitung

Beamz

Beamz BT410 Bedienungsanleitung

Beamz

Beamz MHL 108 WASH 150.509 Bedienungsanleitung

Beamz

Beamz MHL90 Bedienungsanleitung

Beamz

Beamz Butterfly II 6x3W RGBAWP IR Bedienungsanleitung

Beamz

Beamz MultiRadiant 6x3W RGBAW LED 48 Beams Bedienungsanleitung

Beamz

Beamz LED PAR 4X 8W Quad Linkable Montageanleitung

Beamz

Beamz 151.230 LED PAR 64 18 x 10W Alu Quad IR DMX Bedienungsanleitung

Beamz

Beamz LS-1W RGB DMX Bedienungsanleitung

Beamz

Beamz FINGERS 7 Bedienungsanleitung

Beamz

Beamz FlatPAR-5 x 8W Quad DMX Bedienungsanleitung

Beamz

Beamz BT270 Bedienungsanleitung

Beamz

Beamz LCB-48IP Bedienungsanleitung

Beamz

Beamz Panther 35 MKII Bedienungsanleitung

Beamz

Beamz UplIght Par Bedienungsanleitung

Beamz

Beamz BS98 Strobo Bedienungsanleitung

Beamz

Beamz Double Helix 8x3W RGBW DMX Bedienungsanleitung

Beamz

Beamz 151.240 Bedienungsanleitung

Beamz

Beamz 151.236 LED PAR 64-36x3W Alu RGB IR DMX Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
