Behringer AB100 Bedienungsanleitung

INSTRUMENT/AMP SELECTOR AB100

Thank you for showing your confidence in us by purchasing the BEHRINGER

INSTRUMENT AMP SELECTOR AB100. This high-quality instrument and amp switch

is designed for both guitar & bass players who use several amps or instruments.

The AB100 allows you to switch between gear noiselessly and instantaneously,

adjusting individual volume settings without coloring the sound of your instrument.

1. CONTROLS

Controls and connections

IN 1: this 1 4" TS jack is the first AB100 input. Plug in an instrument here

(guitar, bass, etc.).

OUT A: this 1 4" TS jack is the first AB100 output. Plug in an amp or an effect

here.

OUT B / IN 2: this 1 4" TS jack can be used as a second output or a second

input, depending on the position of selector .

The MODE selector adapts the AB100 to your system: If you play one

instrument and two amps, set MODE in the upper position to get one input for

two outputs. In this case, connector serves as a second output (OUT B).

Otherwise, if you play two instruments and one amp, set MODE in the lower

position to get two inputs for one output. In that case, connector serves

as a second input (IN 2).

Use the A LEVEL button to set the volume of OUT A. The output is active when

the green LED is lit.

When MODE is in the upper position, use the B LEVEL button to set the volume

of OUT B. The output is active when the red LED is lit.

Use the footswitch to noiselessly and instantaneously toggle between two

amps (MODE selector in the upper position) or two instruments (MODE selector

in the lower position).

Use the DC IN connection to plug in a 9 V power supply (not included).

The BATTERY COMPARTMENT is located underneath the pedal cover. To install or

replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover. Be

careful not to scratch the unit.

+The AB100 has no on/off switch. As soon as you insert the jack into the IN

connector, the AB100 begins running. When not using the AB100, remo e

the jack from the IN connector. This extends the life of the battery.

The ERIAL NUMBER is located at the bottom of the unit.

INSTRUMENT/AMP SELECTOR AB100

Technical specifications and appearance subject to change without notice. The information contained herein is correct at the time

of printing. The names of companies, institutions or publications pictured or mentioned and their respective logos are registered

trademarks of their respective owners. Their use neither constitutes a claim of the trademarks by BEHR NGER® nor affiliation of the

trademark owners with BEHR NGER®. BEHR NGER® accepts no liability for any loss which may be suffered by any person who relies

either wholly or in part upon any description, photograph or statement contained herein. Colours and specification may vary slightly

from product. Products are sold through our authorised dealers only. Distributors and dealers are not agents of BEHR NGER® and have

absolutely no authority to bind BEHR NGER® by any express or implied undertaking or representation. No part of this manual may be

reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording of any kind,

for any purpose, without the express written permission of BEHR NGER Spezielle Studiotechnik GmbH. BEHR NGER® is a registered

Willich-Münchheide , Germany. Tel. +49 2154 9206 0, Fax +49 2154 9206 4903

2. WARRANTY

For our current warranty terms, please refer to our website at http: www.behringer.com.

3. SPECIFICATIONS

In 1

Connector 1 4" TS

Impedance 500 kW

Out A

Connector 1 4" TS

Impedance 2.2 kW

In 2/Out B

Connector 1 4" TS

Impedance In 2 500 kW

Impedance Out B 2.2 kW

Power supply 9 V, 100 mA DC regulated

PSU-SB-CN BEHRINGER 220 VAC adaptor China

PSU-SB-EU BEHRINGER 230 VAC adaptor Europe

PSU-SB-JP BEHRINGER 100 VAC adaptor Japan

PSU-SB-SAA BEHRINGER 240 VAC adaptor Australia

PSU-SB-UK BEHRINGER 240 VAC adaptor UK

PSU-SB-UL BEHRINGER 115 VAC adaptor USA

Power connector 2 mm DC jack, negative center

Battery 9 V type 6LR61

Power consumption 25 mA

Dimensions (H x W x D) approx. 54 mm (2 1 8") x 70 mm (2 3 4") x 123 mm (4 4 5")

Weight approx. 0.33 kg (0.73 lbs)

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may

be made from time to time to e isting products without prior notice. Specifications and appearance may therefore differ from those

listed or shown.

4. SAFETY INSTRUCTIONS

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself.

Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.

No utilizar cerca de agua o instalar cerca de fuentes de calor. Utilice sólo accesorios y aditamentos autorizados. No intenté

reparar el producto usted mismo. Contacte a nuestro personal técnico cualificado para servicio y reparaciones, especialmente

cuando la fuente o el cable de alimentación estén dañados.

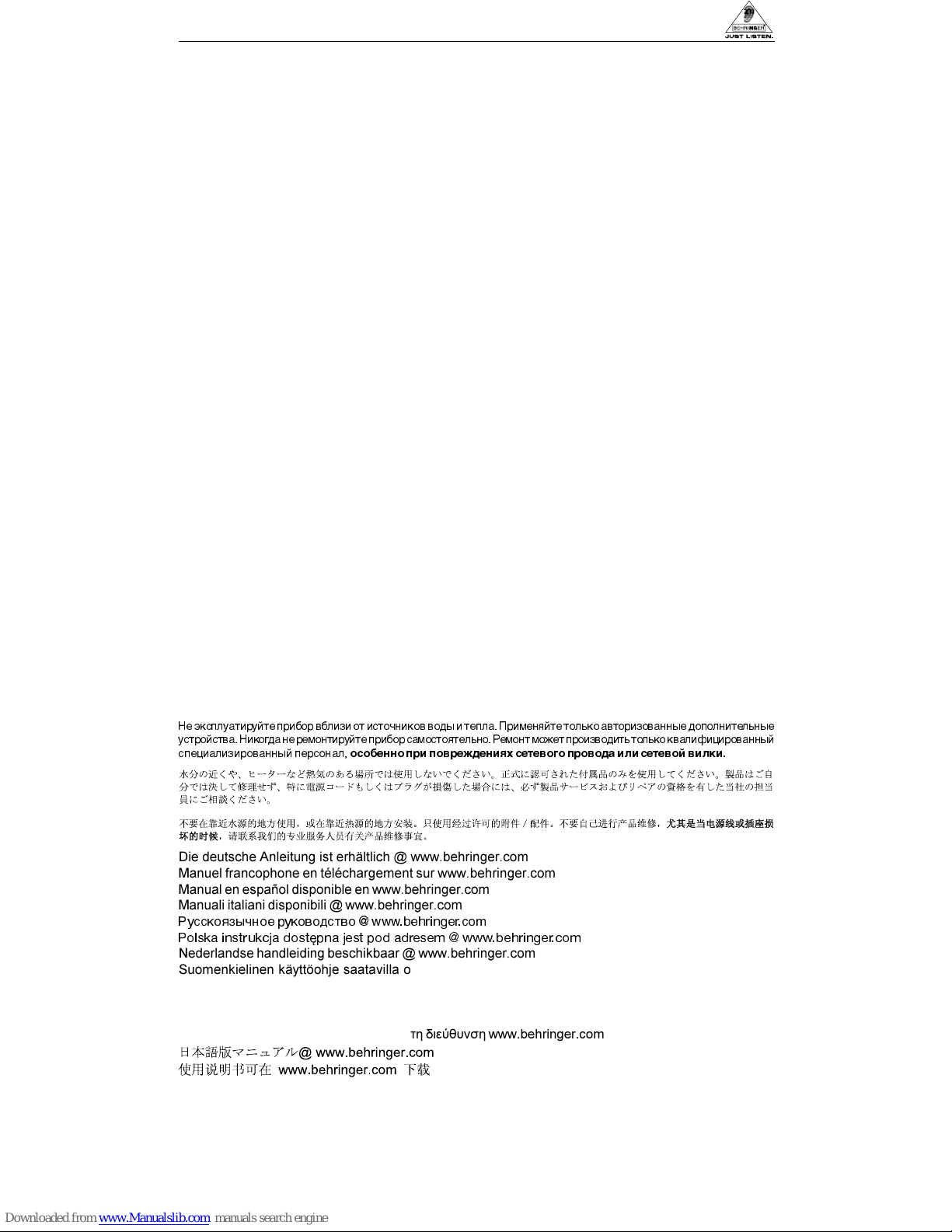

Íåýêñïëóàòèðóéòåïðèáîðâáëèçèîòèñòî÷íèêîââîäûèòåïëà.Ïðèìåíÿéòåòîëüêîàâòîðèçîâàííûåäîïîëíèòåëüíûå

óñòðîéñòâà.Íèêîãäàíåðåìîíòèðóéòåïðèáîðñàìîñòîÿòåëüíî.Ðåìîíòìîæåòïðîèçâîäèòüòîëüêîêâàëèôèöèðîâàííûé

ñïåöèàëèçèðîâàííûéïåðñîíàë 

îñîáåííîïðèïîâðåæäåíèÿõñåòåâîãîïðîâîäàèëèñåòåâîéâèëêè.

Die deutsche Anleitung ist erhältlich @ www.behringer.com

Manuel francophone en téléchargement sur www.behringer.com

Manual en español disponible en www.behringer.com

Manuali italiani disponibili @ www.behringer.com

Ðóññêîÿçû÷íîåðóêîâîäñòâî@www.behringer.com

Polskainstrukcjadostêpnajestpodadresem@www.behringer.com

Nederlandse handleiding beschikbaar @ www.behringer.com

Suomenkielinen kä ttöohje saatavilla osoitteesta www.behringer.com

Svensk manual finns tillgänglig på www.behringer.com

Dansk vejledning findes på @ www.behringer.com

Manual português disponível @ www.behringer.com

Åëëçíéêü åã÷åéñßäéï õðÜñ÷åé äéáèÝóéìï óôç äéåýèõíóç www.behr nger.com
