Behringer PB600 Bedienungsanleitung

behringer.com

Pedal Board with 9 V DC Power Supply and Patch Cables

Footswitches and Controllers

Ultra-compact and lightweight pedal

board for transporting up to 6 eﬀects

pedals, including patch cables

Generous 1.7 A power adapter

included for powering more

than 12 devices*—includes

1 x 6 daisy-chain cabling

Ultra-rigid plastic design withstands

even heavy impact

High-quality components and

exceptionally rugged construction

ensure long life

Conceived and designed by

BEHRINGER Germany

When eﬀects are an integral part of

your rig, their power adapters and

patch cables can often be the most

vulnerable part, and the most likely

to sabotage your set if they're not

pampered. Rather than tossing your

pedals, power adapters and all other

cabling into a duﬀel bag after a gig,

keep them safe—and ready to rock

at a moment’s notice—with

the PB600.

It's all about connections

This awesome pedal board makes

hooking up six 2.5" x 4.5" pedals as

easy as hooking up just one (of course,

if you’re using pedals that aren’t

2.5" x 4.5", the snug foam padding

can be cut to accommodate pedals of

varying shapes). The PB600 includes

¼" patch cables, so you can leave your

pedals connected to one another,

ready to pass signal even when you’re

transporting them. It also comes with

1 x 6 daisy chain cabling so that when

you plug in the 1.7 A power adapter, all

your pedals receive power. Meanwhile,

all cabling remains safe and free of

strain. Failure is almost guaranteed

when you’re dealing with a rat’s nest

of loose cabling, but with the PB600,

your eﬀects chain is always safe and

organized.

* Depends on the power consumption

of the eﬀects pedals, etc.

Continued on next page

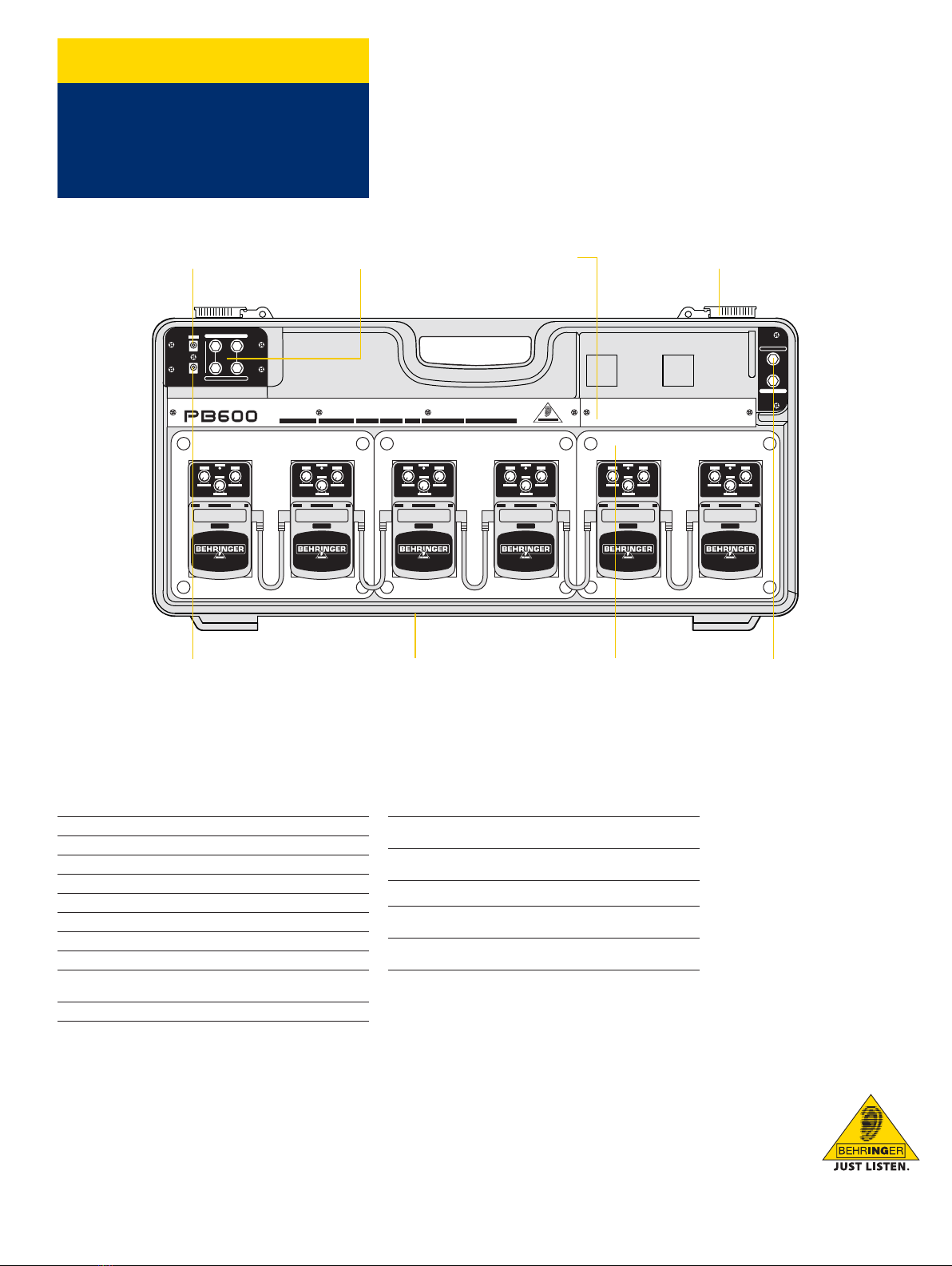

PB600

Universal Eﬀects

Pedal Board

Page 2 of 3

VD400 CS400

HB01

EQ700DR600 BO300 CS400

HB01

PH9 TO800 EQ700

ACX900

VT100FX

VT30FX

VT100FXH

412H-BK

Bugera 333XL

AM100

UM300

412H-BK

Hookup Diagram

PB600

Universal Eﬀects

Pedal Board

Connect your guitar, bass or

keyboard to the single ¼" input in the

upper right corner of the board. A pair

of ¼" FROM EFFECTS jacks in the upper

left corner allow you to connect stereo

eﬀects, and two ¼" OUTPUT TO AMP

jacks send a left and right stereo signal

to up to two amps.

When it’s time to load out, just

unplug the power supply, disconnect

your guitar and amp, put the lid back

on the PB600 and slide the locking

latches back into place. The heavy-

impact plastic casing will protect your

pedals from the very worst dings,

scrapes and scratches the road throws

your way.

Page 3 of 3

©2009 BEHRINGER International GmbH.Technical speciﬁcations and appearance subject to change without notice.The information contained herein is correct at the time of printing. BEHRINGER accepts no liability for any loss which

may be suﬀered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. All trademarks (except BEHRINGER, the BEHRINGER logo and JUST LISTEN) mentioned belong to

their respective owners and are not aﬃliated with BEHRINGER. FOR INTERNAL USE BY BEHRINGER DEALERS ONLY. DO NOT DISTRIBUTE. 985-10000-00382

Order via the BEHRINGER 24/7 Dealer Portal or contact the BEHRINGER location nearest you:

BEHRINGER Australia tel.: +61 3 9877 7170, fax: +61 3 9877 7870 BEHRINGER Germany tel.: +49

2154 9206 4149, fax: +49 2154 9206 4199 BEHRINGER Japan tel.: +81 3 5281 1180, fax: +81 3 5281

1181 BEHRINGER Singapore tel: +65 5845 1800, fax: +65 6214 0275 BEHRINGER USA / CANADA

tel: +1 425 672 0816, fax: +1 425 673 7647 behringer.com

SPECIFICATIONS

Connectors ¼" TS, unbalanced

Power supply 9 V, 1.7 A switching adaptor(included)

USA/Canada 120 V~, 60 Hz GPE182-090170-1 (HSB-UL)

Europe/Australia 230 V~, 50 Hz GPE182-090170-2 (HSB-EU)

U.K. GPE182-090170-3 (HSB-UK)

Korea 220V~, 60 Hz GPE182-090170-4 (HSB-SAA)

China 220 V~, 50 Hz GPE182-090170-5 (HSB-CCC)

Japan 100 V~, 50/60 Hz GPE182-090170-6 (HSB-JP)

Power connector 2 mm DC jack, center negative

(with daisy-chain cable included)

Power consumption 2 mA

Dimensions (H x W x D)

PB1000 504.3 mm (19 ⁄") x 663.6 mm (26 ⁄") x

115 mm (4 ½")

PB600 329 mm (13") x 663.6 mm (26 ⁄") x

115 mm (4 ½")

Weight

PB1000 approx. 5.33 kg (11.8 lbs) including PSU

& daisy chain

PB600 approx. 3.8 kg (8.4 lbs.) including PSU &

daisy chain

BEHRINGER is constantly striving to maintain the highest professional stan-

dards. As a result of these eﬀorts, modiﬁcations may be made from time to

time to existing products without prior notice. Speciﬁcations and appearance

may diﬀer from those listed or illustrated.

PB600

Universal Eﬀects

Pedal Board

DC OUT connector

powers all eﬀects

via daisy chain.

1.7 A power

adaptor connector. DC cabling duct.

Heavy-duty

plastic casing.

Sliding locks hold lid ﬁrmly in place when

pedal board is not in use.

¼" TS INPUT

connector receives

signal from

instrument.

¼" TS TO EFFECTS

connector sends

signal to eﬀects

pedals.

Foam padding

holds eﬀect pedals

in place.

FROM EFFECTS connectors receive stereo

signal from pedals. OUTPUT TO AMP

connectors send signal to two amps.
