Beko DN162230ZDB Bedienungsanleitung

www.beko.com.trwww.beko.com

DN162230ZDP

UD1N622DJIZX

DN162220XP

DN162232DJIZX

EN İT

DN162220X

DN162220B

DN162230ZDB

Please read this user manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked

under the most meticulous quality control procedures, will provide you an effective service.

Therefore, read this entire user manual carefully before using the product and keep it as

a reference. If you handover the product to someone else, give the user manual as well.

The user manual will help you use the product in a fast and safe way.

• Read the manual before installing and operating the product.

• Make sure you read the safety instructions.

• Keep the manual in an easily accessible place as you may need it later.

• Read the other documents given with the product.

Remember that this user manual is also applicable for several other models. Differences

between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

CImportant information or useful tips.

AWarning against dangerous conditions for life and property.

BWarning against electric voltage.

CONTENTS

1 Your Refrigerator 3

2 Important Safety

Warnings 4

Intended use .....................................4

General safety ...................................4

For products with a ..........................7

water dispenser;................................7

Child safety........................................8

Compliance with WEEE Directive and

Disposing of the Waste Product: .......8

Package information..........................8

HC warning .......................................8

Things to be done for energy saving..9

Recommendations for the fresh food

compartment.....................................9

3 Installation 10

Points to be paid attention to when the

relocation of the refrigerator.............10

Electrical connection........................10

Disposing of the packaging .............11

Disposing of your old refrigerator .....11

Placing and Installation ....................11

Adjusting the legs ............................12

Changing the illumination lamp .......12

Door Open Warning.........................12

4 Preparation 13

5 Using your refrigerator 14

Indicator Panel.................................14

Temperature setting button..............25

Setting the temperature of your

refrigerator.......................................25

Dual cooling system ........................25

Recommendations for preservation of

frozen food ......................................26

Defrosting........................................26

Placing the food ..............................26

Deep-freeze information ..................27

Description and cleaning of odor

filter ................................................28

Water Dispenser..............................29

Blue light .........................................31

Sliding storage container .................31

Rotary storage container .................32

Auto Icematic .................................32

Icematic and ice storage container ..33

Making ice.......................................34

Humidity-controlled crisper (Ever

Fresh) ..............................................34

Ice-cream machine..........................35

6 Maintenance and

cleaning 37

Protection of plastic surfaces ..........37

7 Troubleshooting 38

1Your Refrigerator

1. Door shelves of the freezer compartment

2. Temperature setting indicator

3. Egg section

4. Water dispenser filling tank

5. Water dispenser reservoir

6. Door shelves of fridge compartment

7. Sliding and rotary storage containers

8. Blue light

9. Adjustable legs

10.Crisper

11.Crisper cover

12.Breakfast compartment

13.Key

14.Bottle shelf

CFigures in this user manual are schematic and may not correspond exactly to you product. If

the subject parts are not included in the product you have purchased, then it is valid for other

models.

15.Odor filter

16.Glass shelves of fridge compartment

17.Illumination glass

18.Impeller

19.Automatic Icematic water tank

20.Icebox

21.Ice storage container

22.Freezer compartment glass shelf

23.Ice-cream making machine / Quick Freeze

compartment

24.Freezer compartment

25.Fridge compartment

*optional

*16

*10

*12

*14

*13

*15

*19

*20

*21

*23

2Important Safety Warnings

Please review the following

information. Failure to observe

this information may cause

injuries or material damage.

Otherwise, all warranty and

reliability commitments will

become invalid.

Original spare parts will be

provided for 10 years, following

the product purchasing date.

Intended use

WARNING:

Keep ventilation

openings, in the

appliance enclosure or

in the built-in structure,

clear of obstruction.

WARNING:

Do not use mechanical

devices or other

means to accelerate

the defrostingprocess,

other than those

recommended by the

manufacturer.

WARNING:

Do not damage the

refrigerant circuit.

WARNING:

Do not use electrical

appliances inside

the food storage

compartments of the

appliance, unless

they are of the type

recommended by the

manufacturer.

WARNING:

Do not store explosive

substances such as

aerosol cans with a

flammable propellant in

this appliance.

This appliance is intended to be

used in household and similar

applications such as

– staff kitchen areas in shops,

offices and other working

environments;

– farm houses and by clients

in hotels, motels and other

residential type environments;

– bed and breakfast type

environments;

– catering and similar non-retail

applications.

General safety

• When you want to dispose/

scrap the product, we

recommend you to consult the

authorized service in order to

learn the required information

and authorized bodies.

• Consult your authorized

service for all your questions

and problems related to the

refrigerator. Do not intervene or

let someone intervene to the

refrigerator without notifying the

authorised services.

• For products with a freezer

compartment; Do not eat

cone ice cream and ice cubes

immediately after you take them

out of the freezer compartment!

(This may cause frostbite in

your mouth.)

• For products with a freezer

compartment; Do not put

bottled and canned liquid

beverages in the freezer

compartment. Otherwise, these

may burst.

• Do not touch frozen food by

hand; they may stick to your

hand.

• Unplug your refrigerator before

cleaning or defrosting.

• Vapor and vaporized cleaning

materials should never be

used in cleaning and defrosting

processes of your refrigerator.

In such cases, the vapor may

get in contact with the electrical

parts and cause short circuit or

electric shock.

• Never use the parts on your

refrigerator such as the door as

a means of support or step.

• Do not use electrical devices

inside the refrigerator.

• Do not damage the parts,

where the refrigerant is

circulating, with drilling or

cutting tools. The refrigerant

that might blow out when the

gas channels of the evaporator,

pipe extensions or surface

coatings are punctured causes

skin irritations and eye injuries.

• Do not cover or block the

ventilation holes on your

refrigerator with any material.

• Electrical devices must be

repaired by only authorised

persons. Repairs performed by

incompetent persons create a

risk for the user.

• In case of any failure or during

a maintenance or repair work,

disconnect your refrigerator’s

mains supply by either

turning off the relevant fuse or

unplugging your appliance.

• Do not pull by the cable when

pulling off the plug.

• Ensure highly alcoholic

beverages are stored securely

with the lid fastened and placed

upright.

• Never store spray cans

containing flammable and

explosive substances in the

refrigerator.

• Do not use mechanical devices

or other means to accelerate

the defrosting process, other

than those recommended by

the manufacturer.

• This product is not intended

to be used by persons with

physical, sensory or mental

disorders or unlearned or

inexperienced people (including

children) unless they are

attended by a person who

will be responsible for their

safety or who will instruct them

accordingly for use of the

product

• Do not operate a damaged

refrigerator. Consult with the

service agent if you have any

concerns.

• Electrical safety of your

refrigerator shall be guaranteed

only if the earth system in your

house complies with standards.

• Exposing the product to

rain, snow, sun and wind is

dangerous with respect to

electrical safety.

• Contact authorized service

when there is a power cable

damage to avoid danger.

• Never plug the refrigerator

into the wall outlet during

installation. Otherwise, risk of

death or serious injury may

arise.

• This refrigerator is intended

for only storing food items. It

must not be used for any other

purpose.

• Label of technical specifications

is located on the left wall inside

the refrigerator.

• Never connect your refrigerator

to electricity-saving systems;

they may damage the

refrigerator.

• If there is a blue light on the

refrigerator, do not look at the

blue light with optical tools.

• For manually controlled

refrigerators, wait for at least 5

minutes to start the refrigerator

after power failure.

• This operation manual should

be handed in to the new owner

of the product when it is given

to others.

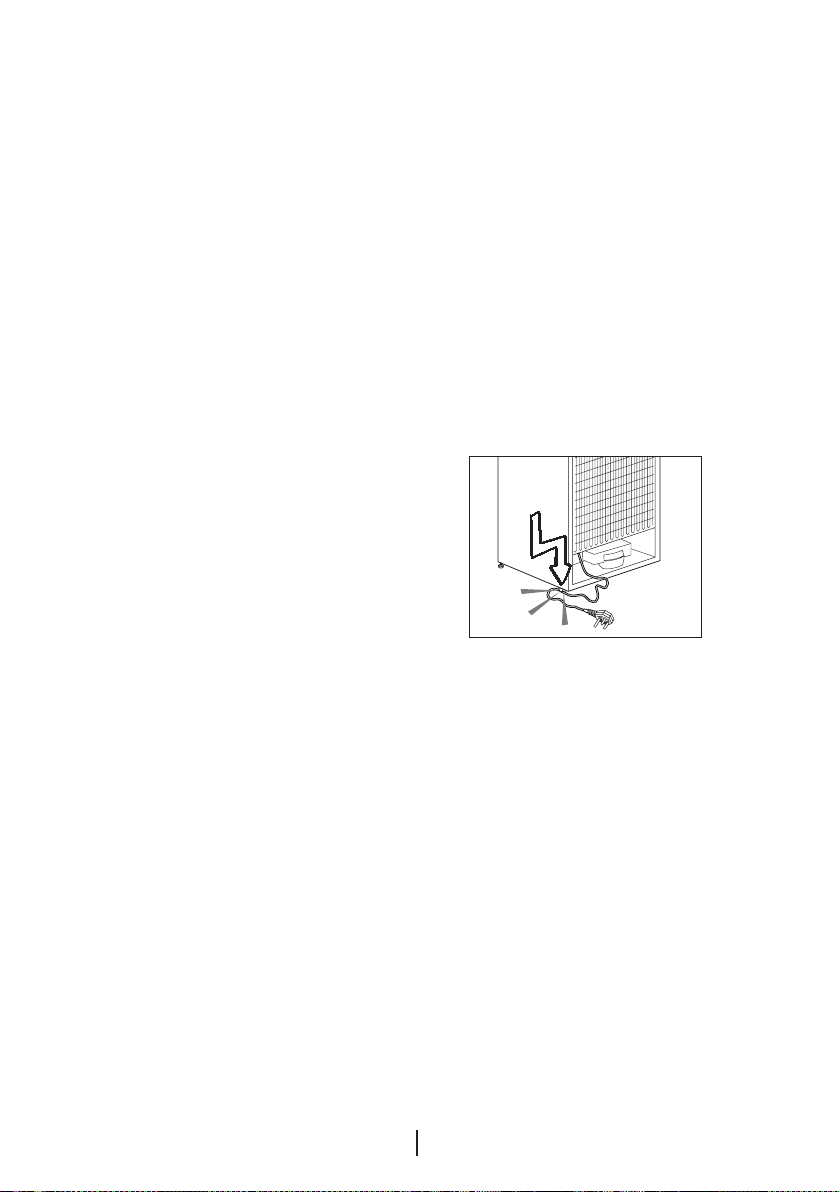

• Avoid causing damage on

power cable when transporting

the refrigerator. Bending cable

may cause fire. Never place

heavy objects on power cable.

Do not touch the plug with

wet hands when plugging the

product

• Do not plug the refrigerator if

the wall outlet is loose.

• Water should not be sprayed

on inner or outer parts of the

product for safety purposes.

• Do not spray substances

containing inflammable gases

such as propane gas near the

refrigerator to avoid fire and

explosion risk.

• Never place containers filled

with water on top of the

refrigerator; in the event of

spillages, this may cause

electric shock or fire.

• Do not overload the refrigerator

with food. If overloaded, the

food items may fall down

and hurt you and damage

refrigerator when you open the

door.

• Never place objects on top

of the refrigerator; otherwise,

these objects may fall down

when you open or close the

refrigerator’s door.

• As they require a precise

temperature, vaccines, heat-

sensitive medicine and scientific

materials and etc. should not

be kept in the refrigerator.

• If not to be used for a long

time, refrigerator should be

unplugged. A possible problem

in power cable may cause fire.

• Refrigerator may move if

adjustable legs are not properly

secured on the floor. Properly

securing adjustable legs on the

floor can prevent the refrigerator

to move.

• When carrying the refrigerator,

do not hold it from door handle.

Otherwise, it may be snapped.

• When you have to place

your product next to another

refrigerator or freezer, the

distance between devices

should be at least 8cm.

Otherwise, adjacent side walls

may be humidified.

• The product shall never be

used while the compartment

which is located at the top or

back of your product and in

which electronic boards are

available (electronic board box

cover) (1) is open.

For products with a

water dispenser;

• Pressure for cold water inlet shall

be maximum 90 psi (6.2 bar).

If your water pressure exceeds

80 psi (5.5 bar), use a pressure

limiting valve in your mains

system. If you do not know how

to check your water pressure,

ask for the help of a professional

plumber.

• If there is risk of water hammer

effect in your installation,

always use a water hammer

prevention equipment in

your installation. Consult

Professional plumbers is you

are not sure that there is no

water hammer effect in your

installation.

• Do not install on the hot water

inlet. Take precautions against

of the risk of freezing of the

hoses. Water temperature

operating interval shall be

33°F (0.6°C) minimum and

100°F (38°C) maximum.

• Use only potable water.

Child safety

• If the door has a lock, the key

should be kept away from

reach of children.

• Children must be supervised to

prevent them from tampering

with the product.

Compliance with WEEE

Directive and Disposing of

the Waste Product:

This product complies with

EU WEEE Directive (2012/19/

EU). This product bears a

classification symbol for

waste electrical and electronic

equipment (WEEE).

This product has been

manufactured with high quality parts and

materials which can be reused and are

suitable for recycling. Therefore, do not

dispose the product with normal domestic

waste at the end of its service life. Take

it to a collection point for the recycling of

electrical and electronic equipment. Please

consult your local authorities to learn the

nearest collection point. Help protect the

environment and natural resources by

recycling used products. For children’s

safety, cut the power cable and break the

locking mechanism of the door, if any, so

that it will be non-functional before disposing

of the product.

Package information

Packaging materials of the product are

manufactured from recyclable materials in

accordance with our National Environment

Regulations. Do not dispose of the packaging

materials together with the domestic or other

wastes. Take them to the packaging material

collection points designated by the local

authorities.

Do not forget...

Any recycled substance is an indispensable

matter for nature and our national asset

wealth.

If you want to contribute to the re-evaluation

of the packaging materials, you can consult

to your environmentalist organizations or the

municipalities where you are located.

HC warning

If your product's cooling system

contains R600a:

This gas is flammable. Therefore, pay

attention to not damaging the cooling system

and piping during usage and transportation.

In the event of damage, keep your product

away from potential fire sources that can

cause the product catch a fire and ventilate

the room in which the unit is placed.

Ignore this warning if your product's

cooling system contains R134a.

Type of gas used in the product is stated in

the type label which is on the left wall inside

the refrigerator.

Never throw the product in fire for disposal.

Things to be done for

energy saving

• Do not leave the doors of your refrigerator

open for a long time.

• Do not put hot food or drinks in your

refrigerator.

• Do not overload your refrigerator so

that the air circulation inside of it is not

prevented.

• Do not install your refrigerator under direct

sunlight or near heat emitting appliances

such as ovens, dishwashers or radiators.

Keep your refrigerator at least 30cm away

from heat emitting sources and at least

5cm from electrical ovens.

• Pay attention to keep your food in closed

containers.

• For products with a freezer compartment;

You can store maximum amount of

food items in the freezer when you

remove the shelf or drawer of the freezer.

Energy consumption value stated for

your refrigerator has been determined

by removing freezer shelf or drawer and

under maximum load. There is no harm

to use a shelf or drawer according to the

shapes and size of food to be frozen.

• Thawing frozen food in fridge

compartment will both provide energy

saving and preserve the food quality.

Recommendations for the

fresh food compartment

*May not be available in all models

Do not allow the food to touch the

temperature sensor in fresh food

compartment. To allow the fresh food

compartment keep its ideal storage

temperature, sensor must not be hindered

by food.

Do not place hot foods in the product.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Beko Kühlschrank Handbücher

Beko

Beko FS1 66020 Bedienungsanleitung

Beko

Beko 7080 MultiMode EB Bedienungsanleitung

Beko

Beko KG110 Bedienungsanleitung

Beko

Beko RCHA270K30XBN Bedienungsanleitung

Beko

Beko CN153920 Bedienungsanleitung

Beko

Beko CNA365EC0DX Bedienungsanleitung

Beko

Beko CSA 29010 - Bedienungsanleitung

Beko

Beko DN153720DX Bedienungsanleitung

Beko

Beko CSA300M20X Bedienungsanleitung

Beko

Beko BCHA275E4SN Bedienungsanleitung

Beko

Beko RCSA360K30XPN Bedienungsanleitung

Beko

Beko RDSA310M30WN Bedienungsanleitung

Beko

Beko CNA400EC0ZW Bedienungsanleitung

Beko

Beko RDNT230 Bedienungsanleitung

Beko

Beko RCNA365E32X Bedienungsanleitung

Beko

Beko CNA29120T Bedienungsanleitung

Beko

Beko BU 1153 Bedienungsanleitung

Beko

Beko RDNE18C2SE Bedienungsanleitung

Beko

Beko RDE 6206 Bedienungsanleitung

Beko

Beko BTM510W Bedienungsanleitung

Beko

Beko BCFD173 Bedienungsanleitung

Beko

Beko CSA365K30W Bedienungsanleitung

Beko

Beko RDNE455K40XBN Bedienungsanleitung

Beko

Beko GNE V320 S Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung

Matsui

Matsui MTT50W12E Bedienungsanleitung
