User Manual

F7D4501 8820-00810 Rev. A01

TV ADAPTER FOR INTEL®WIRELESS DISPLAY

SCREENCAST

TABLE OF CONTENTS

Getting Started ........................................... 1

Introduction .................................................1

What’s in the Box? ............................................2

What’s not in the Box?.........................................2

What Else Should I Know? .....................................3

Adapter Setup ............................................ 4

Where to Place Your ScreenCast TV Adapter .....................4

Plugging Everything Together ..................................4

Software—First-Time Setup ...................................5

Using Your ScreenCast ................................... 10

How to Use It ...............................................10

Playing Content on Your TV ...................................10

Options for Using the TV Screen ...............................11

What Else Do I Need to Know? ................................12

Using the Reset Button ......................................13

Information.............................................. 14

FCC Statement..............................................14

Belkin International, Inc., Limited 1-Year Product Warranty .........15

Technical Support ...........................................17

Introduction

Thank you for purchasing the ScreenCast TV Adapter for Intel Wireless Display.

We created this product to help you wirelessly transmit your favorite content

from your laptop to the best screen in your house—your living-room TV.

Before the ScreenCast TV Adapter, you may have needed a long cable or simply

crowded around your laptop screen to share movies, pictures, and surf the Web.

Now you can take content from any WiDi laptop with a second-generation Intel®

Core™processor and easily display it on your TV with the ScreenCast TV Adapter.

From the latest Blu-ray Disc™movies to your favorite Netflix®and YouTube®videos,

to just showing off pictures of your recent family vacation, exactly what you see

on your laptop can now be displayed on your TV from as far as 30 feet away.

GETTING STARTED

What’s in the Box?

• ScreenCastTVAdapterforIntelWirelessDisplay

• PowerSupply(attachedtoScreenCastTVAdapter)

• QuickInstallGuide

• UserManualonCD

• OneHDMI®Cable

What’s not in the Box?

• AnIntelWirelessDisplay(WiDi)laptop

 •YouneedaWiDilaptoptousetheScreenCastTVAdapter.The

latest generation WiDi laptops support streaming of DVD and

Blu-ray™ content to your TV in 1080p quality. Check with your

PC vendor on which generation of WiDi your PC supports.

• ATVwithanavailableHDMIorRCAinputport

 •Belkinrecommendsa1080p-capableTVandHDMI

for the best picture and sound possible. If you use the

ScreenCast TV Adapter with an older model TV that

onlyhasRCA(component)inputs,youwillonlybe

abletoviewstandard-definition(480p)content.

GETTING STARTED

What Else Should I Know?

• IntelWirelessDisplayisatechnologythatenablesa

seconddisplayforIntelWirelessDisplay-ready(WiDi)

computers. A simple way of thinking about it is as a

replacement for a cable to a secondary monitor.

• Onceconnected,yourlaptopoperatesinallthestandard

Windows®7multiplemonitormodes:duplicate(mirror)

images,extended(asecondscreenformoredesktopspace),

orprojector(laptopscreenoffandduplicatescreenon).

• IntelWiFihardwareandIntelMyWiFiTechnology(Intel

MWT)softwareallowsbothaneasyconnectiontothe

ScreenCast TV Adapter and a standard connection to

a wireless access point for Internet connectivity.

• WithIntelWirelessDisplay,youcanwatchvideoson

your HDTV while surfing the Web on your laptop.

Plugging Everything Together

• ConnectyourScreenCastTVAdaptertoyourTVwith

theHDMIcable(includedinthebox)orRCAcables

(soldseparately),andconnectthepowersupplyto

the ScreenCast TV Adapter and a nearby outlet.

HDMI

Where to Place Your ScreenCast TV Adapter

• YourScreenCastTVAdapterandTVneedtobeclose

enough together to allow you to connect them with an RCA

orHDMIcable(provided).TheScreenCastTVAdapteralso

needs to have an available power outlet within range.

• Forbestresults,keepyourScreenCastTVAdapter

within line-of-sight of wherever you plan to use your

WiDilaptop(soldseparately)—thiswillhelpensure

that your TV receives the best possible signal and you

get the most out of your ScreenCast TV Adapter.

• TheScreenCastTVAdapterwillbemosteffective

within 30 feet of your laptop, but range will depend on

many factors including other sources of interference

and the building materials used in your home.

ADAPTER SETUP

Software—First-Time Setup

1. Turn on your TV and switch it to the A/V input where

your ScreenCast TV Adapter is connected. Then push

the power button on the back of the Adapter. You

should then see a screen that looks like this:

ADAPTER SETUP

2. On your WiDi laptop, launch the Intel Wireless Display software.

On some laptop PCs, this may be a switch at the top of the

keyboard. Other PCs may require you to start a program from a

shortcut on the desktop or in the system tray. Refer to your PC

manufacturer’s documentation for specific details on your model.

ADAPTER SETUP

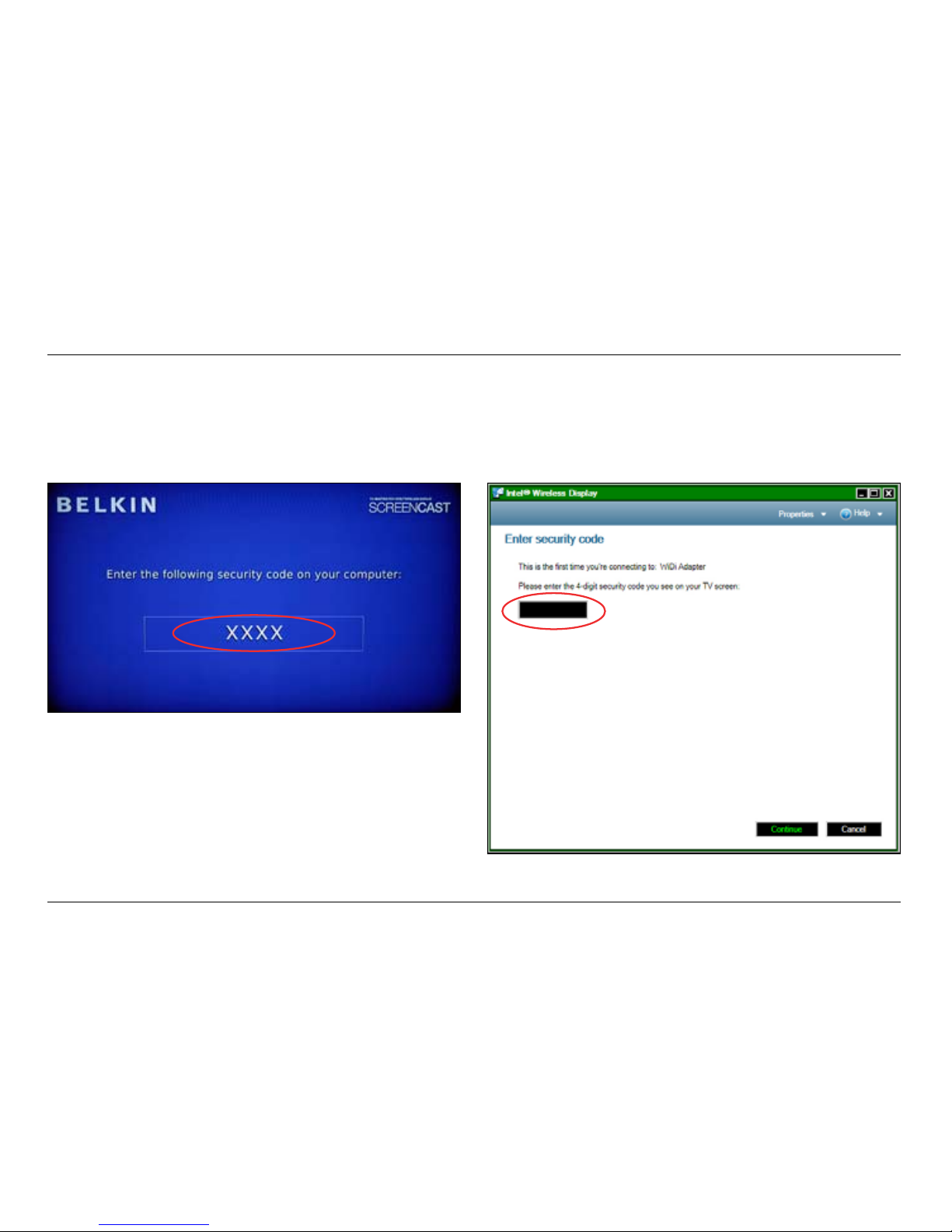

3. When you click to connect to the ScreenCast TV Adapter, a

screen will appear on your TV with a 4-digit security code. A

similar screen appears on your PC requesting that code. Enter

the 4-digit code into the appropriate box on your laptop screen.

ADAPTER SETUP

4. Name the ScreenCast TV Adapter. Naming it will allow you

to easily find it in a list of available adapters should you

have more than one within range. Use a name that is easy

to remember like “Living Room WiDi”. If you choose not to

name it, the device will be set to a factory-default name.
