Belkin F5D9010 Bedienungsanleitung

Wireless G Plus MIMO

Notebook Card

Connect your notebook computer to a

wireless network

F5D9010

User Manual











�







 





�







 















�













1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . .1

Placement of your Wireless Networking Hardware

for Optimal Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Product Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Applications and Advantages. . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Installing and Setting Up the Card . . . . . . . . . . . . . . . . . . . . . . . . 8

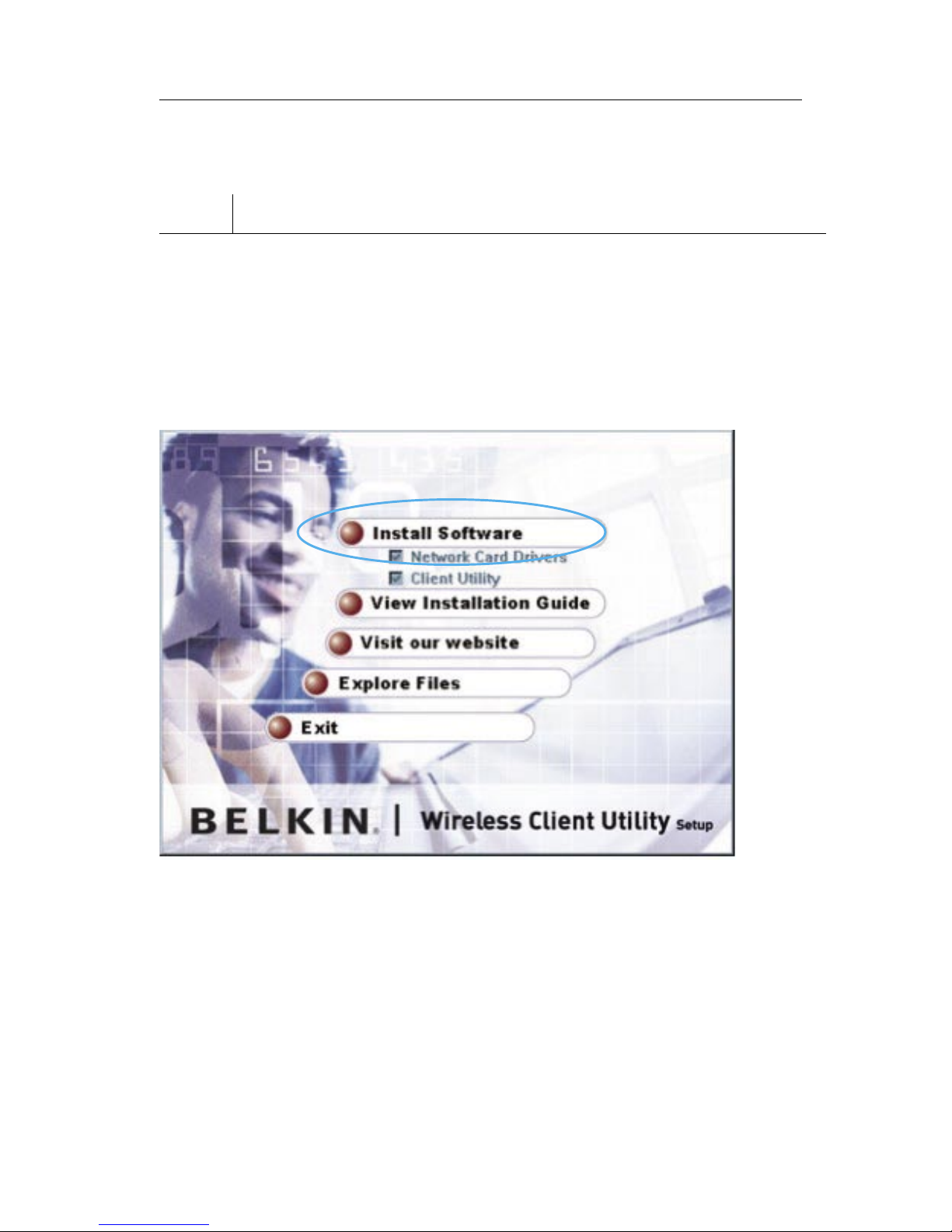

Step 1: Install the Software Drivers. . . . . . . . . . . . . . . . . . . . . . . . . 8

Step 2: Plug the Card into an Available

CardBus Slot of your Laptop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Step 3: Install the Wireless Client Utility . . . . . . . . . . . . . . . . . . . . 10

4 Using the Belkin Wireless Client Utility . . . . . . . . . . . . . . . . . . . . . 12

How to Access the Belkin Wireless Client Utility . . . . . . . . . . . . . 12

Navigating the User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Setting Wireless Network Preferences . . . . . . . . . . . . . . . . . . . . . 14

Securing your Wi-Fi Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Monitoring the Status of your Network Connection. . . . . . . . . . . 28

5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table of Contents

Introduction

section

Congratulations and thank you for purchasing the Belkin Wireless

G Plus MIMO Notebook Card (the Card). This product features new

MIMO technology that solves interference and range challenges of

wireless networking in larger homes and offices. MIMO (Multiple Input,

Multiple Output) delivers the best wireless network performance over

an expanded coverage area. Belkin’s new “G Plus MIMO” products

achieve 400% wider coverage than standard 802.11g networks with

exceptional data transfer results.

Using MIMO’s revolutionary, smart-antenna technology, Belkin G

Plus MIMO products can boost network speeds by up to four times

previous capacities. Its enhanced data rates and range make MIMO a

perfect technology for downloading music from the Internet, sharing

photos, and gaming online.

The easy installation and setup will have you networking in minutes.

Please be sure to read through this User Manual completely, and pay

special attention to the section entitled “Placement of your Wireless

Network Hardware for Optimal Performance”.

Advantages of a Wireless Network

• Mobility – you no longer need a dedicated “computer

room”—you can work on a networked laptop or desktop

computer anywhere within your wireless range

• Easy installation – Belkin Easy Installation Wizards make

setup simple

• Flexibility – set up and access printers, computers, and other

networking devices from anywhere in your home

• Easy expansion – the wide range of Belkin networking

products let you expand your network to include devices such

as printers and gaming consoles

• No cabling required – Belkin spares you the expense and

hassle of retrofitting Ethernet cabling throughout your home

or office

• Widespread industry acceptance – choose from a wide range

of interoperable networking products

Introduction

Placement of your Wireless Networking Hardware for

Optimal Performance

Your wireless connection will be stronger the closer your computer is

to your wireless router (or access point). Typical indoor operating range

for your wireless devices is between 100 and 200 feet. Conversely, your

wireless connection and performance will degrade somewhat as the

distance between your wireless router (or access point) and connected

devices increases. This may or may not be noticeable to you. As you

move further from your wireless router (or access point), connection

speed may decrease. Additionally, metal appliances, obstructions, and

walls can weaken signals simply by getting in the way of your network’s

radio waves.

If you have concerns about your network’s performance related to range

or obstruction factors, try moving the computer to a position between

five and 10 feet from the wireless router (or access point), in order to

see if distance is the problem. If difficulties persist even at close range,

please contact Belkin Technical Support.

Note: While some of the items listed below can affect network

performance, they will not prohibit your wireless network from

functioning; if you are concerned that your network is not operating

at its maximum effectiveness, this checklist may help.

1. Placement of your Wireless Router or Access Point

Place your wireless router (or access point), the central connection point

of your network, as close as possible to the center of your wireless

network devices.

To achieve the best wireless network coverage for your “wireless

clients,” (i.e. computers enabled by Belkin Wireless Notebook Network

Cards, Wireless Desktop Network Cards, and Wireless USB Adapters):

• Ensure that your wireless router (or access point) antennas are

parallel to each other, and are positioned vertically (toward

the ceiling). If your wireless router (or access point) itself is

positioned vertically, point the antennas as much as possible

in an upward direction.

• In multistory homes, place the wireless router (or access point)

on a floor that is as close to the center of the home as possible.

This may mean placing the wireless router (or access point) on an

upper floor.

• Try not to place the wireless router (or access point) near a

cordless 2.4GHz phone.

Introduction

section

2. Avoid Obstacles and Interference

Avoid placing your wireless router (or access point) near devices that

may emit radio “noise”, such as microwave ovens. Other objects that

can inhibit wireless communication can include:

• Refrigerators

• Washers and/or dryers

• Metal cabinets

• Large aquariums

• Metallic-based UV tinted windows

If your wireless signal seems weak in some spots, make sure that

objects such as these are not blocking the signal’s path between your

computers and wireless router (or access point).

3. Cordless Phone Placement

If the performance of your wireless network is impaired after attending

to the above issues, AND you have a cordless phone:

• Try moving the cordless phone away from your wireless router

(or access point) and your wireless-enabled computers.

• Unplug and remove the battery from any cordless phone

that operates on the 2.4GHz band (check manufacturer’s

information). If this fixes the problem, your phone may

be interfering.

• If your phone supports channel selection, change the

channel on the phone to the furthest channel from your

wireless network, as possible. For example, change the

phone to channel 1 and move your wireless router (or access

point) to channel 11. (See your phone’s user manual for

detailed instructions.)

• If necessary, consider switching to a 900MHz or 5GHz

cordless phone.

4. Choose the “Quietest” Channel for your Wireless Network

In locations where homes or offices are close together, such as

apartment buildings or office complexes, there may be wireless

networks nearby that can conflict with yours. Use the Site Survey

capabilities of your Wireless Client Utility to locate any other wireless

networks, and move your wireless router (or access point) and

computers to a channel as far away from other networks as possible.

Experiment with more than one of the available channels in order to find

the clearest connection and avoid interference from neighboring cordless

phones or other wireless devices.

Use the detailed Site Survey and wireless channel information

included in your wireless router’s (or access point’s) user guide for

more information.

5. Secure Connections, VPNs, and AOL®

Secure connections typically require a user name and password, and are

used where security is important. Secure connections include:

• Virtual Private Network (VPN) connections, often used to connect

remotely to an office network

• The “Bring Your Own Access” program from America Online®

(AOL), which lets you use AOL through broadband provided by

another cable or DSL service

• Most online banking websites

• Many commercial websites that require a user name and

password to access your account

Secure connections can be interrupted by a computer’s power

management setting, which causes it to “go to sleep.” The simplest

solution to avoid this is to simply reconnect by rerunning the VPN or

AOL software, or by re-logging into the secure website.

A second alternative is to change your computer’s power management

settings so it does not go to sleep; however, this may not be appropriate

for portable computers. To change your power management setting

under Windows, see the “Power Options” item in the Control Panel.

If you continue to have difficulty with Secure Connection, VPNs, and

AOL, please review steps 1–4 on pages 2–3 to be sure you have

addressed these issues.

These guidelines should allow you to cover the maximum possible area

with your wireless router. Should you need to cover an even wider area,

we suggest the Belkin Wireless G Range Extender/Access Point.

For more information regarding our networking products, visit our

website at www.belkin.com/networking or call Belkin Technical Support.

Introduction

Overview

section

Product Features

The Card complies with the IEEE 802.11g standard in order to

communicate with other 802.11g-compliant wireless devices at

54Mbps. The Card is compatible with all 802.11g devices as well as

other 802.11b products at 11Mbps. 802.11g products operate on the

same 2.4GHz frequency band as 802.11b Wi-Fi® products.

• 2.4GHz ISM (Industrial, Science, and Medical) band operation

• Integrated easy-to-use Wireless Client Utility

• CardBus interface, for operation in virtually any

notebook computer

• WPA, 64-bit WEP (Wired Equivalent Privacy),

or 128-bit encryption

• Wireless access to networked resources

• Supports for both Infrastructure and Ad-Hoc (peer-to-peer)

networking modes

• Easy installation and use

• Internal antenna

• LED power and network link indicators

Overview

Applications and Advantages

• Wireless roaming with a laptop around the home or office

Offers the freedom of networking without cables.

• Compatibility with 802.11b products

802.11g wireless LAN solutions are backward-compatible with

existing Wi-Fi (IEEE 802.11b) products and with other products that

display the Wi-Fi mark.

• Difficult-to-wire environments

Enables networking in buildings with solid or finished walls, or open

areas where wiring is difficult to install.

• Frequently changing environments

Adapts easily in offices or environments that frequently rearrange or

change locations.

• Temporary LANs for special projects or peak time

Sets up temporary networks (such as at trade shows, exhibitions,

and construction sites), on a short-term basis; also provides an ideal

solution for companies that need additional workstations for a peak

activity period.

• SOHO (Small Office/Home Office) networking needs

Provides the easy and quick, small network installation SOHO

users need.

Product Specifications

Host Interface 32-bit CardBus

Operating Temperature 32–185 degrees F (0–85 degrees C)

Storage Temperature -40–194 degrees F (-40–90 degrees C)

Humidity Max. 95% (non-condensing)

Overview

section

(a) Power LED

Lights up when the Card receives power

(b) Link LED

Lights up and flashes when the Card links to a wireless network

Part of the Card that fits into your computer’s CardBus slot

System Requirements

• PC-compatible laptop with one available CardBus slot

• Windows® 2000 or XP

Package Contents

• Wireless G Plus MIMO Notebook Card

• Quick Installation Guide

• Installation Software CD

• User Manual

(a)

(b)

(c)

(b)

Installing and Setting Up the Card

Step 1 Install the Software Drivers

IMPORTANT NOTE: Install the software before inserting the Card.

1.1 Insert the Installation Software CD into your CD-ROM drive.

1.2 The Belkin Wireless Client Utility Setup screen will automatically

appear (may take 15–20 seconds to appear).

Note: If the Wireless Client Utility Setup screen does not appear

within 20 seconds, access your CD-ROM by double-clicking on the

“My Computer” icon and double-click on the CD-ROM drive that the

installation CD has been placed in. Double-click on the folder named

“Files”, then double-click on the icon named “setup.exe”.

1.3 Click “Install Software” from the menu.

Andere Handbücher für F5D9010

Inhaltsverzeichnis

Andere Belkin Netzwerkkarte Handbücher

Belkin

Belkin 8820-00209EA F5D8053 Bedienungsanleitung

Belkin

Belkin F8T006-PC Bedienungsanleitung

Belkin

Belkin F6D3010 Bedienungsanleitung

Belkin

Belkin F5U250ea Bedienungsanleitung

Belkin

Belkin F5U008-PC Bedienungsanleitung

Belkin

Belkin F5D9010 Bedienungsanleitung

Belkin

Belkin F5D7000H Bedienungsanleitung

Belkin

Belkin F5D7010A Bedienungsanleitung

Belkin

Belkin PM00730EA Bedienungsanleitung

Belkin

Belkin VISION N1 Bedienungsanleitung

Belkin

Belkin SURF F5D4077UK Bedienungsanleitung

Belkin

Belkin N Wireless Bedienungsanleitung

Belkin

Belkin F5U206 Abmessungen

Belkin

Belkin F5D8055 Bedienungsanleitung

Belkin

Belkin F5D5010 Bedienungsanleitung

Belkin

Belkin F5D6000 Bedienungsanleitung

Belkin

Belkin F5D6020 Referenzhandbuch

Belkin

Belkin F5D8013 Bedienungsanleitung

Belkin

Belkin F5U514 Bedienungsanleitung

Belkin

Belkin F5D7011 Bedienungsanleitung

Belkin

Belkin F5D76314 Bedienungsanleitung

Belkin

Belkin F5D7000 Bedienungsanleitung

Belkin

Belkin F5D8001 Bedienungsanleitung

Belkin

Belkin DESKTOP CARD F5D7001 Bedienungsanleitung

Beliebte Netzwerkkarte Handbücher anderer Marken

FirstComm

FirstComm OBiWiFi5G Bedienungsanleitung

Sun Microsystems

Sun Microsystems Interface Adapter Bedienungsanleitung

TRENDnet

TRENDnet TU2-ETG Bedienungsanleitung

YASKAWA

YASKAWA SI-EN3 Bedienungsanleitung

Paradyne

Paradyne BitStorm 2600 IP DSLAM Bedienungsanleitung

3Com

3Com EtherLink 3C509B Bedienungsanleitung

TRENDnet

TRENDnet TEG-PCITX Bedienungsanleitung

Cisco

Cisco MC16E Bedienungsanleitung

Delta Electronics

Delta Electronics Braking Modules VFDB Series Bedienungsanleitung

TwinMOS

TwinMOS Booming Bedienungsanleitung

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Bedienungsanleitung

Buffalo

Buffalo AirStation WLI-PCM-L11GP Bedienungsanleitung

National Instruments

National Instruments NI 9234 Bedienungsanleitung

Hama

Hama 49276 Bedienungsanleitung

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Bedienungsanleitung

Compaq

Compaq Wireless LAN 100 Bedienungsanleitung

Bose

Bose PowerMatch Dante Bedienungsanleitung

TRENDnet

TRENDnet TEG-PCITXR Bedienungsanleitung
