USER MANUAL

8820-01xxxxx Rev. A00

F9K1115V2

Ok JL 1/21/13

TABLE OF CONTENTS

Getting Started

What’s in the Box

Initial Setup

Manually Set Up Your Internet Connection

Additional Capabilities

Adding Other USB Devices

USB Print and Storage Manager

Guest Access

Media Server by myTwonky

Content Filtering by Norton

Intellistream QoS

IPv6 Configuration

Getting to Know Your Router

Front Panel

Back Panel

Technical Details

Technical Features

System Requirements

Using Your Router

Enabling Auto Update on Your Router

Updating the Router’s Firmware via the Web Interface

Resetting the Router

Restoring your Router to Factory Default

Troubleshooting, Support, and Warranty

Troubleshooting

Technical Support

Belkin International, Inc., Limited 2-Year Product Warranty

Regulatory Information

FCC Statement

Getting Started

What’s in the Box

AC1750 DB Wi-Fi Dual-Band AC+ Gigabit Router

Ethernetcable(attachedtorouter)

Powersupply(attachedtorouter)

Networkinformationcard(attachedtorouter)

Quick Setup Guide

Initial Setup

WheretoPlaceYourRouter

Forthebestresults,placetheRouternexttoyourmodeminan

openlocation,awayfromlargemetalobjectsandmagnetssuchas

thosefoundinspeakers.RaisingtheRouterabovefloorlevelcan

improvethestrengthofyourwirelesssignal.

HowtoSetItUp

Connect Your AC1750 DB Router

Turn off your modem by disconnecting its power supply. Some modems have a battery backup;

this will need to be disconnected at this time as well.

Connect your Router to your modem using the cable (already attached).

Power up your modem by plugging in its power supply. If your modem has a battery backup, it

can be reconnected at this time; you may need to hold the reset button for 10 seconds.

Power up your Router by plugging in its power supply.

Connect to Your Router

Retrieve the network ID card from the foot of your new Belkin

Router.

[Diagram of bottom of the router showing service card – can be

obtained from “Tested QIG 2011 07 14.pdf” provided]

Can’t find the card? The default network name and password are also printed on the foot of

the Router.

Use your computer, tablet, or smartphone to connect to the

wireless network shown on the network ID card.

For information on how to connect your wireless devices, please see the “Connect Your

Wireless Devices” section on page 20.

When requested, please enter the password (security key) provided

on the card.

When your device has connected to the Router, use a

browser to visit http://router/.The router homepage will

appear.

If the page does not load, then try visiting http://192.168.2.1 to see

the router homepage.

Click the “Detect my connection” button in green. (If you would

rather set up the Router manually, click the “set it up manually”

link and proceed to page 10.)

After several moments, your Router should automatically detect

your Internet connection and restart. This can take anywhere from

30 seconds to 3 minutes depending on your connection type.

If your Router is unable to establish an Internet connection on its

own, you may be asked to restart your modem or provide a

username and password if your connection requires one. Follow

the on-screen instructions provided.

Once your Router is online, it will determine if there is a firmware

update available and offer to install it. Please allow up to 5 minutes

for the firmware to update.

If there are no updates available, then setup will proceed.

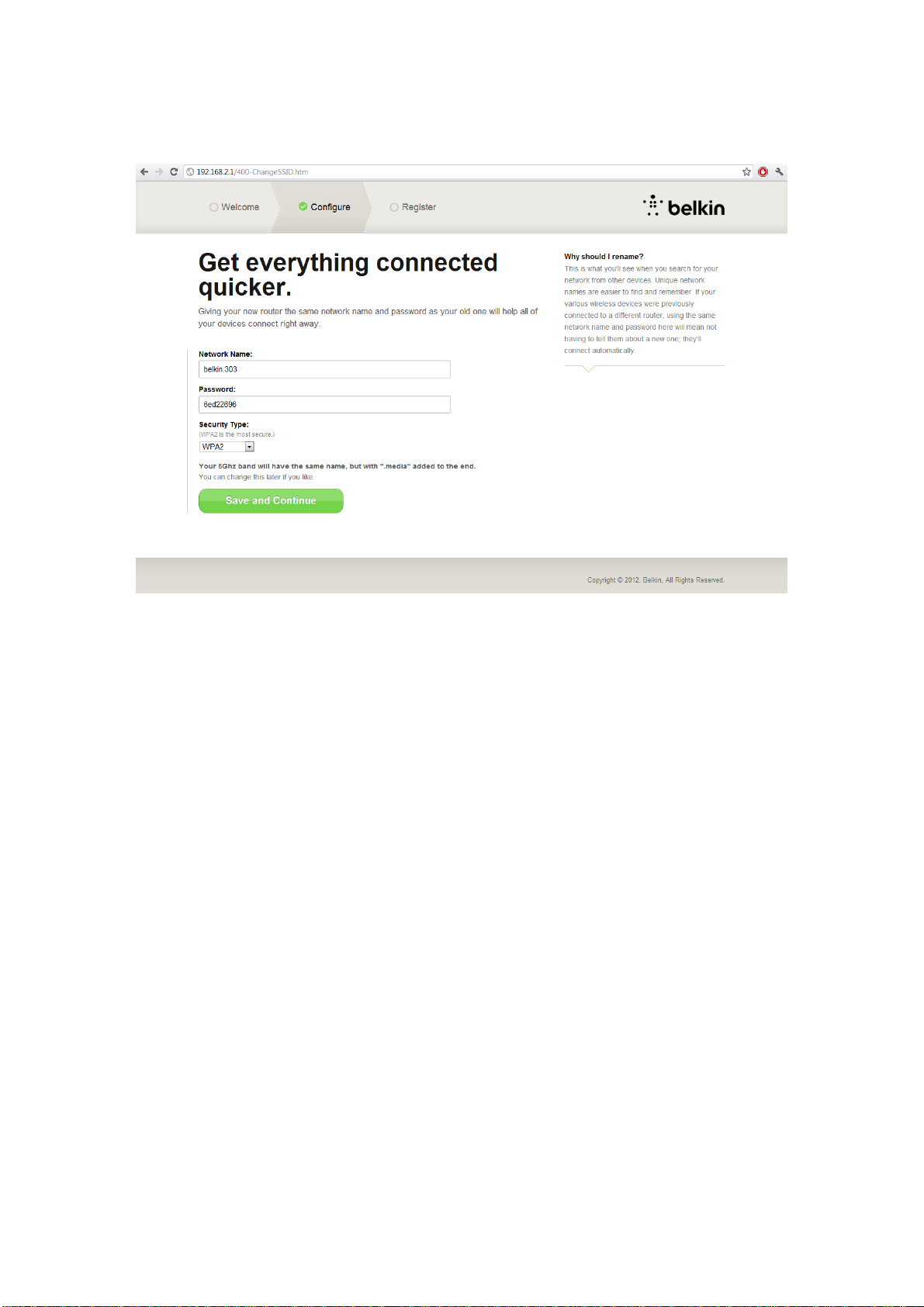

At the next screen you will be invited to change your network

name and password. Re-using your previous network name (SSID)

and password makes connecting your existing devices to the new

router much easier.

If you decide to change these settings, then enter the new values

and click “Save and Continue.” (Note: The password must be at

least 8 characters long.)

If you changed your network name and password, make note of it

on the service card located on the foot of the Router. You will then

have to connect to the new network.

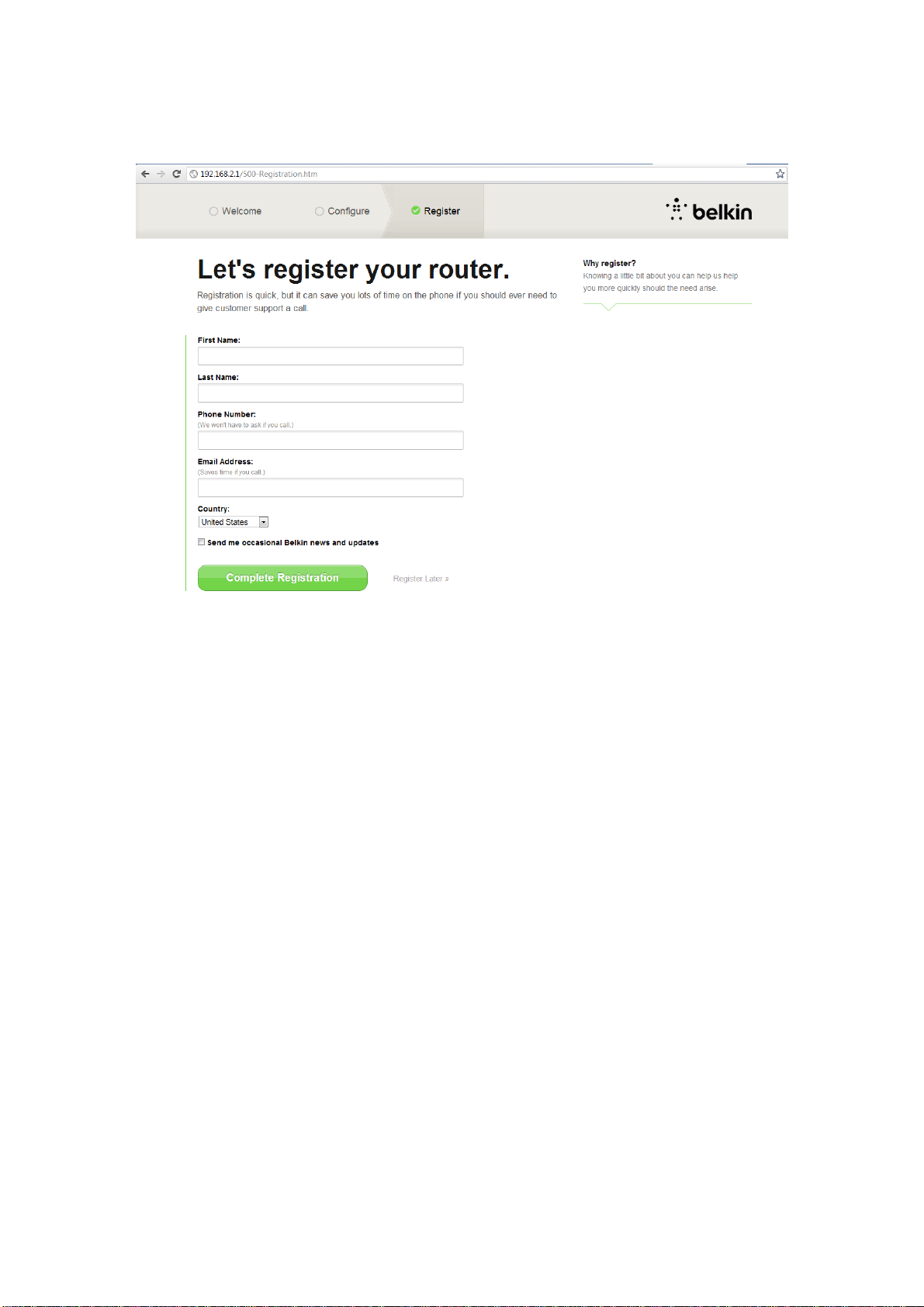

Please take this opportunity to register your Router. This will help

technical support if there is a problem with your Router.

Simply complete each of the required fields and click “Complete

Registration.” If you don’t want to register right now, click

“Register Later” to proceed.

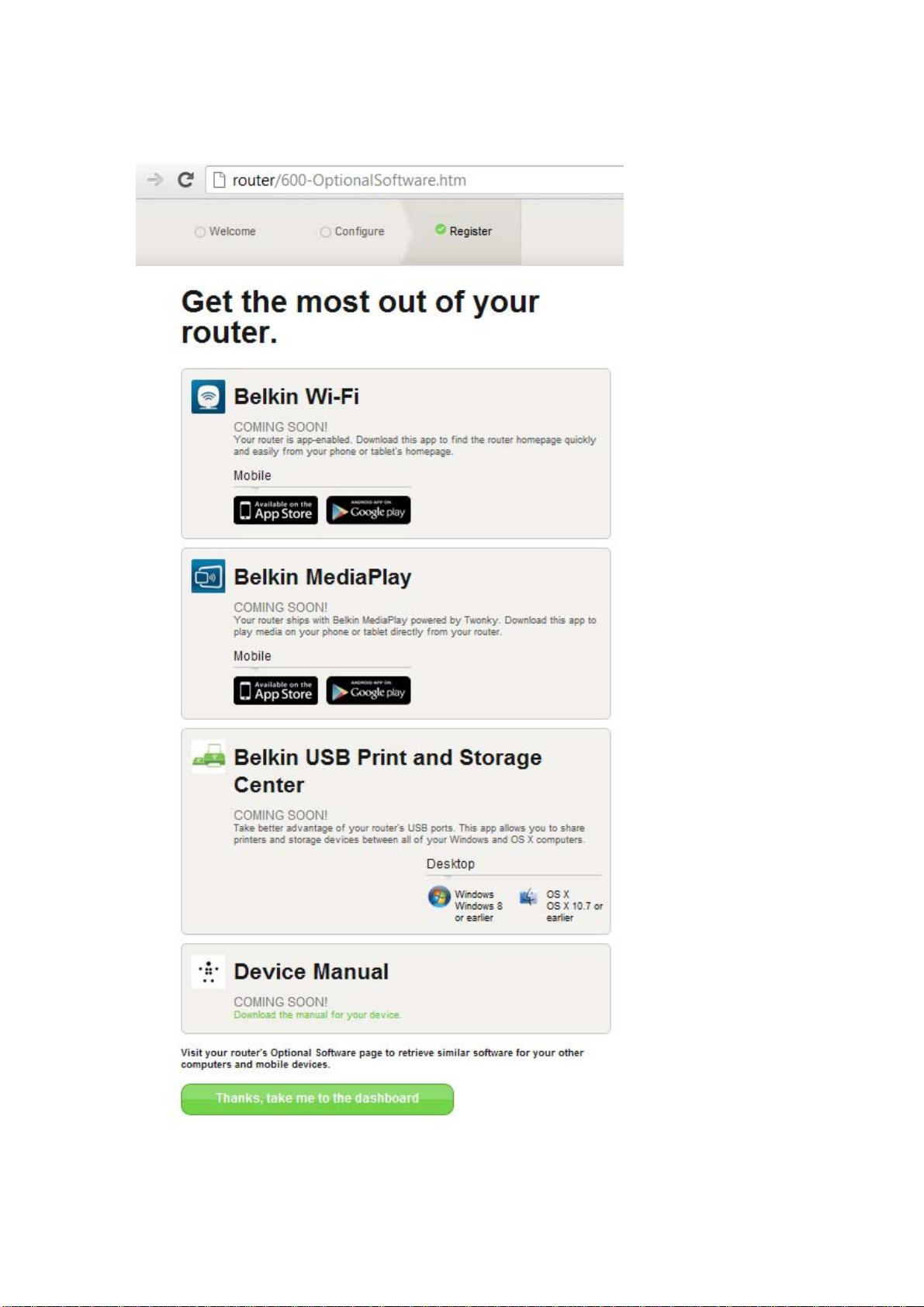

At the next screen you can download optional software that was

bundled with your Router.

This screen shows you optional software that is available for your

Router, such as the USB software to allow you to print through the

Router’s USB port. If you wish to download and install any of

these software programs, simply click on the button appropriate for

your device.

When finished installing optional software, click “Thanks, take me

to the dashboard.”
