Belkin F1DH104L Bedienungsanleitung

User Manual

F1DH102L

F1DH104L

OmniView®SOHO KVM

Switch with Audio

Dual-Head VGA with USB Console and Host Support

Table of Contents

1. Introduction ............................................................................... 1

Package Contents ...........................................................1

2. Overview .................................................................................... 2

Feature Overview.............................................................2

Equipment Requirements .................................................3

Unit Display Diagrams......................................................4

Specifications..................................................................5

3. Installing the KVM Switch........................................................... 6

Pre-Configuration ............................................................6

Connecting the KVM Switch .............................................7

Audio and Microphone Connections .................................8

Powering Up the Systems ................................................9

4. Using the KVM Switch............................................................... 10

Selecting a Computer Using Direct-Access Port Selectors ............ 10

Selecting a Computer Using Keyboard Hot-Key Commands ......... 10

Hot-Key Preceding Sequence Configuration ............................. 11

Hot Key Quick Reference Table ............................................. 12

Switching the Audio/Mic ...................................................... 13

5. Firmware-Upgrade Guide......................................................... 14

Upgrade Using the Windows Version Utility..................... 14

Upgrade Using the Mac Version Utility............................ 18

6. FAQs......................................................................................... 24

7. Troubleshooting ....................................................................... 26

Firmware-Upgrade Troubleshooting ................................ 30

8. Information .............................................................................. 31

section

Introduction

Congratulations on your purchase of the Belkin OmniView SOHO KVM Switch with

Audio. Our diverse line of quality KVM solutions exemplifies the Belkin commitment

to delivering high-quality, durable products at a competitive price. Engineered to

give you control over multiple computers/servers from one console, Belkin KVM

Switches come in a variety of capacities suitable for all configurations, large or small.

This compact, affordable Belkin OmniView KVM Switch is backed by a Belkin 3-Year

Warranty and free technical support.

This User Manual will provide details about your new Switch, from installation and

operation, to troubleshooting—in the unlikely event of a problem. For easy installation,

please refer to the Quick Installation Guide included with your KVM Switch.

Thank you for purchasing the Belkin OmniView SOHO KVM Switch with Audio. We

appreciate your business and have confidence that you will soon see for yourself why

over 1 million Belkin OmniView KVM Switches are being used worldwide.

Package Contents

OmniView

SOHO KVM

Switch with Audio

2/4 SOHO USB

Cable Kits, 6 ft.

User Manual Quick Installation

Guide

Power Supply

9V, 1.1A DC Adapter

Overview

Feature Overview

Control multiple dual-head VGA/USB computers from one keyboard and mouse,

and two monitors.

Video Resolution

The SOHO KVM Switch is able to support video resolutions of up to 2048x1536, so

you can use the latest in video display technology for all your computers.

Flash Upgrade

With the firmware-upgrade feature, your investment in the KVM Switch is further

ensured and its lifetime value is maximized. You don’t have to change your KVM

Switch to solve compatibility problems since you can solve them with easy

firmware upgrades. A special upgrade cable is not needed; you can use the same

KVM cable that connects your computer.

Built-In USB 2.0 Hub

The SOHO KVM Switch features a built-in Hi-Speed USB 2.0 hub, so you can

share two USB peripheral devices, such as a printer, with all your computers. There

are two USB ports on the KVM Switch. One port is located on the back and the

other is located on the front for easier access.

Speaker/Microphone Support

The SOHO KVM Switch allows you to share one set of speakers and one

microphone with all your computers, so you won’t need to unplug and reconnect

your speakers and microphone every time you switch access from one computer

to the next.

Direct-Access Port Selectors

Direct-access port selectors, conveniently located on the front face of the SOHO

KVM Switch, allow you to easily switch access from one computer to the next. You

can change the KVM port or the audio/mic using these buttons.

Cables

All the required cables are 6 feet in length and are included in the box for easier

installation. The cables are also smaller and easier to manage.

LED Display

There are two LEDs on each button. One indicates which port the KVM is on and

the other indicates which port the audio/mic is on.

section

Overview

Equipment Requirements

Operating Systems

OmniView SOHO KVM Switches with Audio are for use on

CPUs using:

Platforms

• Windows®2000, XP, Vista®, Server 2003

• DOS

• Linux®

• Novell®

• MacOS®* X v10.x

*with USB support

Keyboard

Supports 101-/102-/104-/107-key keyboards

Mice

Mice with 2, 3, 4, or 5 buttons, compatible with Microsoft®

Note: Mouse software is not supported

Monitor

VGA

SVGA

MultiSync®

Microphone

Multimedia microphone/stereo with 3.5mm connectors

Audio

Multimedia speaker/stereo with 3.5mm connectors

Power Supply

9V, 1.1A DC power supply is required

Overview

Port Indicators

Front View

Back View

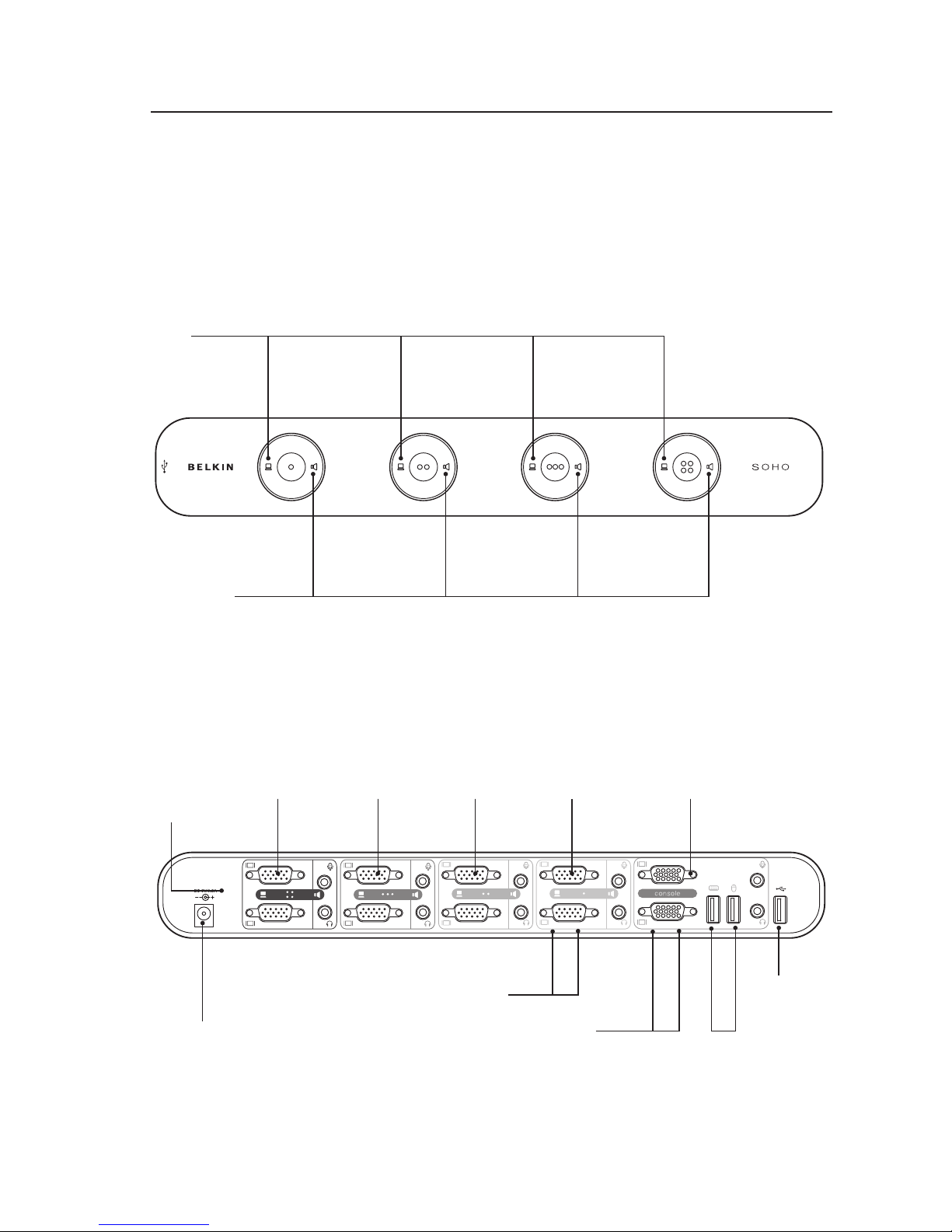

Unit Display Diagrams

DC Power Jack

Additional Computer Audio/Mic Jacks

1st Computer

Audio/Mic

Console Jacks Audio/Mic

Console Jacks USB Console

Port

USB Hub

Port 2

VGA Console

Port A & B

1st Computer

Port A & B

2nd Computer

Port A & B

3rd Computer

Port A & B

4th Computer

Port A & B

KVM Soho VGA U-type 4 Port Enclosure

Print Graphics v.2.1 F1DS102L, F1DS104L

front panel

back panel

KVM Soho DVI 4 Port Enclosure

Print Graphics v.2.1 F1DD102L, F1DD104L

front panel

back panel

KVM Soho VGA T-type 4 Port Enclosure

Print Graphics v.2.1 F1DS102J, F1DS104J

front panel

back panel

Audio/Mic Switch

KVM Switch

USB Hub

Port 1

section

Overview

Specifications

Part No.: F1DH102L, F1DH104L

Power: 9V, 1.1A DC adapter with center

pin-positive polarity

PCs Supported: 2 (F1DH102L), 4 (F1DH104L)

Console Keyboard: USB

Console Mouse: USB

Monitor Supported: VGA and SVGA MultiSync, LCD

Max Resolution: 2048x1536@85Hz

Audio Input/Output: 3.5mm jack

Microphone Input/Output: 3.5mm jack

VGA Port: 15-pin HDDB type

LED Indicators: 4 (F1DH102L), 8 (F1DH104L)

Enclosure: High-impact plastic

Dimensions: F1DH102L

12.5 (L) x 5.5 (W) x 5.5 (D) in.

(317.5 x 139.7 x 139.7mm)

F1DH104L

12.5 (L) x 5.5 (W) x 5.5 (D) in.

(317.5 x 139.7 x 139.7mm)

Weight: F1DH102L 1.48 lbs. (0.67kg)

F1DH104L 1.50 lbs. (0.68kg)

Operating Temp: 32° to 104° F (0° to 40° C)

Storage Temp: -4° to 140° F (-20° to 60° C)

Humidity: 0-80% RH, non-condensing

Warranty: 3 years

Note: Specifications are subject to change without notice.

Installing the KVM Switch

Pre-Configuration

Where to Place the KVM Switch

The compact size of the KVM Switch makes it perfect for desktop placement.

Consider the following when deciding where to place the KVM Switch: whether

or not you intend to use the direct-access port selectors; the length of the cables

attached to your keyboard, mouse, and monitor; the location of your CPUs from

your console; and the length of the cables you use to connect your computers to

the KVM Switch.

Cautions and Warnings

Avoid having cables near fluorescent lights, air-conditioning equipment, or

machines that create electrical noise (e.g., vacuum cleaners).

Single-Switch Installation

This section provides complete instructions for the hardware setup of a single KVM

Switch. (F1DH102L or F1DH104L)

Important Note: Before attempting to connect anything to the KVM Switch or

into your computer(s), make sure that everything is powered off. Plugging and

unplugging cables while computers are powered on may cause irreversible damage

to the computers and KVM Switch. Belkin will not be responsible for damage

caused by these actions.

For each dual-head VGA/USB computer to be connected to the Switch, one

dual-head VGA/USB cable is necessary.

Cables are available in longer lengths; see part numbers below:

10 ft. Cable – F1D9105-10

15 ft. Cable – F1D9105-15

section

Installing the KVM Switch

Connecting the KVM Switch

The KVM Switch is a plug-and-play device for installation. For a quick start on

installation and operation, please follow the instructions below for the

setup sequence:

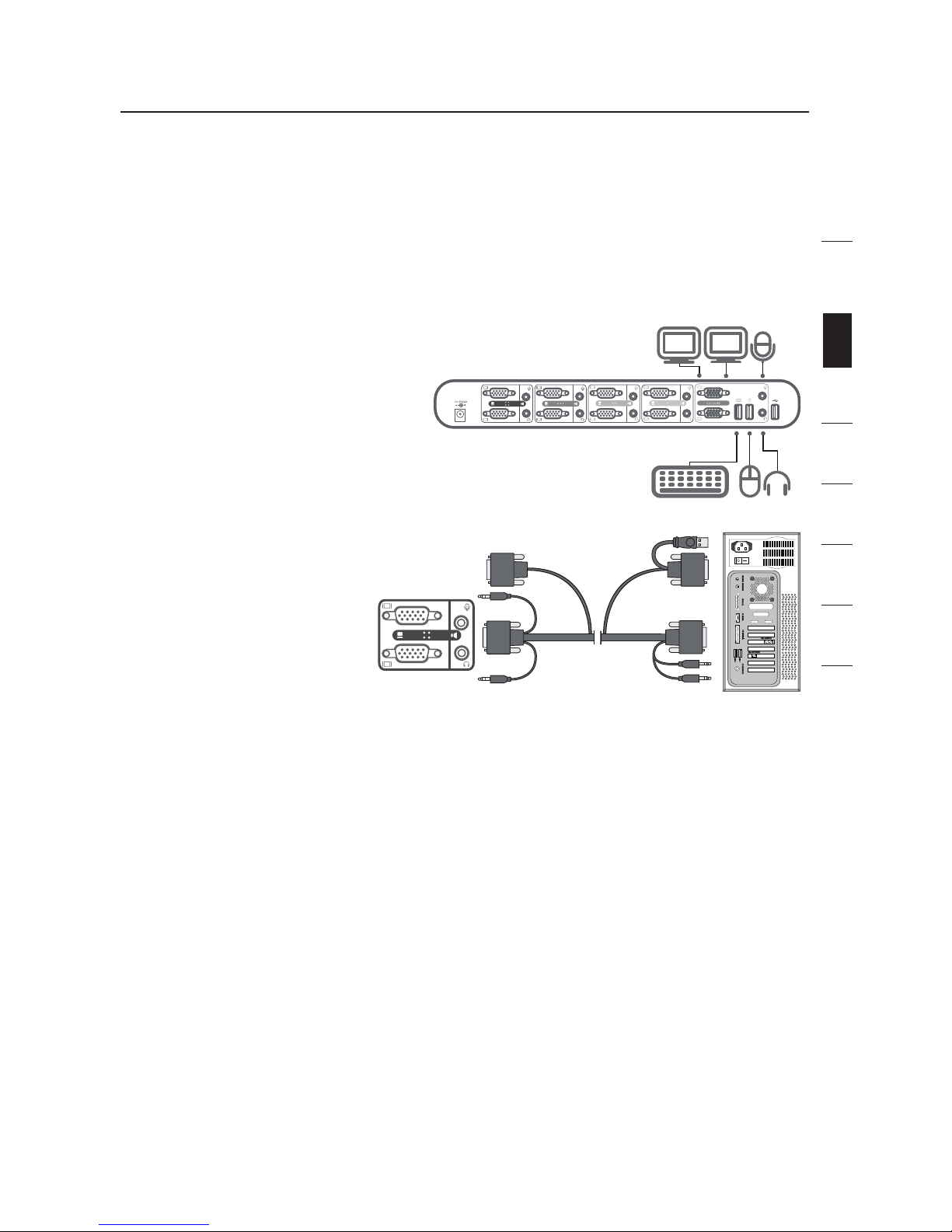

Step 1

Connect the monitors to the console

ports marked A and B. Connect the

keyboard and mouse (also speaker

set and microphone) to the console

port of the KVM Switch.

Step 2

Connect each of your

computers to the KVM

Switch, using the USB KVM

cable, and audio and

mic cables.

Installing the KVM Switch

Audio and Microphone Connections

Note: Speakers and microphones are not required for use of your KVM Switch.

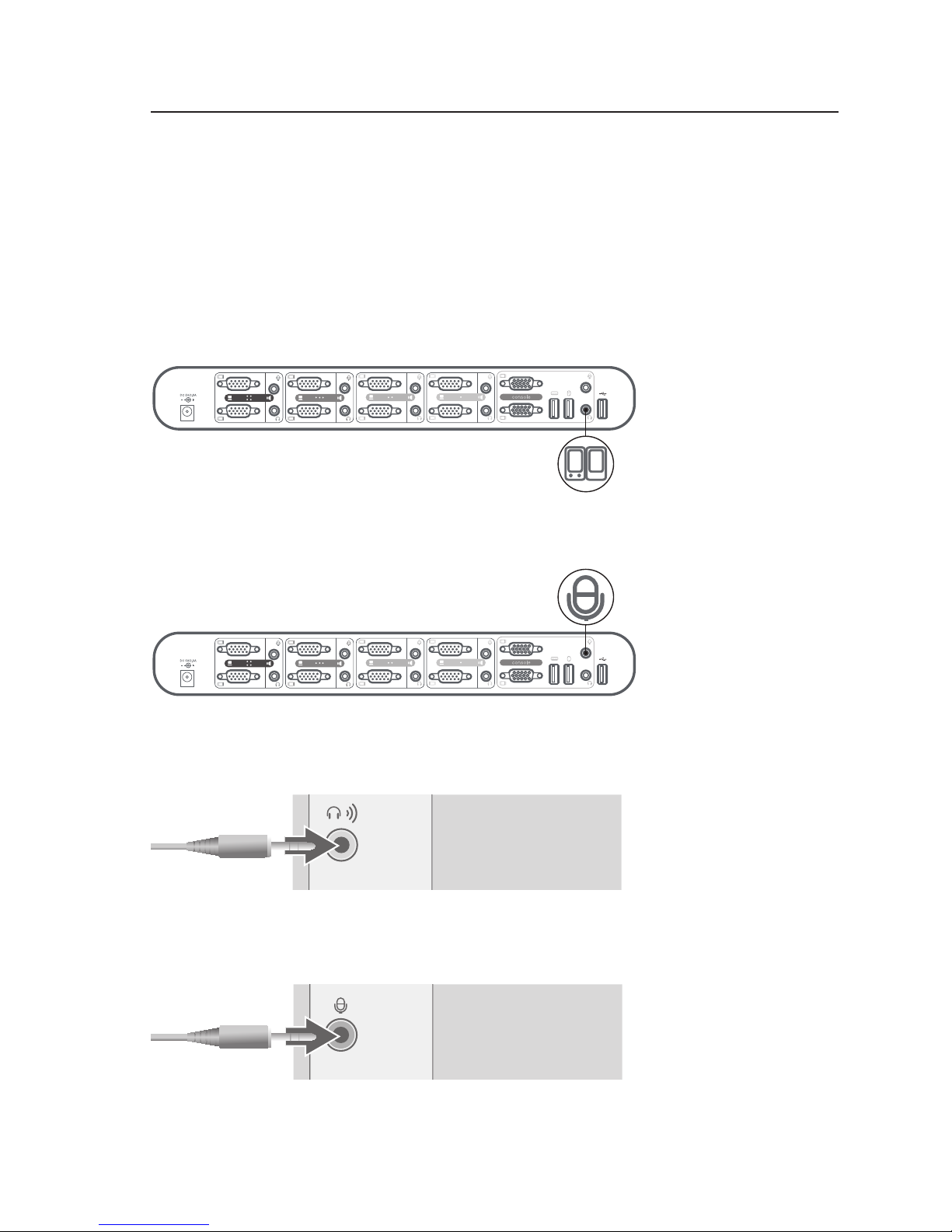

Connect the Audio

1. Using the audio cable attached to your speakers, connect the male 3.5mm

plug to the lime audio jack in the “Console” section of the KVM Switch.

2. Using the mic cable attached to your microphone, connect the male 3.5mm

plug to the pink mic jack in the “Console” section of the KVM Switch.

3. Using the SOHO USB Cable Kit, connect one end of the lime male 3.5mm

plug to the speaker jack of your sound card or computer, and connect the

other end to the audio jack of the KVM Switch.

4. Using the KVM Cable, connect one end of the pink male 3.5mm plug to the

mic jack of your sound card or computer, and connect the other end to the

pink mic jack of the KVM Switch.
