Belkin F5D5141-16 Bedienungsanleitung
Belkin Ltd.
7 Bowen Crescent, West Gosford
NSW 2250, Australia
+61 (0) 2 4372 8600
+61 (0) 2 4372 8603 fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, The Netherlands
+31 (0) 20 654 7300
+31 (0) 20 654 7349 fax
Belkin Tech Support
US: 877-736-5771
310-898-1100 ext. 2263
Europe: 00 800 223 55 460
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 800 616 1790
Belkin Corporation
501 West Walnut Street
Los Angeles, CA 90220-5221, USA
310-898-1100
310-898-1111 fax
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
+44 (0) 1933 35 2000
+44 (0) 1933 31 2000 fax
© 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of
respective manufacturers listed.
P75179
16-Port Gigabit Switch
24-Port Gigabit Switch
User Manual
F5D5141-16
F5D5141-24
Share large files at faster network speeds,
with maximum efficiency
16-Port Gigabit Switch
24-Port Gigabit Switch
1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Getting to Know your Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Connecting Networking Devices to your Switch. . . . . . . . . . . . . . . . 4
4 Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 Placement of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table of Contents
Introduction
section
1
2
3
4
5
6
7
8
Congratulations on your purchase of this high-quality Belkin 16- or
24-Port Gigabit Switch. Backward-compatible with 10/100 networks,
each Switch easily integrates into a new or existing network for
instant high performance. It delivers dedicated 100Mbps links to
each directly attached LAN segment or PC, enabling your servers
and workstations to transfer large AV and graphic files efficiently
throughout your network. This makes the Switch an excellent way to
increase the throughput of interconnected Ethernet and Fast Ethernet
hubs or server farms.
Engineered for compact convenience, each Switch features a durable
metal chassis that can be placed on the desktop or integrated
into a 19-inch rack, using the included rack-mount kit. All ports
auto-negotiate between a 10-, 100-, or 1000Mbps network and
adjust for straight-through or crossover cables, so you don’t have
to worry about cable type.
1
Features
- High-speed, dedicated 10/100/1000 Ethernet ports
• 16 ports (Belkin 16-Port Gigabit Switch F5D5141-16)
• 24 ports (Belkin 24-Port Gigabit Switch F5D5141-24)
- Standards
• IEEE 802.3 z/ab 1000Base-T
• IEEE 802.3u 100Base-Tx
• IEEE 802.3 10Base-T
- Place on your desk or 19-inch rack
- Internal power supply (100–240VAC/50–60Hz universal input)
- Auto MDI/MDIX ports
- Auto-negotiation between 10-, 100-, and 1000Mbps on all ports
- Auto-negotiation for full and half duplex on all ports
- Collision detection on all ports
- IEEE 802.3x PAUSE frames flow control in full-duplex operation
- Back-pressure flow control in half-duplex operation
- Support for up to 8K MAC address entries
- A Belkin Limited Lifetime Warranty and free, 24-hour
technical support
Package Contents
• Belkin 16- or 24-Port Gigabit Switch
• AC Power Cord
• Kit for 19" Rack Installation
• Self-Adhesive Rubber Pads for Desktop
• User Manual
32
Introduction

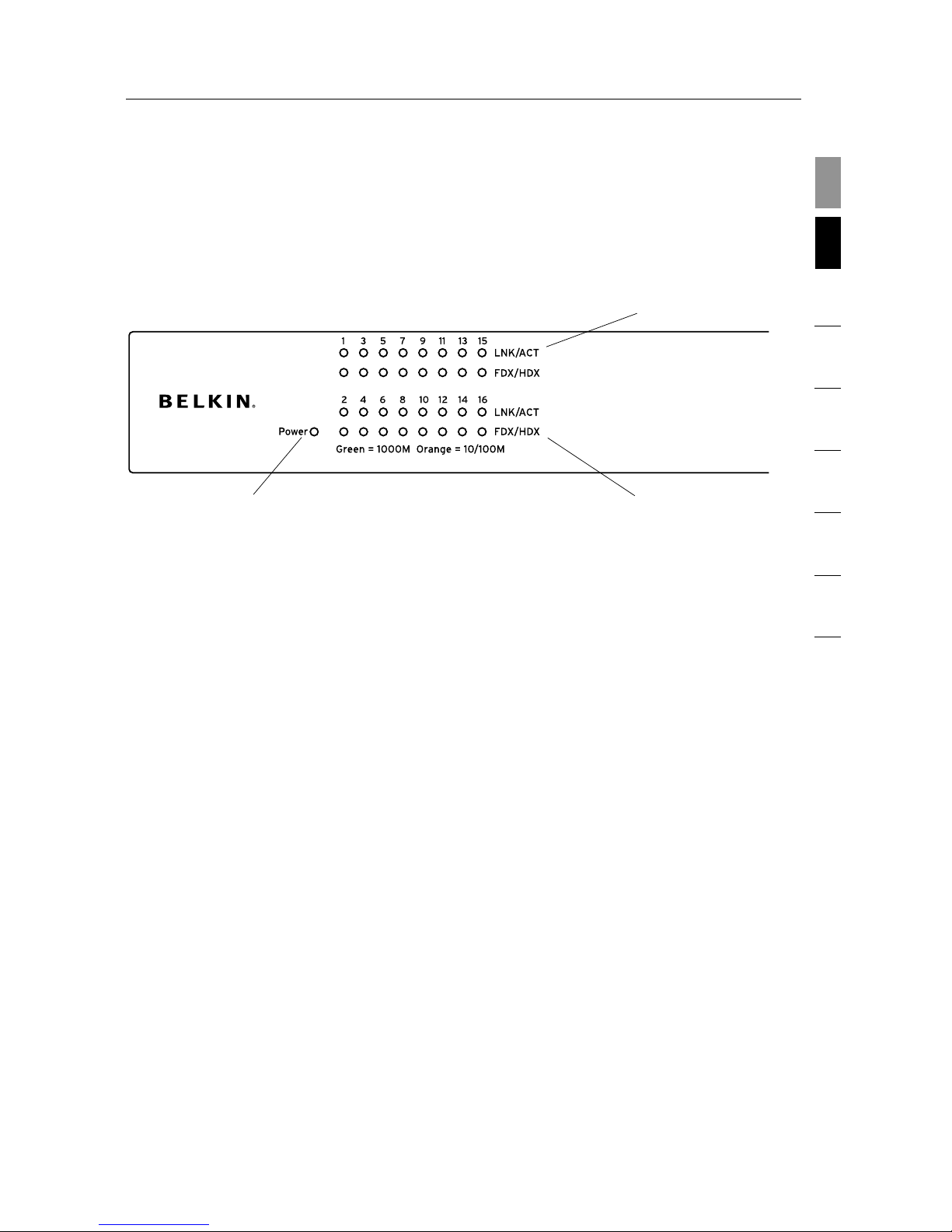

Front-Panel LEDs
Belkin 16- or 24-Port Gigabit Switches feature two rows of LEDs
that provide information about connection speed, link/activity, plus
a separate Power LED.
(a) Power (POWER) LED
• Green – Power on, normal operation
• Off – Power off, no power to the Switch
(b) Link and Activity (Link/Act) LED
• Solid Green – Network device is correctly connected to the
Switch through this port
• Blinking Green – Data is being transmitted and received
through this port
• Off – No link is established
(c) 100M/1000M LED
• Solid Green – A valid 1000Mbps link is established on
the port
• Solid Yellow – A valid 100Mbps link is established on
the port
• Off – A valid 10Mbps link is established on the port
(b)
(c)
(a)
Getting to Know your Switch
section
1
2
3
4
5
6
7
8
3
Introduction
54
Connecting Networking Devices to your Switch
54
Connecting Networking Devices to your Switch
Connecting your Switch to your Computers
1. Power down all your equipment.
2. Connect a Category 5e or 6 Ethernet cable between each
computer’s network interface card (NIC) and one of the
numbered ports on the front of the Switch.
3. All switch ports can automatically negotiate speeds at full- and
half-duplex modes to allow users to attach 10Base-T,
100Base-Tx, and 1000Base-T network devices.
4. Connect the power cord into the power socket in the rear of the
Switch; now plug the other end of the power cord into a power
source (wall jack or power strip).
5
Connecting Networking Devices to your Switch
5
section
1
2
3
4
5
6
7
8
Connecting your Switch to another Switch
1. Connect a Category 5e or 6 cable between one of the numbered
ports on the front of the Switch and one of the numbered ports
on the other Switch to which you are cascading or connecting.
2. All switch ports can automatically negotiate speeds at
full-and half-duplex modes to allow users to attach 10Base-T,
100Base-Tx, and 1000Base-T network switches or hubs.
3. All ports support auto MDI and MDIX functionality. When
cascading or connecting switches or hubs, the user can use a
straight-through or crossover cable.
Important: When connecting two switches together, use a single
cable. If multiple cables are used, loops may occur resulting in
unwanted collisions. This will result in poor network performance.
Cabling Distances
• 328 ft. (100m)
Recommended Cabling Standard
• Category 5e or 6 for Gigabit connections (1000Mbps)
• Category 5 for Ethernet (10Mbps) and Fast Ethernet
connections (100Mbps)
76
Applications
This Switch segments your network, significantly increasing both
bandwidth and throughput. Each port on the Switch can be attached
to any Ethernet, Fast Ethernet, or Gigabit Ethernet device, such as
another switch, or a server’s network adapter. All ports operate at
10/100Mbps full and half duplex, or 1000Mbps full duplex, providing
up to 2Gbps of bandwidth to the attached device.
Bridging Functions
This Switch provides fully transparent bridging functions. It
automatically learns node addresses that are subsequently used to
filter and forward all traffic based on the destination address. When
traffic passes between devices attached to the same shared collision
domain, those packets are filtered from the Switch. But when traffic
must be passed between unique segments (i.e., different ports on the
Switch), the high-speed switching fabric forwards the packets at
near-zero latency.
Switching Functions
Store-and-forward switching is used to forward traffic to other ports.
This scheme ensures data integrity and provides a clean data stream.

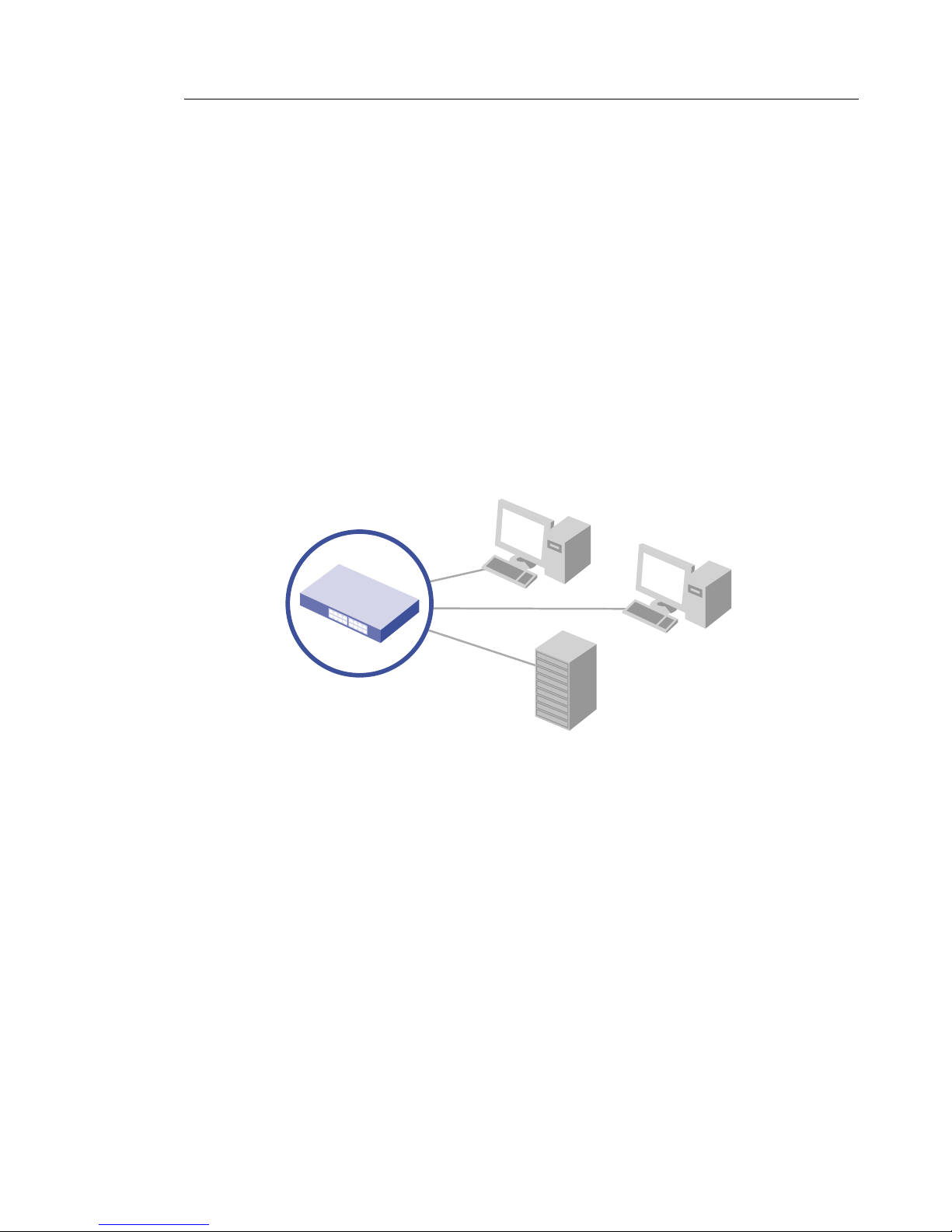

Sample Application
This Switch is designed to operate as a small workgroup switch. It
can provide 10-, 100-, or 1000Mbps connections to workstations, or
1000Mbps full-duplex links to high-speed servers. It can also provide
a high-bandwidth uplink to the network backbone.
7
The Switches can be placed on a flat surface or in a 19-inch rack.
Placement on a Flat Surface
1. Affix the four included rubber feet on the bottom of the Switch in
the area that is clearly marked on each of the four corners.
2. Make sure the Switch is placed in an area that allows for
proper ventilation.
3. Place on a flat surface.
Placement in a 19-Inch Rack
1. Do not affix the four rubber feet on the Switch when
rack-mounting. If already affixed, remove.
2. Attach the mounting bracket to each side of the Switch with
the included screws.
3. Place the Switch in the rack and align the holes of the mounting
bracket with the correct hole in the rack.
4. Place and tighten the screws of each mounting bracket into
the rack.
Placement of the Switch
section
1
2
3
4
5
6
7
8
