F5U302

Wireless USB Hub Wireless USB Hub

1. Introduction ....................................................................1

Features ........................................................................ 3

System Requirements ................................................... 3

Package Contents ......................................................... 3

Product Description ...................................................... 4

2. Installation ................................................................ 5-12

3. Operation .................................................................13-19

Devices Tab ................................................................. 13

Advanced Tab ............................................................. 17

System Tray ................................................................. 18

Uninstalling the Software ............................................ 19

4. Maintenance ............................................................20-24

Troubleshooting .........................................................20-23

Support for USB Classes ............................................ 24

Wireless Link Out of Range ........................................ 24

Extended or External Wired USB Hub Connections .. 24

5. Technical Specifications ................................................ 25

6. Information ..............................................................26-29

Table of Contents

Introduction

Congratulations and thank you for purchasing the Belkin

Wireless USB Hub. This revolutionary product lets you

connect all your USB devices to your computer—wirelessly.

Now you can print, play music, scan, download photos,

and burn CDs from anywhere within the room, up to 30 feet

away, without the hassle of connecting cables. The Hub is

easy to use and gives you the freedom to roam—and

stay connected.

Please review this User Manual carefully so that you are sure

to get the most from your Wireless USB Hub.

Introduction

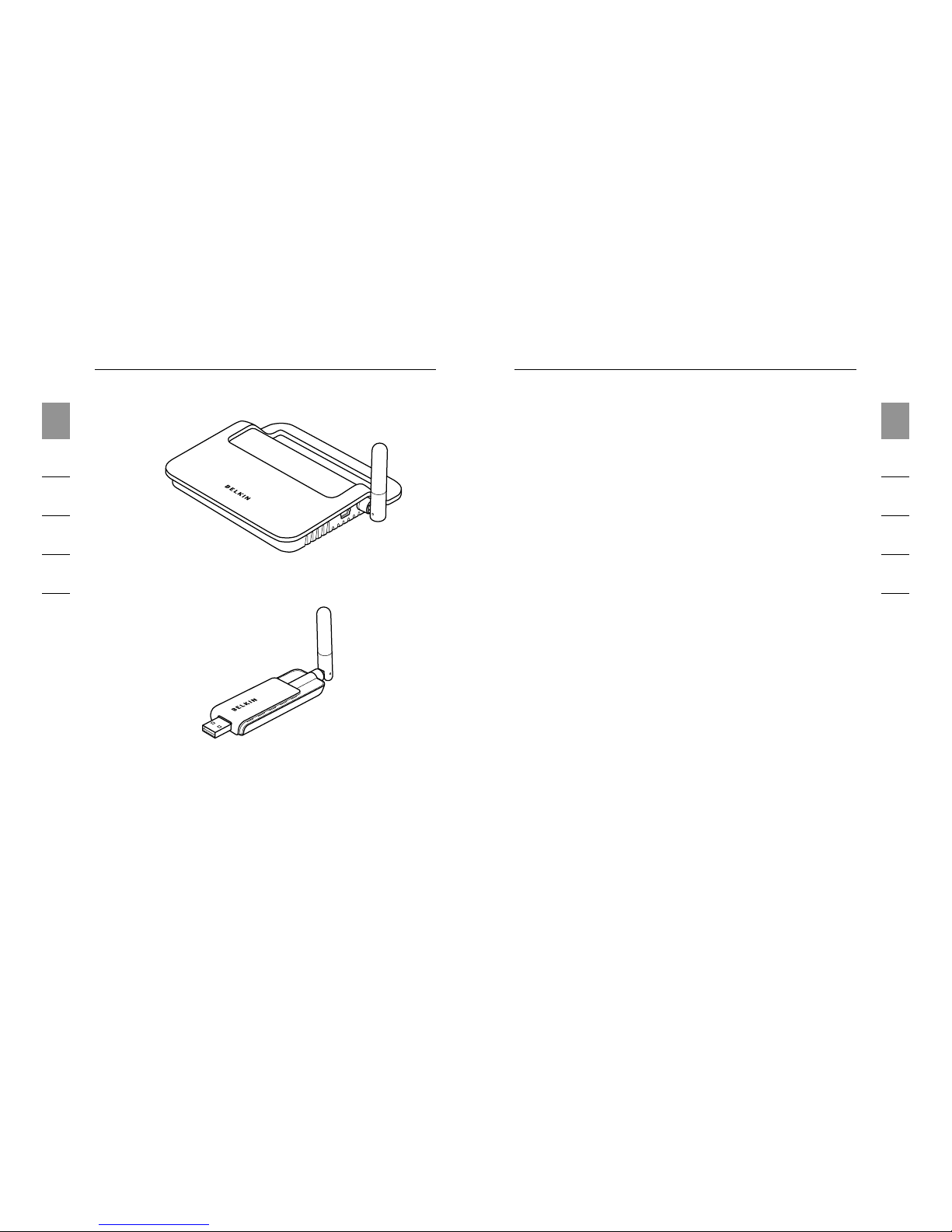

Figure 1: Wireless USB Hub

Figure 2: Wireless USB Adapter

Features

• Wireless connectivity through USB technology for printers,

cameras, scanners, and other devices to your computer,

from up to 30 feet away

• Reduced cable clutter

• Ports for linking up to 4 high-, full-, and low-speed devices

with your computer

• Belkin Lifetime Warranty

System Requirements

• Pentium® processor-based computer (or equivalent) with

available Hi-Speed USB 2.0 port

• Windows® XP with Service Pack 2

• Windows Vista™ 32-bit/64-bit

Package Contents

• Wireless USB Hub

• Wireless USB Adapter

• Wireless USB Adapter Dock

• Power Adapter

• USB Cable (A to mini-B)

• Installation CD

• User Manual

• Quick Start Guide

Introduction

Installation

The Wireless USB Hub installation process consists of four

main steps:

Step 1: Initial driver installation

The driver installer places all Hub and Adapter drivers into

their proper folders and creates necessary registry entries.

Step 2: Cable-association procedure

You set up the Wireless USB Hub’s security by connecting

the Hub to the computer via a USB cable.

Step 3: Wireless USB Hub installation

This step completes installation of the Hub.

Step 4: Wireless USB Adapter installation

This final step completes installation of the Adapter.

Product Description

Upstream USB Ports: 1

Downstream USB Ports: 4

Per-Port Voltage: 5V

Per-Port Current: 500mA

Power Mode: Self-powered

Power Supply:

Input: 100–240 50/60Hz

Output: 5V DC, 3A

Plug Size: 3.5mm

Plug Polarity: Center-pin positive

LED Indicators

Wireless Status LED (Adapter)

Color: Blue

Status: Blinks when a wireless connection is established

Wireless Status LED (Hub)

Color: Blue

Status: Constant on, when power supply is connected;

blinks to indicate a wireless connection

USB Port Status Indicator LED (Hub Only)

Individual-status LED for each downstream port

Color: Bicolor, green or amber

Status: Off: No USB device plugged in

(or device not enumerated)

Green: USB device enumerated

Amber: Over-current condition

Installation

Initial Driver Installation

1. Insert the Belkin driver-installation CD into your CD

drive. After a few moments, the setup application should

appear on your computer screen.

Note: If the setup application does not appear, double-click

“My Computer”, and then click your CD-drive icon.

This will load the setup-applications main page.

2. Click the “Install Driver” button.

3. The driver installer will launch. Click “Next”.

4. Accept the license agreement. Then, click “Next”.

5. Enter a user name, if desired. Then, click “Next”.

6. Click “Next” to accept the default folder location; or

select “Change” to specify an alternate folder location.

7. Click “Install”.

8. Click “Finish” to complete the driver-install process.

9. The Wireless USB Control Center will now be displayed

on your Windows desktop. Leave the Control Center

open on your Windows desktop and proceed to the

“Cable-Association Procedure” below.*

Note for Windows Vista Users: You must open the Wireless

USB Control Center manually. Double-click the “Wireless

USB Control Center” icon found in the Windows system

tray, which is located in the bottom, right-hand corner of the

Windows desktop.

Cable-Association Procedure

When you initially install the Hub, you must “associate”

it with the host computer. To do this, connect the Hub to

your computer using the provided USB cable. This “cable

association” procedure allows the computer and Hub to

share information that is used to establish a secure

wireless connection.

1. Plug the power supply into the wall, and then plug the

DC connector into the Hub.

2. Attach the Hub to your computer using a standard USB

cable (mini-B to USB-A connector).

a. Plug the “Mini B” connector into the port next to the

Hub antenna.

b. Plug the “USB A” connector into a USB port on the

host computer.

c. After a few moments, the Windows “Found New

Hardware Wizard” will launch.*

Note for Windows Vista Users: You will not see the dialog

noted in step 3. Proceed to step 4.

3. There are four separate drivers to install in this step:

a. Belkin Cable Association Device

b. Belkin Cable Association RCI Device

c. Belkin Cable Association DFU Interface

d. Belkin Cable Association Interface

Installation

The Windows “Found New Hardware” Wizard installs each

of these drivers separately, one after the other.

4. After all four drivers have been installed, a pop-up

window displays the prompt, “The security setup for the

device Belkin... is now complete”.*

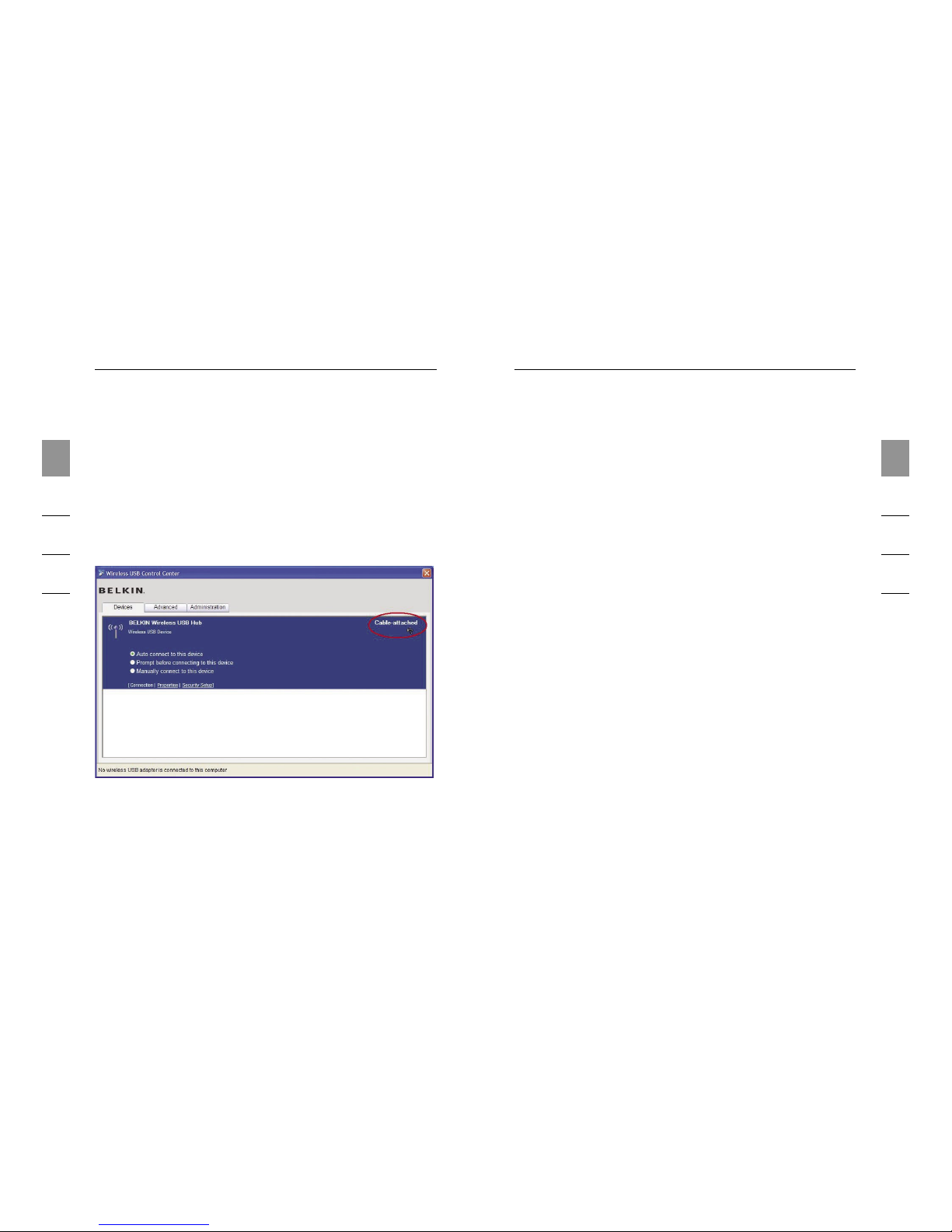

5. For additional confirmation that the association process

is complete, look in the upper, right-hand corner of the

Wireless USB Control Center for the message,

“Cable attached”.

6. Remove and store the USB cable.

Automatic Connect Feature

When the cable-association procedure is completed, the

Hub automatically connects to the host computer whenever

it is within operating range. To associate with another Hub,

follow the instructions for “Cable-Association Procedure”, on

page 7. Multiple Hubs may be associated with a single-host

PC. Likewise, a single Hub may be associated with

multiple hosts.*

*Important Note: Even though it is possible for the Hub

to store association information for more than one host

computer, only one of the hosts can access the Hub at any

given time.

Installing the Wireless USB Adapter

1. Insert the Wireless USB Adapter into an available

USB 2.0 port.*

2. There are five separate driver modules to install

in this step:

a. Belkin Wireless USB HWA

b. Belkin HWA Radio Control Interface

c. Belkin HWA DFU Interface

d. Belkin Host Wire Adapter

e. Belkin Wireless USB Hub

Installation

The Windows “Found New Hardware” Wizard installs each of

these drivers separately, one after the other.

3. After the Wireless USB Adapter is installed, the Wireless

USB Control Center will display up to five green bars

under the “Connected Column” (depending upon signal

strength). The blue LEDs on the Adapter and the Hub will

begin to flash. The Hub is now fully operational.

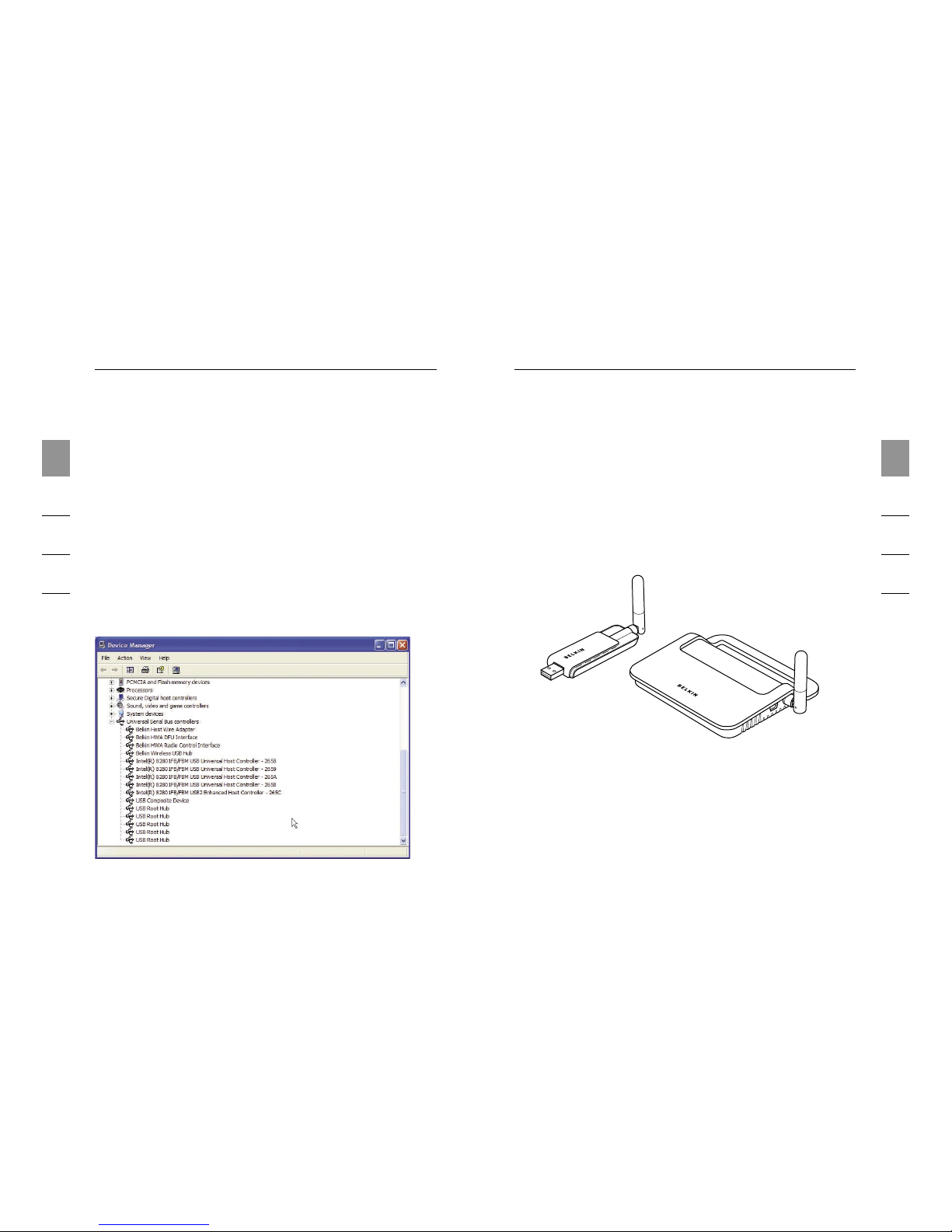

Conﬁrming Proper Installation

To confirm that the Wireless USB Hub is properly installed,

check the Windows Device Manager. In the Device Manager,

you should see: “Belkin Host Wire Adapter”, “Belkin HWA

DFU Interface”, “Belkin HWA Radio Control Interface”, and

“Belkin Wireless USB Hub”.

Proper Orientation of Antennas

By design, Ultra-Wideband technology (UWB) radios

transmit at very low power levels. To achieve peak

performance, it is important to properly orient the antennas

on the Hub and Adapter.

As a general rule, the antennas should be positioned

in a vertical orientation relative to the horizontal plane.

Please see drawings below for an explanation. We also

recommend that you place the antennas in a direct

line-of-sight orientation.

Installation

Operation

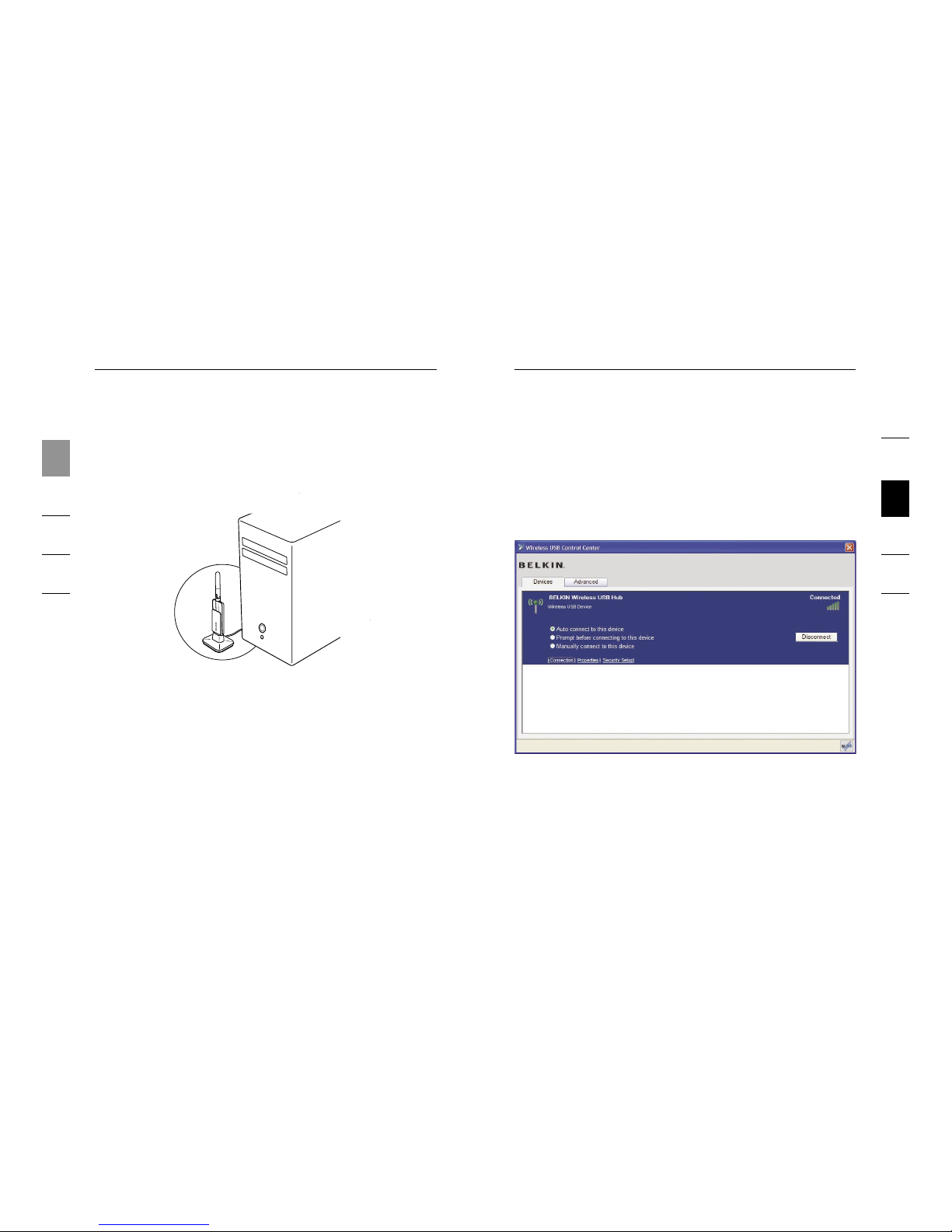

Remote Adapter Stand

When the Adapter is to be attached to a desktop or tower

computer, you might need to position it in a remote location.

The included Adapter Stand allows you to position the

Adapter up to six feet away from the host computer.

Using the Wireless USB Control Center

The user interface for the Wireless USB Control Center

consists of a window with three tabs. These tabs are:

• Devices

• Advanced

• Administration

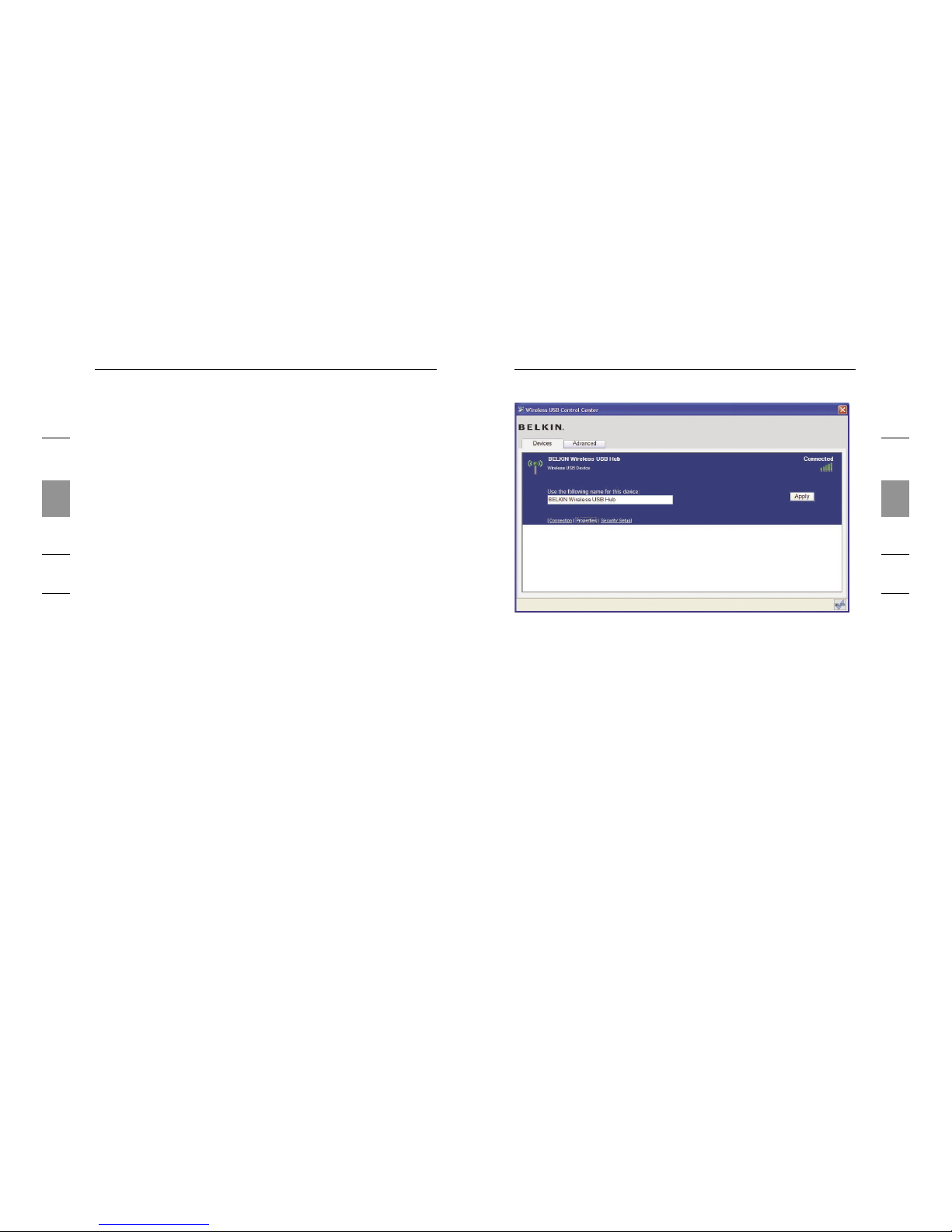

Devices Tab

The “Devices” tab shows all Wireless USB devices available

for use on the host computer. From the “Devices” tab, you

can set the connection mode, and view or delete

association information.

Connection Tab

Operation

You can view the device’s connection options by clicking

the connection tab for any device. If the device is available

but currently not connected, you can click the “Connect”

button on this screen to connect it, and click one of the

radio buttons to determine how the device will connect in

the future. Your choices are:

a. Auto connect to this device. The device will always

connect automatically with no prompting from the

user, when it is within range.

b. Prompt before connecting to this device. In this

mode, the device prompts the user to connect

through a tray bubble, when it is within range.

c. Manually connect to this device. The device will

not prompt the user when it is in within range of

the computer. This choice requires you to go to the

connection options and click the “Connect” button

each time you want to link the device to

your computer.

Properties Tab

Select the “Properties” tab to change the name of the

Wireless USB device. (The image above shows the

“Properties” section of the “Device” tab.)

Andere Handbücher für F5U302 - Wireless USB Hub

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Belkin Schalten Handbücher

Belkin

Belkin OmniView F1DP108Gea Bedienungsanleitung

Belkin

Belkin OmniView F1DE108C Bedienungsanleitung

Belkin

Belkin F1DP108A - OmniView SMB CAT5 KVM Switch Kurzanleitung

Belkin

Belkin OmniView Secure F1DN102U Bedienungsanleitung

Belkin

Belkin F5D5131-16 - 10/100 Switch Bedienungsanleitung

Belkin

Belkin F1U126-KIT Bedienungsanleitung

Belkin

Belkin F1DN102KVM-UNN4 Bedienungsanleitung

Belkin

Belkin F1DE101H Bedienungsanleitung

Belkin

Belkin Conserve Switch Bedienungsanleitung

Belkin

Belkin F5U700 Bedienungsanleitung

Belkin

Belkin OmniView Bedienungsanleitung

Belkin

Belkin F4U006 - Travel USB Hub Bedienungsanleitung

Belkin

Belkin OmniView F1D5102P Bedienungsanleitung

Belkin

Belkin OmniView Secure F1DN104U Bedienungsanleitung

Belkin

Belkin F1DK102Uea Bedienungsanleitung

Belkin

Belkin BusStation F5U1000 Bedienungsanleitung

Belkin

Belkin F1DV108Aea Bedienungsanleitung

Belkin

Belkin BusStation F5U100, BusStation F5U100-BLU,BusStation FW100-SLV, BusStation... Bedienungsanleitung

Belkin

Belkin F1DG102D Bedienungsanleitung

Belkin

Belkin F1DN102B Bedienungsanleitung

Belkin

Belkin F1DJ102PeaB Bedienungsanleitung

Belkin

Belkin Switch Bedienungsanleitung

Belkin

Belkin F1DJ102Puk Montageanleitung

Belkin

Belkin OmniView F1DH102U Kurzanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
