Belkin OmniView Secure F1DN104U Bedienungsanleitung

P75209-C

of respective manufacturers listed. Windows, Windows Vista, Microsoft, and IntelliMouse

are either registered trademarks or trademarks of Microsoft Corporation in the United States

and/or other countries. Mac OS and Mac are trademarks of Apple Inc., registered in the U.S.

and other countries.

OmniView® Secure

KVM Switch

Belkin Tech Support

US: 800-282-2355

310-898-1100, ext. 2263

UK: 0845 607 77 87

Australia: 1800 235 546

New Zealand: 0800 235 546

Singapore: 65 64857620

Europe: www.belkin.com/support

Belkin International, Inc.

501 West Walnut Street

Los Angeles, CA 90220, USA

310-898-1100

310-898-1111 fax

Belkin Ltd.

Express Business Park, Shipton Way

Rushden, NN10 6GL, United Kingdom

+44 (0) 1933 35 2000

+44 (0) 1933 31 2000 fax

Belkin Ltd.

4 Pioneer Avenue

Tuggerah Business Park

Tuggerah, NSW 2259, Australia

+61 (0) 2 4350 4600

+61 (0) 2 4350 4700 fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk, The Netherlands

+31 (0) 20 654 7300

+31 (0) 20 654 7349 fax

User Manual

F1DN102U

F1DN104U

F1DN108U

OmniView® Secure

KVM Switch

OmniView® Secure

KVM Switch

Table of Contents

1. Introduction ............................................................................................. 1

Package Contents .......................................................................... 1

2. Overview ................................................................................................. 2

Security Features ........................................................................... 2

Other Features ............................................................................... 3

Equipment Requirements ............................................................... 4

System Requirements .................................................................... 5

Unit Display Diagrams .................................................................... 6

Specifications ................................................................................ 7

3. Installation .............................................................................................. 8

Pre-Configuration ........................................................................... 8

Mounting the Switch (optional) ....................................................... 9

Connecting the Console to the Switch .......................................... 11

Powering Up the Systems ............................................................ 13

Selecting a Computer Using Port Selectors .................................. 14

4. Using your Switch ...................................................................................14

5. Frequently Asked Questions ...................................................................15

6. Troubleshooting .....................................................................................16

7. Information ............................................................................................19

section

Congratulations and thank you for purchasing this Belkin OmniView Secure

KVM Switch (the Switch). Designed especially for secure military and

government installations, the Switch provides the centralized control required

by today’s IA (Information Assurance) computer environments. It allows users

to manage multiple computers from a single USB console, while preventing

unintended data transfer between computers running on different

security levels.

This User Manual provides all the details you’ll need to install and operate

your new Switch, in addition to expert troubleshooting advice—in the unlikely

event of a problem. For quick and easy installation, please refer to the Quick

Installation Guide included in your packaging.

We appreciate your business and are confident that you will soon see for

yourself why over 1 million Belkin OmniView products are in use worldwide.

Important: Tamper-evident tape has been placed on both sides of

the Switch, to provide indication if the product has been opened or

compromised (see diagram on page 6). If one of the tapes has been

removed or appears disrupted, please call Belkin Technical Support

at (800) 282-2355.

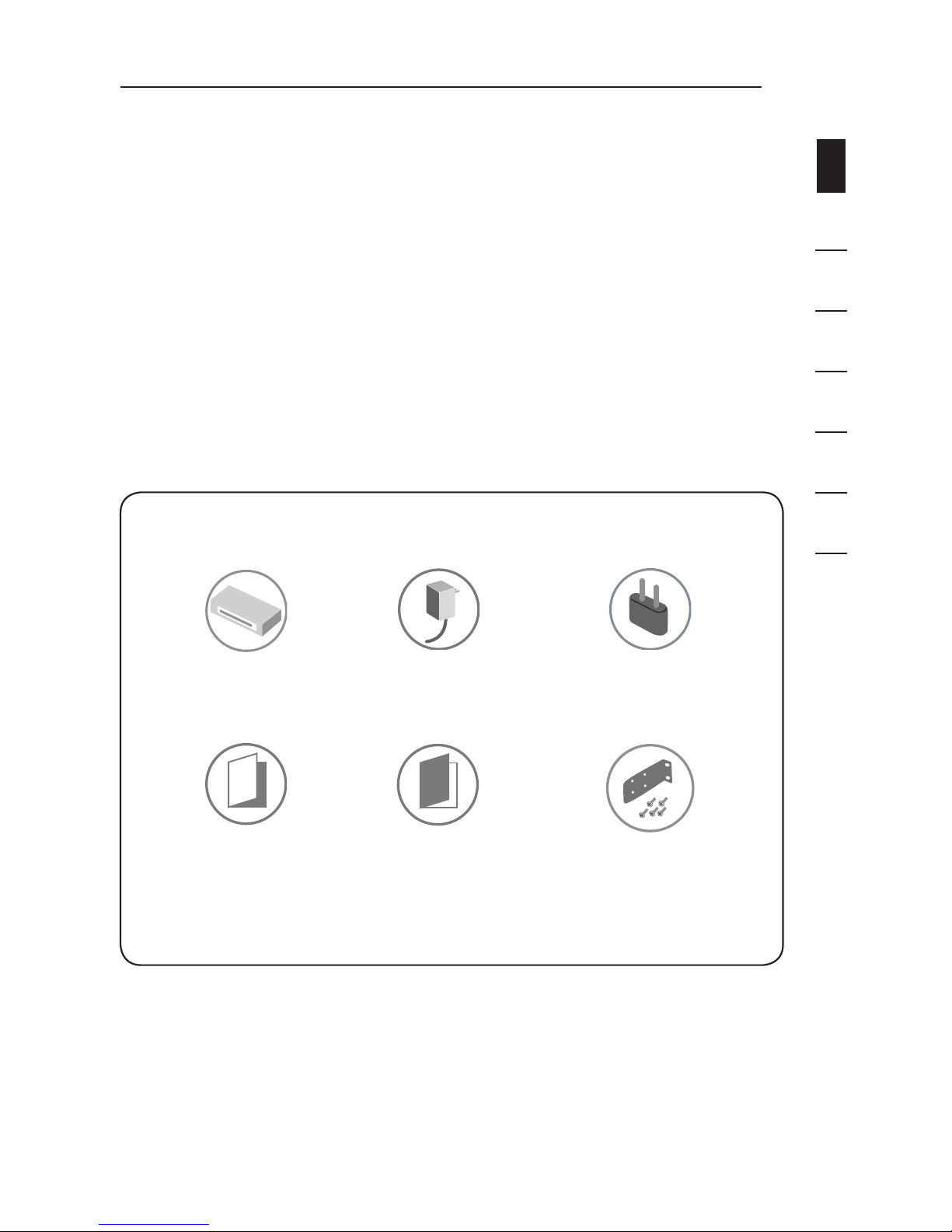

Rack-Mount

Brackets with Screws

(F1DN108U

model only)

User Manual

OmniView Secure

KVM Switch

5V DC, 3A Global

Power Adapter

Quick

Installation Guide

Package Contents

4 Interchangeable

AC Plugs1

1 Includes AC plugs for the U.S., U.K., Europe, and Australia.

Introduction

Security Features

• Dedicated Processors

Designed specifically for secure environments, the Switch features a

dedicated processor per computer port. This keeps each computer running

on different security levels completely separated and secure at all times, and

prevents any unintended data transfer between computers.

• No Memory Buffer

The Switch does not have a memory buffer and does not have the ability

to store data. This prevents any keystrokes or other data input from being

unintentionally transferred as you switch between computers, ensuring the

integrity of your data. The Switch does not include any features that require

memory, such as hot keys, AutoScan, or an on-screen display (OSD).

• Non-Reprogrammable Firmware

The Switch features custom firmware that is not reprogrammable, preventing

the ability to tamper with the KVM logic.

• Tamper-Evident Tape

Tamper-evident tape is placed on both sides of the enclosure, to provide

indication if the Switch has been opened or compromised.

• Tamper-Proof Hardware

All integrated circuits are soldered directly to the printed circuit board to

prevent tampering with the components.

• NIAP Listing

The Switch is listed by the National Information Assurance Partnership (NIAP).

It is NIAP Common Criteria validated to EAL 4 (Evaluation Assurance Level 4).

Overview

section

Overview

Other Features

• USB Support

The Switch is compatible with USB 1.1 and USB 2.0 technology and supports

Plug-and-Play connectivity with USB computers, keyboards, and mice.

• Video Resolution

The Switch supports video resolutions of up to 1920x1440@75Hz.

• Dedicated Port Selectors

Port selectors, located conveniently on the front panel of the Switch, allow you

to switch easily from one computer to the next. Each button controls a single

computer port.

• LED Indicators

An LED above each port selector illuminates to indicate that the console

currently controls the corresponding computer. As a port selector is pushed,

the LED above it will light up.

• Metal Enclosure

The Switch features a rugged, metal enclosure that provides stability and

allows the Switch to be placed beneath your monitor or other desk item.

• Desktop or Rack-Mount Installation

With its compact design, the Switch can be placed on your desktop or

mounted to a standard 19-inch server rack for 1U installation.2

• Global Power Adapter

The Switch includes a global power adapter and interchangeable plugs, to

allow for both domestic and international installations.3

2 The 2- and 4-Port Switches require an optional Rack-Mount Kit for rack installation

(Belkin part number F1D005).

3Includes AC plugs for the U.S., U.K., Europe, and Australia.

Overview

Equipment Requirements

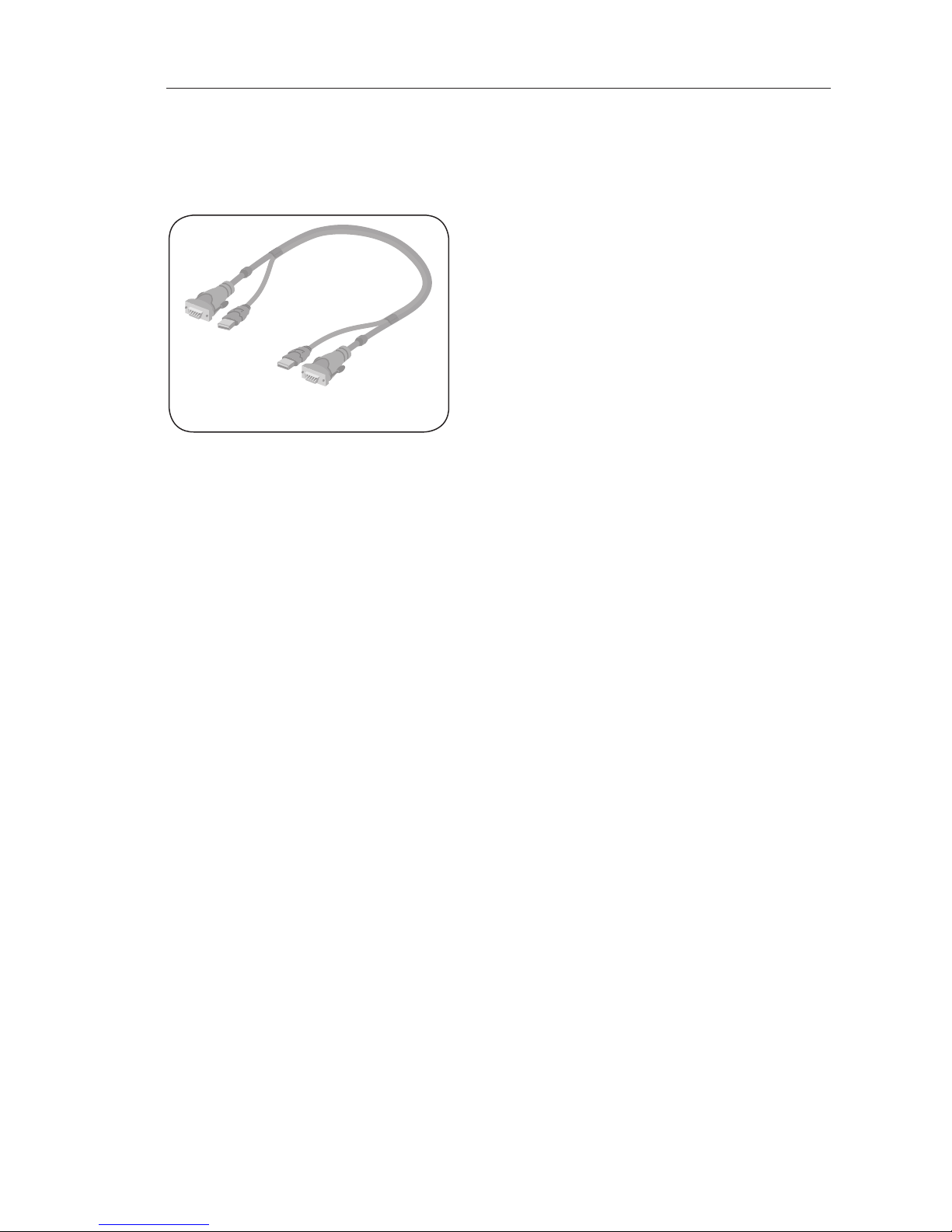

Cables

Belkin highly recommends you use

Belkin All-In-One USB KVM Cable Kits

for your Switch to help ensure superior

performance. These cables offer the

highest quality possible to ensure optimal

data and video transmission. One Cable

Kit is required per connected computer.

All-In-One USB KVM Cable Kits:

F3X1962b06 – 6 ft. (1.8m)

F3X1962b10 – 10 ft. (3m)

F3X1962b15 – 15 ft. (4.6m)

Note: Due to USB limitations, the

USB-cable length cannot exceed

15 feet (4.6m).

F3X1962bXX

section

Overview

System Requirements

Operating-System (OS) Platforms

The Switch is compatible with computers running on, but not limited to, the

following OS platforms:

• Windows® 2000

• Windows XP (Home/Professional)

• Windows 2003 Server

• Windows Vista®

• Red Hat® Linux® Desktop

• Red Hat Enterprise Linux WS

• Mac OS® X v10.3 and higher

Keyboards

• USB-compatible (including wireless keyboards)

Mice

• USB-compatible (including wireless or optical mice)

Monitors

• CRT and LCD with VGA support
