Belkin AC1800 Bedienungsanleitung
User Manual
F9K1118V1 8820ed01245uk Rev. B00
WIRELESS AC+ GIGABIT ROUTER
ENGLISH
FRANÇAIS
DEUTSCH
NEDERLANDS
ESPAÑOL
ITALIANO
PORTUGUÊS
POLSKI
TÜRKÇE
TABLE OF CONTENTS
Getting Started ........................................... 1
What’s in the Box ............................................. 1
Initial Setup.................................................. 1
How to Set It Up ............................................. 2
Connect Your Wireless Devices................................ 21
Adding USB Devices ......................................... 23
Optional Software ...........................................26
.............................. 34
Front Panel .................................................34
Back Panel ................................................. 35
Technical Details ........................................36
Technical Features ..........................................36
System Requirements........................................ 37
....................................38
Auto Update on Your Belkin Router.............................38
Updating the Router’s Firmware via the Web Interface ............39
Resetting the Router .........................................43
Restoring Your Router to Factory Defaults.......................43
Restoring the Router to Default Settings Using the Web Interface ... 44
Troubleshooting, Support, and Warranty ...................47
Troubleshooting ............................................. 47
Technical Support ........................................... 54
Belkin International, Inc., Limited 2-Year Product Warranty.........55
Regulatory Information ...................................58
Declaration of Conformity with electromagnetic compatibility and
electromagnetic interference ..................................58
Europe – EU Declaration of Conformity .........................59
General Safety Information: ................................... 59
1
What’s in the Box
AC1800 DB Wireless AC+ Gigabit Router
Ethernet cable (attached to router)
Power supply (attached to router)
Network information card (attached to router)
Quick Setup Guide
Initial Setup
For the best results, place the Router next to your modem in
an open location away from large metal objects and magnets
such as those found in speakers. Raising the Router above
floor level can improve the strength of your wireless signal.
GETTING STARTED
2
GETTING STARTED
How to Set It Up
1. Turn off your modem by disconnecting its power
supply. Some modems have a battery backup; this will
need to be disconnected at this time as well.
2. Connect your Router to your modem using the cable
(already attached).
3
GETTING STARTED

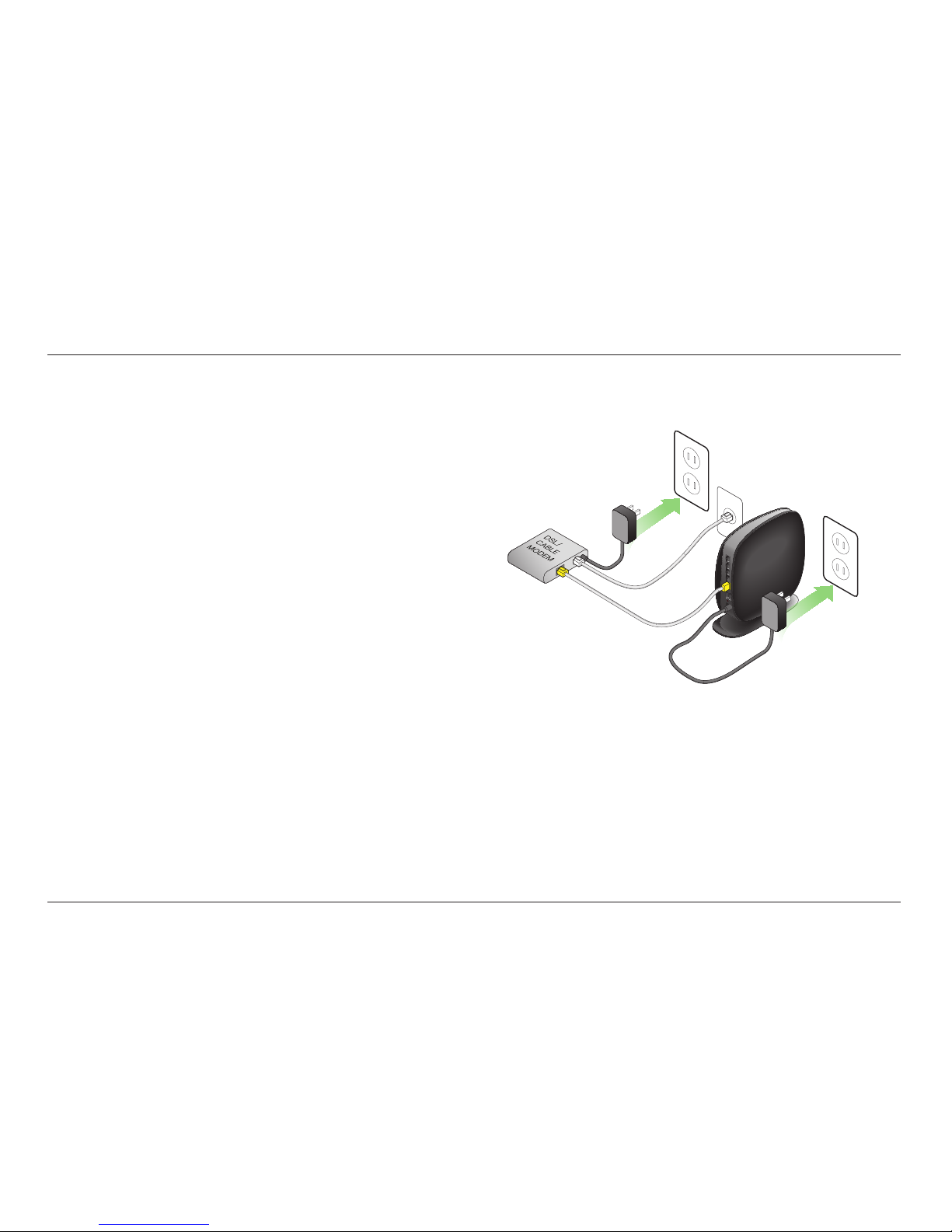

3. Power up your modem by plugging in its power
supply. If your modem has a battery backup, it
can be reconnected at this time; you may need
to hold the reset button for 10 seconds.
4. Power up your Router by plugging in its power supply.
4
GETTING STARTED
Retrieve the network ID card from the foot of your new Belkin Router.
Can’t find the card? The default network name and
password are also printed on the foot of the Router.
Use your computer, tablet, or smartphone to connect to
the wireless network shown on the network ID card.
When requested, please enter the password
(security key) provided on the card.
When your device has connected to the Router, use a browser
to visit http://router/. The router homepage will appear.
For information on how to connect your wireless devices, please
see the “Connect Your Wireless Devices” section on page 21.
5
GETTING STARTED
If the page does not load, then try visiting http://192.168.2.1 to see the
router homepage.
Click the “Detect my connection” button in green. (If you would rather
set up the Router manually, click the “set it up manually” link and
proceed to page 11.)
After several moments, your Router should automatically detect your
Internet connection and restart. This can take anywhere from 30 sec-
onds to 3 minutes depending on your connection type.
If your Router is unable to establish an Internet connection on its
own, you may be asked to restart your modem or provide a username
and password if your connection requires one. Follow the on-screen
instructions provided.
6
GETTING STARTED
Once your Router is online, it will determine if there is a firmware
update available and offer to install it. Please allow up to 5 minutes for
the firmware to update.
If there are no updates available, then setup will proceed.
At the next screen you will be invited to change your network name
and password. Re-using your previous network name (SSID) and
password makes connecting your existing devices to the new router
much easier.
7
GETTING STARTED
If you decide to change these settings, then enter the new values and
click “Save and Continue.” (Note: The password must be at least 8
characters long.)
If you changed your network name and password, make note of it on
the service card located on the foot of the Router. You will then have to
connect to the new network.
Please take this opportunity to register your Router. This will help
technical support if there is a problem with your Router.
Simply complete each of the required fields and click “Complete
Registration.” If you don’t want to register right now, click “Register
Later” to proceed.
8
GETTING STARTED

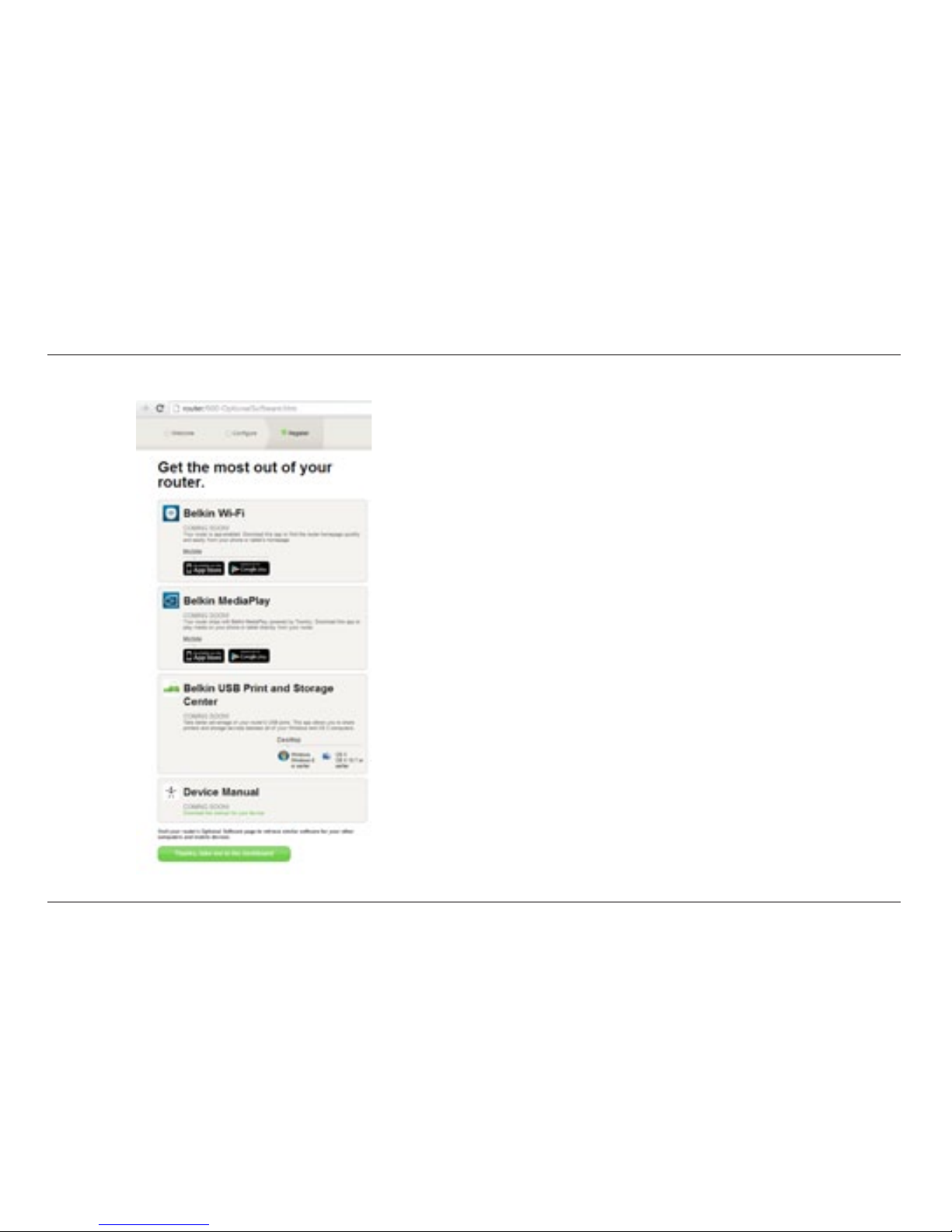

At the next screen you can download optional software that was
bundled with your Router.
This screen shows you optional software that is available for your
Router, such as the USB software to allow you to print through the
Router’s USB port. If you wish to download and install any of these
software programs, simply click on the button appropriate for your
device.
