Belkin F9K1105 Bedienungsanleitung

User Manual

F9K1105V1 8820-00843 Rev. B00

WIRELESS DUAL-BAND N ROUTER

N450 DB

TABLE OF CONTENTS

Getting Started ........................................... 1

What’s in the Box .............................................1

Initial Setup..................................................1

Advanced Tools & Settings.....................................8

The Belkin Router Manager ....................................9

Adding Computers to Your Network ............................10

Manually Set Up Your Internet Connection ......................13

Getting to Know Your Router .............................. 21

Front Panel .................................................21

Back Panel .................................................22

Technical Details ........................................ 23

Technical Features ..........................................23

System Requirements........................................24

Using Your Router ....................................... 25

Enabling Auto Update on Your Belkin Router.....................25

Updating Your Router via Your System Tray ....................27

Updating the Router’s Firmware via the Web Interface ............28

Resetting the Router .........................................32

Restoring Your Router to Factory Defaults .......................32

Restoring the Router to Default Settings Using the Web Interface ...33

Troubleshooting, Support, and Warranty ...................36

Troubleshooting .............................................36

Technical Support ...........................................43

Belkin International, Inc., Limited 2-Year Product Warranty.........44

Regulatory Information ................................... 47

FCC Statement..............................................47

CE Statement ...............................................48

What’s in the Box

N450 DB Wireless Dual-Band N Router

Ethernet cable (attached to router)

Power supply (attached to router)

Network information card (attached to router)

Belkin Setup CD with User Manual

Quick Setup Guide

Initial Setup

Where to Place Your Router

For the best results, place the Router next to your modem in

an open location away from large metal objects and magnets

such as those found in speakers. Raising the Router above

floor level can improve the strength of your wireless signal.

GETTING STARTED

How to Set It Up

Connect Your N450 DB Router

1. Turn off your modem by disconnecting its power supply.

2. Connect your Router to your modem using

the cable (already attached).

N150/300/450

Steps 1 & 2

GETTING STARTED

3. Power up your modem by plugging in its power supply.

4. Power up your Router by plugging in its power supply.

N150/300/450

Steps 3 & 4

GETTING STARTED

Run the Installer Software

Insert the included CD into your computer. It should run automatically;

if not, find the setup program and open it. Follow the prompts.

The setup software will configure your Internet connection

and let you know when things are working.

If you have DSL, you may need a username and

password from your Internet provider.

Setup

GETTING STARTED

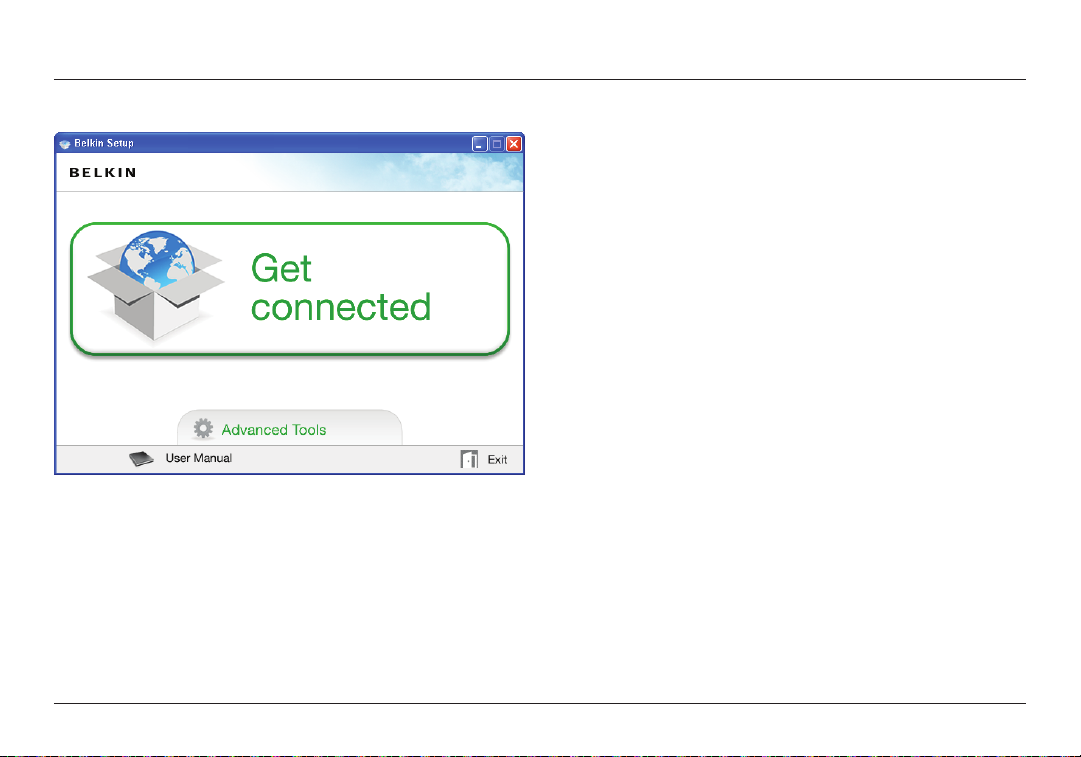

1. Click the Setup icon on the CD menu.

GETTING STARTED

2. After a brief installation, the setup software will ask you for the

network name and password from the network information card that

is stored in the foot of your new Belkin Router. Store the card under

the base of your Router for future reference.

GETTING STARTED

3. A progress screen will appear while additional software is

installed. This may take a few minutes to complete. Once

finished, a “Success” message will appear indicating that you

are connected to the Internet via your new Belkin Router.

During setup you may be asked for additional information.

You may need to enter a username and password provided

by your ISP. This username and password is likely to be

found on materials that came from your ISP when you

signed up for service. If necessary, you may need to contact

your ISP to retrieve your username and password.

If you have a static IP address, you may need to enter

additional information also provided by your ISP.

If your computer doesn’t have a wireless adapter, or the

setup software is unable to control it, you may be asked to

connect your computer to the Router with a network cable.

GETTING STARTED

Advanced Tools & Settings

After the initial setup is complete, you have the option to

change settings like your network name, security type, and

password. To make these changes and others, click on the

Advanced Tools icon at the CD Setup menu and select one

of the following settings that you would like to change:

Network Name & Security – Personalize your network name

(SSID), password, and strength of wireless security.

Internet Service Provider & Login Settings – Have

you moved or changed Internet Service Providers?

If you’d like to change these settings without running

through the setup process again, this is the place.
