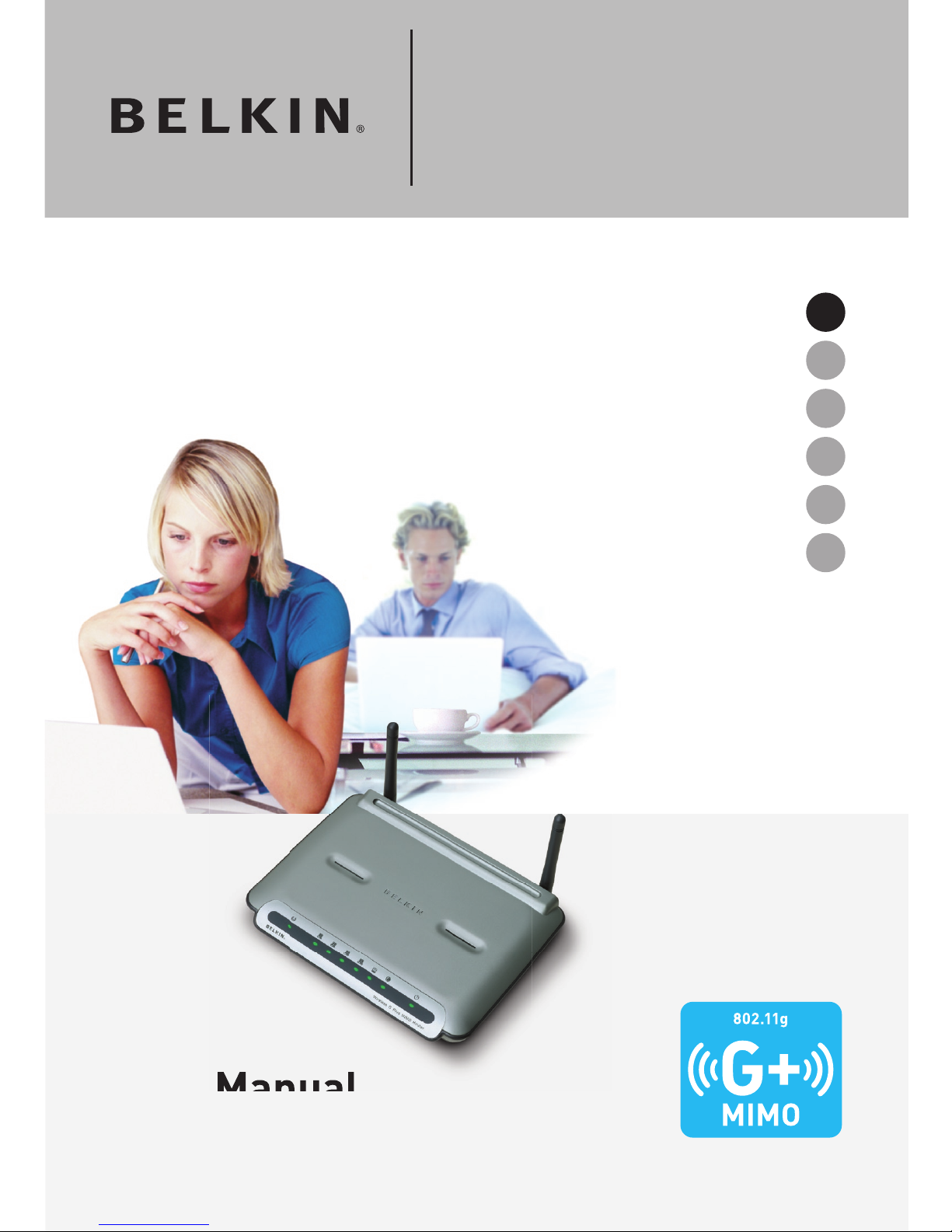

Belkin F5D92304 - Wireless G Plus MIMO Router Bedienungsanleitung

User Manual

F5D9230uk4

Share your broadband Internet connection

Wireless G Plus MIMO

Router

User Manual

Table of Contents

1 Introduction

Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . . 1

Placement of your Wireless G Plus MIMO Router. . . . . . . . . 2

2 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Knowing your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Easy Install Wizard Software System Requirements . . . . . . . 9

4 Connecting and Configuring your Router. . . . . . . . . . . . . . . . 16

5 Alternate Setup Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

6 Using the Web-Based Advanced User Interface . . . . . . . . . . 42

Changing LAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Viewing the DHCP Client List Page . . . . . . . . . . . . . . . . . . 45

Configuring the Wireless Network Settings. . . . . . . . . . . . . 46

Setting WPA Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Setting WEP Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Using the Access Point Mode. . . . . . . . . . . . . . . . . . . . . . . 56

Setting MAC Address Control. . . . . . . . . . . . . . . . . . . . . . . 57

Configuring the Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Using Dynamic DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Restarting the Router. . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . 71

7 Manually Configuring Network Settings . . . . . . . . . . . . . . . . 79

8 Recommended Web Browser Settings . . . . . . . . . . . . . . . . . 84

9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

10 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Table of Contents

section

Introduction

Thank you for purchasing the Belkin Wireless G Plus MIMO Router

(the Router). Following are two short sections—the first discusses the

benefits of home networking, and the other outlines best practices

that maximize your wireless home network range and performance.

Please be sure to read through this User Manual completely, and pay

special attention to the section entitled “Placement of your Wireless

Networking Hardware for Optimal Performance” on the next page. By

following our simple setup instructions you will be able to use your

Belkin Home Network to:

• Share one high-speed Internet connection with all the computers

in your home

• Share resources, such as files and hard drives among all the

connected computers in your home

• Share a single printer with the entire family

• Share documents, music, video, and digital pictures

• Store, retrieve, and copy files from one computer to another

• Simultaneously play games online, check Internet email, and chat

Advantages of a Wireless Network

Mobility – you’ll no longer need a dedicated “computer room”—now

you can work on a networked laptop or desktop computer anywhere

within your wireless range

Easy installation – Belkin’s Easy Installation Wizard makes setup

simple

Flexibility – set up and access printers, computers, and other

networking devices from anywhere in your home

Easy Expansion – the wide range of Belkin networking products let

you expand your network to include devices such as printers and

gaming consoles

No cabling required – you can spare the expense and hassle of

retrofitting Ethernet cabling throughout the home or office

Widespread industry acceptance – choose from a wide range of

interoperable networking products

Introduction

Placement of your Wireless G Plus MIMO Router

Important Factors for Placement and Setup

Your wireless connection will be stronger the closer your computer is

to your Router (or access point). Typical indoor operating range for

wireless devices is between 100 and 200 feet.

In the same way, your wireless connection and performance will

degrade somewhat as the distance between your Router (or access

point) and connected devices increases. This may or may not be

noticeable to you. As you move farther from your Router (or access

point), connection speed may decrease. Factors that can weaken

signals simply by getting in the way of your network’s radio waves are

metal appliances or obstructions, and walls.

If you have concerns about your network’s performance that might be

related to range or obstruction factors, try moving the computer to a

position between five and 10 feet from the Router (or access point) in

order to see if distance is the problem. If difficulties persist even at

close range, please contact Belkin Technical Support.

Note: While some of the items listed below can affect network

performance, they will not prohibit your wireless network from

functioning; if you are concerned that your network is not operating at

its maximum effectiveness, this checklist may help.

1. Wireless Router (or Access Point) Placement

Place your Router (or access point), the central connection

point of your network, as close as possible to the center of your

wireless network devices.

To achieve the best wireless network coverage for your “wireless

clients” (i.e., computers enabled by Belkin Wireless Notebook

Network Cards, Wireless Desktop Network Cards, and Wireless

USB Adapters):

• Ensure that your Router’s (or access point’s) networking

antennas are parallel to each other, and are positioned

vertically (toward the ceiling). If your Router (or access point)

itself is positioned vertically, point the antennas as much as

possible in an upward direction.

• In multistory homes, place the Router (or access point) on a

floor that is as close to the center of the home as possible.

This may mean placing the Router (or access point) on an

upper floor.

section

Introduction

• Try not to place the Router (or access point) near a cordless

2.4GHz phone.

2. Avoid Obstacles and Interference

Avoid placing your Router (or access point) near devices that may

emit radio “noise,” such as microwave ovens. Dense objects that

can inhibit wireless communication include:

• Refrigerators

• Washers and/or dryers

• Metal cabinets

• Large aquariums

• Metallic-based UV tinted windows

If your wireless signal seems weak in some spots, make sure that

objects such as these are not blocking the signal’s path (between

your computers and Router or access point)

3. Cordless Phones

If the performance of your wireless network is impaired after

attending to the above issues, and you have a cordless phone:

• Try moving cordless phones away from your Router (or access

point) and your wireless-enabled computers.

• Unplug and remove the battery from any cordless phone that

operates on the 2.4GHz band (check manufacturer’s information).

If this fixes the problem, your phone may be interfering.

• If your phone supports channel selection, change the channel

on the phone to the farthest channel from your wireless

network. For example, change the phone to channel 1 and

move your Router (or access point) to channel 11. See your

phone’s user manual for detailed instructions.

• If necessary, consider switching to a 900MHz or 5GHz

cordless phone.

4. Choose the “Quietest” Channel for your Wireless Network

In locations where homes or offices are close together, such as

apartment buildings or office complexes, there may be wireless

networks nearby that can conflict with yours.

Use the Site Survey capabilities found in the Wireless Utility of

your wireless adapter to locate any other wireless networks that

Introduction

are available (see your wireless adapter’s user manual), and move

your Router (or access point) and computers to a channel as far

away from other networks as possible.

• Experiment with more than one of the available channels, in

order to find the clearest connection and avoid interference

from neighboring cordless phones or other wireless devices.

• For Belkin wireless networking products, use the detailed Site

Survey and wireless channel information included with your

wireless network card. See your network card’s user guide for

more information.

These guidelines should allow you to cover the maximum possible

area with your Router (or access point). Should you need to

cover an even wider area, we suggest the Belkin Wireless Range

Extender/Access Point.

5. Secure Connections, VPNs, and AOL

Secure connections typically require a user name and password,

and are used where security is important. Secure connections

include:

• Virtual Private Network (VPN) connections, often used to

connect remotely to an office network

• The “Bring Your Own Access” program from America Online

(AOL), which lets you use AOL through broadband provided by

another cable or DSL service

• Most online banking websites

• Many commercial websites that require a user name and

password to access your account

section

Introduction

Secure connections can be interrupted by a computer’s power

management setting, which causes it to “go to sleep.” The simplest

solution to avoid this is to simply reconnect by rerunning the VPN

or AOL software, or by re-logging into the secure website.

A second alternative is to change your computer’s power

management settings so it does not go to sleep; however, this

may not be appropriate for portable computers. To change your

power management setting under Windows, see the “Power

Options” item in the Control Panel.

Product Overview

Product Features

In minutes you will be able to share your Internet connection and

network your computers. The following is a list of features that make

your new Belkin Wireless G Plus MIMO Router an ideal solution for

your home or small office network.

Works with Both PCs and Mac® Computers

The Router supports a variety of networking environments including

Mac OS® 8.x, 9.x, X v10.x, Linux®, Windows® 98, Me, NT®, 2000, and

XP, and others. All that is needed is an Internet browser and a network

adapter that supports TCP/IP (the standard language of the Internet).

Front-Panel LED Display

Lighted LEDs on the front of the Router indicate which functions are in

operation. You’ll know at-a-glance whether your Router is connected

to the Internet. This feature eliminates the need for advanced software

and status-monitoring procedures.

Web-Based Advanced User Interface

You can set up the Router’s advanced functions easily through your

web browser, without having to install additional software onto the

computer. There are no disks to install or keep track of and, best

of all, you can make changes and perform setup functions from any

computer on the network quickly and easily.

NAT IP Address Sharing

Your Router employs Network Address Translation (NAT) to share the

single IP address assigned to you by your Internet Service Provider

while saving the cost of adding additional IP addresses to your

Internet service account.

SPI Firewall

Your Router is equipped with a firewall that will protect your network

from a wide array of common hacker attacks including IP Spoofing,

Land Attack, Ping of Death (PoD), Denial of Service (DoS), IP with zero

length, Smurf Attack, TCP Null Scan, SYN flood, UDP flooding, Tear

Drop Attack, ICMP defect, RIP defect, and fragment flooding.

section

Product Overview

Integrated 10/100 4-Port Switch

The Router has a built-in, four-port network switch to allow your wired

computers to share printers, data and MP3 files, digital photos, and

much more. The switch features automatic detection so it will adjust to

the speed of connected devices. The switch will transfer data between

computers and the Internet simultaneously without interrupting or

consuming resources.

Universal Plug and Play (UPnP)

UPnP is a technology that offers seamless operation of voice

messaging, video messaging, games, and other applications that are

UPnP-compliant.

Support for VPN Pass-Through

If you connect to your office network from home using a VPN

connection, your Router will allow your VPN-equipped computer to

pass through the Router and to your office network.

Built-In Dynamic Host Configuration Protocol (DHCP)

Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes

for the easiest possible connection of a network. The DHCP server

will assign IP addresses to each computer automatically so there is no

need for a complicated networking setup.

Easy Install Wizard

The Easy Install Wizard takes the guesswork out of setting up your

Router. This automatic software determines your network settings for

you and sets up the Router for connection to your Internet Service

Provider (ISP). In a matter of minutes, your Router will be up and running

on the Internet.

Note: Easy Install Wizard software is compatible with Windows 98SE,

Me, 2000, XP, and Mac OS X. If you are using another operating system,

the Router can be set up using the Alternate Setup Method described in

this User Manual (see page 24).

Integrated G Plus MIMO Wireless Access Point

G Plus MIMO is an exciting new wireless technology that achieves

data rates up to 54Mbps. Actual throughput is typically lower than

the connected data rate and will vary depending on your networking

environment.

MAC Address Filtering

For added security, you can set up a list of MAC addresses (unique

client identifiers) that are allowed access to your network. Every

computer has its own MAC address. Simply enter these MAC

addresses into a list using the Web-Based Advanced User Interface

and you can control access to your network.

Product Overview

Andere Handbücher für F5D92304 - Wireless G Plus MIMO Router

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Belkin WLAN-Router Handbücher

Belkin

Belkin F5D7230-4 Bedienungsanleitung

Belkin

Belkin F5D8232-4 - N1 Vision Wireless Router Bedienungsanleitung

Belkin

Belkin SURF N150 Bedienungsanleitung

Belkin

Belkin AC1750 DB Bedienungsanleitung

Belkin

Belkin SURF N150 Bedienungsanleitung

Belkin

Belkin F9K1108v1 8820-00973 Rev. A00 Bedienungsanleitung

Belkin

Belkin 8820AU00370 Bedienungsanleitung

Belkin

Belkin F5D6230-3CE4 Referenzhandbuch

Belkin

Belkin AC750 DB Bedienungsanleitung

Belkin

Belkin N600 DB Bedienungsanleitung

Belkin

Belkin F5D9231-4 - G+ MIMO Wireless Router Bedienungsanleitung

Belkin

Belkin F7D1301 Bedienungsanleitung

Belkin

Belkin Play Max 8820ed00396 F7D4401 v1 Bedienungsanleitung

Belkin

Belkin F7D7301 Bedienungsanleitung

Belkin

Belkin PlayMax 8820ed00378_F7D4301_v1 Bedienungsanleitung

Belkin

Belkin F9K1102 Bedienungsanleitung

Belkin

Belkin F5D7230-4 Bedienungsanleitung

Belkin

Belkin AC1800 Bedienungsanleitung

Belkin

Belkin F5D8235-4 - N+ Wireless Router Bedienungsanleitung

Belkin

Belkin F5D7234-4 Bedienungsanleitung

Belkin

Belkin SURF N150 Bedienungsanleitung

Belkin

Belkin F7D4301 Bedienungsanleitung

Belkin

Belkin VISION N1 Bedienungsanleitung

Belkin

Belkin F9K1002 Bedienungsanleitung

Beliebte WLAN-Router Handbücher anderer Marken

Milesight

Milesight UG67 Bedienungsanleitung

Airlogic

Airlogic AirSync Class 1 Betriebsanleitung

Samsung

Samsung WCH730B Bedienungsanleitung

TELEFONICA

TELEFONICA USB Adapter Bedienungsanleitung

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Bedienungsanleitung

Askey

Askey RAC2V1K Bedienungsanleitung

Alloy

Alloy WLF2454AP-S Bedienungsanleitung

TP-Link

TP-Link TL-WR542G Bedienungsanleitung

NETGEAR

NETGEAR WNR2000v4 Bedienungsanleitung

Hama

Hama 53120 Bedienungsanleitung

Intellinet

Intellinet 524582 Bedienungsanleitung

Asus

Asus RT-N10P Bedienungsanleitung

D-Link

D-Link DIR-506L Bedienungsanleitung

Sapido

Sapido GR297n Bedienungsanleitung

Asus

Asus DSL-N55U Bedienungsanleitung

AMTC

AMTC WR7502 Bedienungsanleitung

Compaq

Compaq CP-2W - iPAQ Connection Point Bedienungsanleitung

SMC Networks

SMC Networks WBR14-N2 FICHE Bedienungsanleitung
