Installation and User manual

Content

Safety instructions---------------------------------- 2

Product description--------------------------------- 4

Operation mode-------------------------------------- 5

Installation--------------------------------------------- 6

Start using the range hood------------------------ 10

Maintenance and cleaning-------------------------12

Warranty------------------------------------------------ 13

20121211 issue2

Island Range Hood

BR903IPX

BR903IPX-F

BR903IDX

BR903IDX-F

BR903ITX

BR903ITX-F

For warranty service call 1300 373 199(Australia)

or 0508 123108(New Zealand) to connect you to

the nearest authorised service centre

Safety instructions

This manual explains the proper installation and use of your range hood, please read it

carefully before using even if you are familiar with the product. The manual should be kept

in a safe place for future reference.

Never to do:

zThis appliance is not intended for use by persons

(including children) with reduced physical, sensory

and mental capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning use of the

appliance by a person responsible for their safety.

zNever carry out flamable cooking under the

appliance

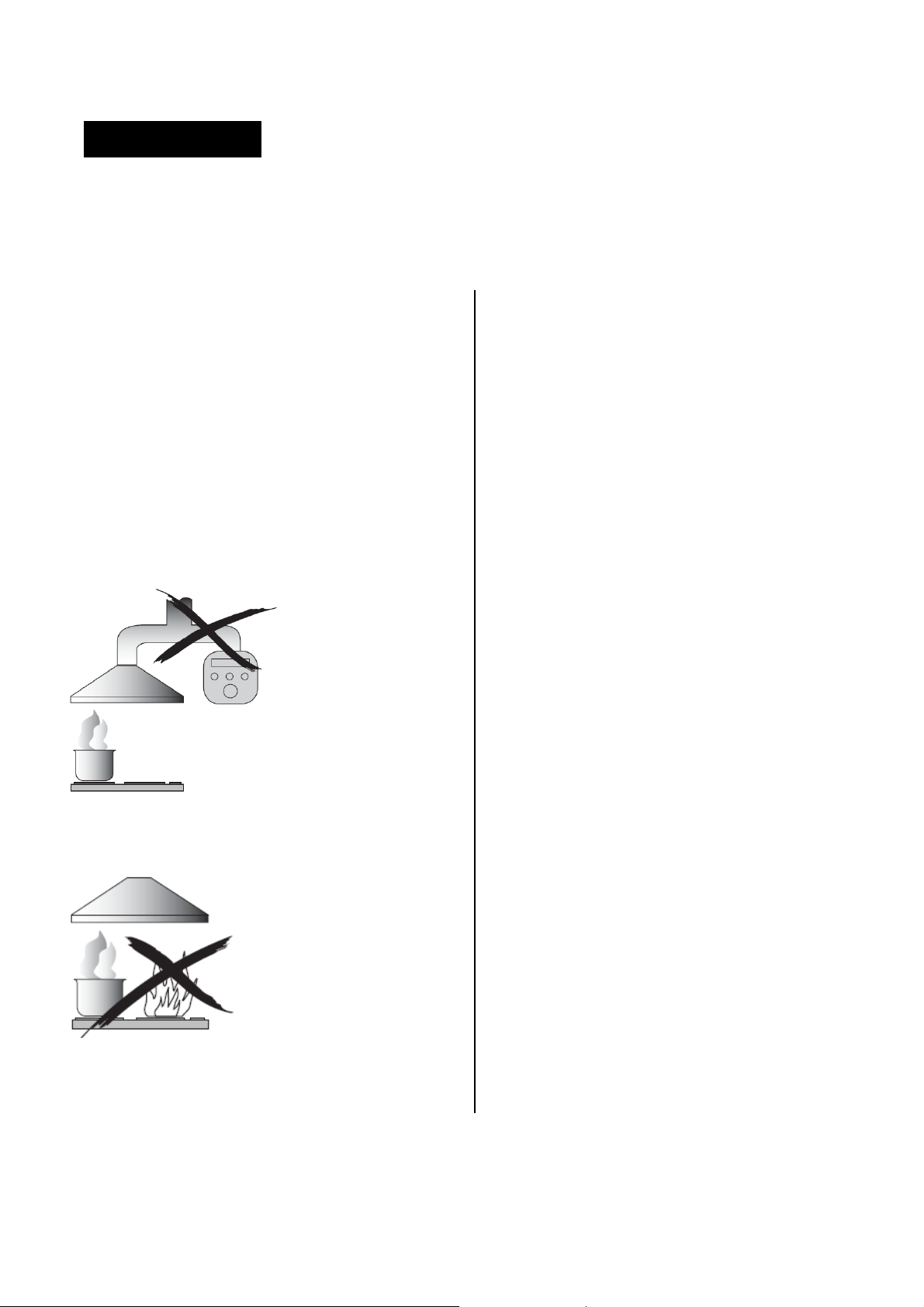

zThe exhaust from the range hood must not be

discharged into any heating flue, which may carry

combustion products from other sources.

zDo not leave lit gas burners exposed due to the risk

of fire.

zThis range hood is not recommended for

barbecues.

Always to do:

zPackaging materials (eg; polystyrene and

plastic items) must be kept out of reach of

babies or young children at all times due to

risk of suffocation.

zYoung children should be supervised to

ensure that they do not play with the

appliance.

zEnsure the range hood is switched off before

carrying out maintenance, to avoid any

possibility of electric shock.

zGrease filters must be removed every four

weeks (maximum) for cleaning to reduce the

risk of fire.

zThere must be adequate ventilation of the

room when the range hood is used at the

same time as appliances burning gas or other

fuels.

zAlways cover lit gas burners with pots or pans

when range hood is in use.

zAlways switch off gas burners before you

remove pots or pans.

zIf the supply cord is damaged, the cord must

be replaced by the manufacturer, its service

agent or similarly qualified persons in order to

avoid a hazard

zPlug must be accessible after installation.

Safety instructions

Never to do:

zThis range hood cannot be installed for outdoor use.

zIt is prohibited to fit the range hood over a solid fuel

stove

zThis appliance must not be connected to a chimney

or vent flue which is in use.

zThis appliance is not to be vented into the roof

cavity, must exit into open air.

zExhaust air must not be discharged into a wall

cavity, unless the cavity is designed for the purpose.

zThis appliance should not be connected to ducting

which ventilates rooms with fire places.

Always to do:

zAttention should be given to ensure that any

applicable regulations concerning discharge

of exhaust air are fulfilled.

zThis appliance should be installed and

maintained by a suitably qualified and

competent person in accordance with the

relevant safety regulations.

zBefore connecting the appliance to the mains

supply, ensure that the voltage and frequency

details on the rating plate are consistent with

the source of supply.

Product description

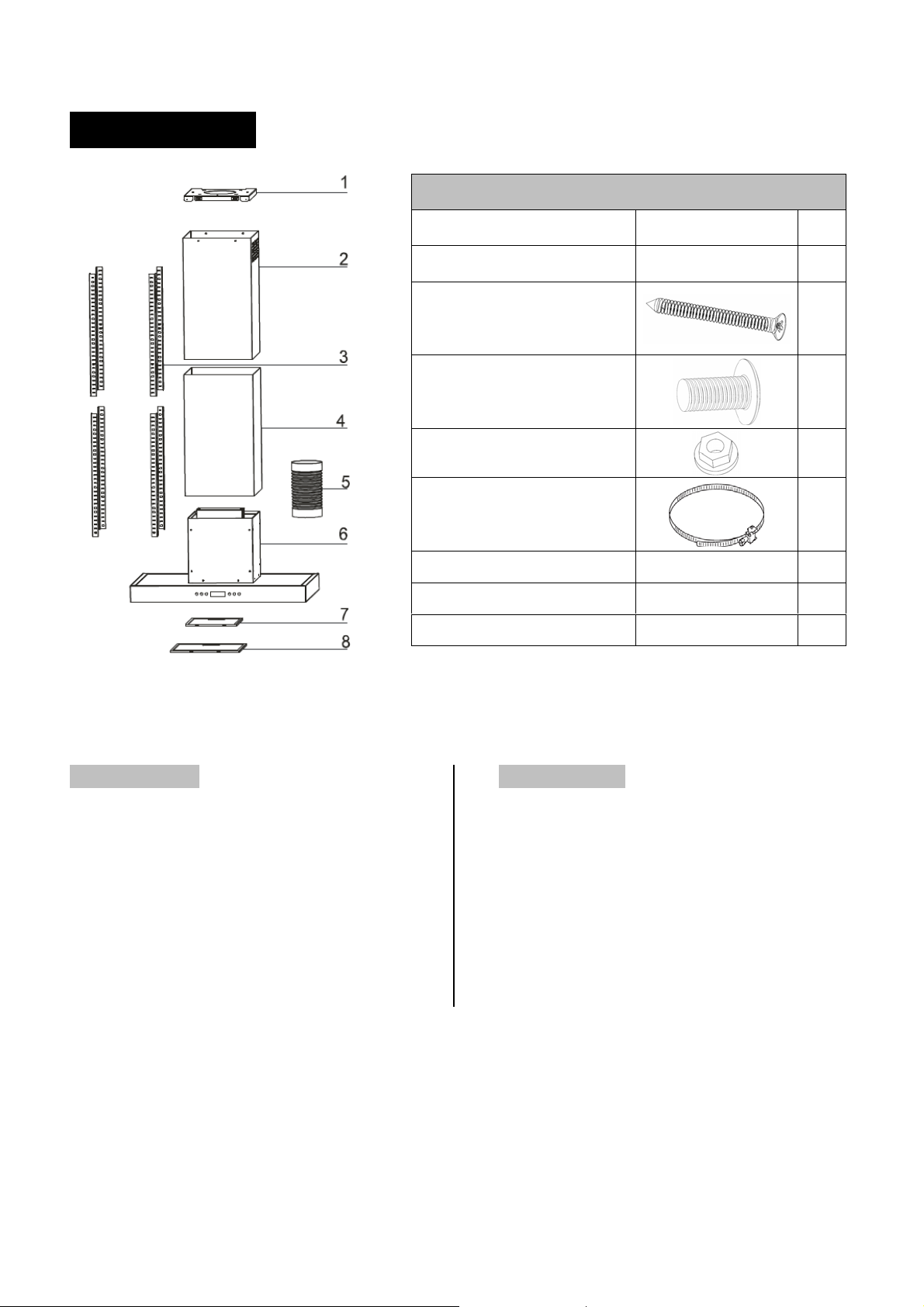

Component list:

1. Installation board

2. Upper decorative chimney (Inner)

3. Installation post

4. Flexible exhaust duct

5. Lower decorative chimney (outer)

6. Outlet (diameter 150mm)

7. Main body

8. Inner grease mesh filter

9. Outer grease mesh filter

Technical data:

Power supply: 220 – 240v~, 50Hz

Motor: 500W

Lights: 4x15W Halogen lamp

Length of power cord: 2m

Air outlet diameter: 150mm

Accessories bag

Description Picture QTY

User Manual 1

Wood Screw (ST4.5x40mm) 6

Screw (M4x14mm)

Nut(M4) 16

Hose clip

Operation Mode

Your range hood can be operated in two modes, choose the mode suitable for your kitchen before installation.

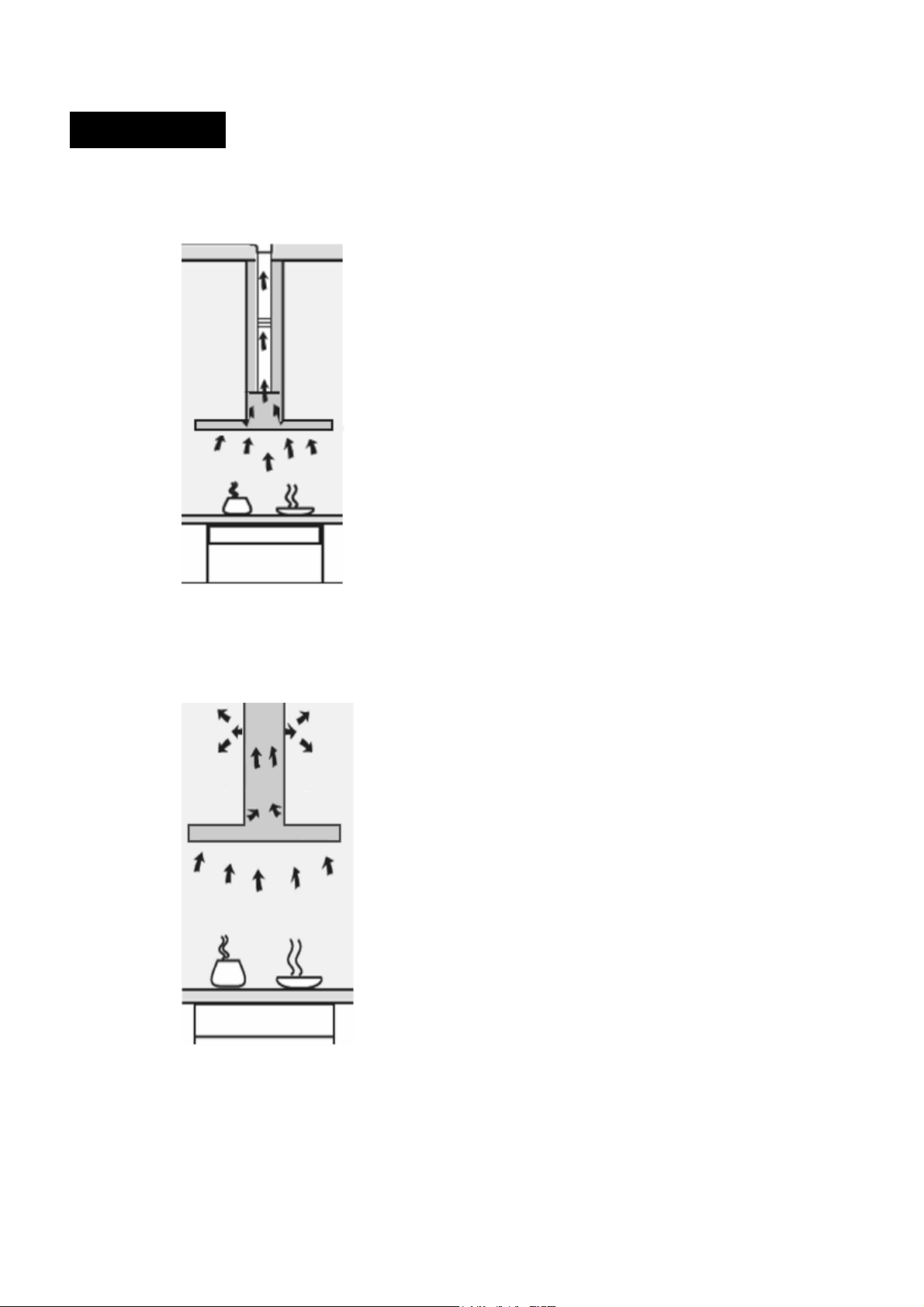

Air Extraction

Air Recirculation

For air extraction mode, a ducting kit is required, the air

is drawn in and cleaned by the grease filters and via the

ducting must be directed to the outside atmosphere.

Ducting must be vented to outside atmosphere

For air recirculation mode, charcoal filter (Optional

Accessory) must be installed to eliminate cooking

smells.

The air is drawn in and cleaned first by the grease filters

and then charcoal filter. The cleaned air is then

re-circulated back into kitchen through vents in the

Upper Decorative Chimney.

Installation

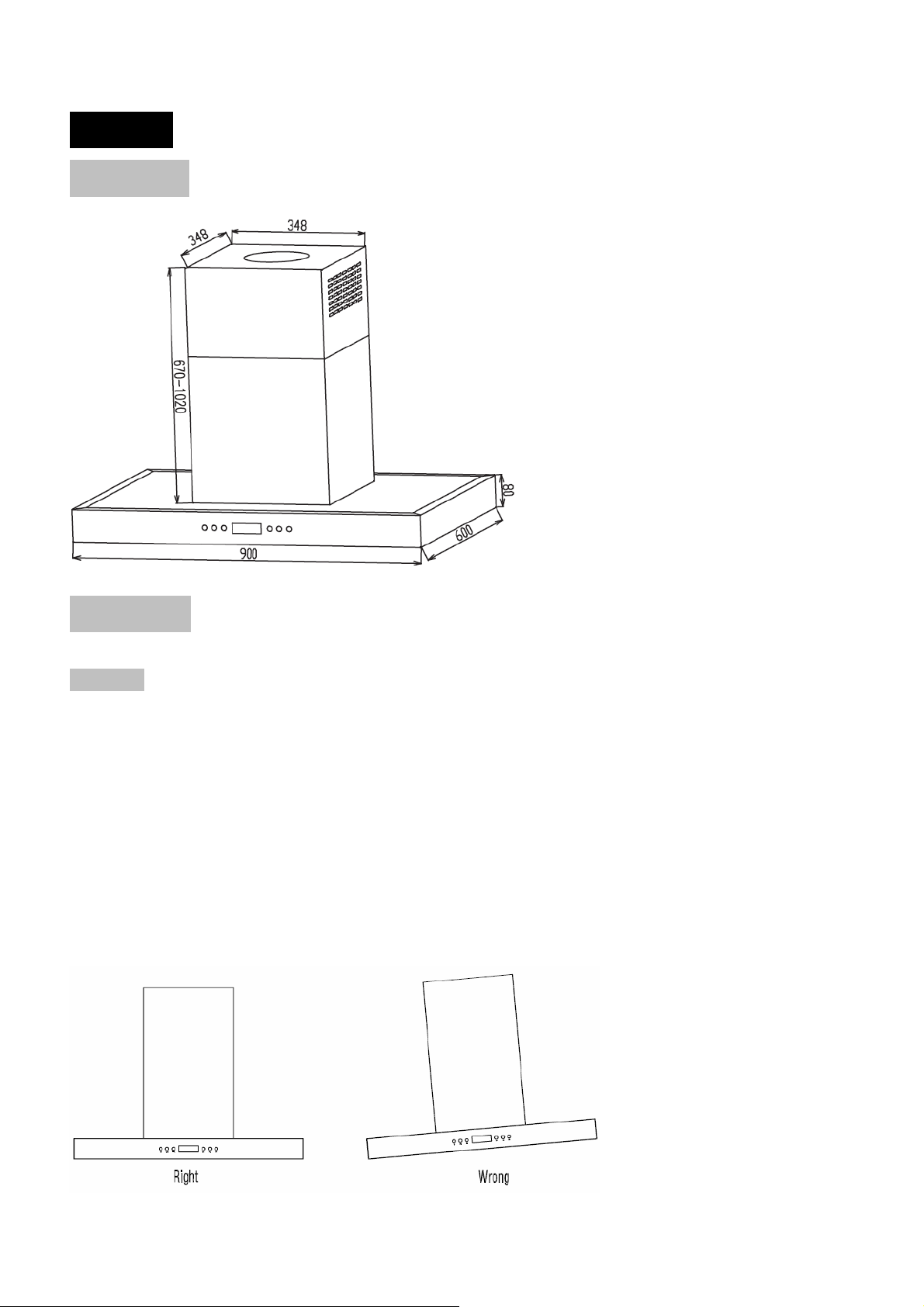

Dimensions:

Installation:

Warning:

Check that the installation complies with the standards of local building, gas and electrical authorities. Before

connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating

plate inside the range hood.

The distance from the bottom line of range hood to an electrical cooktop underneath must be minimum of

600mm & 650mm to the gas cook top and a maximum height of 800mm.

*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation

The ceiling joints must be able to bear at least 40kgs weight, and the thickness of the ceiling must be 30MM≧.

After installation, the range hood must be horizontal and secure.

Hints for exhaust duct installation

The following rules must be strictly followed to obtain optimal air extraction

•Keep exhaust duct short and straight

•Do not reduce the size or restrict exhaust duct

•When using flexible duct always install the duct pulled taut to minimize pressure loss

•Failure to observe these basic instructions will reduce the performance and increase noise levels of the

range hood

•Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant

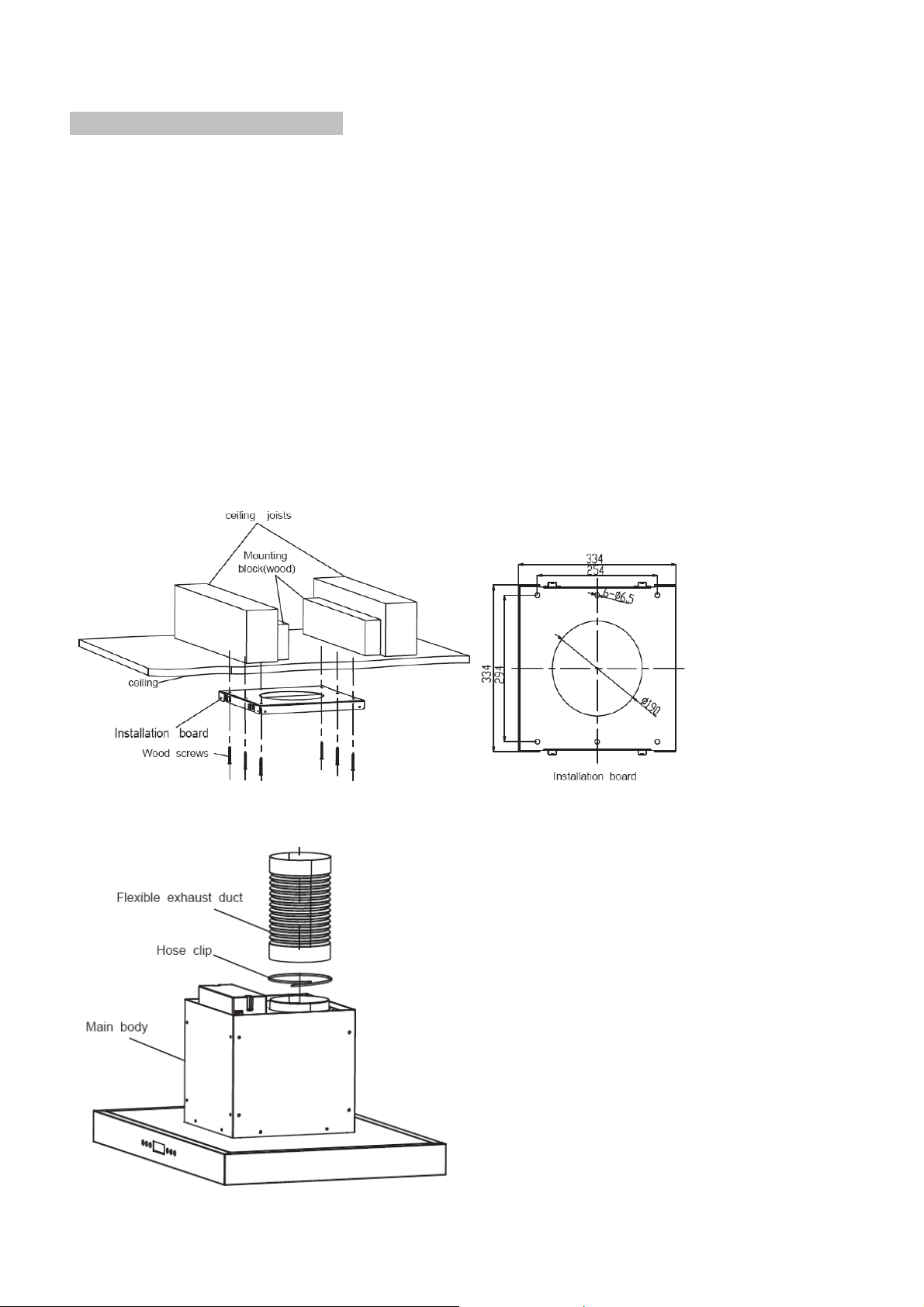

1. Determine position of ceiling where the chimney will go down from. According to installation board, use 6pcs

Screw (ST4.5x40mm) to fix installation board onto ceiling security.

2. Fit the flexible exhaust duct onto outlet. ( Air Extraction mode only )

Note : For the Air Circulation Mode option , skip step 2.

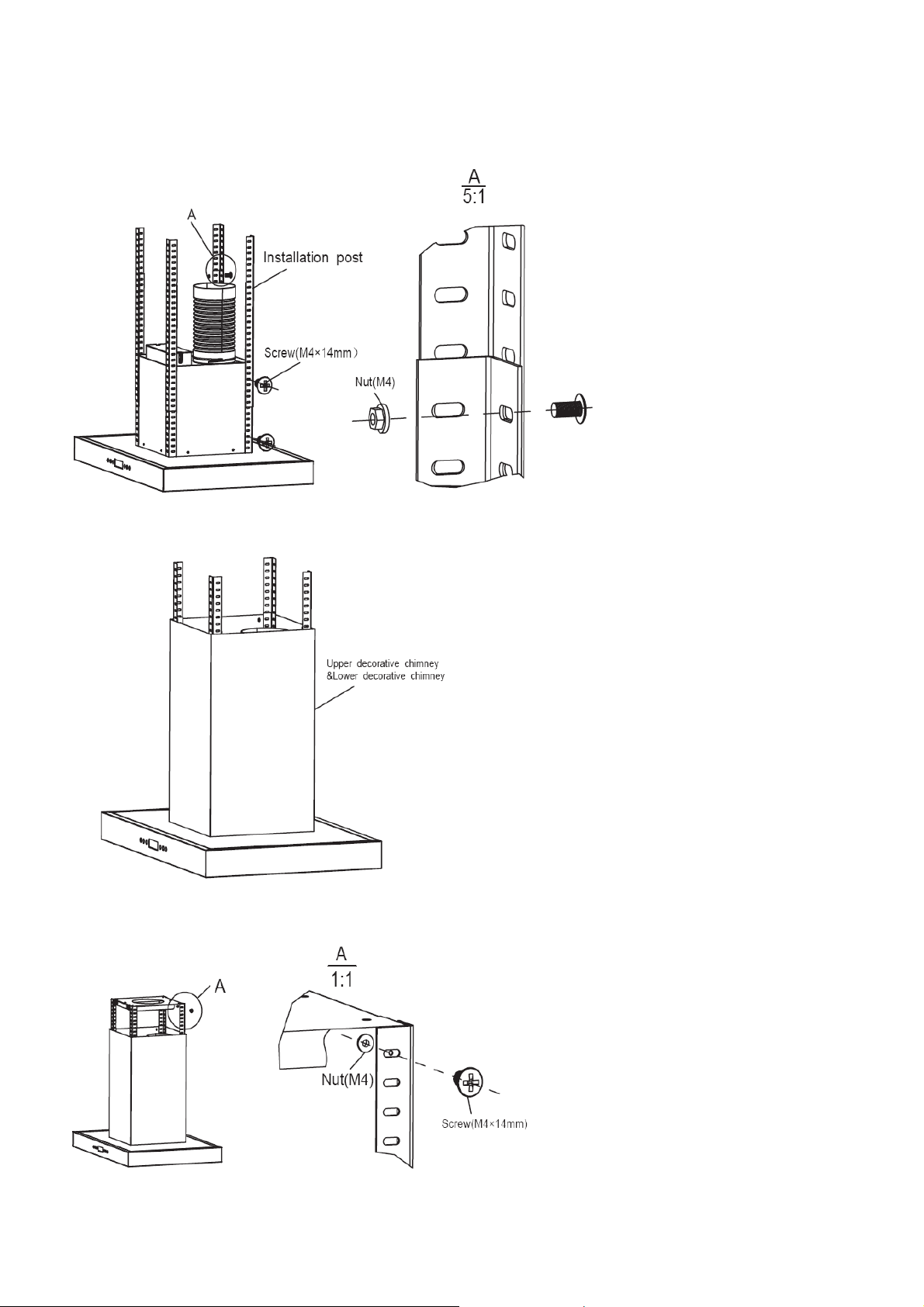

3. Use 16pcs Screw (M4x14mm) to fix installation post onto range hood main body, and 8pcs Screw

(M4x14mm) and 8pcs Nut (M4) to fix upper and lower installation post.

4. Carefully slide down inner and outer decorative chimney from top of installation posts.

5. Raising whole unit up and secure upper installation post onto installation board by 8pcs Screw (M4x14mm)

and 8pcs Nut (M4), plug in power cord.

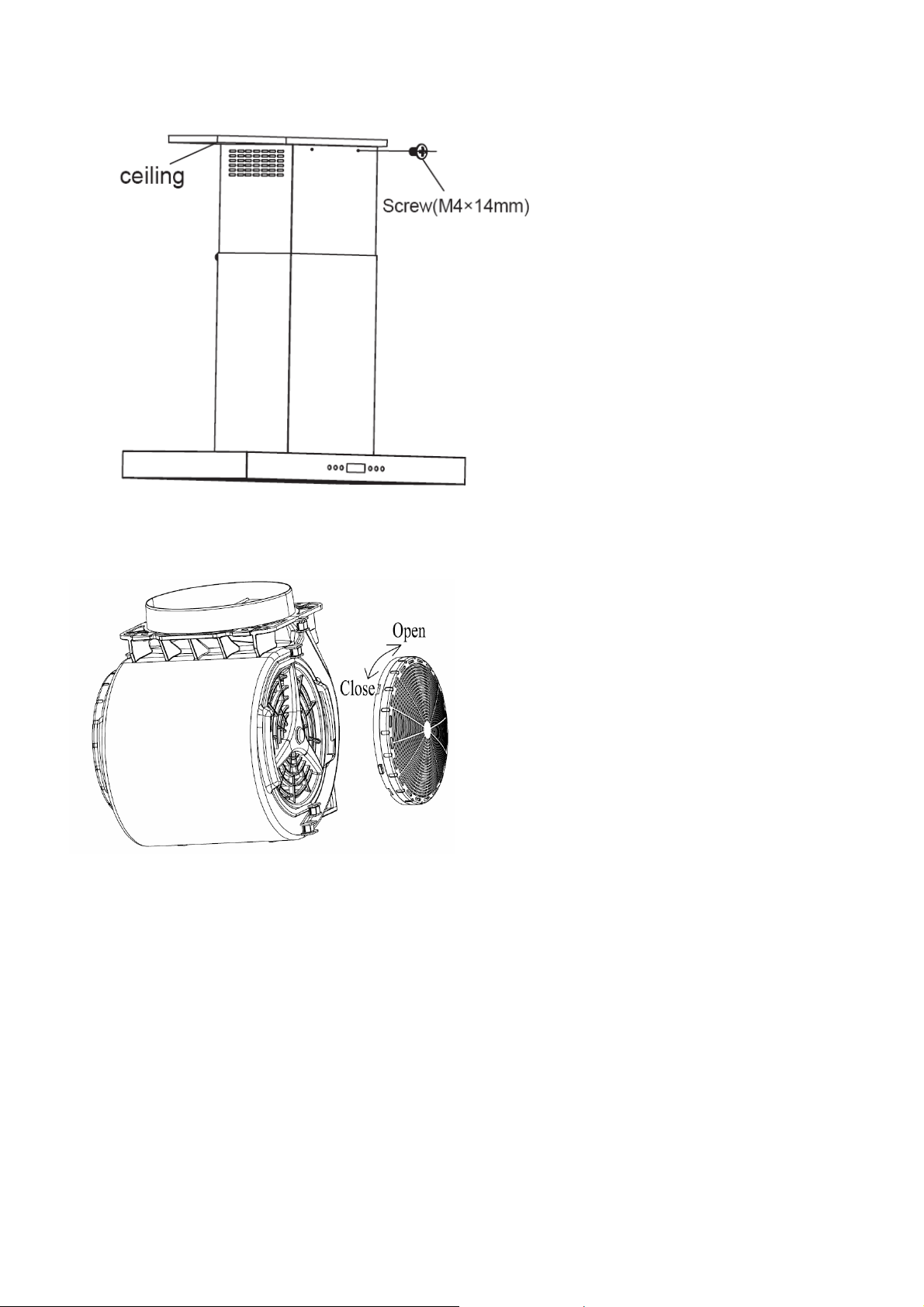

6. Carefully slide decorative chimney up and secure it onto installation board by 4pcs Screw (M4x14mm)

7. Install charcoal filter( Air Recirculation mode only)

*If the range hood is installed as Air Extraction mode then skip this step.

8. Remove all protective film and the installation is now finished.

Start using your range hood

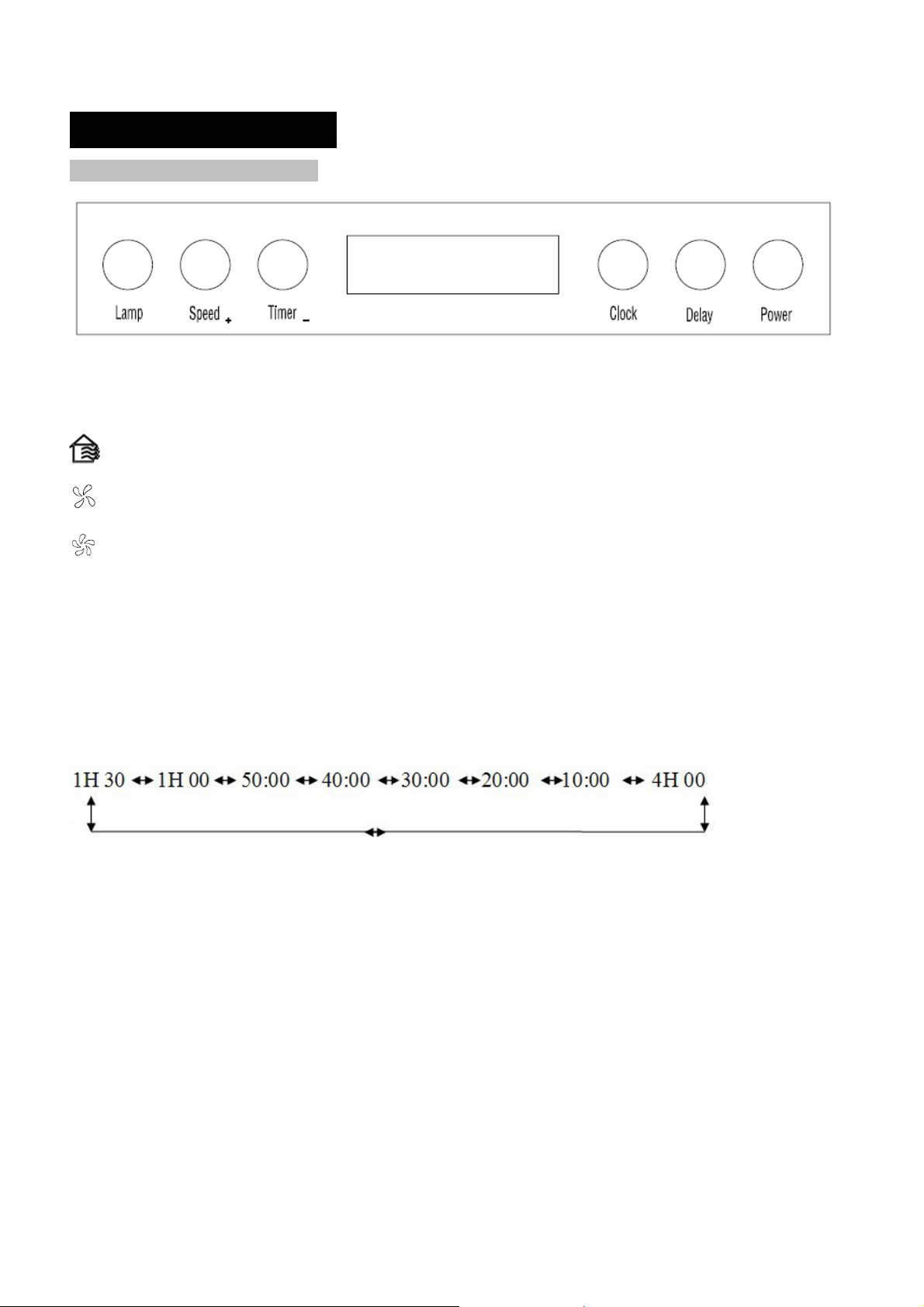

Model BR903IDX and BR903IDX-F

Lamp – Turn on or off the 4 lamps.

Speed –select speed to suit cooking conditions, increase time setting

Low –light frying/boiling

Medium –frying/wok cooking/heavy boiling

High –grilling, intensive frying and wok cooking

Timer – programmed how long time you would like motor keep running, decrease time setting

Depress timer button once, “timer” display flash and enter into timer function. Depress “Speed” button to

increase setting or “Timer” button to decrease setting, programmed timer duration will circulate set as below.

Timer duration will be confirmed if no any operation for 5s and program start counting down. When time is up,

LCD return to display O’clock time, motor stop running and lamp turned off.

Any time during the program, depress “Delay” button will terminate “Timer” function but enter into 5min delay off

function. Any time during the program, depress “Power” button will terminate “Timer” function.

Clock – O’Clock setting

1. Depress “Clock”, hour digit segment will flash, depress “Speed” to increase and “Timer” to decrease hour

digit until current clock hour time appears.

2. Depress “Clock” again, minute digit segment will flash, depress “Speed” to increase and “Timer” to decrease

minute digit until current clock minute time appears.

3. Depress “Timer” again to confirm and finalize clock time setting.

*During the O’clock setting, if 5s no operation or “Power” button been depressed, the setting will be terminated

Delay – Auto off after 5 minutes

At the end of cooking simply depress “Delay”. the range hood will continue to run for 5 minutes remove any odors

that remain at the completion of cooking. After the set up duration the range hood will turn itself OFF. This

function is available only when range hood motor is running.

If you need longer auto off duration, please use “Timer” function.

Power – Turn on/off motor, terminate O-clock, timer setting.
