Beluk BLR-CX Bedienungsanleitung
Operation Manual
BLR-CX
ATTENTION!
When installing BLR-CX, there are the dangers of electric shock! Installation and
commissioning are therefore to be performed by a technician with necessary
qualification. During installation, the relevant regulations setting up of switchboards
and accident prevention have to be respected.
Equipment with damaged or open housing or terminals shall not be operated at
mains and are instantly to unlock.
Process Technique Electronics (Pvt) Ltd Phone : +91 80 2522 8895, 2522 3736
324 Konena Agrahara Fax : +91 80 4125 8146
Bangalore 560 017 http://www.processtechnique.com
load
T
S1 S2 Um1Um2 A
M
MS 114 1-14
T1 T2
external
temperature-sensor
or
temperature-switch
(parallel operation
possible)
upto 14
control exits
control exit
can be parametered
for fan control
signal:
in order
(contact
closed)
K1 K14
K1-K14
L1
L2
L3
N
PE
BLR-CX
TTL
interface
X/1A oder X/5A
15mA - 6A 90V - 550V
from income feeder
Installation and Commissioning:
1) Compare voltage and current ratings of BLR-CX with data of mains
and installation!
2) Disconnect panel from mains voltage (5 safety rules of electricity!)
3) Is CT short-linked or not in operation?
High voltage level of an open secondary of CT endangers people
and devices. The CT will be damaged by this.
4) Disconnect and remove previous pfc-relay..
5) Mount BLR-CX to the control panel with two mounting clips.
(cutout 138x138mm)
6) Connect protection earth to PE connection of metal case.
7) Connect BLR-CX according to connection diagram.
(CT/P1 income-feeder, CT/P2 load!)
8) Remove short-link from CT
9) Connect mains voltage to panel.
10) When connection of relay is correct and technical data of mains is
according to ratings and settings of BLR-CX, LCD will show AUTO
and control function will start!
FAQ during Commissioning:
1) No indication AUTO PFC is stopped
Cause: manual operation, SETUP/100/PFC = OFF or HOLD,
temperature is too high, current < 15mA, voltage oder THD U is out
of tolarance.
2) Indication U ALARM "voltage out of tolerance
Check settings for nominal voltage (SETUP/Un) and
voltage transformer (SETUP/Pt)
3) Indication I Lo ALARM "current < 15mA
Cause: connection error of CT; short-link of CT is not removed; CT-
ration is too big compared to real current; no current
4) Indication EXPORT "kW export
if there is no real kW export, voltage and current connection of BLR-
CX has to be checked! "chapter wrong connection
5) Wrong Cos jindication "wrong connection
voltage and current connection of BLR-CX has to be checked!
"chapter wrong connection
6) Exits are connected and immediately disconnected
"chapter stepsize detection / defective capacitors
7) Frequent switching operations
size of capacitors is not completely detected
"

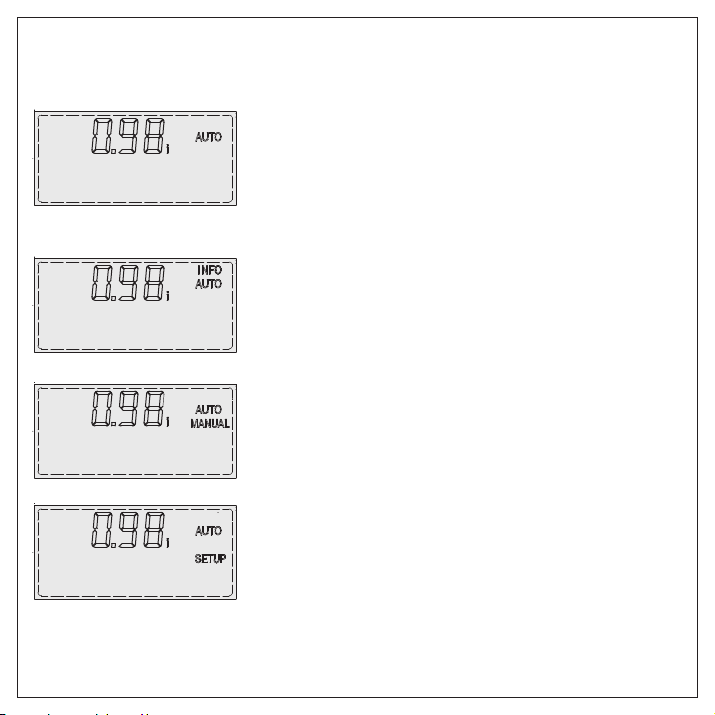

Display:
INFO: step database
AUTO: PFC is working
MANUAL: manual mode
SETUP: Setup of parameters
EXPORT: kW export
NT: 2nd target-cosjis working
ALARM: blinking during alarm
1. line:
cosj
menue items
2. line:
measuring values
paramters
alarm codes
Step indication:
state of step (on/off)
step defective (blinking)
Handling:
BLR-CX has 4 keys for navigation and input of parameters.
Input parameter:
p, qsetting of number
uselection of next digit
p, qafter setting of last digit, selection of:
- multiplier k(kilo) or M(Mega)
- leading sign I(induktive) or C(capacitive) (blinking of I or C)
ustorage of setting
tabort input
o p e n m e n u e
move cursor right
c o n f i r m i n p u t
e x i t m e n u e
move cursor left
reset alarm (5 sec)
esc
Decrea se value s
choose menue items
I n c r e a s e v a l u e s
choose menue items
Main Menue:
Choosing menue items by pushing p, q, enter submenue by pushing u
Measuing Values: (choose by p, q)
U , U , A (I), kW (P), kVar (Q), DkVar (DQ),
LL LN
kVA (S), THD U, 3. -19. Har. U, cosj, L(PF),
fL(APF), tan j(tAn), Hz (F), °C(t), °Cmax (thi),
operation hours (OPh)
INFO Step Database:
size and derating of steps,
switch cycles, steptype
("chapter INFO Step Database)
MANUAL Operation:
Selective switching in and out of control exits
("chapter MANUAL operation)
SETUP Parameters:
Nominal voltage (Un),CT-ratio Ct, VT-ratio (Pt),
Automatic Initialising (Ai), PFC ON/OFF/HOLD
(PFC), target-cosj(CP1), switch time delay
(St), steptype (Out)
("chapter SETUP Parameters)
INFO Step Database:
Attention: Actual state of control outputs is not shown!
Choose step by p, qand enter by u. The selected step is blinking. By
using p, qfollowing information can be selected:
Actual Size of Capacitor
the value is rated to nominal voltage
Derating of Capacitor:
actual power / nominal power in %
Switch Cycles:
Steptype:
AUTO: automatic controlled step
Fon: step fix on
Foff: step fix off
AL: step used for fan control
FLty: defective step
MANUAL Operation:
For manual operation uhas to be pushed for 3 seconds!
Selection of step by p, q. Number of selected step is shown in line 2 of
LCD. By pushing uselected step will switch on / off..
Manual operation will be left by t.
Important Information:
- Menue Manual Operation cannot be opend in modes LIFO and
Combi-Filter. ("Referencebook!)
- Discharging lock-time is also active during manual operation
(steps are locked a certain time after switching-off)
- when voltage is out of tolerance all steps are disconnected.
- THD U-alarm and overtemperature are locking switching-in steps in
manual operation.
- Only steps with steptype AUTO can be switched!
- After leaving manual operation menue, control continues from
actual state.
SETUP Parameters:
Choosing SETUP, submenue 100 is indicated. Opening menue 100.
Un Nominal voltage (very important!)
OV / UV monitoring, reference for step database.
Ct CT-ratio
indication of measuring values. (enables many measuring values)
Pt VT-ratio
important base for nominal voltage
AI Automatic Initialising
"chapter wrong connection
PFC PFC ON / OFF / HOLD
on, off, freezing of automatic pfc-correction
CP1 Target-cosj1
base for compensation target
St Switch time delay
definition of speed of regulation
OUt Step type
definition of step type: AUTO, Fon, Foff, AL
reset of defective steps (FLty)
u
p, qmenue 200-600 (protected by pin, "Referencebook)
