Bematech SB9011D Bedienungsanleitung

SB9011D All-in-one Touch POS Terminal

USERMANUAL

Table of Contents

1Overview............................................................................................ 2

1.1 Safety Information ........................................................................................ 2

1.2 Electromagnetic compatibility statement................................................. 3

2Installation Guide ............................................................................. 4

2.1 Appearances.................................................................................................... 4

2.2 Rear panel I/O connectors............................................................................. 5

3Setup and Driver Installation........................................................... 6

3.1 Motherboard BIOS settings.......................................................................... 6

3.2 Touch screen driver installation:.................................................................. 8

4Troubleshooting...............................................................................16

5Specifications...................................................................................19

1 Overview

Thank you for purchasing the SB9011D all-in-one touch POS terminal, Bematech is

committed to continuously improve product quality and provide better

after-sales service. In order to take full advantage of our devices, we strongly

recommend that you take the time to read this manual before diving into

software solution.

Note: Information in this manual may change without prior notice.

1.1 Safety Information

Before plug in the product, please make sure the power you provide

meets the power requirements (such as voltage, frequency); Make sure

the ground terminal of the poweroutlet is working properly.

Lightning may damage this product. During lightning storms, unplug

the network cable, power cable and any other connections.

Turn off power before connecting any devices (except USB devices) to the

terminal.

Do not attempt to open the chassis. You may be hurt by electric shock.

For service, callyour place ofpurchase.

Do not spill liquid on the terminal. Do not place any objects into the

ventilation holes of this product. It may cause short-circuit of the internal

components and cause a fire or electric shock.

After the computer is stored below temperature of 10 ° C, please place the

machine in room temperature (10-35 ° C) in the original packing for at

least two hours to allow the terminal to restore to room temperature

before operation. This is to avoid condensation that might bring

electrical damage.

Keep the terminal clean, dry, and away from dust, moisture and direct

sunlight.

Do not use harsh chemicals or strong cleaning solvents to clean the

monitor screen. Wipe it clean with a soft terry cloth applied with a mild

solution

Do not share the same power outlet with high-power electrical appliances;

keep distance from high level magnetic interference.

Do not the use sharp pointed objects to work with the touch screen to

avoid damage to the screen.

When the following occurs:

Liquid gets inside the POS terminal;

Accidental physical damage;

POS terminalproduces a burning smell;

Immediately disconnect the power supply, unplug the power cord, and

contact a qualified service technician.

1.2 Electromagnetic compatibility statement

FCC NOTICE

This device complies with Part 15 of FCC Rules. Operations are subject to the

following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

EUROPEAN COMMUNITY (CE) MARK OF CONFORMITY

This product is in conformity with the protection requirements of EU Council

Directive 89/336/EEC on the approximation of the laws of the Member States

relating to electromagnetic compatibility. Logic Controls cannot accept

responsibility for any failure to satisfy the protection requirements resulting

from a non-recommended modification of the product. This product has

been tested and found to comply with the limits for Class A Information

Technology Equipment according to CISPR 22 / European Standard EN 55022.

The limits for Class A equipment were derived for commercial and industrial

environments to provide reasonable protection against interference with

licensed communication equipment.

2 Installation Guide

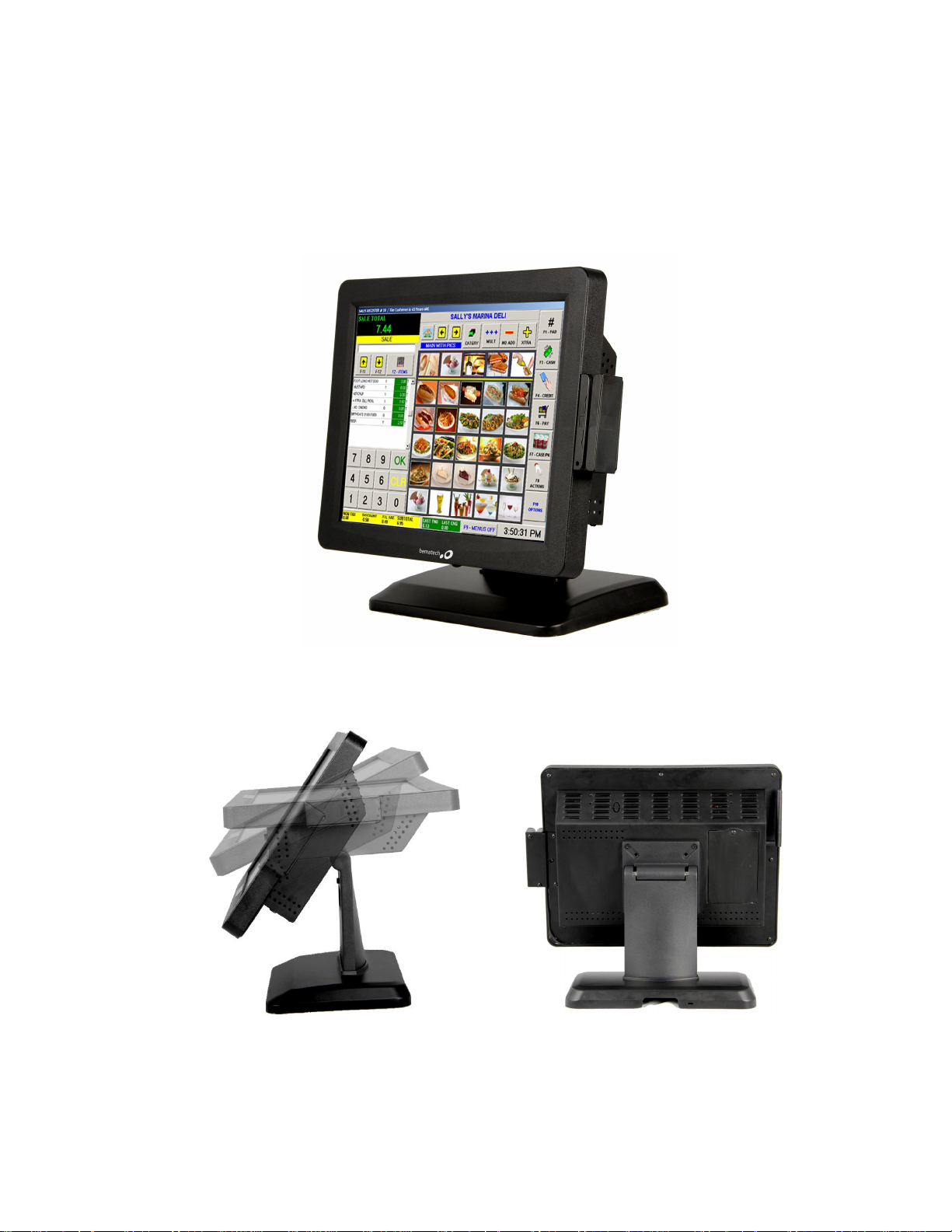

2.1 Appearances

2.2 Rear panel I/O connectors

At the rear panel of the SB9011Dis a row ofexternal I/O device connectors

detailed as follows:

POWER key: Turn power on/off

MOUSE: Connection toPS/2 mouse

KB:Connection to PS/2 keyboard

LPT: DB25 parallel port for connection to POS printer

VGA: VGA signal output forconnection to external monitor

COM 1.3.4.5.6: DB9 port for connection to serial devices

USB:Connection to USB devices

LAN1: RJ-45 Ethernet connection to 100M-bit LAN

LAN2: RJ-45Ethernet connection to Giga-bitLAN

LINE OUT: Stereo phone jack audio output

MIC IN:Microphone input

12VDC IN:Connection to 12V DC Power Supply

3 Setup and Driver Installation

3.1 MotherboardBIOS settings

The POS terminal has a BIOS (Basic Input Output System) chip on the

motherboard. Every time you start the terminals, the system will first run the

BIOS self-test routine to check the main components of the system to ensure it is

working properly.

The terminal is loaded with default BIOS settings in the factory. Please do not

change the parameters in the BIOS unless necessary.

Inthe following situations, youneedto runthe BIOS setup:

1) Error message appears on the screen during the system self-test and

requested to enter BIOS setup.

a. Press F1 torun setup; or

b. Press F2 toload default values and continue

2) If you need to change the factory default settings to customized application

requirements.

a. During system boot, hit DEL key to enter BIOS setup.

b. If the message disappears before you respond to, you can turn off the

machine and restart the computer. You can also press <Ctrl> + <Alt> + <Del>

to restart.

Control keys

<↑>Move up

<↓>Move down

<←> Move left

<→> Move right

<Enter> To select this option

<Esc> To exit themenu or toreturnto the main menu from the submenu

<+/PU> Increase the value or change selection

<-/PD> Reduce the value or change selection

<F1> Help, onlyavailable inthe statusmenuand select templates menu

<F9> To load defaultl settings

<F10> To store settings and exit the CMOS SETUP program

Main CMOS Setup Menu

System Overview

IP25X2 BIOS VER:1.00

AMIBIOS

Version :08.00.15

2011-06-20 ItemHelp

Built Date:06/20/11

ID:LIPVB8106

System summary

IDE Device

Not detected

While enteringsetup

BIOS auto detects the

Presence of SATA

Device. This displays

The status of auto

detection of SATA

devices.

CF Disk Device Not detected

SATA1 Device Hard Disk

SATA2 Device Not Detected

System time (hh:mm:ss)

System date (mm:dd:yy)

Language

12 :34 : 56

Fri 10/26/2012

English

System Overview

IP25X2 BIOS VER:1.00

AMIBIOS

Version :08.00.15

2011-01-05

F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults

Esc Exit ←→ Select Menu Enter Select Sub Menu F10Save and Exit

Advanced Settings Menu

Advanced Settings ItemHelp

WARNING: setting wrong values in the below

sections may cause system to malfunction

CPU Configuration

Supper IO Configuration

ConfigureCPU

Hardware Health Configure

ACPI Configure

USB Configuration

APM Configuration

F1 Help ↑↓ Select Item +/- ChangeValues F9 Setup Defaults

Esc Exit ←→ Select Menu Enter Select Sub Menu F10 Save and Exit

Exit Menu

Exit options Item Help

Save Change and Exit

Discard Change and Exit

DiscardChange

Load OptimalDefault

Exitsystemsetup

after saving the

changes.

F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults

Esc Exit ←→ Select Menu Enter Select Sub Menu F10 Save and Exit

3.2 Touch screen driver installation:

Step 1: Navigate to the installer directory tofind the setup.exe file. Double-click

on “setup.exe” to start installation.

Step 2: When installation starts, click[Next]to proceed tothe next step.

Step 3: Installation inprogress
