Bematech SB9015T Bedienungsanleitung
SB9015T All-in-one True-flat Touch POS Terminal
USER MANUAL
1
Table of Contents
1Introduction..........................................................................................2
1.1 Safety Information ........................................................................................ 2
1.2 Electromagnetic compatibility statement................................................. 3
2Overview................................................................................................4
2.1 Appearances.................................................................................................... 4
2.2 Rear panel I/O connectors ............................................................................. 5
2.3 Rear View......................................................................................................... 6
2.4 Control Panel ...................................................................................................7
3Hardware Installation..........................................................................8
3.1 Cable Routing.................................................................................................. 8
3.2 Installing MSR................................................................................................. 8
3.3 Installing Customer Display.......................................................................... 9
3.4 Installing Second LCD .................................................................................... 9
3.5 Replacing System Core .................................................................................10
3.6 Replacing Hard Disk Drive............................................................................10
4Setup and Driver Installation ............................................................11
4.1 Cash Drawer Port............................................................................................11
4.2 Serial Ports Configurations..........................................................................12
4.3 Jumper settings .............................................................................................13
4.4 Motherboard BIOS settings.........................................................................15
5Troubleshooting ................................................................................ 23
6Specifications .................................................................................... 26
2
1 Introduction
Thank you for purchasing the SB9015T all-in-one true-flat touch POS terminal.
Bematech is committed to continuously improve product quality and provide better
after-sales service. In order to take full advantage of our devices, we strongly
recommend that you take the time to read this manual before diving into software
solution.
Note: Information in this manual may change without prior notice.
1.1 Safety Information
Before plug in the product, please make sure the power you provide meets
the power requirements (such as voltage, frequency); Make sure the ground
terminal of the power outlet is working properly.
To avoid electric shocks, disconnect the power cord from the electrical outlet
before relocating the system.
Lightning may damage this product. During lightning storms, unplug the
network cable, power cable and any other connections.
Turn off power before connecting any devices (except USB devices) to the
terminal.
Do not attempt to open the chassis. You may be hurt by electric shock. For
service, call your place of purchase.
Do not spill liquid on the terminal. Do not place any objects into the
ventilation holes of this product. It may cause short-circuit of the internal
components and cause a fire or electric shock.
After the terminal is stored below temperature of 10 ° C, please place it in
room temperature (10-35 ° C) in the original packing for at least two hours to
allow the terminal to restore to room temperature before operation. This is
to avoid condensation that might cause electrical damage.
Keep the terminal clean, dry, and away from dust, moisture and direct
sunlight.
3
Do not use harsh chemicals or strong cleaning solvents to clean the monitor
screen. Wipe it clean with a soft terry cloth applied with a mild solution
Do not share the same power outlet with high-power electrical appliances;
keep distance from high level magnetic interference.
Do not the use sharp pointed objects to work with the touch screen to avoid
damage to the screen.
When the following occurs:
Liquid gets inside the POS terminal;
Accidental physical damage;
The power cord or plug is damaged;
POS terminal produces a burning smell;
Immediately disconnect the power supply, unplug the power cord, and contact a
qualified service technician.
1.2 Electromagnetic compatibility statement
FCC NOTICE
This device complies with Part 15 of FCC Rules. Operations are subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
EUROPEAN COMMUNITY (CE) MARK OF CONFORMITY
This product is in conformity with the protection requirements of EU Council
Directive 89/336/EEC on the approximation of the laws of the Member States
relating to electromagnetic compatibility. Logic Controls cannot accept
responsibility for any failure to satisfy the protection requirements resulting
from a non-recommended modification of the product. This product has been
tested and found to comply with the limits for Class A Information Technology
Equipment according to CISPR 22 / European Standard EN 55022. The limits for
Class A equipment were derived for commercial and industrial environments to
provide reasonable protection against interference with licensed
communication equipment.
4
2 Overview
2.1 Appearances
5
2.2 Rear panel I/O connectors
At the rear panel of the SB9015T is a row of external I/O device connectors detailed
as follows:
System with D525 CPU
System with i3 CPU
1
DC in
DC in
2
HDD slot
HDD slot
3
DC out (for 2nd LCD)
DC out (for 2nd LCD)
4
Line out
Line out
5
Cash drawer port
Cash drawer port
6
COM5
COM4
7
USB port x 4
USB port x 4
8
LAN port
LAN port
9
COM3
COM1
10
COM4
COM2
11
COM1
COM6
12
VGA port
VGA port
13
PS/2 keyboard port
PS/2 keyboard port
6
2.3 Rear View
1 VESA mounting holes
2 MSR module compartment
3 Speakers
4 VESA routing plate
5 Control panel
6 Display module compartment (for Customer
display or 2nd LCD)
7
2.4 Control Panel
1 Brightness –Press the “Brightness –” button to decrease
brightness. The setting will be saved 6 seconds
after releasing the button.
2 Brightness + Press the “Brightness +” button to increase
brightness. The setting will be saved 6 seconds
after releasing the button.
3 USB ports Connect external peripherals such as a
memory drive.
4 Power Button Press to turn the POS terminal on or off. The
LED lights up blue when the power is on.
Note: Press the “Brightness –” and “Brightness +” buttons at the
same time to restore brightness to the factory default
setting.
8
3 Hardware Installation
3.1 Cable Routing

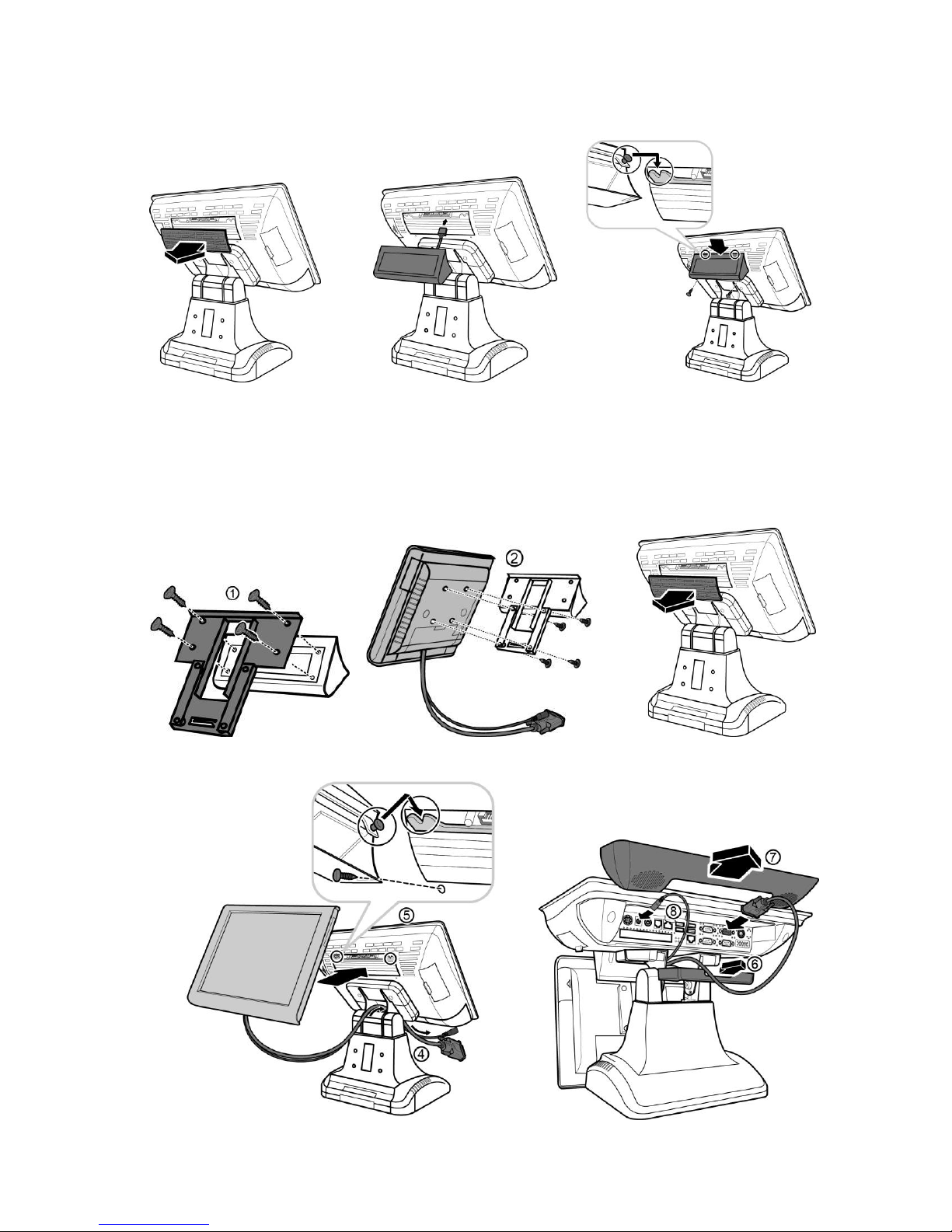

3.2 Installing MSR
9
3.3 Installing Customer Display
3.4 Installing Second LCD
