BEMIS HAVEN HV5000E Bedienungsanleitung

OWNER'S MANUAL

2 3

TABLE OF CONTENTS

PRODUCT INFORMATION

Unit & Parts...........................................................................................................4

PRODUCT INSTALLATION

Seat Installation................................................................................................5

Remote Installation.......................................................................................8

PRODUCT OPERATION

Functions & Settings...................................................................................10

Maintenance.....................................................................................................14

Warranty................................................................................................................16

Specifications...................................................................................................18

4 5

UNIT & PARTS SEAT INSTALLATION

REMOTE

CONTROL

T-VALVE

(WITH RUBBER

GASKET)

1/2” CONVERSION

NUT (OPTIONAL)

BIDET HOSE

(1/2” to 1/2”)

TOILET HOSE

(7/8” to 3/8”)

CR2030 BUTTON

BATTERY (1pc)

CATCH

PLATE

INSTALL SCREW

ASSEMBLY

HAVEN BIDET SEAT

1. Attach Rubber Anchors 2. Attach the Mounting Plate

3. Attach the Bidet Seat 4. Seat Sensor

Remove the existing toilet seat and

insert the rubber anchors into the

mounting holes.

Slide the bidet seat all the way

on to the catch plate. You will hear

a click once the product is securely

mounted to the catch plate.

Place the catch plate and guides

over the mounting holes. Insert the

mounting screw and secure the catch

plate to the toilet.

This appliance is equipped with a

seat sensor and will not function

unless it is occupied.

6 7

SEAT INSTALLATION (CONT.)

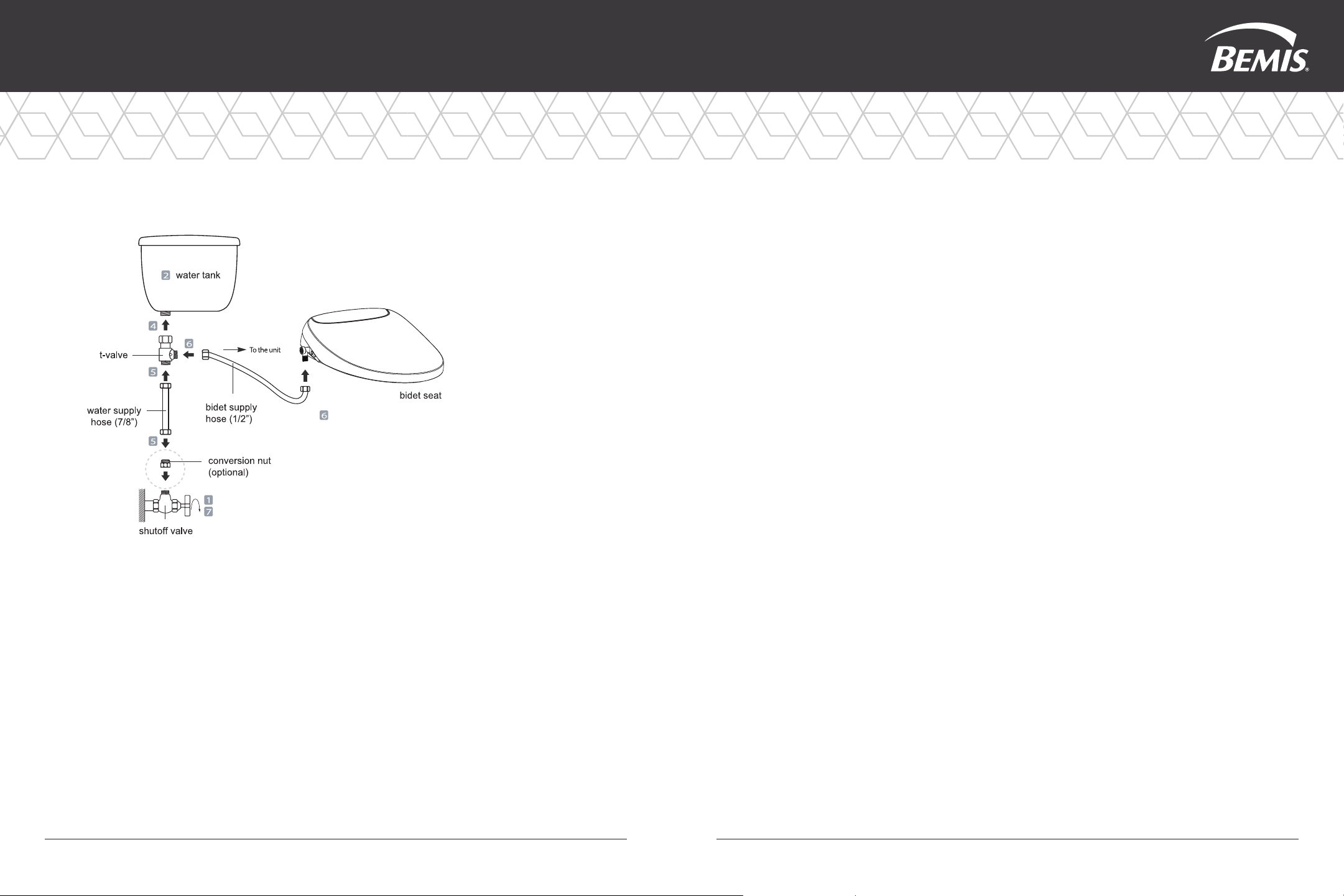

5. Connect the Water Hose

1. Close the water shutoff valve.

2. Flush the toilet to empty the tank.

3. Remove the existing water supply hose from the tank.

4. Install the t-valve on to the tank. Ensure the rubber

gasket is properly seated inside the T-Valve.

5. Connect the 7/8” water supply hose to the water shutoff valve

and t-valve. If necessary, use the included conversion nut.

6. Connect the 1/2” water supply hose to the bidet seat and t-valve.

7. Open the water shutoff valve.

8. Check for any leaking or dripping.

•Plug the power cord into

a 120V power outlet.

•Please contact our service

center at 920.467.4621 if

you have any questions.

6. Plug it in!

8 9

2. Remote Pairing

(Follow these instructions if the bidet

seat is not responding to the remote)

a. Unplug the bidet seat.

b. Press and hold the “STOP” button

on the remote until the indicator

lights flash.

c. Hold the remote close to the bidet

seat and plug it back in.

d. The indicator lights will stop

flashing when the remote has

successfully paired.

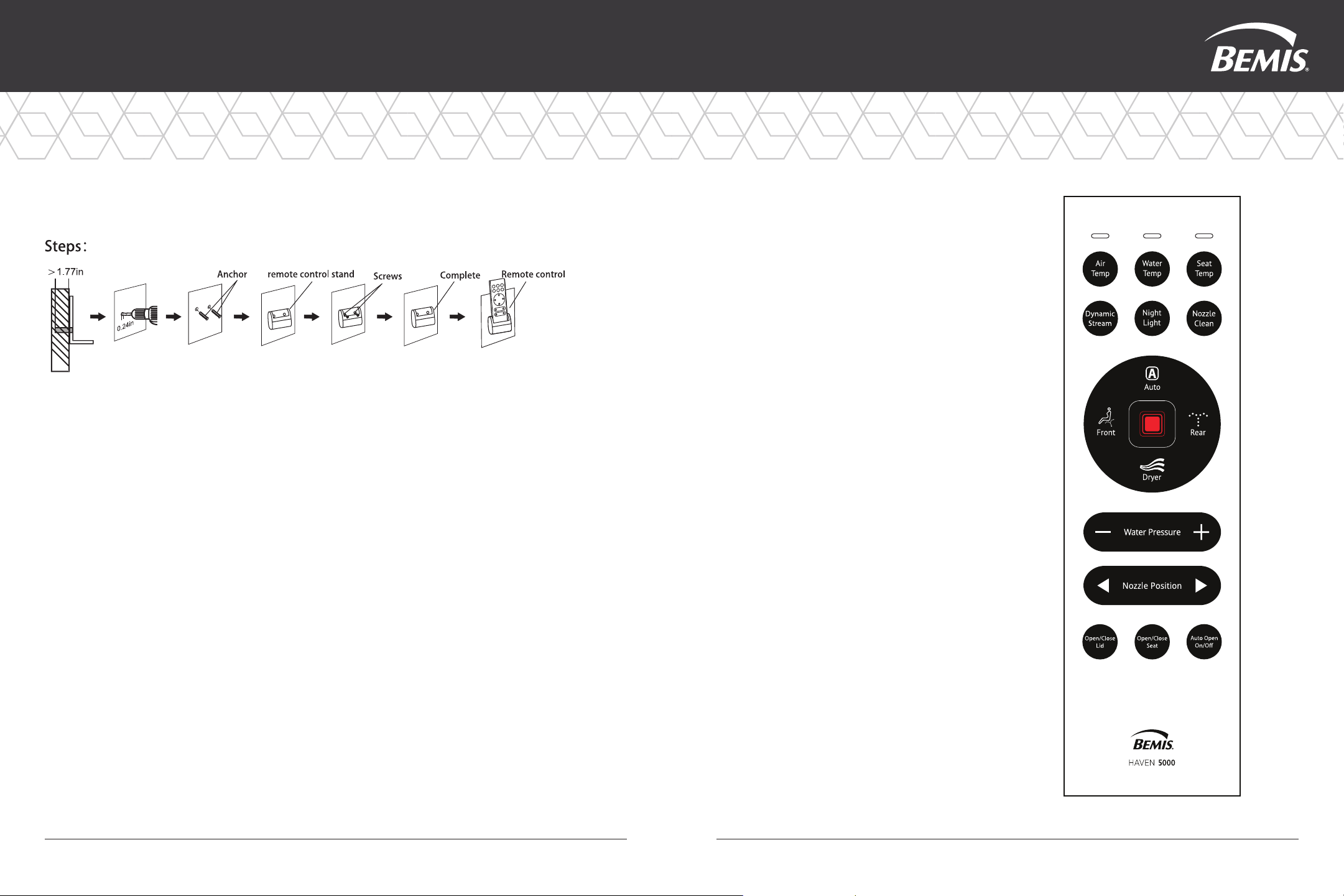

REMOTE INSTALLATION

a. Drill two 6mm holes on the wall that line up with the remote bracket.

b. Install the wall anchors in the newly drilled holes with a hammer.

c. Place the remote bracket over the wall anchors.

d. Use the provided screws to attach the remote control bracket to the wall.

e. Place the remote control on the bracket.

1. Installation

10 11

FUNCTIONS & SETTINGS

OPEN/CLOSE LID

Press to open or close the lid.

Turn On The Seat

•Press the Power Button on the side of the seat.

Pre Nozzle Rinse

•As soon as the seat sensor is activated, a pre-rinse cycle

will begin. This process rinses the nozzle in preparation for a

wash function. Water will drain into the bowl during this time.

Turn Sounds On/Off

•Press and hold the night light button for 3 seconds

to turn beeping sounds on/off.

OPEN/CLOSE SEAT

Press to open or close the seat.

AUTO OPEN ON/OFF

Press to turn the auto open on/off

AUTO

Press to activate a rear wash for 90 seconds, followed by the dryer function for

4 minutes. Press ing the Auto button a second time during the wash will skip

ahead to the dryer function.

FRONT

Press to activate the oscillating front wash.

Press again to turn off oscillation.

REAR

Press to activate the oscillating rear wash.

Press again to turn off oscillation.

STOP

Press to stop any operations.

DRYER

Press to activate the warm air dryer.

Press again to adjust the fan speed.

12 13

ULTRAVIOLET STERILIZATION

This feature automatically activates after a wash cycle. The seat cannot be used

during this time. This feature can only be activated when the seat is not occupied.

POWER/STOP BUTTON

Short press to power on or long press to enter standby mode.

Short press while powered on to stop any operations.

•When the power button is blue, it is in UV sterilization mode.

•When the power button is red, it is in the normal power-on state.

(both when ready to use or in use)

AIR TEMP | WATER TEMP. | SEAT TEMP.

Press the corresponding buttons to adjust the temperature settings on each feature.

•Low - Blue

•Medium - Purple

•High - Red

DYNAMIC STREAM

Press during a wash to quickly alternate between hot and cold water.

This feature assists in stimulating bowel movements.

NIGHT LIGHT

Press to turn the night light on/off.

NOZZLE CLEAN

Press to extend the nozzle for manual cleaning.

This feature can only be activated when the seat is not occupied.

WATER PRESSURE

The water pressure starts off low. Press the + or - buttons to adjust the

water pressure accordingly.

NOZZLE POSITION

Press the arrow keys to adjust the position of the nozzle accordingly.

FUNCTIONS & SETTINGS (CONT.)

14 15

MAINTENANCE

Cleaning the Unit

•Disconnect the power plug and wipe the seat with a dry

or damp cloth using a neutral cleaning solution.

•Do not spray water directly on this product.

•Do not use harsh cleaning chemicals, as those can cause

damage or discoloration.

Extended Travel

When the seat will not be used for more than a few days, it is

recommended to unplug the unit and turn off the water shutoff valve.

16 17

WARRANTY

2 YEAR WARRANTY

Your product is warranted against defects in materials or workmanship for (2) years

from the date of original purchase. Defective parts or a defective products returned

to Bio Bidet Innovation LLC will be repaired with new or comparable rebuilt parts or

exchanged for a refurbished product as determined by Bio Bidet Innovation LLC in

their sole discretion.

This limited warranty given by Bio Bidet Innovation LLC covers all defects encountered

in normal product use, and do not apply in the following cases:

1. Loss of or damage to product due to abuse, misuse, tampering. Mishandling,

improper packaging by you, alteration or fail to follow operating instructions.

2. Use of parts or supplies (other than those by Bio Bidet Innovation LLC dealers

that cause damage to product.

3. Replacement of discolored or stained parts caused by chlorine, bleach,

ammonia and other chemicals, cleaning supplies, oxidation, normal wear

and tear.

4. Damage to or malfunction of the unit as a result of improper and

negligent installation.

5. Any and all damages to plumbing, walls, floors, ceiling and personal properties

resulting from water leaks or breakage. The product must be used at the user’s

own risk. Therefore, the owner hereby releases the manufacturer and distributor

from any and all claims for damages where the above condition exits.

No implied warranty, including any implied warranty of merchantability or fitness or

a particular purpose, applies to Bio Bidet Innovation LLC bidet after the applicable

period of the express limited warranty stated above, and no other express warranty

or guarantee, except as mentioned above, given by any person or entity with respect

to Bio Bidet Innovation LLC shall bind Bio Bidet Innovation LLC, (Some States and

provinces do not allow limitations on how long an implied warranty, so the above

limitation may not apply to you) Bio Bidet Innovation LLC shall not be liable for

revenues or profits, inconvenience, expense for substitute equipment or service, or

any other special, incidental or consequential damages caused by the use or misuse

of, or inability to use product, regardless of the possibility and foresee-ability of

such damages. In no event shall recovery of any kind against Bio Bidet Innovation

LLC be greater in amount than the purchase price of the product and causing the

alleged damage. Without limiting the foregoing, you assume all risk and liability for

loss, damage or injury to you and your property and to others and their property

arising out of use or misuse of, or inability to use, the product not caused directly by

the negligence or Bio Bidet Innovation LLC. This limited warranty shall not extend to

anyone other than the original purchaser of the product.

18 19

SPECIFICATIONS

Model Haven 5000 Rated Power 1050W

Rated

Voltage 120V, 60Hz Waterproof

Guide IPX4

Seat Temp Off /

93.2~102.2°F Water Temp. Off /

95 ~ 102.2°F

Product

Dimensions

20.79” x 16.38”

x 5.59”

Ambient Temp

Requirement 39.2 ~ 104° F

Water

Heating Instant Air Temp Off / 95-131°F

Warning

•The product must be reliably grounded.

Otherwise, electric shock may be caused by fault or short circuit.

When in doubt, contact the electrical installation company.

•Do not touch or plug the power plug with wet hands.

Otherwise there is the risk of electric shock.

•Do not use defective power outlets or damaged power plugs.

Otherwise, poor contact and damage will lead to electric shock or fire hazard.

•Please use the power socket within the specified range (ac 120V±10%, maximum current above 10A).

Otherwise easy to cause fire, electric shock.

•Do not pull, break, bend or twist the power cord at will,

stretch, crimp, bundle, load bearing or over squeeze.

Otherwise, damaged power lines may lead to electric shock or fire.

•If the power cord is damaged, it must be replaced by a professional from

the manufacturer, its maintenance department or similar department to avoid danger.

Otherwise easy to cause electric shock, fire.

•Do not use industrial water or contaminated water sources.

Otherwise it is likely to cause cystitis, dermatitis and internal corrosion of

machinery will cause electric shock, fire.

•Please avoid installation in damp and easily soaked bathroom.

Do not spray water on the product or rinse it with water, in case of internal

water flooding and loss. Otherwise easy to cause electric shock, fire.

•Do not put lit cigarettes and other incendiary materials into the intelligent toilet lid.

Otherwise fire is likely to happen.

•Do not use in lightning weather (in the vicinity of lightning, please unplug the power plug).

Otherwise, an accident or malfunction may occur.

•In case of damage to the seat and cover plate, in order to avoid danger, please be sure to remove

the power plug, turn off the water source, and contact the local dealer for replacement.

Otherwise easy to happen electric shock, fire danger.

•Please pull out the power plug regularly and wipe the dust on the power plug with dry cloth.

Otherwise, when the insulation is poor, it will cause a fire.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere BEMIS Toilette Handbücher

BEMIS

BEMIS BioBidet BB-600R Bedienungsanleitung

BEMIS

BEMIS bioBidet DIB Special Edition Bedienungsanleitung

BEMIS

BEMIS CLICK & CLEAN CLASSIC ABNBCDBL Bedienungsanleitung

BEMIS

BEMIS BIOBIDET BB-550 Bedienungsanleitung

BEMIS

BEMIS bioBidet BB-600 Bedienungsanleitung

BEMIS

BEMIS bioBidet PRODIGY P500 Bedienungsanleitung

BEMIS

BEMIS bioBidet Prodigy P700 Bedienungsanleitung

BEMIS

BEMIS PURE CLEAN 5000 Bedienungsanleitung

BEMIS

BEMIS carrara & matta Smart Lift STA-TITE Bedienungsanleitung

BEMIS

BEMIS bioBidet SLIM ONE Bedienungsanleitung

BEMIS

BEMIS HAVEN 3000 Bedienungsanleitung

BEMIS

BEMIS bioBidet HD-7000 Bedienungsanleitung

BEMIS

BEMIS Haven 5000 Bedienungsanleitung

BEMIS

BEMIS BioBidet SLIM 3 Bedienungsanleitung

BEMIS

BEMIS NextStep Bedienungsanleitung

BEMIS

BEMIS bioBidet HD-5000 Bedienungsanleitung

BEMIS

BEMIS bioBidet BB800 Bedienungsanleitung

BEMIS

BEMIS bioBidet UB-4800 Bedienungsanleitung

BEMIS

BEMIS WELLSPRING 100 Bedienungsanleitung

BEMIS

BEMIS SANCTUARY 5000 Bedienungsanleitung

BEMIS

BEMIS bioBidet Discovery DLS Leitfaden

BEMIS

BEMIS bioBidet SLIM THREE Bedienungsanleitung

BEMIS

BEMIS S5000E 000 Bedienungsanleitung

BEMIS

BEMIS bioBidet DISCVOERY DLS Bedienungsanleitung

Beliebte Toilette Handbücher anderer Marken

Toto

Toto Washlet TCF4911 Series Bedienungsanleitung

Kohler

Kohler K-6419 Bedienungsanleitung

Grohe

Grohe Sensia ARENA Bedienungsanleitung

Kohler

Kohler K-5171K Montageanleitung

Geberit

Geberit AQUACLEAN MERA CLASSIC Bedienungsanleitung

Kohler

Kohler K-24097X Montageanleitung

Better Bathrooms

Better Bathrooms BUN/BeBa 27555/78725 Bedienungsanleitung

American Standard

American Standard CONCEPT Cube TF-2704 Bedienungsanleitung

BIOLAN

BIOLAN ECO Stücklistenhandbuch

Thetford

Thetford C260 Series Bedienungsanleitung

KELISS

KELISS T162A Series Bedienungsanleitung

Kohler

Kohler K-22241K Montageanleitung

Kohler

Kohler ESCALE K-32771T-NS Bedienungsanleitung

BIOLAN

BIOLAN GARDEN TOILET Stücklistenhandbuch

washloo

washloo Prestige Bedienungsanleitung

JABSCO

JABSCO 37010 Series Bedienungsanleitung

Drive

Drive TSE 150 Bedienungsanleitung

Olympia

Olympia EPOQUE 69209 Bedienungsanleitung
