Multi-Level Parking Lift

Installation and Operation Manual

Manual P/N 5900076 — Manual Revision A — April 2019

Designed and engineered by BendPak Inc. in Southern California, USA. Made in China.

⚠

DANGER

Read the

entire

contents of this manual

before

using this

product. Failure to follow the instructions and safety precautions in

this manual can result in serious injury or death. Make sure all other

operators also read this manual. Keep the manual near the product

for future reference. By proceeding with installation and operation,

you agree that you fully understand the contents of this manual.

Model:

•HD-973P

Manual. HD-973P Multi-Level Parking, Installation and Operation Manual, Manual P/N 5900076, Manual

Revision A, Released April 2019.

agree that: you will give full attribution to BendPak Inc., you will not make changes to the content, you do not gain

any rights to this content, and you will not use the copies for commercial purposes.

Trademarks. BendPak and the BendPak logo are registered trademarks of BendPak Inc. All other company,

product, and service names are used for identification only. All trademarks and registered trademarks mentioned

in this manual are the property of their respective owners.

Limitations. Every effort has been made to make sure complete and accurate instructions are included in this

manual. However, product updates, revisions, and/or changes may have occurred since this manual was

published. BendPak reserves the right to change any information in this manual without incurring any obligation for

equipment previously or subsequently sold. BendPak is not responsible for typographical errors in this manual.

You can always find the latest version of the manual for your product on the BendPak website.

Warranty. The BendPak warranty is more than a commitment to you: it is also a commitment to the value of

your new product. Contact your nearest BendPak dealer or visit www.bendpak.com/support/warranty for

full warranty details.Go to bendpak.com/support/register-your-product/ and fill out the online form to register

your product (be sure to click Submit).

Safety.Your product was designed and manufactured with safety in mind. However, your safety also depends

on proper training and thoughtful operation. Do not install, operate, maintain, or repair the unit without reading and

understanding this manual and the labels on the unit;

do not use your Lift unless you can do so safely!

Owner Responsibility. In order to maintain your product properly and to ensure everyone’s safety, it is the

responsibility of the product owner to read and follow these instructions:

• Follow all installation, operation, and maintenance instructions.

• Make sure product installation conforms to all applicable local, state, and federal codes, rules, and regulations,

such as state and federal OSHA regulations and electrical codes.

• Read and follow all safety instructions; keep them readily available for operators.

• Make sure all operators are properly trained, know how to safely operate the unit, and are properly supervised.

• Do not operate the product until you are certain that all parts are in place and operating correctly.

• Carefully inspect the product on a regular basis and perform all maintenance as specified.

• Service and maintain the unit with approved replacement parts only.

• Keep instructions permanently with the product

and make sure all labels are clean and visible.

• Only use the Lift if it can be used safely!

Unit Information. Enter the Model Number, Serial

Number, and the Date of Manufacture from the label

on your unit. This information is required for part or

warranty issues.

Model:

Serial:

Date of Manufacture:

HD-973P Multi-Level Parking Lift 3P/N 5900076 — Rev. A — April 2019

Table of Contents

Introduction 3 Installation 12

Shipping Information 4 Operation 73

Safety Considerations 4 Maintenance 78

Components 6 Troubleshooting 80

Specifications 8 Wiring Diagrams 81

FAQs 10 Labels 83

Installation Checklist 11 Parts Drawings 87

Introduction

This manual describes the following BendPak Parking Lift:

•HD-973P: Multi-Level Parking Lift that can raise Vehicles up to 7,000 lbs (3,175 kg) on the Upper

Platform and up to 9,000 lbs (4,082 kg) on the Lower Platform.

This manual is mandatory reading for all users of the HD-973P, including anyone who installs, uses,

maintains, repairs, or wants to know more about them.

⚠DANGER Use care when installing, operating, maintaining, or repairing this equipment; failure

to do so could result in property damage, product damage, injury, or (in very rare

cases) death. Make sure only authorized personnel operate this equipment. All

repairs must be performed by an authorized technician. Do not make modifications

to the unit; this voids the warranty and increases the chances of injury or property

damage. Make sure to read and follow the instructions in this manual and on the

labels on the unit.

Keep this manual on or near the equipment so that anyone who uses or services it can read it.

If you are having issues, refer to the Troubleshooting section of this manual for assistance.

Technical support and service is available from your dealer, on the Web at bendpak.com/support,

by email at techsupport@bendpak.com, or by phone at (800) 253-2363, extension 196. You

may also contact BendPak for parts replacement information at (800) 253-2363, extension 191;

please have the model and serial number of your unit available.

HD-973P Multi-Level Parking Lift 4P/N 5900076 — Rev. A — April 2019

Shipping Information

Your equipment was carefully checked before shipping. Nevertheless, you should thoroughly inspect

the shipment

before

you sign to acknowledge that you received it.

When you sign a bill of lading, it tells the carrier that the items on the invoice were received in good

condition.

To protect yourself, do not sign until

after

you have inspected the shipment.

If any of

the items listed on the bill of lading are missing or are damaged, do not accept the shipment until the

carrier makes a notation on the bill of lading that lists the missing and/or damaged goods.

If you discover missing or damaged goods

after

you receive the shipment and have signed the bill of

lading, notify the carrier at once and request the carrier to make an inspection. If the carrier will not

make an inspection, prepare a signed statement to the effect that you have notified the carrier (on a

specific date) and that the carrier has failed to comply with your request.

It is difficult to collect for loss or damage after you have given the carrier a signed bill of lading. If this

happens to you, file a claim with the carrier promptly. Support your claim with copies of the bill of

lading, freight bill, invoice, and photographs, if available.

Our willingness to assist in helping

you process your claim does not make us responsible for collection of claims or

replacement of lost or damaged materials.

Safety Considerations

Read this entire manual carefully before installing or using the product.

Do not

install or operate the product until you are familiar with all operating instructions and warnings. Do not

allow anyone else to operate it until they are familiar with all operating instructions and warnings. Keep

this manual on or near the product for future reference.

Read and follow the warnings and instructions on the labels on the product. Contact BendPak at

(800) 253-2363 or techsupport@bendpak.com if you need replacement labels or a

replacement manual.

Safety Information

The following safety information applies to the HD-973P:

•The product is a Multi-Level Parking Lift; this Lift may be different from other Parking Lifts

you have installed or used. Use it only for its intended purpose.

•BendPak recommends referring to the ANSI/ALI ALIS Standard (R2015) Safety Requirements for

Installation and Service for more information about safely installing, using, and servicing your Lift.

•The product may only be operated by authorized, trained persons.

•When the Lift is in use, keep all body parts well away from it.

•Do not make any modifications to the Lift; this voids the warranty and increases the chances of

injury or property damage.

•Make sure all operators read and understand this Installation and Operation Manual. Keep the

manual near the Lift at all times.

•Make an inspection of the Lift

before

using it. Check for damaged, worn, or missing parts. Do not

use it if you find any of these issues. Instead, take it out of service, then contact an authorized

repair facility, your dealer, or BendPak at (800) 253-2363 or techsupport@bendpak.com.

•BendPak recommends making a

thorough

inspection of the product at least once a year.

Replace any damaged or severely worn parts, decals, or warning labels.

HD-973P Multi-Level Parking Lift 5P/N 5900076 — Rev. A — April 2019

Symbols

Following are the symbols used in this manual:

⚠DANGER Calls attention to an immediate hazard that will result in death or severe injury.

⚠WARNING Calls attention to a hazard or unsafe practice that could result in death or severe

personal injury.

⚠CAUTION Calls attention to a hazard or unsafe practice that could result in minor personal

injury, product damage, or property damage.

NOTICE Calls attention to a situation that, if not avoided, could result in product or property

damage.

Tip Calls attention to information that can help you use your product better.

Liability Information

BendPak Inc. assumes no liability for damages resulting from:

• Use of the equipment for purposes other than those described in this manual.

• Modifications to the equipment without prior, written permission from BendPak.

• Damage to the equipment from external influences.

• Incorrect operation of the equipment.

HD-973P Multi-Level Parking Lift 6P/N 5900076 — Rev. A — April 2019

Components

The main components of your Lift include:

•Power Post. The Post that holds the Power Unit. Mount the Power Unit on one of the two

Mounting Brackets.

•The other three Posts. These Posts are interchangeable.

•Power Unit. An electric/hydraulic unit that connects to an electric power source and then

provides Hydraulic Fluid to the Hydraulic Cylinder that raises and lowers the Runways.

•Upper Platform. Can hold Vehicles up to 7,000 lbs (3,175 kg).

•Lower Platform. Can hold Vehicles up to 9,000 lbs (4,082 kg).

•Powerside Runways. On the same side as the Power Post for the Upper and Lower Platform.

The Powerside Runways have the Hydraulic Cylinder and the Cables under them.

•Offside Runways. The other Runways. They do not have a Hydraulic Cylinder or Cables under

them.

•Aluminum Decks. Sits in between the two Runways. Protects any oil leakage from falling onto

the Vehicle below. Two per Platform.

•Safety Shutoff Bar. Located on the underside of the Upper Platform. The Safety Shutoff Bar

stops upward movement of the Lift. If you are raising a Vehicle on the Lower Platform and it hits

the Safety Bar, the Lift immediately stops moving up.

•Crosstubes. Each Platform has one at each end of the Lift. The Crosstubes are hollow; the

Cables that raise and lower the Runways are routed through the Crosstubes. The Crosstubes are

not interchangeable: Each Crosstube has an opening (called a ‘Window’) that faces the inside.

Windows open to the inside of the Lift only

. Cables go into the Crosstubes through the

Windows.

•Crossbeams. Extra structural stability for your Lift. Two Crossbeams connect the Powerside

Posts and another two connect the Offside Posts.

•Drive-up Ramps. The Upper Platform uses a longer set of Ramps, and the Lower Platform uses

a shorter set of Ramps. Use them to drive onto and off of the Runways. Two per Platform.

•Tire Stops. Located at the Front of the Lift, Tire Stops prevent the Vehicle’s front tires from going

any further forward. Additionally, we strongly recommend chocking the Vehicle’s rear tires. Two

per Platform.

•Safety Locks. Once engaged, they hold the Runways in position, even if the power goes out or

there is a leak in the Hydraulic Lines. Your Lift has two columns of Safety Locks per post, spaced

every four inches. This lets you lock the Runways at just the right height for what you want to do.

This Lift also has a backup Slack Safety system; refer to About Safety Locks for more

information.

Only leave your Lift on the ground or engaged on a Safety Lock.

•Platform Switch Valve. Controls which Platform is in use; only one Platform can be raised or

lowered at a time.

•Pushbutton Air Valve. Moves the Safety Locks away from the Ladder so that they do not

engage as you lower the Lift. Used to lower the Runways.

•Ladders. Pieces of steel that gets installed at the back of each Post. The Upper Platform has 31

slots in it, the Lower Platform 13; these are part of the Safety Lock system.

HD-973P Multi-Level Parking Lift 7P/N 5900076 — Rev. A — April 2019

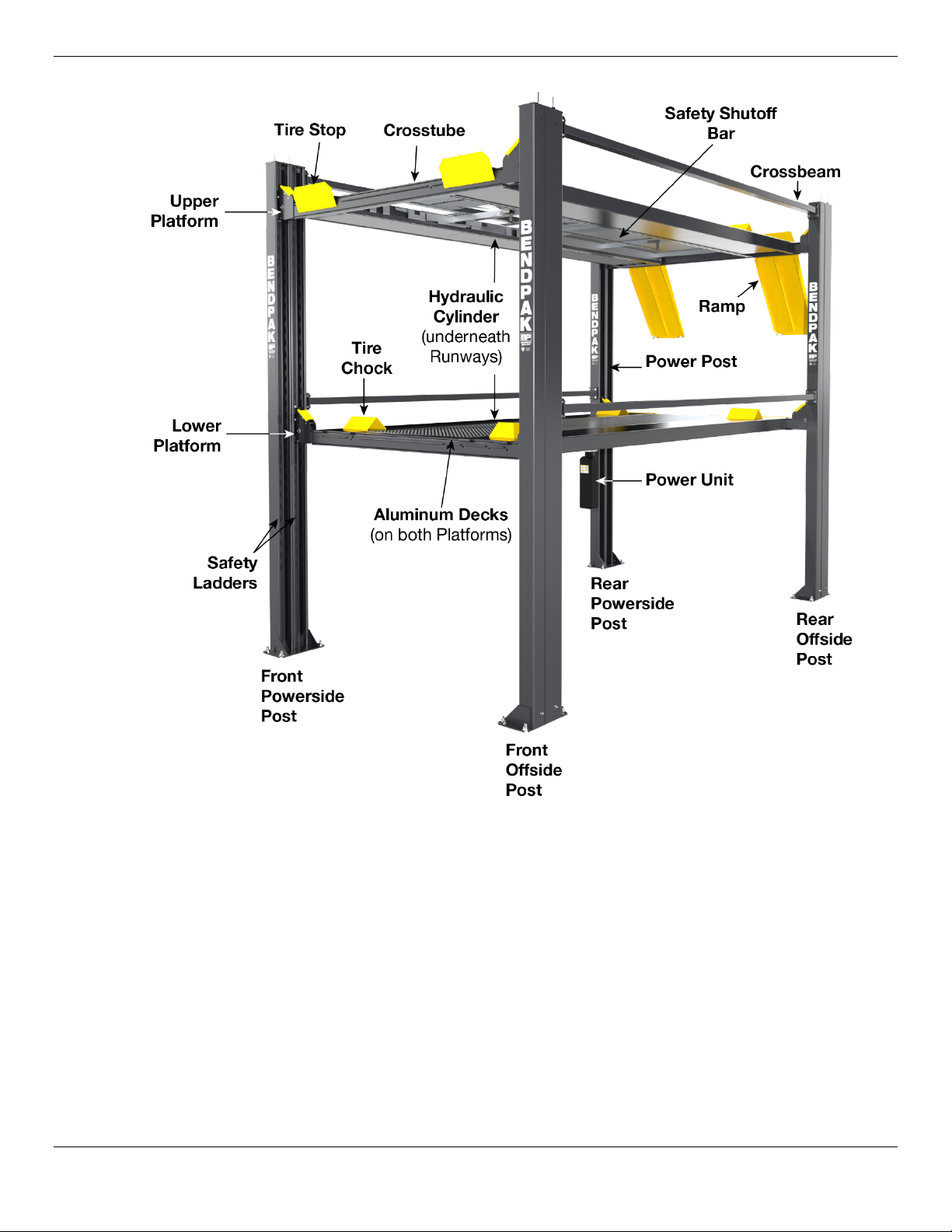

Drawing not necessarily to scale. Some components not shown. The Front of the Lift is the end

opposite

the Drive-up Ramps.

HD-973P Multi-Level Parking Lift 8P/N 5900076 — Rev. A — April 2019

Specifications

Side View

Top View

HD-973P Multi-Level Parking Lift 9P/N 5900076 — Rev. A — April 2019

Not drawn to scale. Some components not shown or exaggerated for clarity. Drawing shows both

Platforms lowered. This drawing shows the Drive-up Ramps separated from the Lift for clarity.

HD-973P Upper Platform Lower Platform

Lifting capacity 7,000 lbs / 3,175 kg 9,000 lbs / 4,082 kg

aTotal width 112" (9.4 feet) / 2,843 mm

bOutside length 198" (16.6 feet) / 5,028 mm

cHeight of post 161" (13.5 feet) / 4,093 mm

dDrive-thru clearance 86.5" (7.3 feet) / 2,201 mm

eMaximum rise 139" (11.7 feet) / 3,531 mm 69.5" (5.10 feet) / 1,765 mm

fMaximum lifting height 145"(12.1 feet) / 3,683 mm 74.5" (6.3 feet) / 1,892 mm

gDistance between posts 100" (8.4 feet) / 2,546 mm

hRunway width 19" / 482 mm

iWidth between runways 44.5" (3.9 feet) / 1,130 mm

jRunway length 188" (15.8 feet) / 4,788 mm 176" (14.8 feet) / 4,470 mm

kDrive-up ramps Length: 48" / 1,220 mm

Height: 5" / 128 mm

Length: 36" / 930 mm

Height: 4" / 105 mm

lHeight of Platform when lowered 10.75" / 270 mm 5" / 127 mm

Min. wheelbase @ rated capacity 1135 (11.3 feet) / 3,429 mm 125" (10.5 feet) / 3,175 mm

Min. wheelbase @ 75 capacity 1115" (9.7 feet) / 2,921 mm 105" (8.9 feet) / 2,667 mm

Min. wheelbase @ 50 capacity 195" (7.11 feet) / 2,413 mm 85" (7.1 feet) / 2,159 mm

Min. wheelbase @ 25 capacity 180" (6.8 feet) / 2,032 mm 70" (5.10 feet) / 1,778 mm

Locking positions 31

Spaced every 4" / 102 mm

Lifting time 90 seconds 50 seconds

Motor 220 VAC, 60 Hz, 1 Ph (special voltages available upon request)

1 The Lift supports less weight than its rated capacity if the vehicle’s wheelbase is shorter because

the wheels of such a vehicle are closer to the middle of the Runways, where there is less strength.

Specifications subject to change without notice.

HD-973P Multi-Level Parking Lift 10 P/N 5900076 — Rev. A — April 2019

Frequently Asked Questions

Question: What kinds of Vehicles can I put on my Parking Lift?

Answer: Cars, trucks, SUVs; anything that fits on the Upper Platform, up to 7,000 lbs (3,175 kg).

The Lower Platform holds up to 9,000 lbs (4,082 kg).

Q: How are the two Platforms different?

A: Some of the main differences between the two Platforms include the weight capacity, maximum

lifting height, and Runway length. Additionally, the Upper Platform has a Microswitch that prevents

the roof of a vehicle on the Lower Platform from contacting the Upper Platform.

Q: Can any of the four Posts be the ‘Power Post’?

A: No; the only two possible locations for the Power Post are either the Front Driver-Side or the Rear

Passenger-Side. This will be explained later.

Q: Does the Lift have to be anchored in place?

A: Yes; you

must

anchor your Lift.

Q: Can I use my Lift to hold storage boxes instead of a Vehicle?

A: No. This is not the intended use of the Lift; do not use it this way.

Q: How high does the ceiling have to be?

A: It depends on the height of the Vehicles you are putting on the Runways and how high you raise

the Runways. If you are going to put a tall Vehicle on the Lift and raise it all the way up, you should

check to make sure there is enough room.

Q: Does it matter if I drive my Vehicles in front first or back them in?

A: We strongly recommend driving your vehicle in front first, because that makes it easier to center

the vehicle’s wheels on the Runways. Also, remember to put the front wheels up against the Tire

Stops and chock the rear wheels.

Q: Will the Cables really hold my Vehicles?

A: Yes. Your Lift has 4/10 inch thick, aircraft-quality

wire rope

that runs through oversized

sheaves, reducing friction on them and extending their life with minimal maintenance.

Q: How many Safety Locks does my Lift have?

A: The Upper Platform has 31 Safety Locks for you to use; the Lower Platform has 13.

Q: How long can I leave a Vehicle on a raised Runway?

A: As long as you want; once the Lift is engaged on a Safety Lock, gravity holds it in position, so a

loss of power does not impact it; it is going to stay where you left it. Always leave the Platforms

either fully lowered or engaged on a Safety Lock.

Q: Can I install my Lift outside?

A: Your Lift is approved for indoor installation and use only.

Outdoor installation is prohibited

Q: How long does it take to raise the Platforms?

A: The Upper Platform takes about 90 seconds; the Lower Platform takes about 50 seconds.

Andere Handbücher für HD-973P

Inhaltsverzeichnis

Andere Bend-Pak Hebesystem Handbücher

Bend-Pak

Bend-Pak HDS-14LSXE Bedienungsanleitung

Bend-Pak

Bend-Pak MD-6XP Bedienungsanleitung

Bend-Pak

Bend-Pak XPR-9S-LP Bedienungsanleitung

Bend-Pak

Bend-Pak HD-14SS Bedienungsanleitung

Bend-Pak

Bend-Pak XPR-10S-168 Bedienungsanleitung

Bend-Pak

Bend-Pak LR-60P Bedienungsanleitung

Bend-Pak

Bend-Pak HD-9STX Bedienungsanleitung

Bend-Pak

Bend-Pak HD-7500 Series Bedienungsanleitung

Bend-Pak

Bend-Pak PCL-18B Bedienungsanleitung

Bend-Pak

Bend-Pak XPR-10T Bedienungsanleitung

Bend-Pak

Bend-Pak LR-10000 Bedienungsanleitung

Bend-Pak

Bend-Pak GP-7 Bedienungsanleitung

Bend-Pak

Bend-Pak HD-9XL Bedienungsanleitung

Bend-Pak

Bend-Pak Clearfloor 10AP Bedienungsanleitung

Bend-Pak

Bend-Pak xpR-10C Bedienungsanleitung

Bend-Pak

Bend-Pak 5175153 Bedienungsanleitung

Bend-Pak

Bend-Pak HD-9 Bedienungsanleitung

Bend-Pak

Bend-Pak PL-6000DC Referenzhandbuch

Bend-Pak

Bend-Pak HDSO-14P Bedienungsanleitung

Bend-Pak

Bend-Pak XPR-10AS-168-LP Bedienungsanleitung

Bend-Pak

Bend-Pak HDSO-14P Bedienungsanleitung

Bend-Pak

Bend-Pak HD-9STX Bedienungsanleitung

Bend-Pak

Bend-Pak XPR-10S-168-LP Bedienungsanleitung

Bend-Pak

Bend-Pak PL-7000XR Bedienungsanleitung

Beliebte Hebesystem Handbücher anderer Marken

morse

morse 82H-124 Bedienungsanleitung

Braun

Braun NL955 Series Bedienungsanleitung

haacon

haacon 1889.10 Bedienungsanleitung

Protekt

Protekt AT 252 Bedienungsanleitung

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Bedienungsanleitung

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Bedienungsanleitung

Genie

Genie Z-60/34 Bedienungsanleitung

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Bedienungsanleitung

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Bedienungsanleitung

Custom Equipment

Custom Equipment Hy-Brid 3 Series Programmierhandbuch

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Programmierhandbuch

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Programmierhandbuch

BERG

BERG BeNomic EasyLeaf Bedienungsanleitung

Powermate

Powermate LiftGate LG-3 Bedienungsanleitung

Snorkel

Snorkel TM12 Series Bedienungsanleitung

Terberg

Terberg OMNIDEKA Bedienungsanleitung

Harmar Mobility

Harmar Mobility AL625 Betriebsanleitung

Rotary

Rotary SPO16 Bedienungsanleitung
