BenQ Joybook 3000 Bedienungsanleitung

Joybook 3000 User Manual

Before using your Joybook, please read the Quick Start Guide to get

your computer up and running. Read this manual for more detailed

information that can help you use all of your Joybook's capabilities

more effectively and enjoyably.

Table of Contents

Joybook 3000 Features ....................................................................3

Function Hotkeys ............................................................................8

Getting Started with Windows XP ............................................ 10

Using the Q-Media Bar ................................................................ 11

Your Digital Entertainment Centre --- BenQ Joybook 3000 ... 12

Sending and Receiving E-mail ................................................ 13

Getting Online ........................................................................ 14

Listening to Music and Creating Custom Music Collections 15

Watching Video and Making Your Own Movies .................. 16

Viewing Digital Photographs and Creating Slide Shows .... 18

Burning CDs ............................................................................ 20

Attaching External Display Devices ........................................... 22

Installing Additional Memory ...................................................... 24

Recommendations and Troubleshooting ................................... 26

Basic Specifications ...................................................................... 28

Information on Safety, Cleaning, and Battery Maintenance .... 29

2 Copyright

retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical,

chemical, manual or otherwise, without the prior written permission of this company.

Disclaimer

BENQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically

disclaims any warranties, merchantability or fitness for any particular purpose. Further, BENQ Corporation reserves the right to revise this

publication and to make changes from time to time in the contents hereof without obligation of this company to notify any person of such revision

or changes.

*Windows, Internet Explorer and Outlook Express are trademarks of Microsoft Corporation. Others are copyrights of their respective companies or organisations.

Joybook 3000 Features 3

Joybook 3000 Features

Hard Disc Drive Activity Indicator

Lights up in blue when the computer is reading

the data in the hardware.

Four-in-One Card Indicator

Lights up in blue when the computer is reading

the card data.

Caps Lock Indicator

Lights up in blue when the Caps Lock is

engaged.

Num Lock Indicator

Lights up in blue when the Num Lock key is

engaged.

Scroll Lock Indicator

Lights up in blue when Scroll Lock is active.

Left and Right Selection Buttons

Equivalent to the left and right buttons on a

mouse.

Internet Hotkey

Starts up the Internet Explorer Web browser.

E-Mail Hotkey

Starts up the Outlook Express e-mail client.

Customisable Hotkey 1

Can be set by the user to open the same

application as the third icon on the Q-Media bar.

Customisable Hotkey 2

Can be set by the user to open the same

application as the fourth icon on the Q-Media

bar.

Power Button

Turns the computer on or off.

Cover Switch

To u c h P a d

For controlling the on-screen cursor. Can be

activated and deactivated by pressing the Fn +

F6 hotkey combination.

4 Joybook 3000 Features

Power Button/Play/Pause

Music Button

Can play music even when the

computer is turned off.

Stop/ Eject

Stops playback from an audio CD. If

pressed again, ejects the CD.

* Power automatically cuts off if the

SuperDJ stops playing for more than

10 minutes.

Rewind

Allows fast backward searching on

audio CDs.

Forward

Allows fast forward searching on audio

CDs.

Select Play Mode

When the power is on, SuperDJ is set

to play once from the beginning to the

end. When the SuperDJ plays, pauses

or stops, press both and to

select playback once, repeated

playback, repeated single piece

playback or random playback.

LCM Display Screen

Limitations on LCM:

1. LCM displays 199 songs at most,

while the 200th song will be

displayed as the first one.

2. A song list can play 999 songs at

most. Each list is categorised as

P1, P2,..., P9, and SuperDJ

supports 9 song lists at most.

3. The file folder in the playback

media runs from F0,F1,F2,...,to

F9. F0 is the root menu, and may

be selected only once, while F1

stands for the first file folder.

SuperDJ supports 99 file folders

at most.

Lower Volume

Decreases the volume of CD playback.

Raise Volume

Increases the volume of CD playback.

Select Playback Media

and Song List/File Folder

When SuperDJ is off, you can press

both and to select another

playback media*. If either button is

pressed, switch to another song list or

file folder.

* Playback media includes hard disc,

CD, Flash Card and USB device.

Infrared Port

The interface for infrared

communications allows the transfer of

data to and from PDAs or mobile

phone or computer with infrared

capabilities.

Joybook 3000 Features 5

Power Jack

For connecting the AC adapter.

VGA Port

For connecting external display devices,

such as monitors and projectors.

S-Video Out

Outputs S-Video signals to a television

set or a projector.

USB Port

For connecting peripherals such as

mice, digital cameras and MP3 players

that use the USB interface.

Modem Port

Accepts an analogue telephone line for

use with the internal modem.

Ethernet Port

Allows the computer to connect to an

Ethernet 10/100BaseT network.

Ventilation Holes

For dissipating heat and keeping the

computer at an optimal temperature.

Parallel Port

For connecting devices such as printers

that use the parallel port interface.

Ventilation Holes

For dissipating heat and keeping the

computer at an optimal temperature.

Kensington Lock

6 Joybook 3000 Features

Ventilation Holes

For dissipating heat and keeping the

computer at an optimal temperature.

Four-in-One Slot

Reads Memory Stick Card, SD Card,

Smart Media Card and MMC Card.

PC Card Expansion Slot

Allows the functionality of the

computer to be extended through

the use of a wide variety of PC Card

modules available—for example,

wireless networking cards and mobile

discs.

PC Card Eject Button

Before ejecting a PC Card:

1. Quit all PC Card applications

and shut down all PC Card

functions.

2. Push in, then release the PC

Card eject button, causing it to

pop out.

3. When the button has popped

out, push it in again to eject the

PC Card.

Wireless Network Card

Power Button (The function is

currently not supported.)

Wireless Network Card

Activity Indicator (The function

is currently not supported.)

Power Indicator

Lights up in blue when the computer

is turned on. When the system enters

sleep mode, turns orange.

Battery Indicator

When the computer is in use, lights up

in blue. When the battery is charging,

turns orange. Flashing blue indicates

that the battery is running low.

Flashing orange indicates that the

battery is malfunctioning, in which case

you should contact our service

personnel.

Joybook 3000 Features 7

Earphone Jack/S/PDIF

Outputs optical sound. Can be

connected to optical audio-enabled

speakers for high quality music.

Line-in

Inputs sound into the computer.

Mic in

Inputs speech into the computer.

IEEE 1394 Port

For connecting external display devices,

such as monitors and projectors.

USB Port

For connecting peripherals such as

mice, digital cameras and MP3 players

that use the USB interface.

DVD Drive

Supports multi-functional optical

module for music CD, VCD and DVD.

Discs can be inserted/ejected by

pressing the small rectangular button at

the centre of the drive.

USB Port

For connecting peripherals such as

mice, digital cameras and MP3 players

that use the USB interface.

PS2 Mouse Port

8 Function Hotkeys

Function Hotkeys

You can use the function hotkeys to access commonly-used functions or make quick settings. To use the hotkeys, press and hold the Fn key in the

lower left corner of the keyboard, and then press the desired hotkey.

Fn + F1

Opens online help.

Fn + F2

Puts the computer into sleep mode.

Fn + F3

Switches display between the screen

and an external monitor, or allows

simultaneous display.

Fn + F4

Decreases screen brightness.

Fn + F5

Increases screen brightness.

Fn + F6

Activates or deactivates the touch

pad.

Fn + F7

Activates or deactivates the

speakers.

Fn + F8

Lowers speaker volume.

Fn + F9

Increases speaker volume.

Fn + F10

Turns on or off the Logo backlight.

Function Hotkeys 9

Windows Key

Functionally equivalent to clicking the

Start button on the Windows

desktop.

+ Tab

Makes the next item on the Windows

task bar active.

+ E

Opens the My Computer window for

browsing discs and files.

+ M

Minimises all windows.

Shift + + M

Cancels minimisation of all windows.

+ R

Activates Run dialogue box.

Num Lock

Activates the numeric keypad

integrated in the keyboard.

Caps Lock

Capitalises all text entered.

Application Key

Provides the same function as the

right touch pad button, bringing up a

contextual pop-up menu.

10 Getting Started with Windows XP

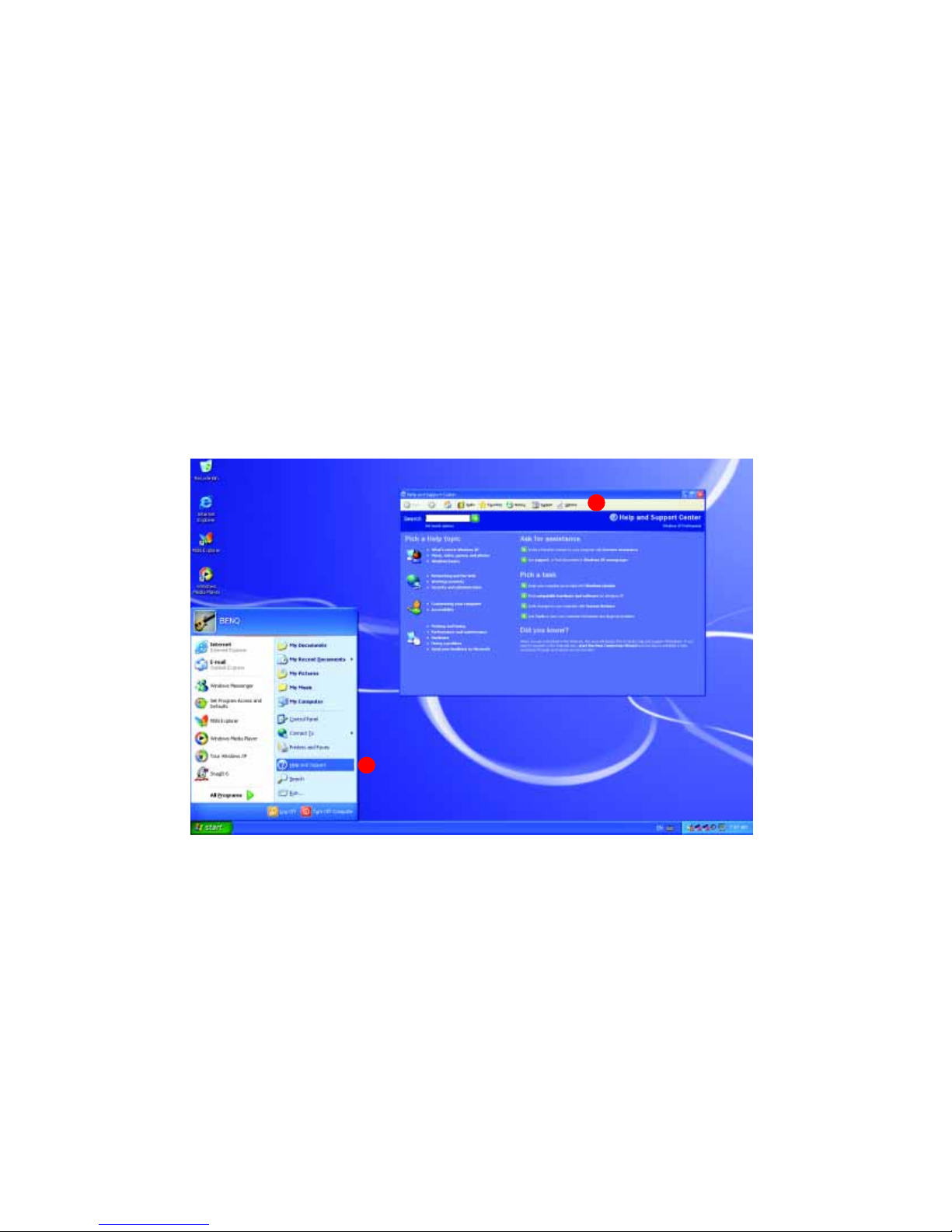

Getting Started with Windows XP

Your Joybook 3000 comes installed with Windows XP Home Edition, Microsoft's latest operating system for consumer PCs. The first time you start

up your computer, Windows XP will ask you a few questions. Answer the questions to ensure that your full rights are protected.
