4 Important safety instructions

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that you

follow the instructions mentioned in this manual and marked on the product.

1. Please read this manual before you

operate your projector. Save it for future

reference.

2. Do not look straight at the projector lens

during operation. The intense light beam

may damage your eyes.

3. Refer servicing to qualified service

personnel.

4. Always open the lens shutter (if any) or

remove the lens cap (if any) when the

projector light source is on.

5. The light source becomes extremely hot

during operation.

6. In some countries, the line voltage is NOT

stable. This projector is designed to

operate safely within a mains voltage

between 100 to 240 volts AC, but could

fail if power cuts or surges of ±10 volts

occur. In areas where the mains voltage

may fluctuate or cut out, it is

recommended that you connect your

projector through a power stabilizer,

surge protector or uninterruptible power

supply (UPS).

7. Do not block the projection lens with any

objects when the projector is under

operation as this could cause the objects

to become heated and deformed or even

cause a fire. To temporarily turn off the

light source, use the blank function.

8. Do not operate light sources beyond the

rated light source life.

5Important safety instructions

9. Do not place this product on an unstable

cart, stand, or table. The product may fall,

sustaining serious damage.

10. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause death if

you should come into contact with live

parts.

Under no circumstances should you ever

undo or remove any other covers. Refer

servicing only to suitably qualified

professional service personnel.

11. Do not block the ventilation holes.

- Do not place this projector on a blanket, bedding

or any other soft surface.

- Do not cover this projector with a cloth or any

other item.

- Do not place inflammables near the projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

12. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more than 10

degrees left to right, nor at angle of more than 15

degrees front to back. Using the projector when it

is not fully horizontal may cause a malfunction

of, or damage to, the light source.

13. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

14. Do not step on the projector or place any

objects upon it. Besides probable physical

damage to the projector, doing so may

result in accidents and possible injury.

15. When the projector is under operation,

you may sense some heated air and odor

from its ventilation grill. It is a normal

phenomenon and not a product defect.

6 Important safety instructions

16. Do not place liquids near or on the

projector. Liquids spilled into the projector

may cause it to fail. If the projector does

become wet, disconnect it from the power

supply's power outlet and call BenQ to

have the projector serviced.

17. This product is capable of displaying

inverted images for ceiling/wall mount

installation.

18. This apparatus must be earthed.

19. Do not place this projector in any of the

following environments.

- Space that is poorly ventilated or confined. Allow

at least 50 cm clearance from walls and free flow

of air around the projector.

- Locations where temperatures may become

excessively high, such as the inside of a car with

all windows rolled up.

- Locations where excessive humidity, dust, or

cigarette smoke may contaminate optical

components, shorten the projector's life span and

darken the image.

- Locations near fire alarms

- Locations with an ambient temperature above

40°C / 104°F

- Locations where the altitudes are higher than

3000 m (10000 feet).

Risk Group 2

1. According to the classification of photobiological safety of light sources and light source

systems, this product is Risk Group 2, IEC 62471-5:2015.

2. Possibly hazardous optical radiation emitted from this product.

3. Do not stare at operating light source. May be harmful to the eyes.

4. As with any bright source, do not stare into the direct beam.

To avoid damaging the DLP chips, never aim a high-power laser beam into the projection lens.

3000 m

(10000 feet)

0 m

(0 feet)

7Introduction

Introduction

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items are

missing, please contact your place of purchase.

Standard accessories

Optional accessories

• Wireless Dongle (EZC5201BS)

Replacing the remote control batteries

1. Press and open the battery cover, as illustrated.

2. Remove the old batteries (if applicable) and install

two AAA batteries. Make sure that the positive and

negative ends are positioned correctly, as illustrated.

3. Replace the battery cover until it clicks into place.

Projector Remote control with

batteries Power cord

Quick start guide Warranty card* Regulatory statements

• The supplied accessories will be suitable for your region, and may differ from those illustrated.

• *The warranty card is only supplied in some specific regions. Please consult your dealer for detailed

information.

• Avoid leaving the remote control and batteries in an excessive heat or humid environment like the

kitchen, bathroom, sauna, sunroom or in a closed car.

• Replace only with the same or equivalent type recommended by the battery manufacturer.

• Dispose of the used batteries according to the manufacturer's instructions and local environment

regulations for your region.

• Never throw the batteries into a fire. There may be danger of an explosion.

• If the batteries are dead or if you will not be using the remote control for an extended period of time,

remove the batteries to avoid damage to the remote control from possible battery leakage.

8 Introduction

Projector exterior view

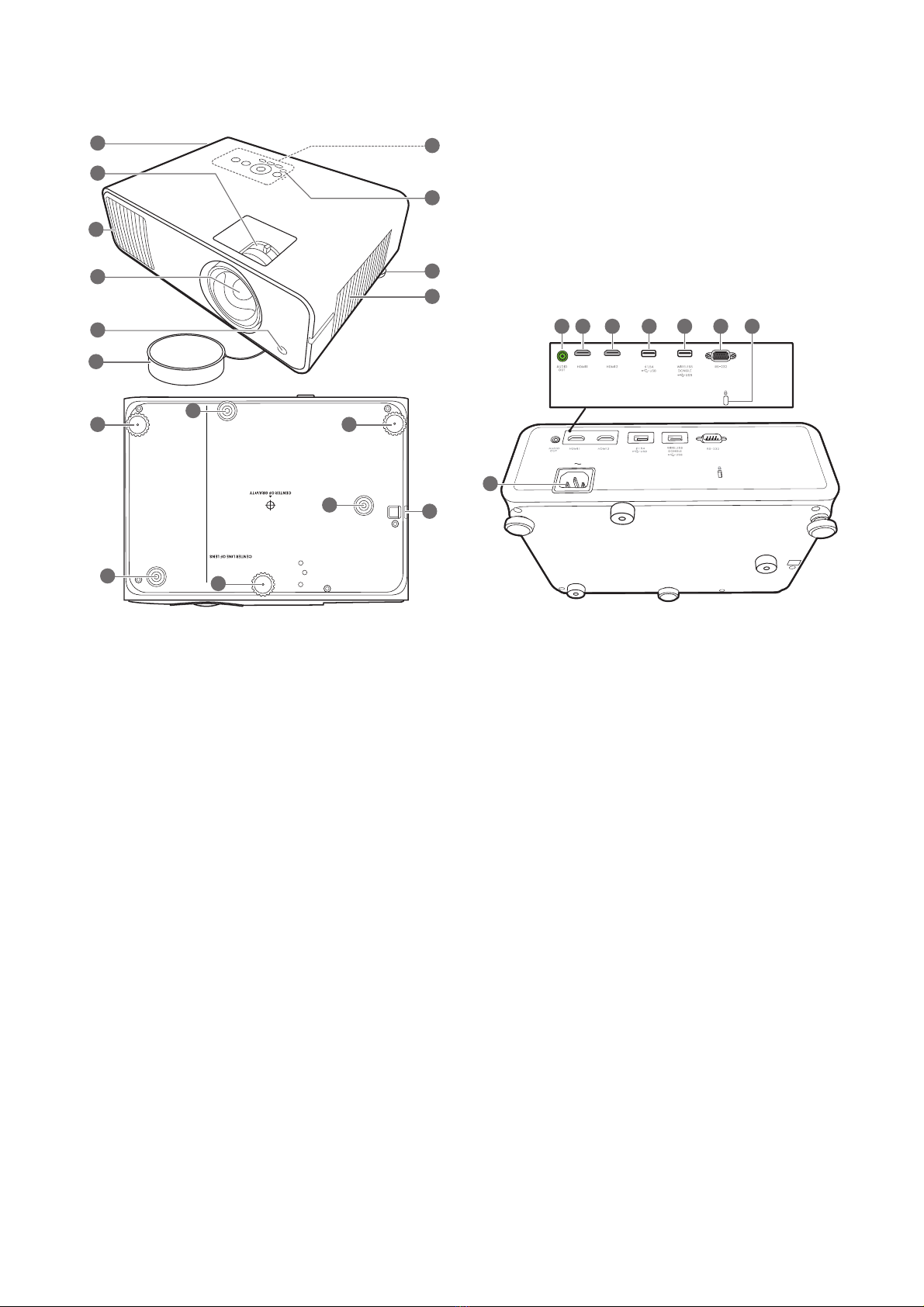

1. Vent (air exhaust)

2. Focus ring and Zoom ring

3. Vent (air inlet)

4. Projection lens

5. IR remote sensor

6. Lens cap

7. External control panel

(See Controls and functions on page 9.)

8. Adjuster feet

9. Audio output jack

10. HDMI 1 input port

11. HDMI 2 input port

12. USB Type A port with power charging

13. USB Type A port (for Wireless dongle)

14. RS-232 control port

15. Kensington anti-theft lock slot

16. AC power jack

17. Wall mount holes

18. Security bar

17 18

8 8

111091412 13

9Introduction

Controls and functions

Projector & Remote control

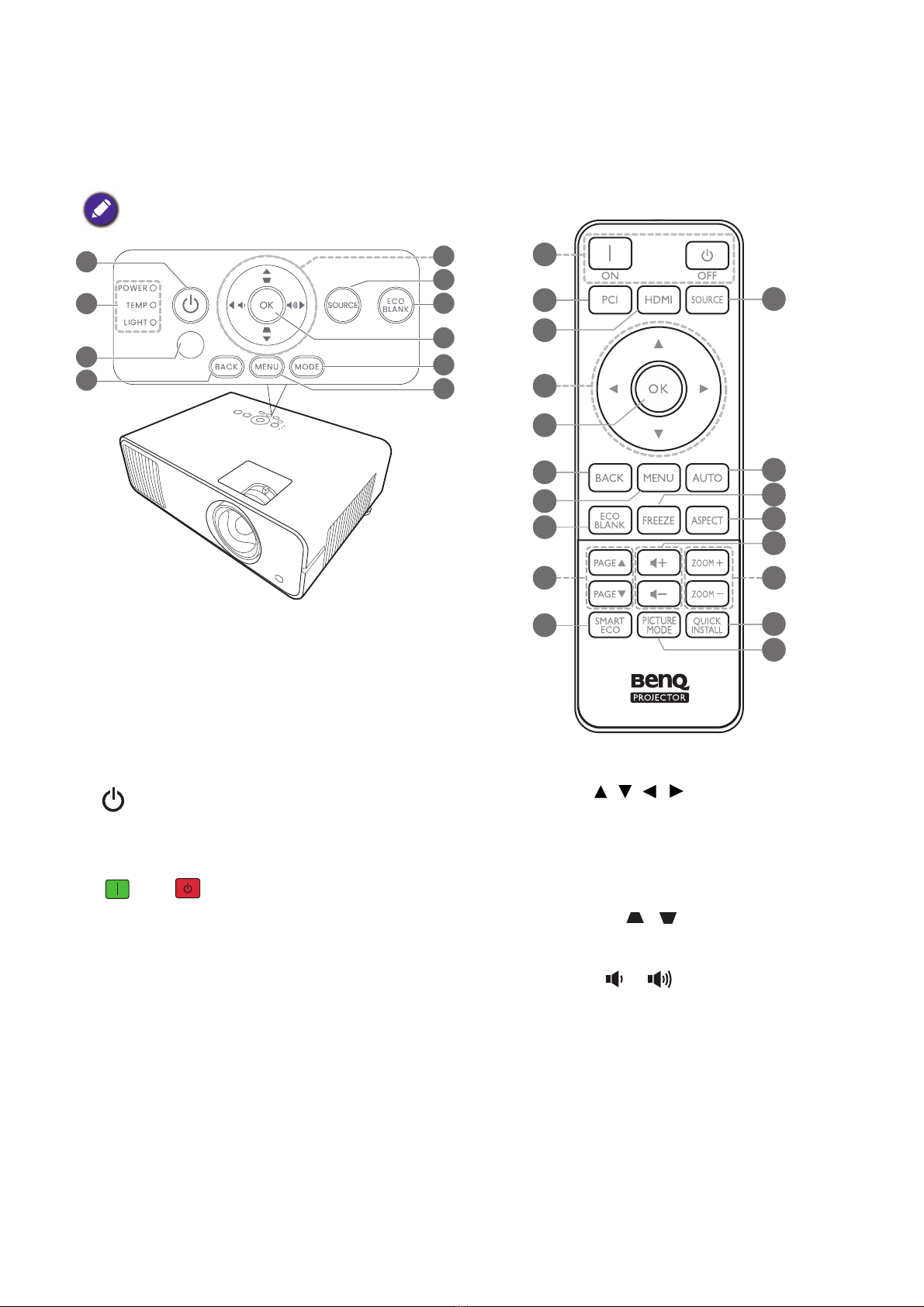

1. POWER

Toggles the projector between standby

mode and on.

ON/ Off

Toggles the projector between standby

mode and on.

2. POWER indicator light/TEMPerature

warning light/LIGHT indicator light

(See Indicators on page 46.)

3. IR remote sensor

4. BACK

Goes back to previous OSD menu, exits

and saves menu settings.

5. Arrow keys ( , , , )

When the On-Screen Display (OSD) menu

is activated, these keys are used as

directional arrows to select the desired

menu items and to make adjustments.

Keystone keys ( , )

Displays the keystone correction page.

Volume keys /

Decreases or increase the projector

volume.

All the key presses described in this

document are available on the remote control

or projector.

10 Introduction

6. SOURCE

Displays the source selection bar.

7. ECO BLANK

Used to hide the screen picture.

Do not block the projection lens

from projecting as this could

cause the blocking object to

become heated and deformed or

even cause a fire.

8. OK

Confirms the selected On-Screen Display

(OSD) menu item.

9. AUTO

No function.

10. MENU

Turns on the On-Screen Display (OSD)

menu.

11. Source selection button: PC 1

No function.

12. Source selection button: HDMI

Selects HDMI 1 input source for display.

13. PAGE /PAGE

Operate your display software program (on

a connected PC) which responds to page

up/down commands (like Microsoft

PowerPoint).

14. SMART ECO

Displays the Light Mode menu for

selecting a suitable light source operating

mode.

15. FREEZE

Freezes the projected image.

16. ASPECT

Selects the display aspect ratio.

17. Volume keys /

Decreases or increase the projector

volume.

18. ZOOM+/ZOOM-

Magnifies or reduces the projected picture

size.

19. QUICK INSTALL

Quickly selects several functions to adjust

the projected image and displays the test

pattern.

20. PICTURE MODE

Displays the Picture Mode menu for

selecting a picture mode.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere BenQ Projektor Handbücher

BenQ

BenQ PU9730 Bedienungsanleitung

BenQ

BenQ Home Cinema Series Bedienungsanleitung

BenQ

BenQ MX810 ST Bedienungsanleitung

BenQ

BenQ Mainstream MP720p Bedienungsanleitung

BenQ

BenQ MW860USTi Bedienungsanleitung

BenQ

BenQ Home Entertainment Series W1800i Bedienungsanleitung

BenQ

BenQ LU935ST Bedienungsanleitung

BenQ

BenQ PB9200 - XGA LCD Projector Technisches Dokument

BenQ

BenQ MW821ST Bedienungsanleitung

BenQ

BenQ HT4050 Bedienungsanleitung

BenQ

BenQ MX710 Bedienungsanleitung

BenQ

BenQ MX819ST Bedienungsanleitung

BenQ

BenQ Joybee GP2 Bedienungsanleitung

BenQ

BenQ MS517 Bedienungsanleitung

BenQ

BenQ MP780 ST Bedienungsanleitung

BenQ

BenQ LK970 Bedienungsanleitung

BenQ

BenQ MX520 Bedienungsanleitung

BenQ

BenQ Professional VP150X Bedienungsanleitung

BenQ

BenQ MP670 - XGA DLP Projector Bedienungsanleitung

BenQ

BenQ X500i Bedienungsanleitung

BenQ

BenQ EX800ST Bedienungsanleitung

BenQ

BenQ PB6210/ PB6110 Bedienungsanleitung

BenQ

BenQ PX9230 Bedienungsanleitung

BenQ

BenQ MH530 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung
