MS612ST/MX613ST Digital Projector

User Manual

Table of contents2

Table of contents

Important safety

instructions .........................3

Introduction........................7

Projector features .................................. 7

Shipping contents.................................. 8

Projector exterior view.......................... 9

Controls and functions ....................... 10

Positioning your

projector............................13

Choosing a location............................. 13

Obtaining a preferred projected

image size ............................................. 14

Connection .......................15

Connecting video source devices........ 16

Operation ..........................17

Starting up the projector..................... 17

Adjusting the projected image ............ 18

Using the menus.................................. 20

Securing the projector......................... 21

Switching input signal......................... 24

Magnifying and searching for details . 25

Selecting the aspect ratio..................... 25

Optimizing the image.......................... 27

Setting the presentation timer ............ 30

Remote paging operations .................. 31

Freezing the image............................... 31

Hiding the image ................................. 31

Utilizing FAQ function ....................... 31

Locking control keys ........................... 32

Operating in a high altitude

environment ........................................ 32

Creating your own startup screen ...... 32

Adjusting the sound.............................33

Controlling the projector through

a LAN environment .............................34

Presenting from a USB Reader............42

Shutting down the projector ...............43

Direct power off ...................................43

Menu operation ...................................44

Maintenance......................53

Care of the projector............................53

Lamp information................................54

Troubleshooting ...............60

Specifications ....................61

Projector specifications........................61

Dimensions...........................................62

Ceiling mount installation...................62

Timing chart.........................................63

Warranty and Copyright

information.......................66

Regulation statements ......67

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that you

follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before you

operate your projector. Save it for

future reference.

2. Do not look straight at the projector

lens during operation. The intense

light beam may damage your eyes.

3. Refer servicing to qualified service

personnel.

4. Always open the lens shutter (if any)

or remove the lens cap (if any) when

the projector lamp is on.

5. In some countries, the line voltage is

NOT stable. This projector is designed

to operate safely within a mains

voltage between 100 to 240 volts AC,

but could fail if power cuts or surges

of 10 volts occur. In areas where the

mains voltage may fluctuate or cut

out, it is recommended that you

connect your projector through a

power stabilizer, surge protector or

uninterruptible power supply (UPS).

6. Do not block the projection lens with

any objects when the projector is

under operation as this could cause

the objects to become heated and

deformed or even cause a fire. To

temporarily turn off the lamp, press

BLANK on the projector or remote

control.

Important safety instructions4

Safety Instructions (Continued)

7. The lamp becomes extremely hot

during operation. Allow the projector

to cool for approximately 45 minutes

prior to removing the lamp assembly

for replacement.

8. Do not operate lamps beyond the

rated lamp life. Excessive operation of

lamps beyond the rated life could

cause them to break on rare occasions.

9. Never replace the lamp assembly or

any electronic components unless the

projector is unplugged.

10. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

11. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause death

if you should come into contact with

live parts. The only user serviceable

part is the lamp which has its own

removable cover.

Under no circumstances should you

ever undo or remove any other covers.

Refer servicing only to suitably

qualified professional service

personnel.

12. When the projector is under

operation, you may sense some heated

air and odor from its ventilation grill.

It is a normal phenomenon and not a

product defect.

Important safety instructions 5

Safety Instructions (Continued)

13. Do not place this projector in any of the

following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm clearance

from walls and free flow of air around

the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled

up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shorten the projector's life span and

darken the image.

- Locations near fire alarms

- Locations with an ambient temperature

above 40°C / 104°F

- Locations where the altitudes are higher

than 3000 m (10000 feet).

14. Do not block the ventilation holes.

- Do not place this projector on a blanket,

bedding or any other soft surface.

- Do not cover this projector with a cloth

or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

15. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more

than 10 degrees left to right, nor at angle

of more than 15 degrees front to back.

Using the projector when it is not fully

horizontal may cause a malfunction of,

or damage to, the lamp.

16. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

3000 m

(10000 feet)

0 m

(0 feet)

Important safety instructions6

Safety Instructions (Continued)

17. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector, doing

so may result in accidents and possible

injury.

18. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet, disconnect

it from the power supply's power outlet

and call BenQ to have the projector

serviced.

19. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling Mount Kit for

mounting the projector and ensure it is

securely installed.

20. This apparatus must be earthed.

Ceiling mounting the projector

We want you to have a pleasant

experience using your BenQ projector,

so we need to bring this safety matter to

your attention to prevent possible

damage to person and property.

If you intend to mount your projector

on the ceiling, we strongly recommend

that you use a proper fitting BenQ

projector ceiling mount kit and that

you ensure it is securely and safely

installed.

If you use a non-BenQ brand projector

ceiling mount kit, there is a safety risk

that the projector may fall from the

ceiling due to an improper attachment

through the use of the wrong gauge or

length screws.

You can purchase a BenQ projector

ceiling mount kit from the place you

purchased your BenQ projector. BenQ

recommends that you also purchase a

separate Kensington lock compatible

security cable and attach it securely to

both the Kensington lock slot on the

projector and the base of the ceiling

mount bracket. This will perform the

secondary role of restraining the

projector should its attachment to the

mounting bracket become loose.

Hg - Lamp contains mercury. Manage in

accordance with local disposal laws.

See www.lamprecycle.org.

Introduction 7

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly

design to deliver high reliability and ease of use.

The projector offers the following features.

• Network Settings allowing management of projector status from a computer using a web

browser

• USB MINI-B jack to display computer signal through a USB cable

• USB TYPE-A jack to present images stored on a USB flash drive

• 3D function to enjoy the 3D movies, videos, and sporting events in a more realistic way

by presenting the depth of the images

• Filter free design to lower maintenance and operating costs

• Brilliant color / VIDI to provide truer, more vibrant colors in picture

• Closed captioning to display the dialogue, narration, and sound effects of TV programs

and videos

• Variable audio output

• Wall color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process

• Selectable password protected function

• 3D color management allowing color adjustments to your liking

• Selectable quick cooling function making the projector cool in a shorter time

• FAQ to troubleshoot operational problems with one quick key press

• Presentation timer for better control of time during presentations

• One-key auto-adjustment to display the best picture quality

• Digital keystone correction to correct distorted images

• Adjustable color balance control for data/video display

• Ability to display 16.7 million colors

• Multi-language On-Screen Display (OSD) menus

• Switchable normal and economic modes to reduce the power consumption

• Built-in speaker providing mixed mono audio when an audio input is connected

• Component HDTV compatibility (YPbPr)

• The apparent brightness of the projected image will vary depending on the ambient

lighting conditions, selected input signal contrast/brightness settings, and is directly

proportional to projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers

specifications. This is normal and expected behavior.

Introduction8

Shipping contents

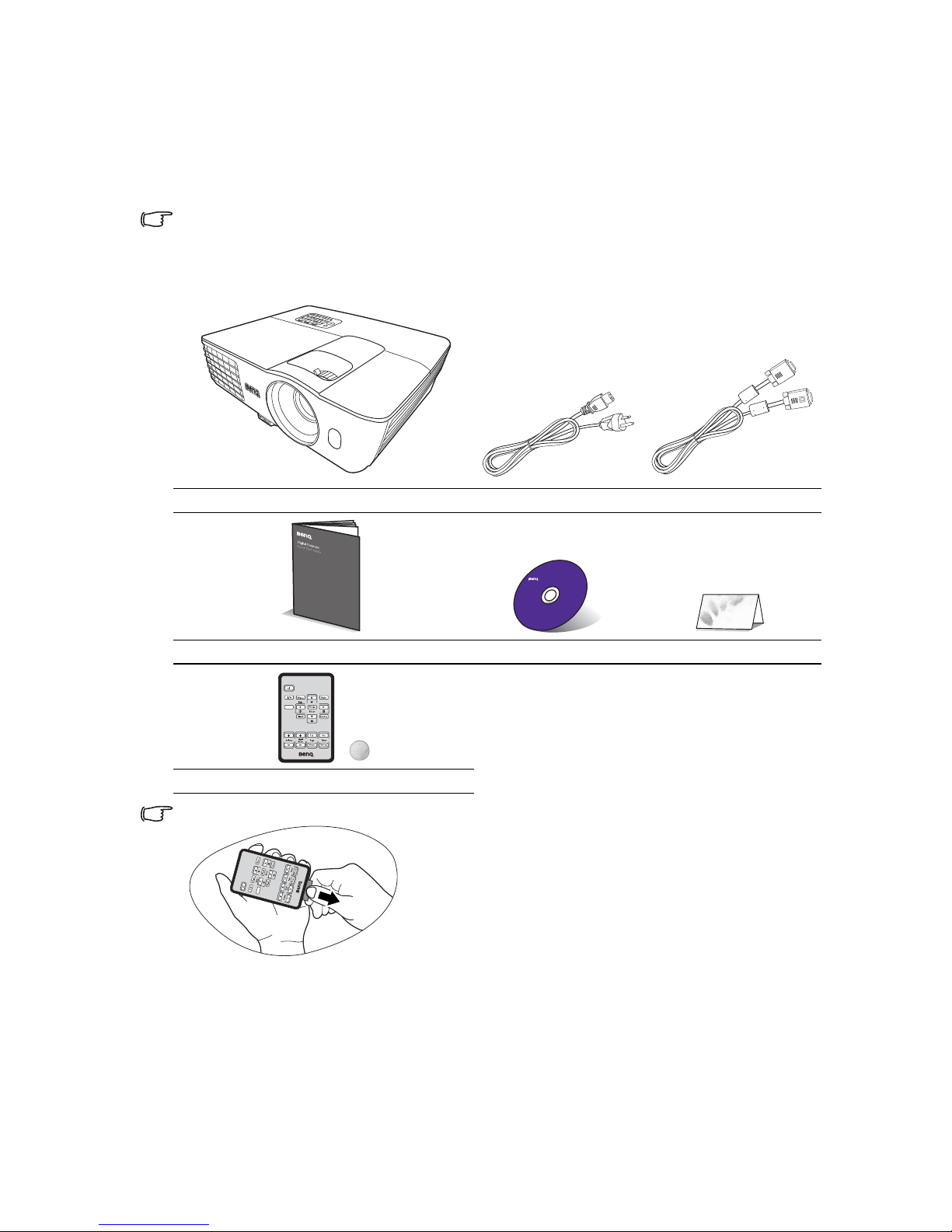

Carefully unpack and verify that you have all of the items shown below. If any of these items

are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those

illustrated.

*The warranty card is only supplied in some specific regions. Please consult your dealer for

detailed information.

Pull the tab before using the remote control.

Optional accessories

Projector Power cord VGA cable

Quick start guide User manual CD Warranty card*

Remote control with battery

Capture

1. Spare lamp kit

2. Ceiling mount kit

3. RS232 cable

4. Soft carry case

Introduction 9

Projector exterior view

1. Lamp cover

2. External control panel

(See "Controls and functions" on page 10

for details.)

3. Vent (heated air exhaust)

4. Quick-release button

5. Top IR remote sensor

6. Focus and Zoom ring

7. Vent (cool air intake)

8. Speaker grill

9. Front IR remote sensor

10. Projection lens

11. AC power jack

12. Rear adjuster foot

13. Ceiling mount holes

14. Front adjuster foot

15. RS232 control port

16. USB ports

17. HDMI-input port

18. RGB signal output jack

19. RGB (PC)/Component Video (YPbPr/

YCbCr) signal input jack

20. S-Video input jack

Video input jack

21. Audio (L/R) input jacks

22. Audio input jack

Audio output jack

23. Kensington anti-theft lock slot

Front/upper side

Rear/lower side

15 18 19 22

17 20

Introduction10

Controls and functions

Projector 8. TEMPerature warning light

Lights up red if the projector's

temperature becomes too high.

9. LAMP indicator light

Indicates the status of the lamp. Lights up

or flashes when the lamp has developed a

problem.

10. Auto

Automatically determines the best picture

timings for the displayed image.

11. Keystone/Arrow keys ( / Up, /

Down)

Manually corrects distorted images

resulting from an angled projection.

12. Right/

Activates panel key lock.

When the On-Screen Display (OSD)

menu is activated, the #6, #11, and #12

keys are used as directional arrows to

select the desired menu items and to make

adjustments.

13. MODE/ENTER

Selects an available picture setup mode.

Activates the selected On-Screen Display

(OSD) menu item.

14. SOURCE

Displays the source selection bar.

1. Focus ring

Adjusts the focus of the projected image.

2. Zoom ring

Adjusts the size of the image.

3. POWER indicator light

Lights up or flashes when the projector is

under operation.

4. MENU/EXIT

Turns on the On-Screen Display (OSD)

menu. Goes back to previous OSD menu,

exits and saves menu settings.

5. POWER

Toggles the projector between standby

mode and on.

6. Left/

Starts the FAQ function.

7. BLANK

Used to hide the screen picture.

Andere Handbücher für MS612ST

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere BenQ Projektor Handbücher

BenQ

BenQ MS616ST Bedienungsanleitung

BenQ

BenQ sp920 Bedienungsanleitung

BenQ

BenQ PB8220 - XGA DLP Projector Bedienungsanleitung

BenQ

BenQ PB6100 - SVGA DLP Projector Bedienungsanleitung

BenQ

BenQ DX819ST Bedienungsanleitung

BenQ

BenQ MX808PST Bedienungsanleitung

BenQ

BenQ MW870UST Gebrauchs- und Wartungshandbuch

BenQ

BenQ TS521P Bedienungsanleitung

BenQ

BenQ i500 Bedienungsanleitung

BenQ

BenQ MP723 - XGA DLP Projector Bedienungsanleitung

BenQ

BenQ Portable Entertainment Series Bedienungsanleitung

BenQ

BenQ MP622 - XGA DLP Projector Bedienungsanleitung

BenQ

BenQ MS521 Bedienungsanleitung

BenQ

BenQ Home Cinema PE8720 Bedienungsanleitung

BenQ

BenQ HT1075 Bedienungsanleitung

BenQ

BenQ MX600 Bedienungsanleitung

BenQ

BenQ MX620ST Bedienungsanleitung

BenQ

BenQ PU9730 Bedienungsanleitung

BenQ

BenQ PB6210/ PB6110 Bedienungsanleitung

BenQ

BenQ LW550 Bedienungsanleitung

BenQ

BenQ W2000w Bedienungsanleitung

BenQ

BenQ MX618ST Bedienungsanleitung

BenQ

BenQ MX760 Bedienungsanleitung

BenQ

BenQ Home Cinema Series Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung
