BenQ MX613ST Bedienungsanleitung

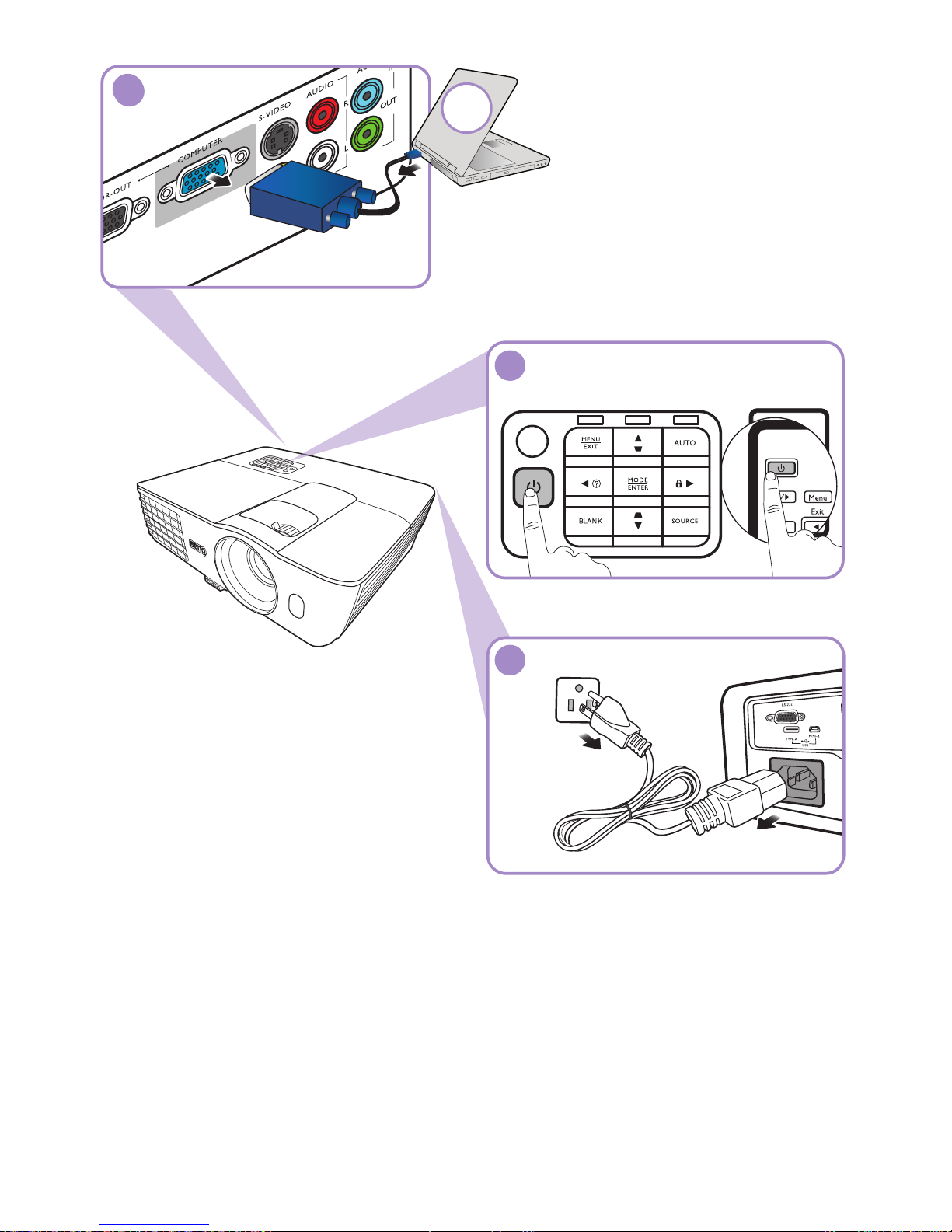

Capture

The above numbers are approximate and may be slightly different from the actual measurements. Only the

recommended screen sizes are listed. If your screen size is not in the table above, please contact your

dealer for assistance.

<H>

<W>

Maximum zoom Minimum zoom

Screen

Center of lens

Projection distance

Vertical offset

Projection dimensions

Diagonal

Inch mm

(mm)

Vertical

offset

(mm)

Min length

(max. zoom)

Max length

(min. zoom)

Average

Screen size Distance from screen (mm)

Ceiling Mount screw:

M4 x 8 (Max L = 8 mm)

446.15

397.90

364.40

95.33

156.33 244.12

119.21

74.19

311.81

137

160

46.21 115

Capture

OFF

Table of contents

English.................................................................................... 9

Français .................................................................................. 10

Deutsch .................................................................................. 11

Italiano ................................................................................... 12

Español................................................................................... 13

Português ............................................................................... 14

Svenska ................................................................................... 15

Русский.................................................................................. 16

Nederlands ............................................................................. 17

Polski...................................................................................... 18

Türkçe .................................................................................... 19

Čeština................................................................................. 20

ไทย........................................................................................... 21

繁體中文 ............................................................................... 22

简体中文 ............................................................................... 23

日本語.................................................................................... 24

한국어.................................................................................... 25

...................................................................................... 26

W6000-QSG-TOC.fm Page 10 Friday, April 24, 2009 1:22 PM

All specifications are subject to change without notice.

Optical

Resolution

(MS612ST)

800 x 600 SVGA

(MX613ST)

1024 x 768 XGA

Display system

1-CHIP DMD

Lens F/Number

F = 2.6-2.78

Lamp

(MS612ST)

190 W lamp

(MX613ST)

210 W lamp

Electrical

Power supply

AC100–240V, 3.8 A, 50-60 Hz (Automatic)

Power consumption

(MS612ST)

310 W (Max); < 1 W (Standby)

(MX613ST)

336 W (Max); < 1 W (Standby)

Mechanical

Weight

2.8 Kg (6.2 lbs)

Output terminals

RGB output

D-Sub 15-pin (female) x1

Speaker

(Stereo) 10 watt x1

Audio signal output

PC audio jack x1

Control

RS-232 serial control

9 pin x1

IR receiver x2

Input terminals

Computer input

RGB input

D-Sub 15-pin (female) x1

Video signal input

S-VIDEO

Mini DIN 4-pin port x1

VIDEO

RCA jack x1

SD/HDTV signal input

Analog - Component RCA jack x3

(through RGB input)

Digital - HDMI V1.3 x1

Audio signal input

Audio in

PC audio jack x1

RCA audio jack (L/R) x2

USB ports (Type-A x1; Mini-B x 1)

Environmental Requirements

Operating temperature

0°C–40°C at sea level

Operating relative humidity

10%–90% (without condensation)

Operating altitude

0–1499 m at 0°C–35°C

1500–3000 m at 0°C–30°C (with

High Altitude Mode on)

Specifications

(EN)

MS612_MX613ST-QSG.fm Page 9 Friday, July 30, 2010 5:08 PM
