BenQ PB6240 - XGA DLP Projector Bedienungsanleitung

Welcome

PB6240 Digital Projector

Portable Series

User’s Manual

reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or

computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,

manual or otherwise, without the prior written permission of BenQ Corporation.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect

to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any

particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to

make changes from time to time in the contents hereof without obligation to notify any person of

such revision or changes.

*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are

copyrights of their respective companies or organizations.

Table of contents iii

Table of contents

Important safety instructions................................ 1

Introduction ........................................................... 5

Projector features ....................................................... 5

Shipping contents ...................................................... 6

Projector exterior view .............................................. 7

Controls and functions .............................................. 9

Positioning your projector .................................. 12

Choosing a location ................................................. 12

Obtaining a preferred projected image size ........... 13

Connection........................................................... 15

Connecting a computer ........................................... 15

Connecting Component Video devices .................. 15

Connecting Video or S-Video devices .................... 16

Connecting display devices ..................................... 16

Operation ............................................................. 17

Start up ..................................................................... 17

Utilizing the password function .............................. 17

Adjusting the image ................................................. 19

Switiching input signal ............................................ 21

Hiding the image ..................................................... 21

Slide operation ......................................................... 21

Freezing the image ................................................... 21

Shutdown ................................................................. 22

Menu operation ....................................................... 23

Maintenance......................................................... 31

Care of the projector ............................................... 31

Lamp information ................................................... 32

Service information ................................................. 36

Troubleshooting................................................... 37

Specifications........................................................ 38

Table of contentsiv

Projector specifications ............................................38

Timing chart .............................................................39

Dimensions ...............................................................40

Warranty............................................................... 41

Limited Warranty .....................................................41

Regulation Statements ......................................... 42

FCC statement ..........................................................42

EEC statement ..........................................................42

MIC statement ..........................................................42

Important safety instructions 1

Important safety instructions

Your BenQ projector is designed and tested to meet the latest standards for safety of

information technology equipment. However, to ensure safe use of this product, it is

important that you follow the instructions mentioned in this manual and marked on the

product.

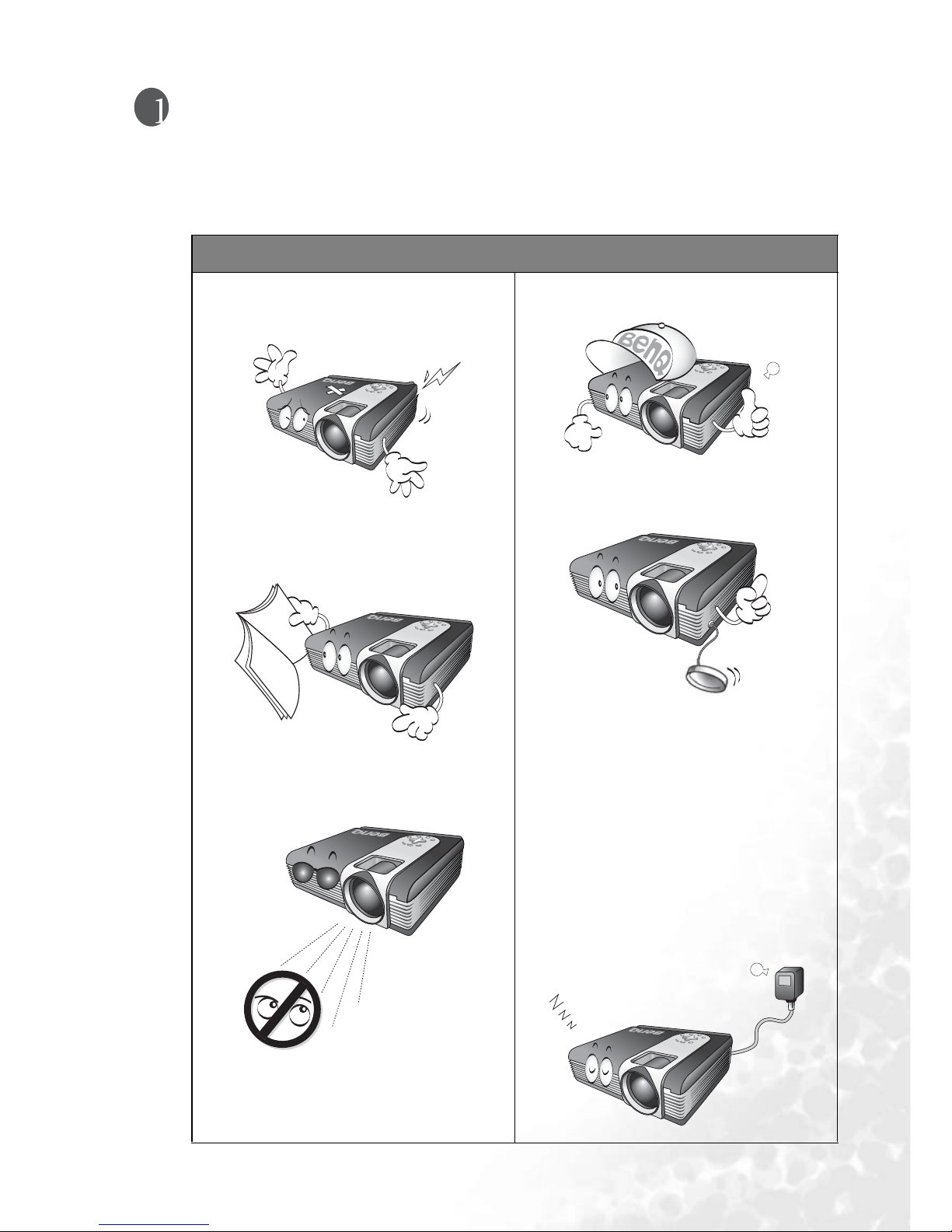

Caution

•To prevent shock, do not open the

cabinet. There are no user serviceable

parts inside.

•Please read this user’s manual before

you operate your projector. Save this

user’s manual for future reference.

•Do not look straight at the projector

lens during operation. The intense

light beam may damage your eyes.

•Refer servicing to qualified service

personnel.

•Always open the lens shutter or

remove the lens cap when the

projector lamp is on.

• In some countries, the line voltage is

NOT stable. This projector is designed

to operate safely within a mains

voltage between 100 to 240 volts AC,

but could fail if power cuts or surges of

±10 volts occur. In areas where the

mains voltage may fluctuate or cut out,

it is recommended that you connect

your projector through a power

stabilizer, surge protector or

uninterruptible power supply (UPS).

Important safety instructions2

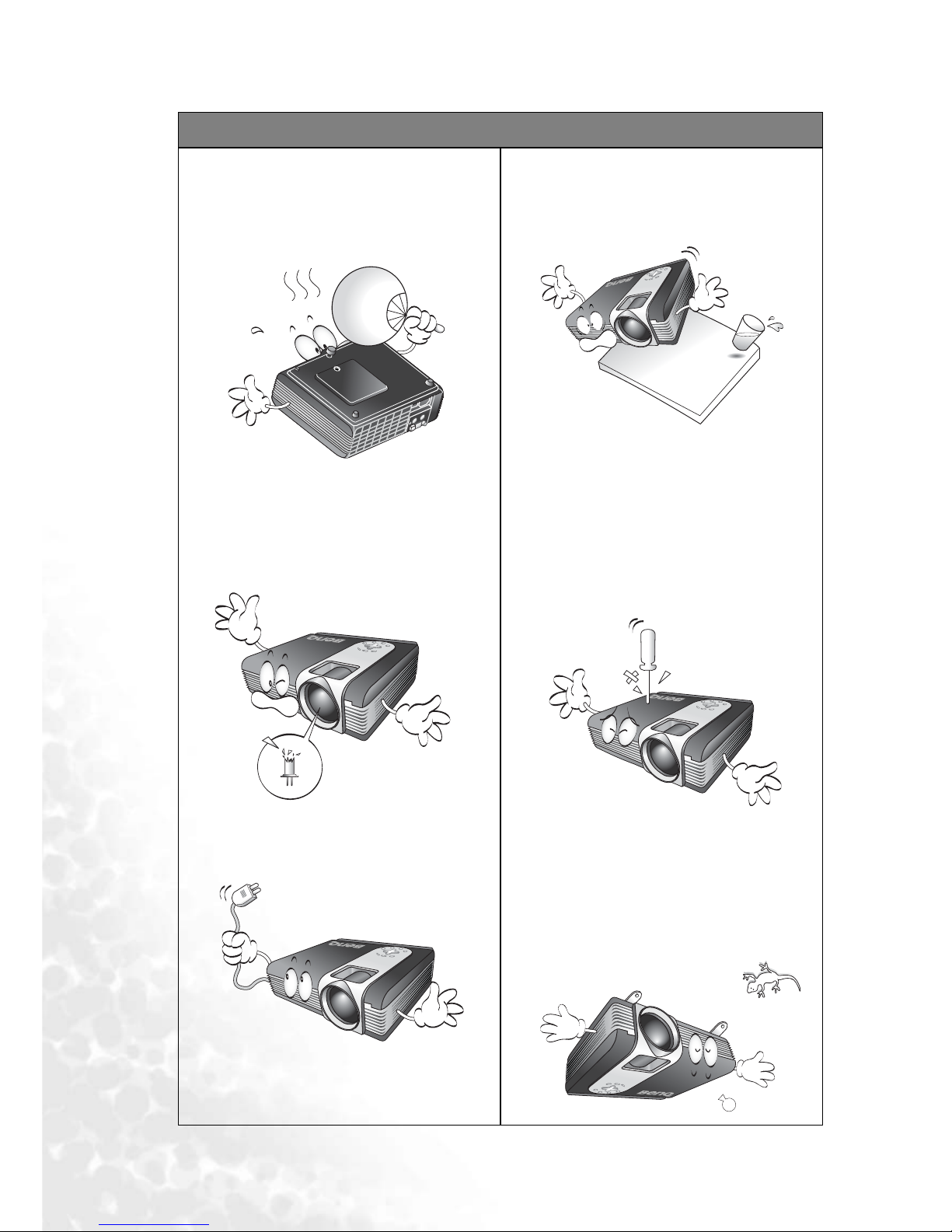

Safety Instructions

1. The lamp becomes extremely hot

during operation. Allow the

projector to cool for approximately

45 minutes prior to removing the

lamp assembly for replacement.

2. Do not operate lamps beyond the

rated lamp life. Excessive operation

of lamps beyond the rated life could

cause them to break on rare

occasions.

3. Never replace the lamp assembly or

any electronic components unless

the projector is unplugged.

4. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

5. To reduce the risk of electric shock,

do not disassemble this appliance.

Take it to a qualified technician

when service or repair is required.

Incorrect reassembly can cause

malfunction of the projector or

electric shock when the appliance is

subsequently used.

6. This product is capable of displaying

inverted images for ceiling mount

installation. Please use BenQ’s

Ceiling Mounting Kit for mounting

the unit and ensure it is securely

installed.

Important safety instructions 3

Safety Instructions (Continued)

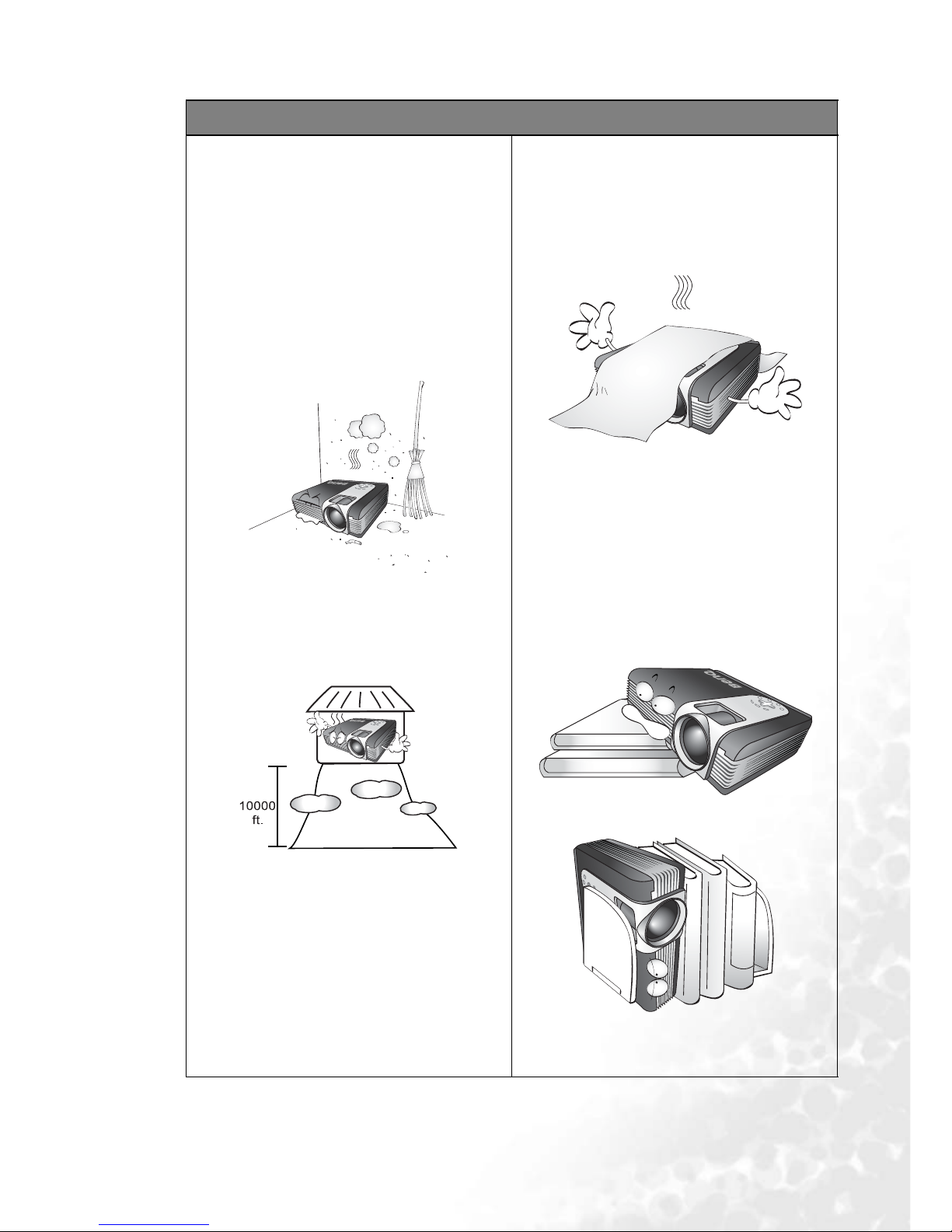

7. Do not place this projector in any of the

following environments.

- Space that is poorly ventilated or confined.

Allow at least 50 cm clearance from walls

and free flow of air around the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled up.

- Locations where excessive humidity, dust,

or cigarette smoke may contaminate

optical components, shortening the

projector’s life span and darkening the

image.

- Locations near fire alarms

- Locations with an ambient temperature

above 35°C / 95°F

- Locations where the altitudes are higher

than 10000 feet.

8. Do not block the ventilation holes.

- Do not place this unit on a blanket,

bedding or any other soft surface.

- Do not cover this unit with a cloth or any

other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the unit

may result in a fire.

9. Always place the unit on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more

than 10 degrees left to right, nor at angle

of more than 15 degrees front to back.

Using the unit when it is not fully

horizontal may cause a malfunction of, or

damage to, the lamp.

10. Do not stand the unit on end vertically.

Doing so may cause the unit to fall over,

causing injury or resulting in damage to

the unit.

Important safety instructions4

Safety Instructions (Continued)

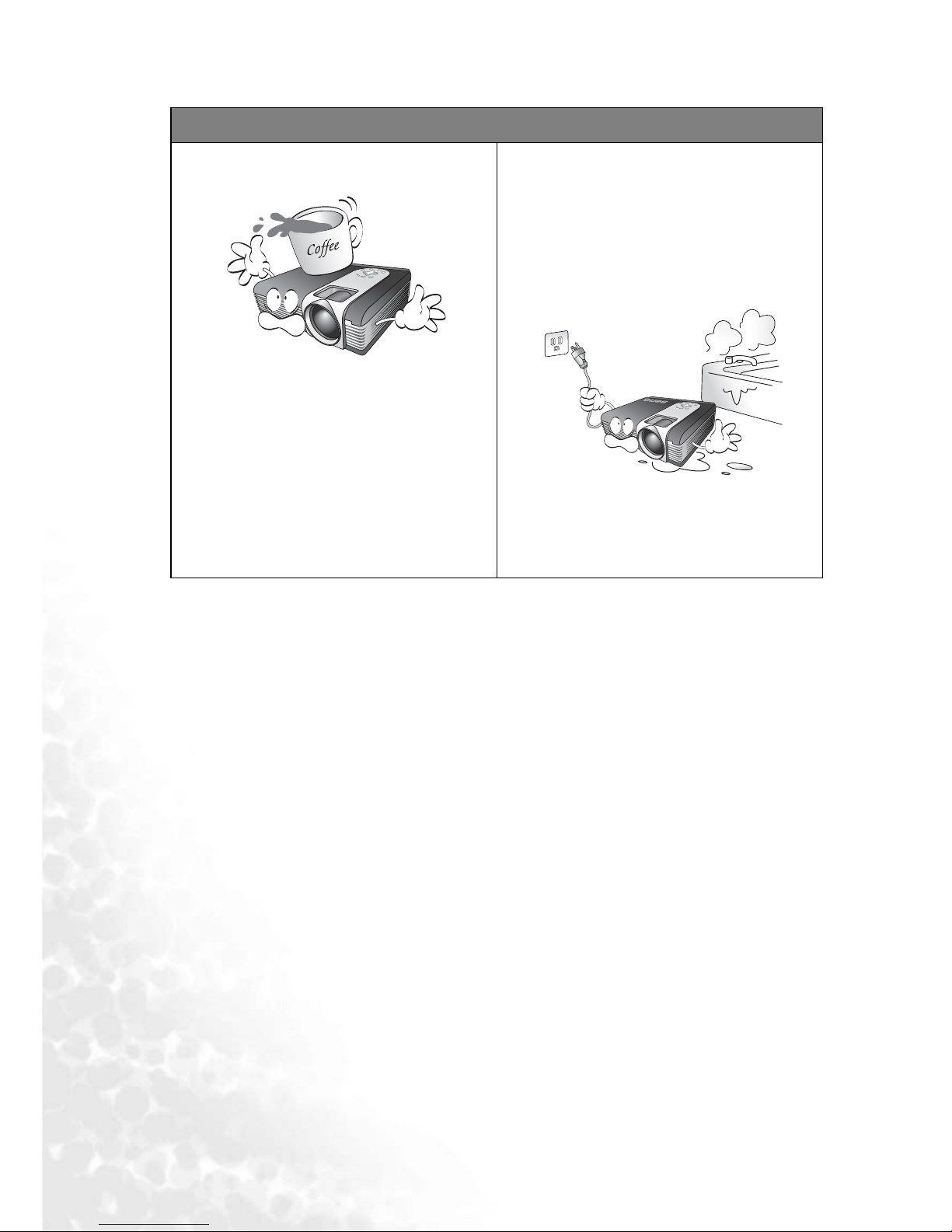

11. Do not step on the projector or place

any objects upon it.

Besides probable physical damage to the

projector, doing so may result in accidents

and possible injury.

12. Do not block the projection lens with

any objects when the projector is under

operation as this could cause the

objects to become heated and deformed

or even cause a fire. To temporarily

turn off the lamp, press Blank on the

projector or remote control.

13. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet, disconnect

it from the power supply’s wall socket

and call BenQ to have the projector

serviced.

Introduction 5

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly

design to deliver high reliability and ease of use.

The projector offers the following features:

• Selectable password protected function

• Compact and portable unit

• High quality manual zoom lens

• One-key auto-adjustment to display the best picture quality

• Digital keystone correction to correct distorted images

• Adjustable color balance control for data/video display

• Ultra-high brightness projection lamp

• Ability to display 16.7 million colors

• On-screen menus in 10 languages: English, French, German, Italian, Spanish, Russian,

Traditional Chinese, Simplified Chinese, Japanese, and Korean.

• Switchable normal and Economic modes to reduce the power consumption

• Powerful AV function to provide high quality AV picture

• HDTV compatibility (YPbPr)

• The apparent brightness of the projected image will vary depending on the ambient

lighting conditions and contrast/brightness settings.

• The lamp brightness will decline over time and may vary within the lamp manufacturers

specifications. This is normal and expected behavior.

Introduction6

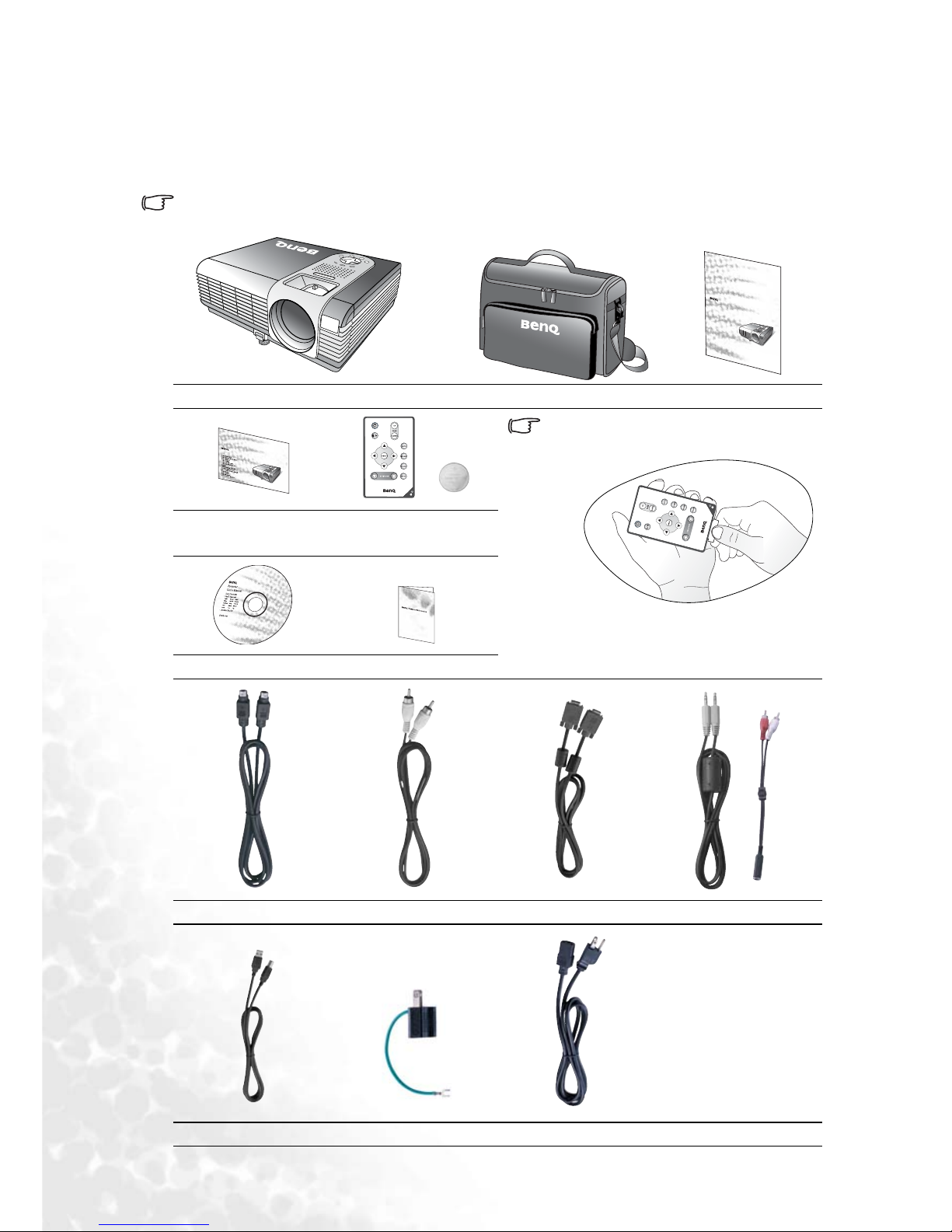

Shipping contents

The projector is shipped with the cables required for connection to a PC and to video

equipment. Carefully unpack and verify that you have all of the items shown below. If any of

these items are missing, please contact your place of purchase.

The supplied accessories will be suitable for your region, and may differ from the illustrated.

Projector Soft carry case User’s manual

Pull the tab before using the remote

control.

Quick start guide Remote control and

battery

User’s manual CD Warranty booklet

S-Video cable Video cable VGA cable Audio cables

USB cable 3-2 power adaptor Power cord

PB6240 Digital Projector

Protable Series

User's Manual

PB6240 Digital Projector

Portable Series
