BenQ MX852UST+ Bedienungsanleitung

MX852UST+/MW853UST+

Digital Projector

User Manual

Table of contents2

Ta b l e o f c o n t e n t s

Important safety

instructions ................... 3

Introduction.................. 9

Projector features.....................................9

Shipping contents ....................................11

Projector exterior view.........................12

Controls and functions ..........................14

Positioning your

projector ..................... 20

Choosing a location................................20

Obtaining a preferred projected

image size..................................................21

Dimensions...............................................24

Connection ................. 25

Connecting video source devices........26

Playing sound through the

projector...................................................27

Operation ................... 28

Starting up the projector ......................28

Using the quick install ............................29

Adjusting the projected image .............29

Using the menus......................................31

Securing the projector...........................32

Utilizing the password function ...........32

Switching input signal .............................35

Magnifying and searching for details ...36

Selecting the aspect ratio ......................36

Optimizing the image .............................39

Setting the presentation timer.............43

Remote paging operations ....................45

Freezing the image ..................................45

Hiding the image ..................................... 45

Locking control keys.............................. 46

Operating in a high altitude

environment............................................. 46

Adjusting the sound ............................... 47

Using the test pattern............................ 48

Using the teaching templates............... 49

Shutting down the projector ............... 50

Menu operation ...................................... 51

Maintenance ............... 65

Care of the projector............................ 65

Lamp information ................................... 66

Troubleshooting......... 74

Specifications.............. 76

Projector specifications......................... 76

Timing chart............................................. 77

Warranty and

information................. 83

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety

of information technology equipment. However, to ensure safe use of this

product, it is important that you follow the instructions mentioned in this

manual and marked on the product.

Safety Instructions

1. Please read this manual

before you operate your

projector. Save it for future

reference.

2. Do not look straight at the

projector lens during

operation. The intense light

beam may damage your eyes.

3. Refer servicing to qualified

service personnel.

4. In some countries, the line

voltage is NOT stable. This

projector is designed to operate

safely within a mains voltage

between 100 to 240 volts AC,

but could fail if power cuts or

surges of 10 volts occur. In

areas where the mains

voltage may fluctuate or cut

out, it is recommended that

you connect your projector

through a power stabilizer,

surge protector or

uninterruptible power

supply (UPS).

Important safety instructions4

Safety Instructions (Continued)

5. Do not block the projection

lens with any objects when the

projector is under operation

as this could cause the objects

to become heated and

deformed or even cause a fire.

To temporarily turn off the

lamp, press ECO BLANK on

the remote control.

6. The lamp becomes extremely

hot during operation. Allow

the projector to cool for

approximately 45 minutes

prior to removing the lamp

assembly for replacement.

7. Do not operate lamps beyond

the rated lamp life. Excessive

operation of lamps beyond the

rated life could cause them to

break on rare occasions.

8. Never replace the lamp

assembly or any electronic

components unless the

projector is unplugged.

9. Do not place this product on

an unstable cart, stand, or

table. The product may fall,

sustaining serious damage.

Important safety instructions 5

Safety Instructions (Continued)

10. Do not attempt to

disassemble this projector.

There are dangerous high

voltages inside which may

cause death if you should

come into contact with live

parts. The only user

serviceable part is the lamp

which has its own removable

cover.

Under no circumstances

should you ever undo or

remove any other covers.

Refer servicing only to suitably

qualified professional service

personnel.

11. When the projector is under

operation, you may sense

some heated air and odor

from its ventilation grill. It is a

normal phenomenon and not

a product defect.

12. Do not place this projector in

any of the following

environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm

clearance from walls and free flow of

air around the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows

rolled up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shortening the projector's life span

and darkening the image.

- Locations near fire alarms

Important safety instructions6

Safety Instructions (Continued)

- Locations with an ambient temperature

above 40°C / 104°F

- Locations where the altitudes are

higher than 3000 m (10000 feet).

13. Do not block the ventilation

holes.

- Do not place this projector on a

blanket, bedding or any other soft

surface.

- Do not cover this projector with a

cloth or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are

seriously obstructed,

overheating inside the projector

may result in a fire.

14. Always place the projector on a

level, horizontal surface during

operation.

- Do not use if tilted at an angle of more

than 10 degrees left to right, nor at

angle of more than 15 degrees front to

back. Using the projector when it is not

fully horizontal may cause a malfunction

of, or damage to, the lamp.

15. Do not stand the projector on

end vertically. Doing so may

cause the projector to fall over,

causing injury or resulting in

damage to the projector.

3000 m

(10000

feet)

0 m

(0 feet)

Important safety instructions 7

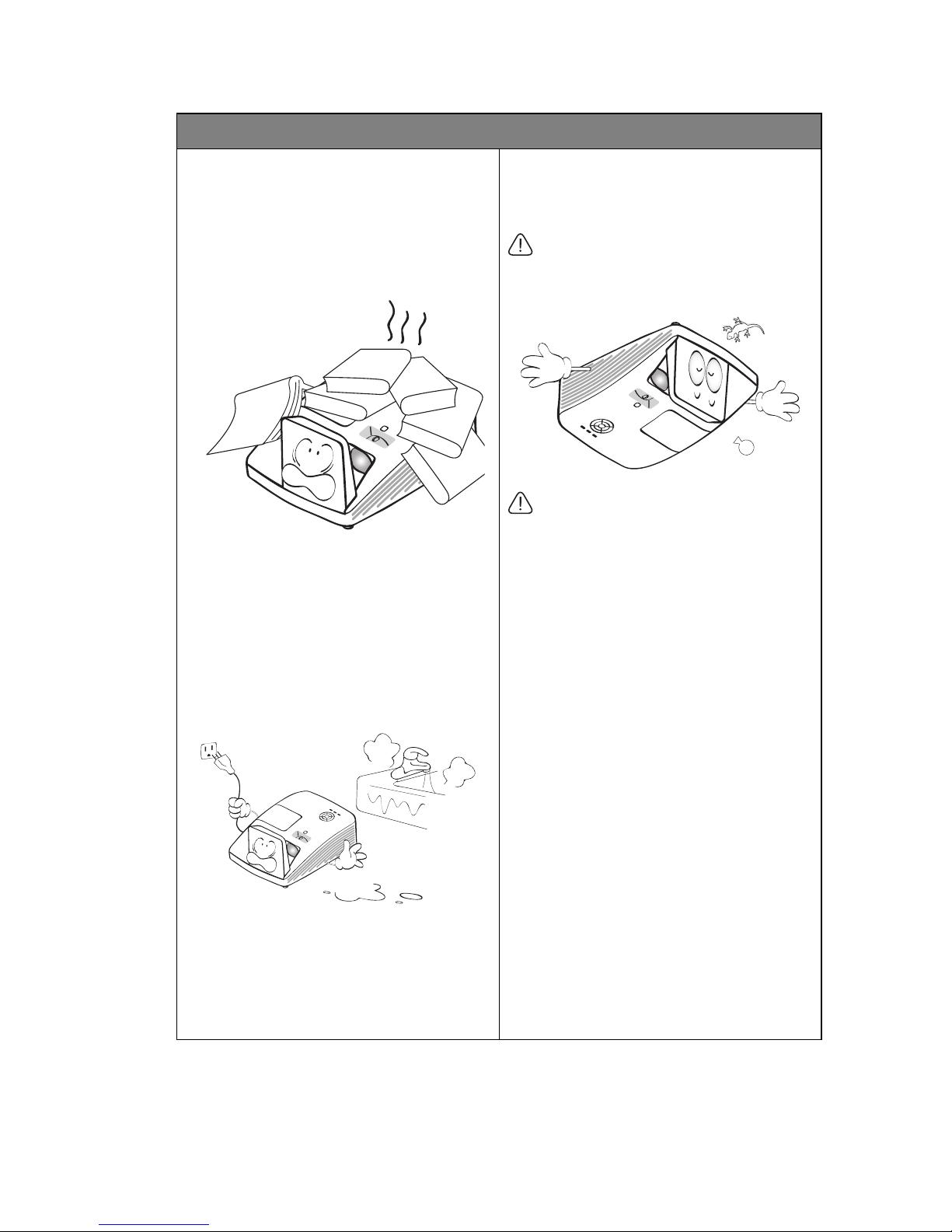

Safety Instructions (Continued)

16. Do not step on the projector or

place any objects upon it.

Besides probable physical

damage to the projector, doing

so may result in accidents and

possible injury.

17. Do not place liquids near or on

the projector. Liquids spilled into

the projector may cause it to fail.

If the projector does become

wet, disconnect it from the

power supply's wall socket and

call BenQ to have the projector

serviced.

18. This product is capable of

displaying inverted images for

wall mount installation.

Use only BenQ's Wall Mount

Kit for mounting the projector

and ensure it is securely

installed.

Wall mounting the

projector

We want you to have a pleasant

experience using your BenQ

projector, so we need to bring

this safety matter to your

attention to prevent possible

damage to person and property.

If you intend to mount your

projector on the wall, we

strongly recommend that you

use a proper fitting BenQ

projector wall mount kit and

that you ensure it is securely and

safely installed.

If you use a non-BenQ brand

projector wall mount kit, there

is a safety risk that the projector

may fall from the wall due to an

improper attachment through

the use of the wrong gauge or

length screws.

Important safety instructions8

Safety Instructions (Continued)

You can purchase a BenQ

projector wall mount kit from

the place you purchased your

BenQ projector. BenQ

recommends that you also

purchase a separate Kensington

lock compatible security cable

and attach it securely to both

the Kensington lock slot on the

projector and the base of the

wall mount bracket. This will

perform the secondary role of

restraining the projector should

its attachment to the mounting

bracket become loose.

Hg - Lamp contains mercury.

Manage in accordance with local

disposal laws. See

www.lamprecycle.org.

Introduction 9

Introduction

Projector features

The projector offers the following features

• SmartEco™ starts your dynamic power saving

The SmartEco™ technology offers a new way of operating the projector

lamp system and saves lamp power up to 30% depending on the content

brightness level.

• Interactive capability

Extend the interactive function with optional PointWrite module.

• Vertical 8% lens shift

Optimize the installation flexibility.

• Filter Free

Filter free design to lower maintenance and operating costs.

• Network Control

Integrated RJ45 connector for wired network control allowing

management of projector status from a computer using a web browser.

Enable Network Standby mode <6W.

• Crestron RoomView®, and AMX supported

The projector supports Crestron eControl and RoomView and AMX

allowing you to control and manage equipment from a remote computer

via LAN connection.

• One-key auto-adjustment

Pressing AUTO on the keypad or remote control to show the best

picture quality immediately.

• Built-in 10W x 2 speaker(s)

Built-in 10W x 2 speaker(s) providing stereo audio when an audio input is

connected.

• Quick Cooling, Auto Power Off, Direct Power On

Quick Cooling function speeds up the cooling process when turning off

the projector. Auto Power Off function allows the projector to turn off

automatically if no input signal is detected after a set period of time. and

Direct Power On boots up the projector automatically when the power

is connected.

• Instant Restart

Selectable Instant Restart function enables you to restart the projector

immediately within 90 seconds after turning it off.

• 3D Function supported

Various 3D formats make the 3D function more flexible. By presenting

the depth of the images, you can wear BenQ 3D glasses to enjoy the 3D

movies, videos and sporting events in a more realistic way.

Introduction10

• The apparent brightness of the projected image will vary depending on

the ambient lighting conditions, selected input signal contrast/brightness

settings, and is directly proportional to projection distance.

• The lamp brightness will decline over time and may vary within the lamp

manufacturers specifications. This is normal and expected behavior.

Andere Handbücher für MX852UST+

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere BenQ Projektor Handbücher

BenQ

BenQ MS512H Bedienungsanleitung

BenQ

BenQ SH910 Bedienungsanleitung

BenQ

BenQ PB8220 - XGA DLP Projector Bedienungsanleitung

BenQ

BenQ Home Cinema Series Bedienungsanleitung

BenQ

BenQ SL703S - DLP Micro SVGA Projector Bedienungsanleitung

BenQ

BenQ MS550 Bedienungsanleitung

BenQ

BenQ MW820ST Gebrauchs- und Wartungshandbuch

BenQ

BenQ TK850i Bedienungsanleitung

BenQ

BenQ Commuter CP120 Bedienungsanleitung

BenQ

BenQ W6000 - DLP Projector - HD 1080p Bedienungsanleitung

BenQ

BenQ LK954ST Bedienungsanleitung

BenQ

BenQ TK860i Bedienungsanleitung

BenQ

BenQ W1350 Bedienungsanleitung

BenQ

BenQ PB8140 - SVGA DLP Projector Bedienungsanleitung

BenQ

BenQ TH685i Bedienungsanleitung

BenQ

BenQ LW500ST Bedienungsanleitung

BenQ

BenQ W6000 Home Cinema Series Bedienungsanleitung

BenQ

BenQ LU9915 Bedienungsanleitung

BenQ

BenQ LU960ST Bedienungsanleitung

BenQ

BenQ PB7200 - XGA DLP Projector Bedienungsanleitung

BenQ

BenQ QSG-MX723 Bedienungsanleitung

BenQ

BenQ Home Cinema W1110 Bedienungsanleitung

BenQ

BenQ MW821ST Bedienungsanleitung

BenQ

BenQ LW61ST Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung
