BenQ TH963 Bedienungsanleitung

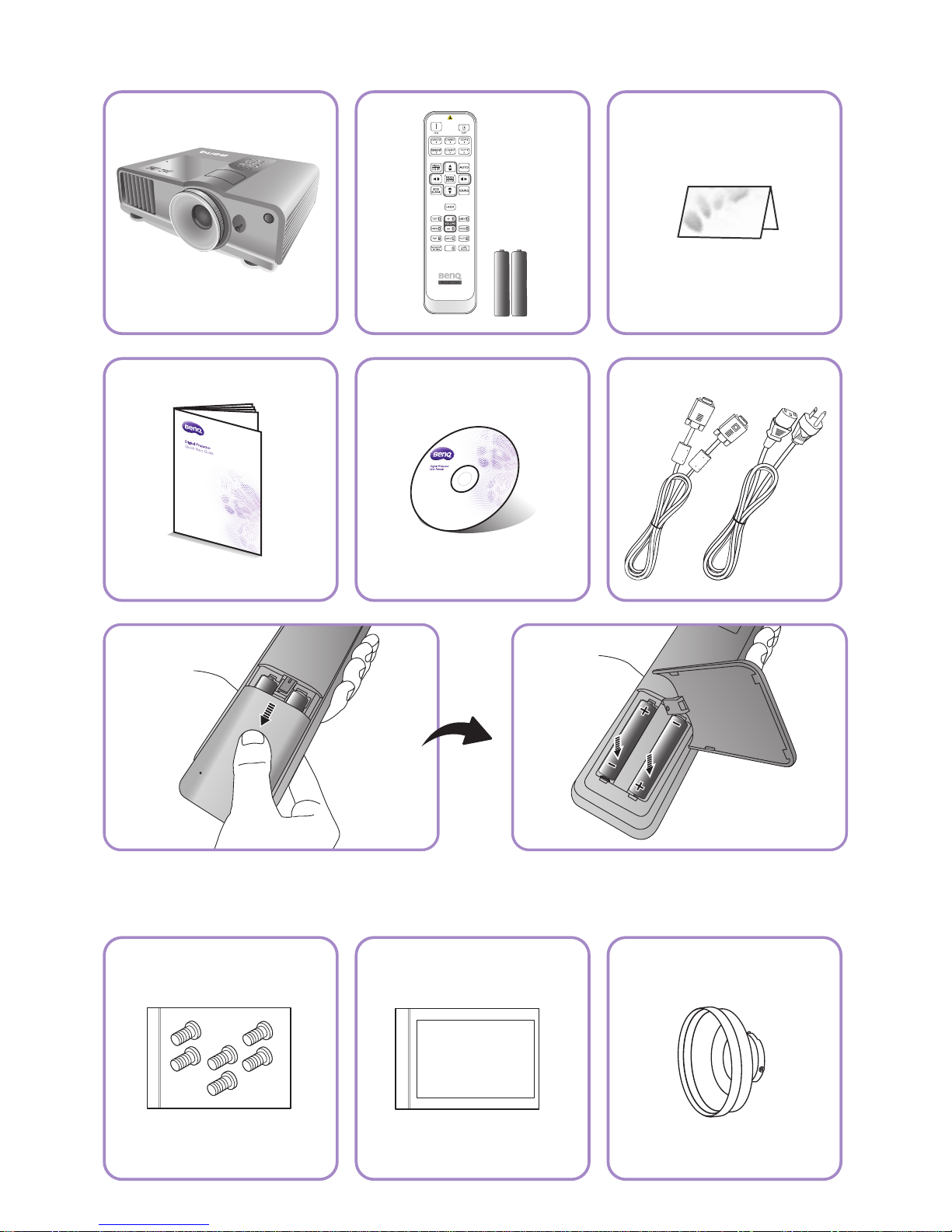

Standard:

Optional accessories:

<A>

<C> <E>

<D>

<F>

<G>

<A>

<C>

<F>

<G>

<D>

<E>

<F>: Screen <G>: Center of lens <F>: Screen <G>: Center of lens

Projection dimensions

Long Throw (LT): The screen aspect ratio is 16:9 and the projected picture is 16:9

Short Throw (ST): The screen aspect ratio is 16:9 and the projected picture is 16:9

Screen dimensions Projection distance <D> [cm] Offset

Diagonal <A>

[inch (mm)]

Height

[cm]

Width <C>

[cm]

Min distance

(with max

zoom)

Average Max distance

(with min

zoom)

Lowest/

Highest lens

position <E> [cm]

Screen dimensions Projection distance <D> [cm] Offset

Diagonal <A>

[inch (mm)]

Height

[cm]

Width <C>

[cm]

Distance Lowest/Highest lens

position <E> [cm]

0.5869805)6101(04

2.65811126)0721(05

5.720133157)4251(06

7.891155178)8771(07

0.01631771001)2302(08

The above numbers are approximate and may be slightly different from the actual measurements. Only the

recommended screen sizes are listed. If your screen size is not in the table above, please contact your dealer for

assistance.

The above numbers are approximate and may be slightly different from the actual measurements. Only the

recommended screen sizes are listed. If your screen size is not in the table above, please contact your dealer for

assistance.

<F>: Screen <G>: Center of lens <F>: Screen <G>: Center of lens

Long Throw (LT): The screen aspect ratio is 4:3 and the projected picture is 16:9

Short Throw (ST): The screen aspect ratio is 4:3 and the projected picture is 16:9

<A>

<H>

<F>

<G>

<A>

<H>

<C>

<E>

<D>

<F>

<G>

Screen dimensions Projection distance <D> [cm] Offset


height <H>

[cm]

Diagonal

<A>

[inch (mm)]

Height

[cm]

Width

<C>

[cm]

Min

distance

(with max

zoom)

Average

Max

distance

(with min

zoom)

Lowest/

Highest lens

position

<E> [cm]

30 (762) 46 61 157 196236 3 34

40 (1016) 61 81 209 262314 5 46

50 (1270) 76 102 261 327393 6 57

60 (1524) 91 122 314 393471 7 69

70 (1778) 107142 366 458550 8 80

80 (2032) 122163 418 523629 9 91

90 (2286) 137183 471 589707 10 103

100 (2540) 152203 523 654786 11 114

110 (2794) 168224 575 720864 13 126

120 (3048) 183244 627 785943 14 137

130 (3302) 198264 680 851 1021 15 149

140 (3556) 213284 732 916 1100 16 160

150 (3810) 229305 784 981 1179 17 171

160 (4064) 244325 837 1047 1257 18 183

170 (4318) 259345 889 1112 1336 19 194

180 (4572) 274366 941 1178 1414 21 206

190 (4826) 290386 994 1243 1493 22 217

200 (5080) 305406 1046 1309 1571 23 229

250 (6350) 381508 1307 1636 1964 29 286

300 (7620) 457610 1569 1963 2357 34 343

Screen dimensions Projection distance

<D> [cm] Offset

Image height

<H>

[cm]

Diagonal

<A>

[inch

(mm)]

Height

[cm]

Width

<C>

[cm]

Distance

Lowest/Highest

lens position <E>

[cm]

40 (1016) 61 81 83 5 46

50 (1270) 76 102 104 6 57

60 (1524) 91 122 125 7 69

70 (1778) 107 142 146 8 80

(LT only)

Ceiling mount screws:

M6 x 8 (Max. L = 8 mm)

Unit: mm

72.52 24

266

298

222

288

230.92

443.03

537.90

577.70

209.76 (LT)

188.36 (ST)

150.29 (LT)

128.89 (ST)

127.7

387.6 (LT)

366.3 (ST)

All specifications are subject to change without notice.

Optical

Projection system Single-chip DLP™ system.

DMD chip 0.65" DLP (1920 x1080)

Lens (LT) F = 2.5 to 3.08, (ST) 2.55,

(LT) f = 33.14 mm, (ST) 29.623 mm

Projection screen size 30" to 300"

Lamp 350W x2

Electrical

Compatibility PC: 640 x 480 to 1920 x1200

Video: NTSC, PAL, SECAM, YPbPr (480i/

480p/576i/576p/720p/1080i/1080p), HDTV

(720p/1080i/1080p)

Color Space Typ. = 60% NTSC (Target Color Gamut =

HDTV Rec. 709)

Te r m i n a l s

Input Analog RGB: D-Sub 15-pin (female) x1

HDMI (V. 1.3) x2

Component Video in 5BNC x1

Component Video (Y/CB/CR, Y/PB/PR) x1

(shared with RGB input)

Composite Video x1

Audio in x1

Output 12VDC (Max. 0.5 A)

Analog RGB: D-Sub 15-pin (female) x1

Audio out x1

Speaker: 10W x1

Control Serial Connector: RS232 9 pin (male)

Mini B type USB x1

IR receiver x2

LAN x1

General characteristics

Projector weight <13 kg (28.66 lbs)

Power VAC 100-240V, 10 A, 50-60Hz

Power consumption Max. 1023 W; Standby < 0.5 W

Operating temperature 0 °C to 40 °C (without condensation)

Operating humidity 10% - 90% (without condensation)

Optical

Projection system Single-chip DLP™ system.

Specifications

(EN)

TH963_QSG_ENG-ONLY.fm Page 12 Monday, October 7, 2013 11:17 AM
