Beyerdynamic Orbis Bedienungsanleitung
Orbis
KONFERENZSYSTEM
CONFERENCE SYSTEM
SYSTÈME DE CONFÉRENCE
SISTEMA DE CONFERENCIAS
Kurzanleitung
Quick Start Guide
Guide de démarrage rapide
Guía Quick Start
Orbis – Quick Start Guide 3
Deutsch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Français. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Orbis – Quick Start Guide
12
Thank you for selecting the Orbis conference system from beyerdynamic. Please take some time to
read carefully through this manual before setting up the equipment.
Please refer also to the extensive “Orbis Conference System” manual on the supplied data medium
or on the internet at www.beyerdynamic.com.
Please also refer to the supplied “Safety Information” booklet.
1. Controls, Indicators and Connections
1.1 Orbis CU Control Unit
Front View
Glass panel to display menu settings and status bar
Rotary encoder to select individual menus and to change settings
Corona
white = control unit active
flashing white = booting
red = control unit in standby mode
Slot for SD card
“REC” touch button for recording and other functions
Orbis – Quick Start Guide 13
english
RS 232 interface
Audio input, RCA phono, +2.2 dBu
Audio output, RCA phono, +2.2 dBu
Audio output, 3-pin XLR, +6 dBu
Connection for microphone units line 1, RJ45 (Warning: No Ethernet Connection)
Connection for microphone units line 2, RJ45 (Warning: No Ethernet Connection)
48 V DC connection for power supply unit
Important: Only use the power supply unit supplied by beyerdynamic.
Reset to restore the factory settings
Rear View
Bottom
Orbis – Quick Start Guide
14

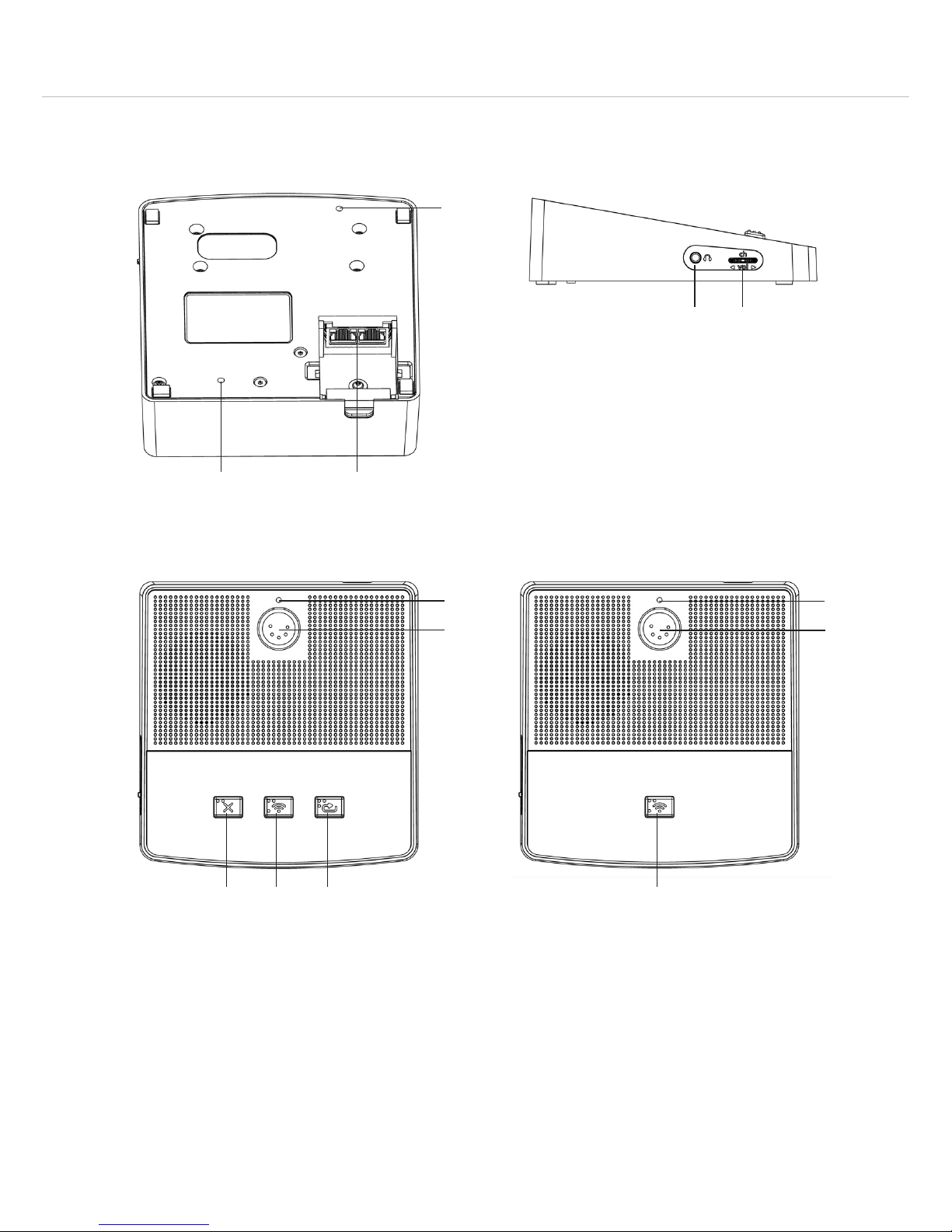

1.2 Orbis MU 23 / MU 21 Desktop Microphone Units
Bottom
Thread to attach the microphone unit on a
table top
In/Out sockets to connect the microphone
unit, RJ45
Important: Do not connect Ethernet!
Headphone socket, mini stereo jack (3.5 mm)
Multifunction button to set headphone
volume and to select (by tilting and pressing)
two channels
Lateral View
Orbis MU 21 – Top ViewOrbis MU 23 – Top View
Opening for unlocking the gooseneck
microphone
Connection for gooseneck microphone,
5-pin XLR
Microphone button
“Clear” button to clear all delegate
microphones
Programmable function button
Cable cover
Orbis – Quick Start Guide 15
english
2. Operation
How to connect the control unit
• Verify that the voltage rating of the power supply unit matches that of the AC mains outlet you are
to use. Caution: If you connect the unit to the wrong voltage you may seriously damage it.
• Connect the supplied power supply unit to the DC connection and the mains. The Orbis CU
control unit has no separate on-off switch and will be in the mode in which it had been when it was
disconnected. The corona displays the mode:
Red = standby mode
White = online mode
Flashing white = booting
• If the control unit is in the standby mode, briefly press the rotary encoder on the front. The
control unit will switch to the online mode and the corona , the beyerdynamic logo and the “Orbis”
lettering will illuminate white. The current menu settings will be displayed for a few seconds as well.
• To switch the control unit to the standby mode press the rotary encoder for approx. 5 seconds.
The corona will illuminate red.
• When required, connect the balanced XLR or unbalanced RCA phono output to the balanced or
unbalanced output of a mixer amplifier or mixing console. Adjust the volume via the amplifier or
mixing console.
• The Orbis conference system is configured via the rotary encoder on the front of the Orbis control
unit. By pressing and turning you can enter the individual menus to select and store settings by
pressing and turning as well.
• The selected menu will flash white. By turning the rotary encoder you can select a setting within
the menu and store it by pressing the rotary encoder. The selected setting will illuminate white.
• The menu settings are permanently stored in the control unit even when the Orbis CU control unit
is disconnected from the mains.
Connection Orbis MU 23 / MU 21 desktop microphone units
• Press the lateral flaps of the cable cover inwards and remove the cable cover .
• Connect the connecting cables to the In/Out sockets .
Orbis – Quick Start Guide
16
Connection of microphone units without redundancy
• The microphone units/system units are connected in one or two lines to the control unit. As cables
use standard CAT5e cables (S/UTP, min. AWG 26 diameter or better). The audio transmission,
power supply and control is made via one cable.
• At maximum you can connect 50 microphone units/system units per line so that a total of 100
microphone units is available.
Note: The max. number of microphone units also depends upon the cable type and cable length so
that the actual number of microphone units to be operated might be less than 50 or 100.
CAUTION: When using this kind of connection, there is no redundancy, i.e. if one microphone
unit/system unit fails, the whole line fails after the interruption, but the microphone units/system
units will still work before the interruption.
max. 50 microphone units in line 1 max. 50 microphone units in line 2
Orbis CU Control Unit
Cable outlet downwards
• If the connecting cables of the Orbis MU 23/21
microphone unit are to be routed downwards,
insert the sliding element into the back of
the microphone unit.
Cable outlet backwards
• If the connecting cables of the Orbis MU 23/21
microphone unit are to be routed backwards,
insert the sliding element into the cable
cover .
Orbis – Quick Start Guide 17
english
Connection of microphone units with redundancy
• For maximum reliability of the system, the microphone units/system units are connected in a ring
to the control unit. As cables use standard CAT5e cables (S/UTP, min. AWG 26 diameter or better).
• At maximum you can connect 50 microphone units/system units. The big advantage of this
connection is the present redundancy, i.e. should a cable fault occur at one side of the microphone
unit/ system unit, the unit will not fail, as it is still supplied from the cable on the other side. The
cable concerned or the defective microphone unit/system unit can be replaced during operation
without failing all other microphone units/system units.
max. 50 microphone units in a ring
Orbis CU Control Unit
Orbis – Quick Start Guide
18
3. Important operating instructions
How to connect the gooseneck microphone
For the connection to the microphone unit, there are gooseneck microphones with an LED available.
• Take the gooseneck microphone by the shaft, put it into the appropriate socket and press the shaft
downwards until it locks in place.
• If you want to remove the gooseneck microphone, press the opening for unlocking with the supplied
tool or a similar thin tool. Remove the gooseneck microphone by taking it by the shaft and pulling.
Switching on
• The microphone is switched on by pressing the microphone button. Depending on the operating
mode, the microphone button will illuminate green (normal operating mode) or red (request-to-
speak mode).
• When the microphone is active, the level of the loudspeaker of the microphone unit will auto-
matically be reduced to avoid feedback.
Operating modes
The different operating modes such as “Normal”, “FiFo” or “Voice controlled” are adjusted on the
Orbis CU control unit for all microphone units. The standard operating mode is “Normal”.
Buttons and functions of the chairman microphone unit
In addition to the microphone button, the chairman microphone unit is provided with a clear button
and programmable function button.
Clear button: By pressing the clear button all active delegate microphone units are cleared. After-
wards the delegates can turn on their microphone again.
Function button: Depending on the configuration via the Orbis CU control unit the function button has
the function “Normal” or “Mute” or “Function” when configured via an external media control system.
Maintenance
• Only clean the devices with a slightly damp or dry cloth. Never use solvents as these damage the
surface.
Warning!
– When mounting or removing the gooseneck microphone hold it at the bottom
end only. Never hold it at the gooseneck or microphone head! You could
damage the gooseneck microphone and by doing so you will invalidate the
guarantee.
– To align the gooseneck microphone and to avoid overstretching as well as
premature wear and tear, please note that the gooseneck must not be bent
further than a maximum angle of 90°.
