Biostar NF4UL-A9 Bedienungsanleitung

NF4UL-A9

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee

that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the

contents here and specially disclaims any implied warranties of merchantability

or fitness for any purpose. Further the vendor reserves the right to revise this

publication and to make changes to the contents here without obligation to

notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and

we will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

Table of Contents

Chapter 1: Introduction.....................................................1

1.1 Motherboard Features..............................................................1

1.2 Package Checklist...................................................................... 6

1.3 Layout & Components.............................................................7

Chapter 2: Hardware Installation.....................................8

2.1 Central Processing Unit (CPU)................................................ 8

2.2 Fan Headers............................................................................. 10

2.3 Memory Modules Installation...............................................11

2.4 Connectors, & Slots................................................................. 12

Chapter 3: Headers & Jumpers Setup...........................13

3.1 How to setup Jumpers............................................................13

3.2 Detail Settings..........................................................................13

Chapter 4: Useful Help....................................................19

4.1 Award BIOS Beep Code......................................................... 19

4.2 Troubleshooting......................................................................19

Chapter 5: NVIDIA RAID Functions................................20

5.1 Operation System.................................................................... 20

5.2 Raid Arrays.............................................................................. 20

5.3 How RAID Works...................................................................21

Chapter 6: WarpSpeeder™.............................................26

6.1 Introduction.............................................................................26

6.2 System Requirement...............................................................26

6.3 Installation................................................................................27

6.4 [WarpSpeeder™] includes 1 tray icon and 5 panels ..........28

NF4UL-A9

CHAPTER 1: INTRODUCTION

1.1 MOTHERBOARD FEATURES

A. Hardware

CPU

Supports Socket 939.

•Supports AMD Athlon 64 processor.

•Supports AMD Athlon 64 FX processor.

•Supports AMD Sempron processor.

•AMD 64 architecture enables simultaneous 32 and 64 bit

computing.

•Supports HyperTransport Technology.

•Supports AMD Cool’n’Quiet Technology.

Chipset

NVIDIA nForce4 CK8-04 Ultra:

- Supports NVIDIAFirewall.

- Supports Gigabit Ethernet.

- Supports 10 USB 2.0 ports.

- Supports NVIDIA nTune Utility.

- Supports NVIDIA Secure Networking Processor.

- Supports 4 SATAports, each channel up to 3Gb/s.

- Supports 1 PCI-Express x16 interface graphics slot.

- Supports NVIDIA RAID functions, including RAID 0, RAID 1

and RAID 0+1.

- Supports 4 IDE disk drives with PIO Mode 5, Bride Mode

and Ultra DMA 33/66/100/133 Bus Master Mode.

- Compliant with AC’97 version2.3 specification.

- Complaints with PCI-Express Version 1.a specification.

Operating Systems

λSupports Windows 2000 and Windows XP.

Note: Do not support Windows 98SE and Windows ME.

λSupports SCO UNIX.

NF4UL-A9

Dimensions

ATX Form Factor: 23.4cm (W) x 29.35cm (L)

Main Memory

•Supports Dual Channel DDR.

•Supports 8 banks in total.

Supports DDR333 and DDR400.

Certified DDR400 List:

- Please check the website:

http://www.biostar.com.tw/products/mainboard/board.php3?

name=NF4UL-A9

Maximum memory size is 4GB.

DIMM Socket

Location DDR Module Total Memory

Size (MB)

DIMM1 128MB/256MB/512MB/1GB *1

DIMM2 128MB/256MB/512MB/1GB *1

DIMM3 128MB/256MB/512MB/1GB *1

DIMM4 128MB/256MB/512MB/1GB *1

Max is 4 GB.

DDR Installation Notice:

λPlease follow the table below to install your DDR memory

module, or the system may not boot up or may not function

properly.

λ“SS” represents Single Side DDR memory module.

λ“DS” represents Double Side DDR memory module.

λStar sign “*” represents leave the DIMM socket empty.

DIMM1 SS/DS * SS/DS SS/DS

DIMM2 * * *

SS/DS

DIMM3 * SS/DS SS/DS SS/DS

DIMM4 * * *

SS/DS

On-board IDE

2 on-board connectors support 4 IDE disk drives.

Supports PIO mode 5, Block Mode and Ultra DMA

33/66/100/133 bus master mode.

NF4UL-A9

Serial ATA

4 on-board Serial ATAconnectors support 4 serial ATA (SATA)

ports.

Compliant with SATA2.0 specification.

Data transfer rates up to 3Gb/s.

Slots

λThree 32bit PCI bus master slots.

λTwo PCI-Express x1 slots:

- PCI Express 1.0a compliant.

- Bandwidth 250MB/s per direction.

λOne PCI-Express x16 slot.

- PCI Express 1.0a compliant.

- Maximum theoretical realized bandwidth of 4GB/s

simultaneously per direction, for an aggregate of 8GB/s

totally.

λOne Xtreme Graphics Port slot. (See p.12 for detail information)

Super I/O

Chip: ITE IT8712F.

Low Pin Count Interface.

Provides the most commonly used legacy Super I/O

functionality.

Environment Control initiatives,

- H/W Monitor

- Fan Speed Controller

- ITE's "Smart Guardian" function

On-board AC’97 Audio Sound Codec

Chip: ALC850:

 Compliant with AC’97 version2.3 specification.

 Supports 8 channels audio output

- SNR > 95dB meet the consumer entertainment

industry formats.

- 192KHz with 24bits

Chip: ALC655 (optional):

 Compliant with AC’97 version2.3 specification.

 Supports 6 channels audio output.

NF4UL-A9

IEEE 1394A Chip (optional)

Chip: VIA VT6307.

Supports 2 ports with transfer up to 400Mb/s.

Gigabit Ethernet LAN

NVIDIA Gigabit MAC + VITESSE Gigabit PHY VSC8201.

Supports 10 Mb/s, 100 Mb/s and 1Gb/s auto-negotiation.

Half/Full duplex capability.

Supports personal Firewall setup.

Supports ACPI power management.

Supports NVIDIA StreamThru technology

- Isochronous controller paired with Hyper Transport results

in fastest networking performance

Security

NVIDIA Networking Processor.

NVIDIA Firewall technology

- Native firewall solution, protects the PC from intruders by

filtering unauthorized traffic.

Advanced features

- Remote access, configuration, monitoring

- Command line interface (CLI)

- WMI scripts.

NVIDIAActive Armor

- Enhance network security, and providing users an

environment with both fast and secure.

Storage

NVIDIA RAID Technology

- RAID 0 disk striping for highest system and application

performance

- RAID 1 disk mirroring support for fault tolerance

Support for both SATA and ATA-133 disk controller

standards

- RAID 0+1 disk striping and mirroring for highest

performance with fault tolerance

NF4UL-A9

Internal On-board Connectors and Headers

1 audio-out header supports audio-out facilities.

•1 front panel header supports front panel facilities.

1 CD-in connector supports CD-ROM audio-in function.

•1 SPDIF-out connector supports digital audio-out function.

•1 SPDIF-in connector supports digital audio-in function

(optional).

•1 IEEE1394 header supports 1 1394 Firewire port (optional).

•1 floppy connector supports 2 FDD devices with 360K, 720K,

1.2M, 1.44M and 2.88Mbytes.

•2 IDE connectors support 4 IDE disk drives.

3 USB headers support 6 USB 2.0 ports at front panel.

4 Serial ATA connectors support 4 SATA devices.

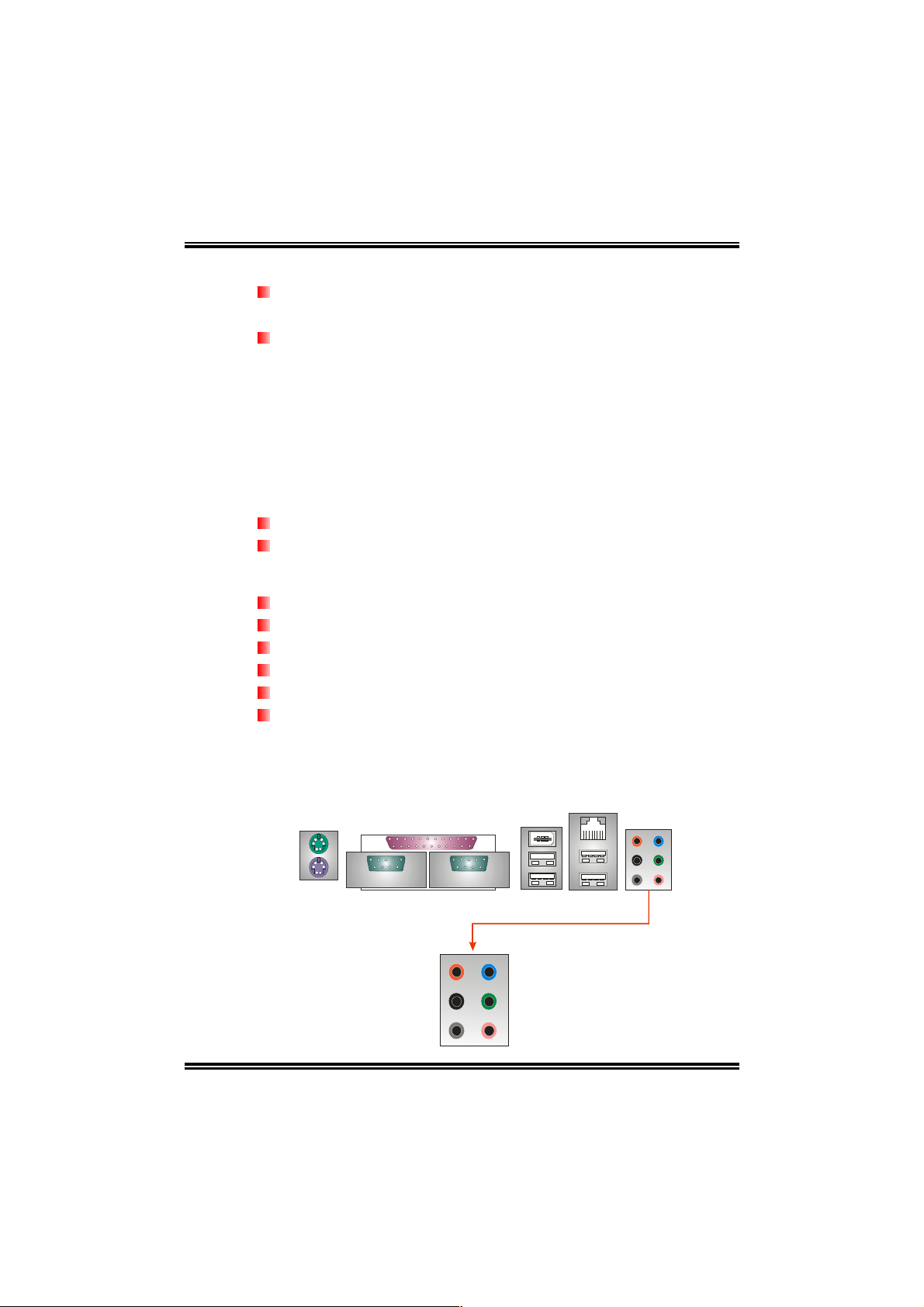

Rear (Back Panel) Side Connectors

1 PS/2 Mouse Port.

1 PS/2 Keyboard Port.

1 Printer Port.

1 Serial Port. (COM2 is optional.)

1 1394 Firewire Port (optional).

1 RJ-45 LAN jack.

•4 USB 2.0 Ports.

•6 audio ports support 8 channels audio-out facilities (with

ALC850).

PS/2

Mouse

PS/2

Keyboard

Printer Port

COM1 COM2

(optional)

1394 Port

(optional)

USB *2

LAN

Connector

USB *2

Center/Left

Rear

Side

Line-in

Line-out

MIC-in

NF4UL-A9

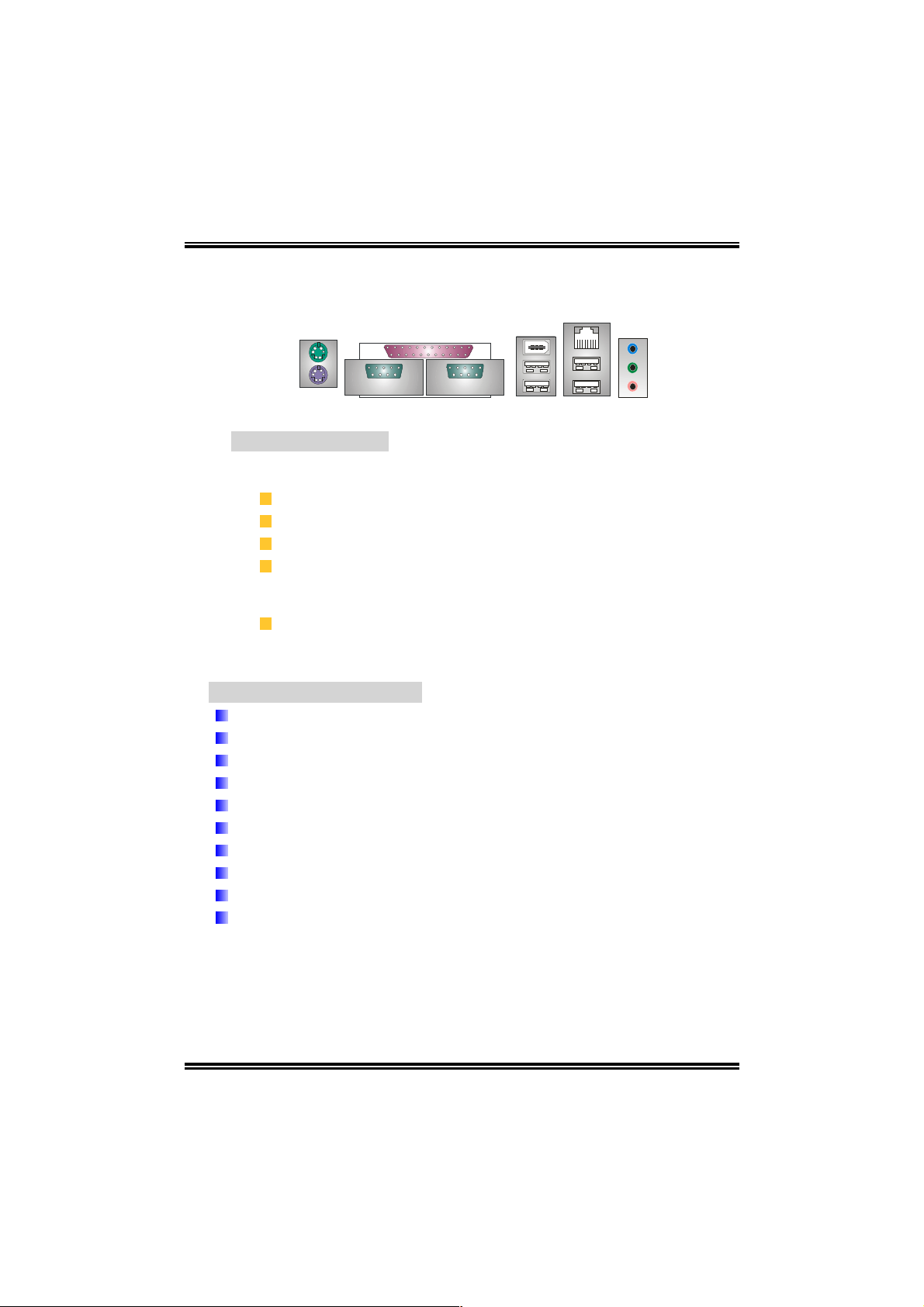

•3 audio ports support 6 channels audio-out facilities (with

ALC655, optional).

PS/2

Mouse

PS/2

Keyboard

Printer Port

COM1 COM2

(optional)

1394 Port

(optional)

USB *2

Connector

USB *2

Line-in/Rear

Line-out

MIC-in/

Center/

Left

B. BIOS & Software

BIOS

Award legal BIOS.

Supports APM1.2.

Supports ACPI.

Supports USB Function.

Bundled Software

Supports 9th Touch™, WINFLASHER™ and FLASHER™.

1.2 PACKAGE CHECKLIST

FDD Cable x 1

HDD Cable x 1

User’s Manual x 1

Serial ATACable x 1

Fully Setup Driver CD x 1

Rear I/O Panel for ATX Case x 1

S/PDIF Cable x 1 (optional)

USB 2.0 Cable x 1 (optional)

IEEE 1394 Cable x 1 (optional)

Serial ATAPower Switch Cable x 1 (optional)

NF4UL-A9

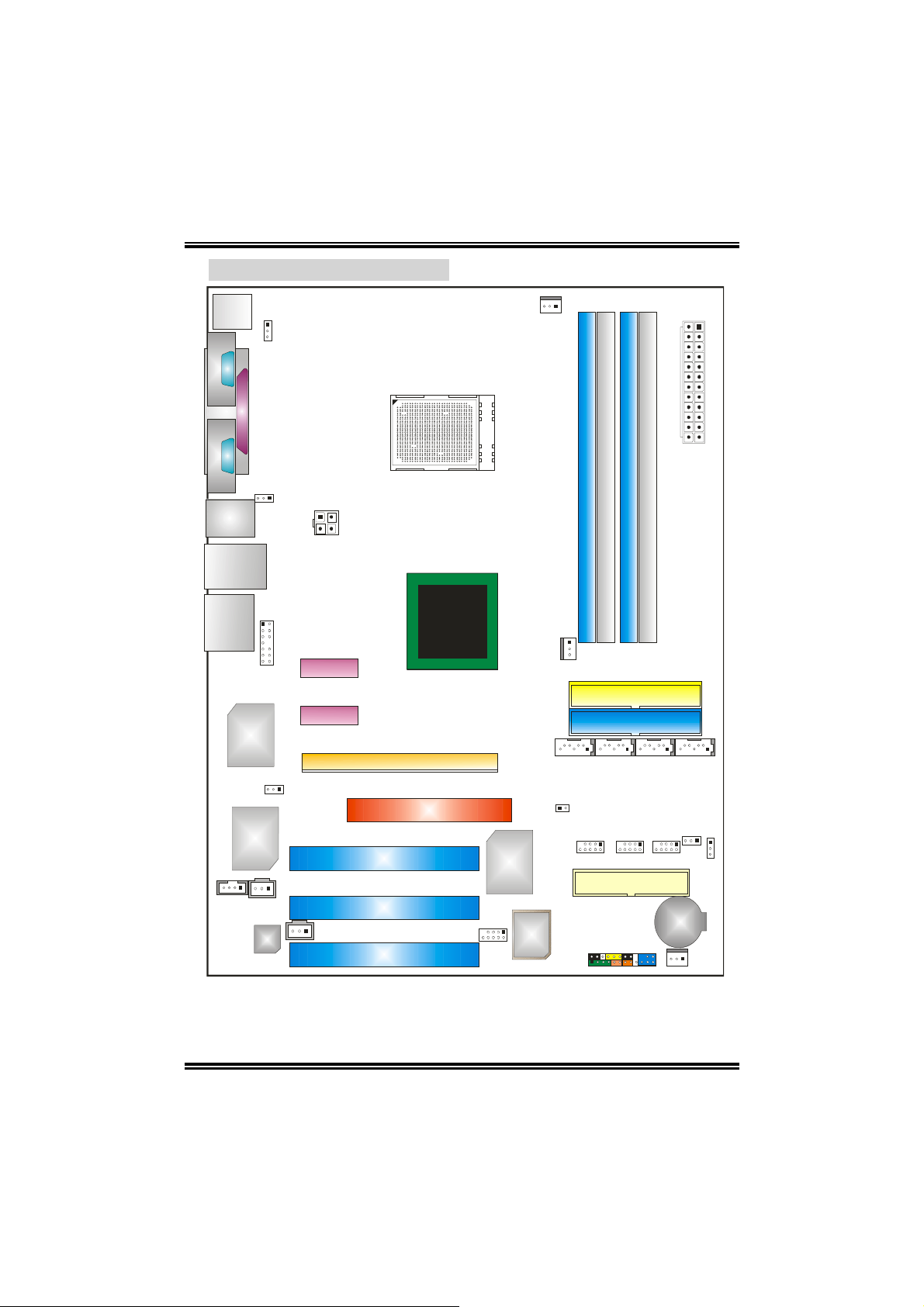

1.3 LAYOUT & COMPONENTS

Socket 939

JKBMS1

JUSBLAN1

COM1

JCOM1

COM2

JCOM2

(optional)

JPRNT1

J1394_USB1

EARPHONEJACK1

JAUDIO2

JKBMSV1

J1394_USBV1

J1394PWR1

(optional)

JATXPWR2

JATXPWR1

PCI-EX16

XGP1

PCI1

PCI3

PCI2

BIOS

DIMM2

DIMM4

DIMM1

DIMM3

IDE2

IDE1

JSATA1 JSATA2 JSATA3 JSATA4

FDD1

JCMOS1

JUSBV1

JCI1

JCFAN1

JNBFAN1

PCI-EXx1

PEX1-2

PCI-EXx1

PEX1-1

JUSB3JUSB2JUSB1

J1394A1

(optional)

JSFAN1

JSPDIF_OUT

JSPDIF_IN1

JCDIN1

BAT1

JPANEL1

Codec

nForce4

CK8-04

Ultra

Giga LAN

IEEE1394

Chip

(optional) Super I/O

CPU1

Note: ■represents the 1st pin.

NF4UL-A9

CHAPTER 2: HARDWARE INSTALLATION

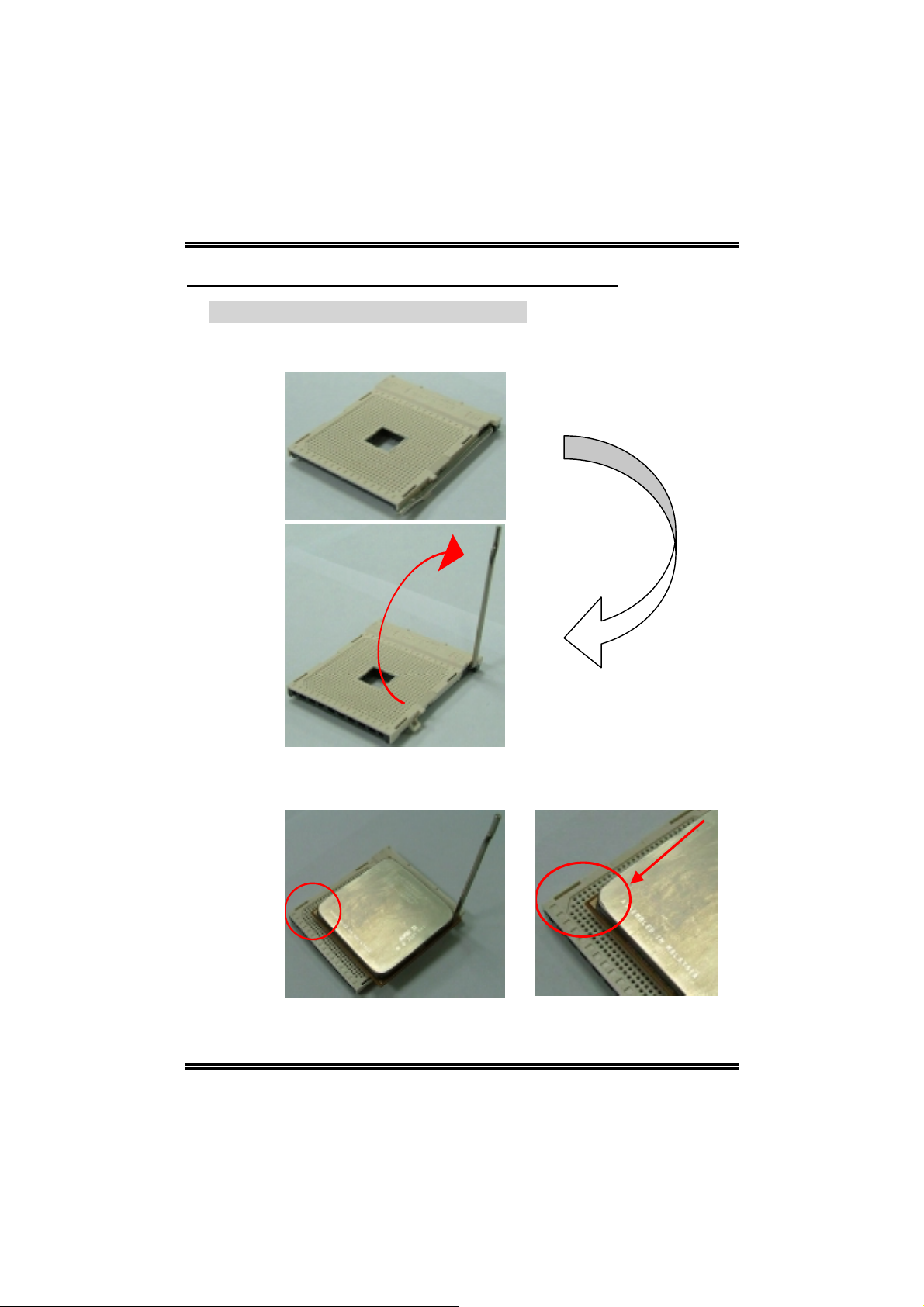

2.1 CENTRAL PROCESSING UNIT (CPU)

Step 1: Pull the lever sideways away from the socket and then raise the

lever up to a 90-degree angle.

Step 2: Look for the black cut edge on socket, and the white dot on CPU

should point forwards this black cut edge. The CPU will fit only in

the correct orientation.

Andere Handbücher für NF4UL-A9

Inhaltsverzeichnis

Andere Biostar Hauptplatine Handbücher

Biostar

Biostar TFORCE4 AM2 Bedienungsanleitung

Biostar

Biostar Hi-Fi A85S3 Bedienungsanleitung

Biostar

Biostar G31D-M7 Benutzerhandbuch

Biostar

Biostar P4M800-M7 A Bedienungsanleitung

Biostar

Biostar P4TSE Pro Bedienungs- und Montageanleitung

Biostar

Biostar H310MDG2 Bedienungsanleitung

Biostar

Biostar K8T890-A9 Bedienungsanleitung

Biostar

Biostar B760M-SILVER Bedienungsanleitung

Biostar

Biostar J4105NHU Bedienungsanleitung

Biostar

Biostar TP75 Benutzerhandbuch

Biostar

Biostar 945GC-M4 - BIOS Bedienungsanleitung

Biostar

Biostar G41D3 Benutzerhandbuch

Biostar

Biostar U8638 Bedienungsanleitung

Biostar

Biostar M7NCG400 Benutzerhandbuch

Biostar

Biostar P4 TDG Bedienungs- und Montageanleitung

Biostar

Biostar H61MGV3 Bedienungsanleitung

Biostar

Biostar CX70M-I7B Benutzerhandbuch

Biostar

Biostar M7NCD Ultra Bedienungsanleitung

Biostar

Biostar M7VIT 800 V7.X Bedienungsanleitung

Biostar

Biostar H61MLV Benutzerhandbuch

Biostar

Biostar M5CNB Bedienungsanleitung

Biostar

Biostar TF710 A2 PLUS - BIOS Benutzerhandbuch

Biostar

Biostar A960D+V2 Benutzerhandbuch

Biostar

Biostar A520MH Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
