NF720D A2G+ BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to CMOS RAM. T he power of CMOS

RAM is supplied by a battery so that it retains theSetup information when the power

is turned off.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and output

devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the

first stag e of the booting process, loading and executing the operating system. Some

additional features, such as virus and password prot ection or chipset fine-tuning

options are also included in BIOS.

The rest of this manual will to guide you through the options and settings in BIOS

Setup.

Plugand Play Support

ThisAMI BIOS supports the Plug and Play Version 1.0A specification.

EPA Green PC Support

ThisAMI BIOS supports Version 1.03 of the EPA Green PC specification.

APM Support

This AMI BIOS supports Version 1.1&1.2 of the Advanced Power Management

(APM) speci fication. Power management fe atures are implemented via the System

Management Int errupt (SMI). Sleep and Suspend power man agement modes are

supported. Power to the hard disk drives and video monitors can also be managed by

this AMI BIOS.

ACPI Support

AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power

interface specifi cation (ACPI). It provides ASL code for power management and

device configuration capabilities as defined in the ACPI specification, developed by

Microsoft, Intel and Toshiba.

NF720D A2G+ BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component

Interconn ect) local bus speci fication.

DRAM Support

DDR2 SDRAM (Double Data Rate II Synchronous DRAM) is supported.

Supported CPUs

ThisAMI BIOS supports the AMD CPU.

Using Setup

W hen starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter the BIOS setup utility.

In the BIOS setup utility, you will see

General Help description at the top right

corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use these keys to select item and ch ange

the settings.

Notice

zThe default BIOS settings apply for most conditions to ensure optimum performance

of the motherboard. If the system becomes unstable after changing any settings,

please load the default settings to ensure system’s compatibility and stability. Use

Load Setup Default under the Exit Menu.

zFor better system perform ance, the BIOS firmware is being continuously updated.

The BIOS information described in this manual isfor your reference only. The actual

BIOS information and settings on board may be slightly different from this manual.

zThe content of this manual is subject to be changed without notice. We will not be

responsible for any mistakes found in this user’s manual and any system damage that

may be caused by wrong-settings.

General Help

Navigation Keys

NF720D A2G+ BIOS Manual

1 Main Menu

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen

providing an overview of the basic system inform ation.

BIOS SETUP U TILITY

Main Advan ced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

System Overvie w

AMI BIOS

System Memory

[ :00:00]

System Date [Tue 01/01/2008]

Floppy A

> IDE Configur ation

Version :01. 01.01

Build Date:01/ 01/08

NVMM ROM Versi on :X.XXX.XX

Size :

System Time 00

Exit

AMI BIOS

Shows systeminformation including BIOS version, built date, etc.

System Memory

Shows systemmemory size, VGA shard memory will be excluded..

System Time

Set the system internal clock.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

NF720D A2G+ BIOS Manual

Floppy A

Select the type of floppy disk drive installed in your system.

Options: 1.44M, 3.5 in (Default) / 360K, 5.25in / 1.2M, 5.25 in / 720K, 3.5 in /

2.88M, 3.5 in/ None

IDE Configuration

T he BIOS will automatically detect the presence of ID E/SAT A devices. There is a

sub-menu fo r each IDE/SAT A device. Select a device and press <Enter> to enter

the sub-menu for detailed options.

BIOS SETUP U TILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

DISABLED: disables the

integrated IDE

Controller.

ENABLED: enables the

integrated IDE

Controller.

IDE Confugurat ion

OnChip S-ATA Controller [Ena bled]

SATA Mode Sele ct [SAT A Mode]

Change the AHC I DID for Linux[Disabled]

> Primary IDE Master

> Primary IDE Slave

> SATA 1 Devic e

Hard Disk Writ e Protect [Disabled]

IDE Detect Tim e Out (Sec) [35]

> SATA 2 Devic e

> SATA 3 Devic e

> SATA 4 Devic e

OnChip P-ATA Controller [Ena bled]

OnChip P-ATA Controller

Thisitem allows you to control the onboard IDE controller.

Options: Enabled (Default) / Disabled

OnChip S-ATA Controller

Thisitem allows you to control the onboard SATAcontroller.

Options: Enabled (Default) / Disabled

SATAMode Select

Thisitem allows you to choose the SATA operation mode.

Options: SATA Mode (Default) / RAID Mode/ AHCI Mode

NF720D A2G+ BIOS Manual

Change the AHCI DID for Linux

Thisitem appears only when SATA mode is set toAHCI.

Options: Disabled (Default) / Enabled

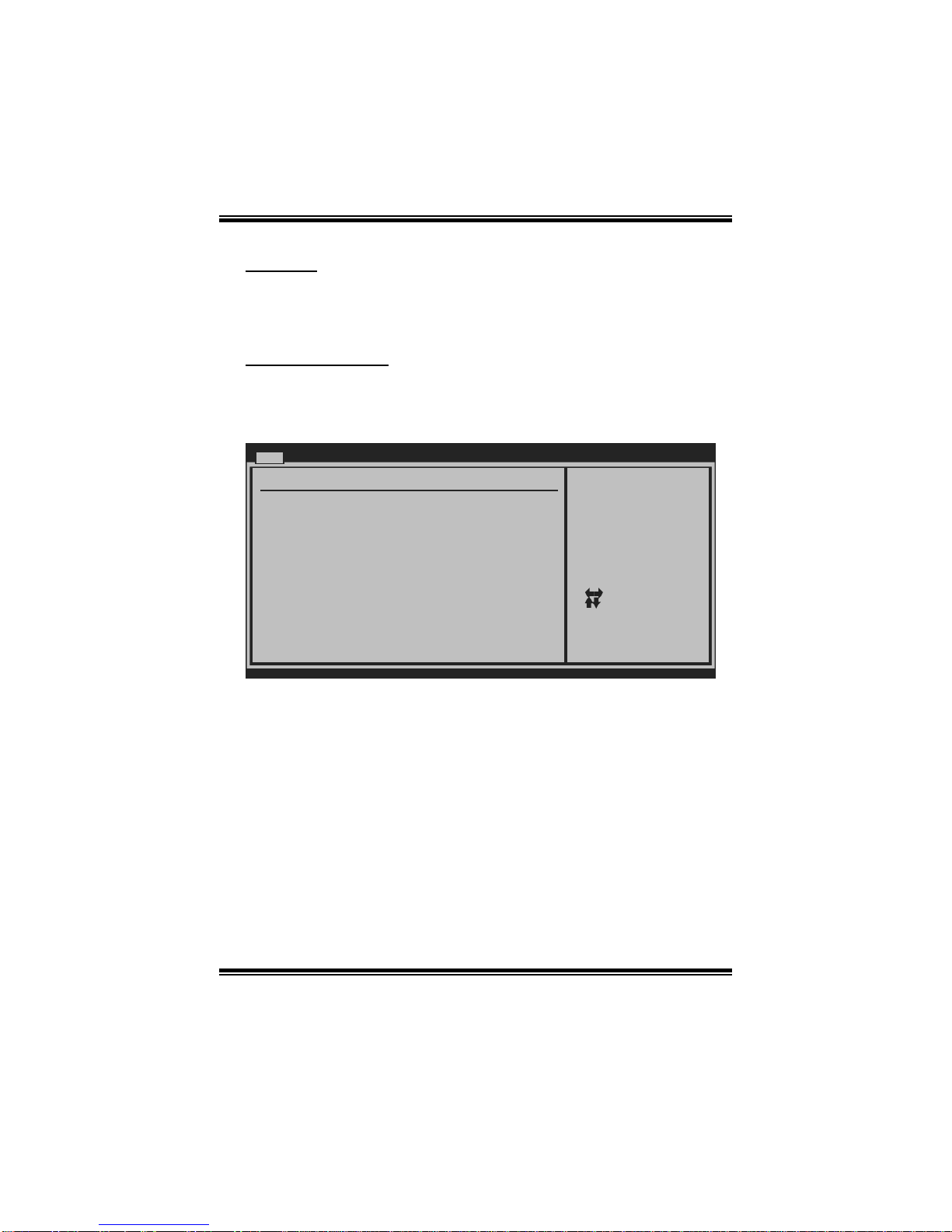

PrimaryIDEMaster/ Slave ; SATA 1/2/3/4 Device

(SATA 5/6 will be enabled onlywhenSATAMode is set to RAID/AHCI)

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Select the type

of device connected

to the system.

Primary IDE Master

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Auto]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

T he BIOS detects the information and values of resp ective devices, and these

information and values are shown below to the name of the sub-menu.

Type

Select the type of the IDE/SATA drive.

Options: Auto (Default) / CDROM /ARMD /Not Installed

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block(Multi-Sector Transfer)

Enable or disable multi-sector trans fer.

Options: Auto (Default) / Disabled

PIOMode

Select the PIO mode.

Options: Auto (Default) / 0 / 1 / 2 / 3 / 4

NF720D A2G+ BIOS Manual

DMA Mode

Select the DMA mode.

Options: Auto (Default) / Disabled

S.M.A.R.T

Set the Smart Monitoring, Analysis, and Reporting Technology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Hard Disk Write Protect

Disable or enable device write protection. This will be effective only if the device

is accessed through BIOS.

Options: Disabled (Default) / Enabled

IDEDetect Time Out (Sec)

Select the time out value for detecting IDE/SATA devices.

Options: 35 (Default) / 30 / 25 / 20 / 15 / 10 / 5 / 0

NF720D A2G+ BIOS Manual

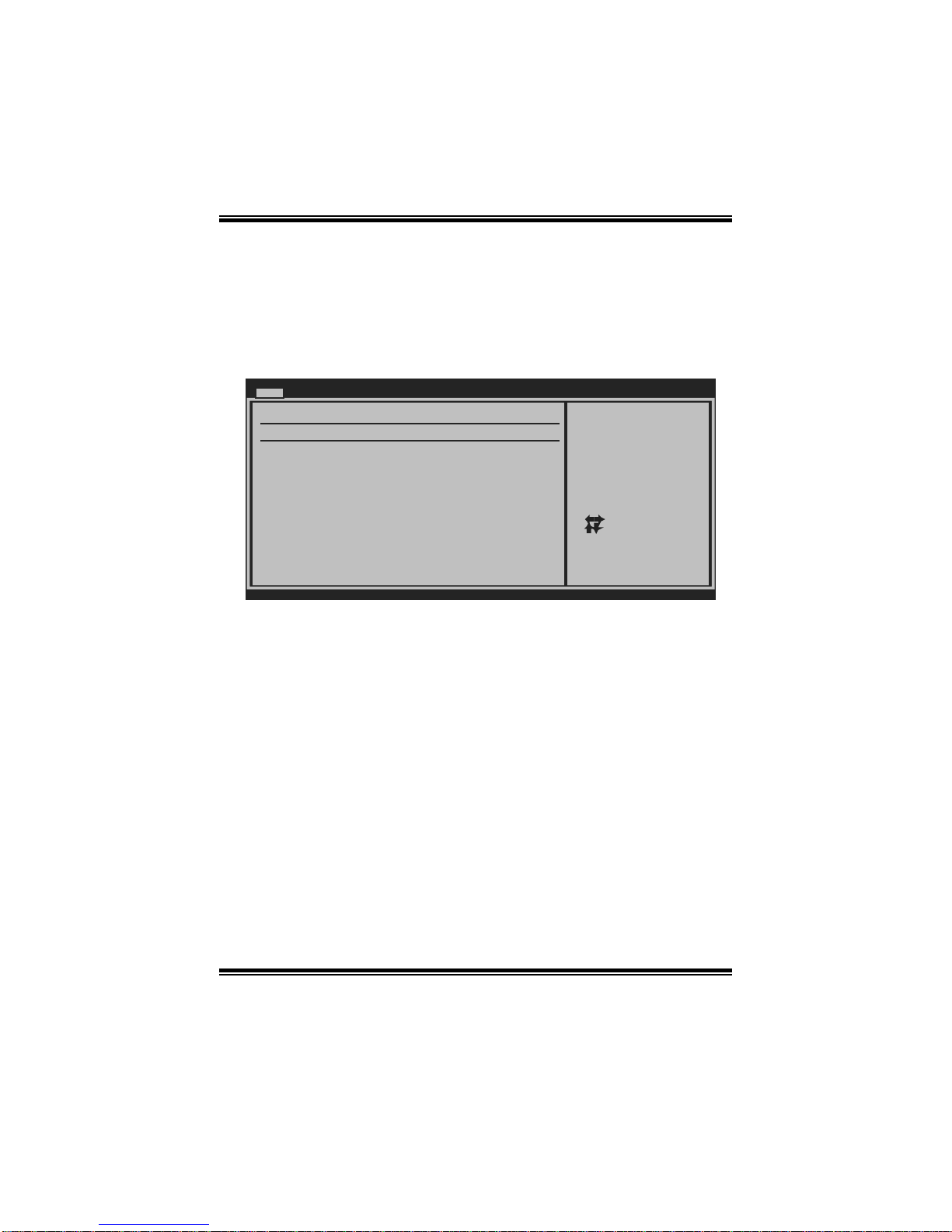

2Advanced Menu

The Advanced Menu allows you to configu re the settings of CPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system to malfunction.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to malfunction.

> USB Configuration

> AUDIO Configuration

> Onboard LAN Configuration

> CPU Configuration

> SuperIO Configuration

> Hardware Health Configuration

> Smart Fan Configuration

> Power Configuration

Exit

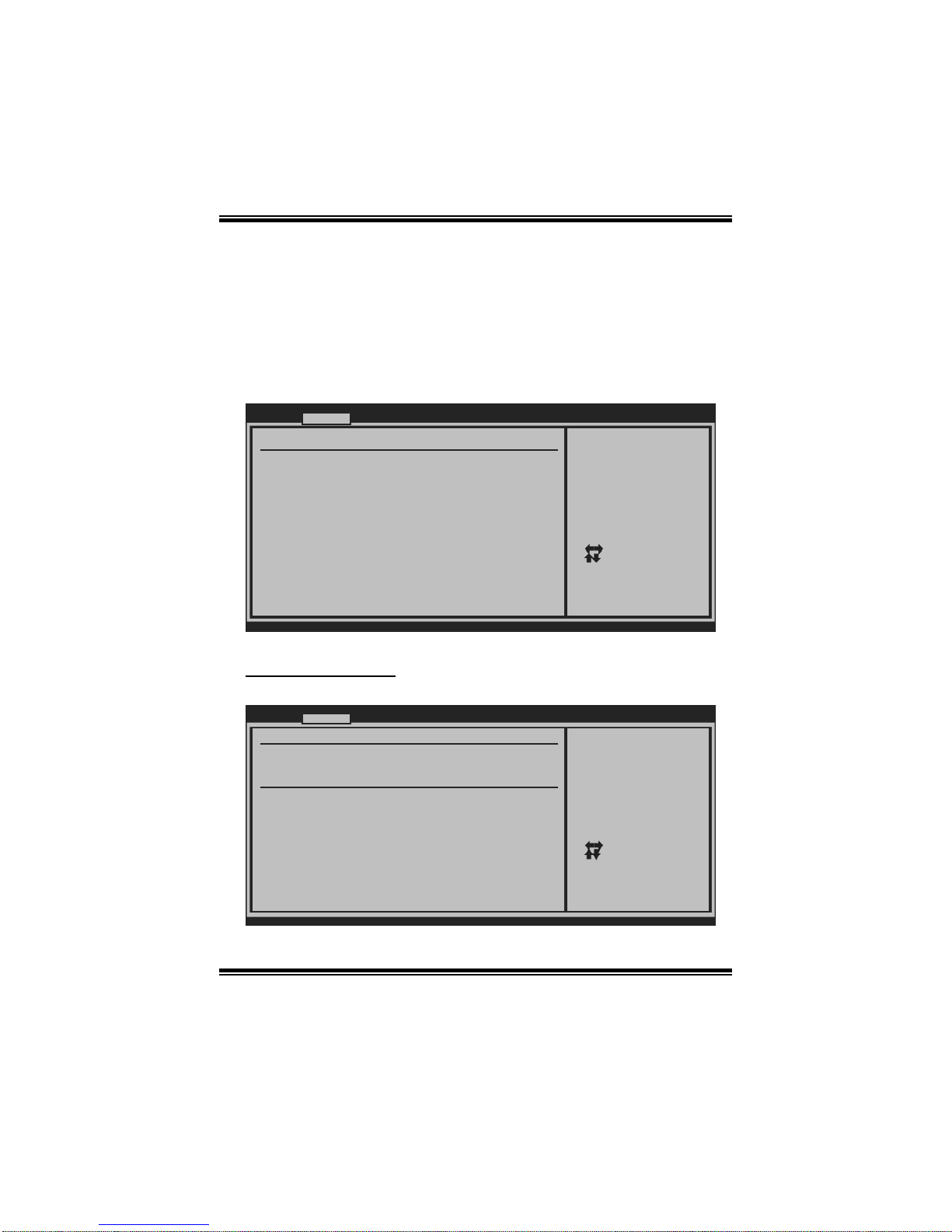

CPU Configuration

Thisitem shows the CPU information that the BIOS automatically detects.

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Enable/Disable

Secure Virtual Machine

Mode (SVM)

CPU Configuration

Module Version:

AGESA Version:

Physical Count:

Logical Count:

AMD CPU

Revision:

Cache L1:

Cache L2:

Cache L3:

Speed :

Current FSB Multiplier:

Maximum FSB Multiplier:

Able to Change Freq :

uCode Patch Level :

Secure Virtual Machine Mode [Enabled]

PowerNow [Enabled]

ACPI SRAT Table [Enabled]

NF720D A2G+ BIOS Manual

Secure VirtualMachine Mode

Virtualization Technology can virtually separate your system resou rce into several

parts, thus enhance the performance when running virtual machines or multi

interface systems.

Options: Enabled (Default) / Disabled

PowerNow

Thisitem allows you to enable or disable the PowerNow power saving technology.

Options: Enabled (Default) / Disabled

ACPI SRAT Table

T he operating system scans the ACPI SRAT at boot time and uses the information to

better allocate memory and schedule software threads for maximum performance.

This item controls whether the SRAT is made available to the operating system at

boot up, or not.

Options: Enabled (Default) / Disabled

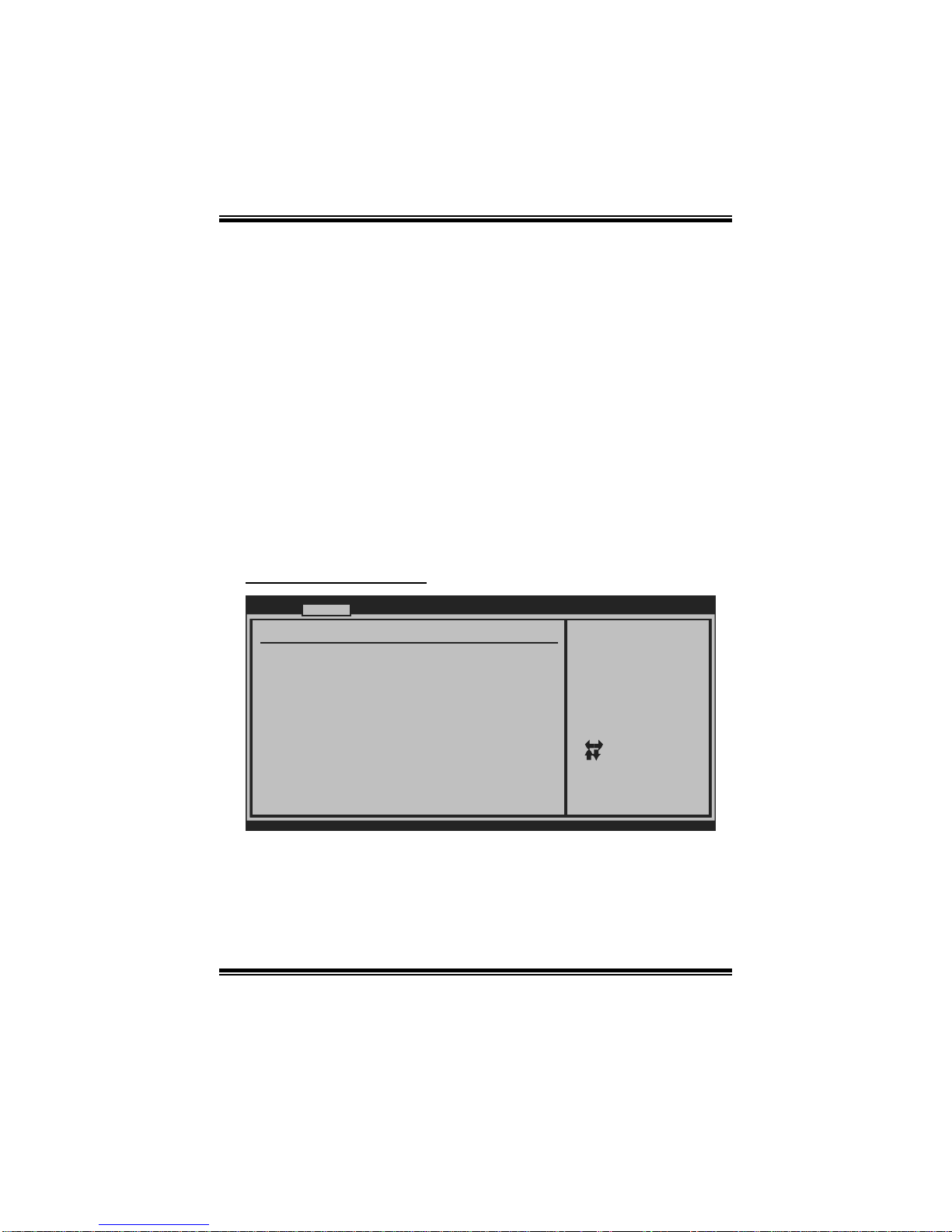

SuperIO Configuration

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Allows BIOS to Enable

or Disable Floppy

Controller

Configure ITE8718 Super IO Chipset

Onboard Floppy Controller [Enabled]

Serial Port1 Address [3F8/IRQ4]

Parallel Port Address [378]

Parallel Por t Mode [Normal]

Parallel Por t IRQ [IRQ7]

Keyboard PowerOn [Disabled]

Mouse PowerOn [Disabled]

Restore on AC Power Loss [Power Off]

Onboard Floppy Controller

Select enabled if your system has a floppy disk controller (FDC) installed on the

system board and you wish to use it. If you installed another FDC or the system uses

no floppy drive, select disabled in this field.

Options: Enabled (Default) / Disabled

NF720D A2G+ BIOS Manual

Serial Port1Address

Select an address and corresponding interrupt fo r the first and second seri al ports.

Options: 3F8/IRQ4 (Default) / 2F8/IRQ3 / 3E8/IRQ4 / 2E8/IRQ3 / Auto /

Disabled

ParallelPort Address

T his item allows you to determine access onboard parallel port controller with which

I/O Address.

Options: 378 (Default) / 278 / 3BC / Disabled

ParallelPortMode

Thisitem allows you to determine how the parallel port should function.

Options: Normal (Default) Using Parallel port as Standard Printer Port.

EPP Using Parallel Port as Enhanced Parallel Port.

ECP Using Parallel port as Extended Capabilities Port.

ECP+EPP Using Parallel port as ECP & EPP mode.

Parallel Port IRQ

Thisitem allows you to select the IRQ for the onboard parallel port.

Options: IRQ7 (Default) / IRQ5 / Disabled

Keyboard PowerOn

Thisitem allows you to control the keyboard power on function.

Options: Disabled (Default) / Specific Key / Stroke Key

Mouse PowerOn

Thisitem allows you to control the mouse power on function.

Options: Disabled (Default) / Enabled

Restore on AC Power Loss

Thissetting specifies how your system should behave after a power fail or interrupts

occurs. By choosing Disabled will leave the computer in the power off state.

Choosing Enabled will restore the system to the status before power failure or

interrupt occurs.

Options: Power O ff (Default) / Power On / Last State

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Biostar Hauptplatine Handbücher

Biostar

Biostar B760MX-E PRO Bedienungsanleitung

Biostar

Biostar M7TDB Bedienungsanleitung

Biostar

Biostar H310MHD PRO2 Bedienungsanleitung

Biostar

Biostar A10N-8800E Bedienungsanleitung

Biostar

Biostar B360GT3S Bedienungsanleitung

Biostar

Biostar M6VCH Bedienungsanleitung

Biostar

Biostar K8NHA Grand Bedienungsanleitung

Biostar

Biostar M6TSL Bedienungsanleitung

Biostar

Biostar TG31-A7 Benutzerhandbuch

Biostar

Biostar M7 VIQ Bedienungsanleitung

Biostar

Biostar TF710 A2 PLUS - BIOS Benutzerhandbuch

Biostar

Biostar A770L3 - BIOS Bedienungsanleitung

Biostar

Biostar A87L3G Benutzerhandbuch

Biostar

Biostar M7MIA Bedienungsanleitung

Biostar

Biostar U8668-D Bedienungsanleitung

Biostar

Biostar TA770E3 Benutzerhandbuch

Biostar

Biostar J1800NH2 Benutzerhandbuch

Biostar

Biostar Hi-Fi B150S1 Bedienungsanleitung

Biostar

Biostar M7TTB Bedienungsanleitung

Biostar

Biostar J4105TH Bedienungsanleitung

Biostar

Biostar M7TDE Bedienungsanleitung

Biostar

Biostar Hi-Fi A85W Benutzerhandbuch

Biostar

Biostar TB250-BTC PRO Bedienungsanleitung

Biostar

Biostar H110MD4 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
