Biostar P4 TDP Bedienungsanleitung
P
P
P4
4
4T
T
TD
D
DP
P
P
i
FCC Statement and Copyright
This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in a
particular installation.
The vendor makes no representations or warranties with respect to the
contents here of and specially disclaims any implied warranties of
merchantability or fitness for any purpose. Further the vendor reserves the
right to revise this publication and to make changes to the contents here of
without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole is not allowed without
first obtaining the vendor’s approval in writing.
The content of this user’s is subject to be changed without notice and we
will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.
C
C
Co
o
on
n
nt
t
te
e
en
n
nt
t
ts
s
s
ii
ENGLISH..................................................................................................... 1
P4TDP Features.................................................................................................................1
Package contents..............................................................................................................2
Layout of P4TDP................................................................................................................2
CPU Installation.................................................................................................................3
DDR DIMM Modules: DDR1-2 ...........................................................................................4
Jumpers, Headers, Connectors & Slots..........................................................................5
ESPAÑOL ................................................................................................. 10
Características del P4TDP..............................................................................................10
Contenido del Paquete.................................................................................................... 11
Disposición del P4TDP ................................................................................................... 11
Instalación de la CPU......................................................................................................12
Módulos DDR DIMM: DDR1-2.........................................................................................13
Puentes, Cabezales, Conectores y Ranuras.................................................................14
WARPSPEEDER ...................................................................................... 19
Introduction......................................................................................................................19
System Requirement....................................................................................................... 20
Installation........................................................................................................................20
Usage................................................................................................................................22
TROUBLE SHOOTING............................................................................. 30
SOLUCIÓN DE PROBLEMAS ................................................................. 31
1
English
P4TDP Features
Use Intel 845D/ ICH2 Chipset, ITE IT8712.
Contains on board I/O facilities, which include two serial port, a parallel port,
a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB ports, a game
port .
Supports the Intel Pentium 4®(Socket 478) processor up to 2.4GHz.
Supports Ultra 100/66/33, BMIDE and PIO modes.
Supports up to 2 DDR 200/266/Fuzzy 333 MHz devices, running at 400
MHz/ Fuzzy 533 Front Side Bus frequency.
Supports five 32-bit PCI Bus slots, and one CNR Slot (Type A only) .
(If the function CODEC is onboard, then the CNR slot only support
slave card. But if the H/W Audio is onboard, then the CNR slot
support only primary card . )
Supports USB1.1.
Supports USB2.0(optional).
Complies with PC ATX form factor specifications.
Supports popular operating systems such as Windows 98, Windows NT,
Windows 2000, Windows ME, Windows XP, LINUX and SCO UNIX.
DIMM Power Selection by BIOS setup to adjust DDR DIMM voltage. (If you
meet the DDR DIMM compatible program, try to adjust the DDR Voltage to
fix the compatible program.)
Intel®AC’97 2.2 compatible.
High S/N ratio meets PC 99 requirements.
6CH , applicable for leading motherboard chipsets.
Line-in phone-jack share with rear out .
Mic-in phone-jack share with Bass and Center.
2
Package contents
HDD Cable X 1, FDD Cable X 1, Fully Setup Driver CD X 1
USB Cable X 2 (Optional)

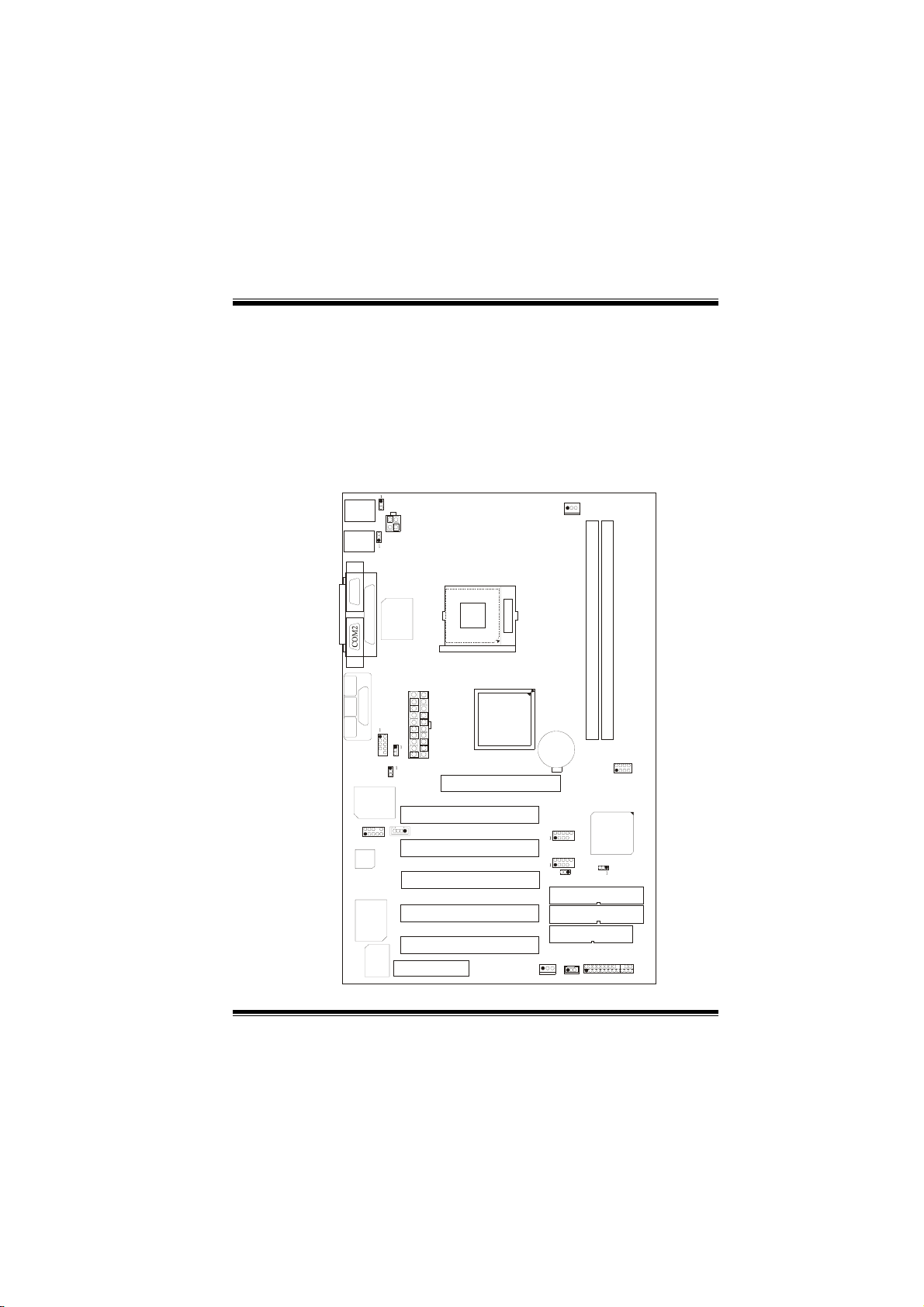

Layout of P4TDP
DDR 1
DDR 2
INTEL 845D
Socket 478
JAUDIO1
1
2
K/B
&
Mouse
JKBMS1
JUSB1
JPRNT1
JCOM1
JCOM2
COM1
Parallel Port
PCI3
CNR1
BAT1
JATXPWR1
JCFAN1
JUSB2
AGP1
JUSBV1
JCDIN1
JGAME1
GAME Port
SP-OUT
LINE-IN
MIC-IN
JATXPWR2
PCI1
PCI2
PCI4
Codec
(optional)
1
2
USB 2.0
Chip
(optional)
H/W
AUDIO
Chip
(optional)
BIOS
I/O
JDIMMVOLT1
1
2
JKBV1
IDE1
JCMOS1
INTEL ICH2
JUSBV4
J1
PRIMARY IDE CONN.
JUSBV2_3
1
JSFAN1
PCI5
1JPANEL1
FDD1
JWOL1
1
223
24
1
SECONDARY IDE CONN.
FLOPPY DISK CONN.
IDE2
JUSB4
JUSB3
2
2
3

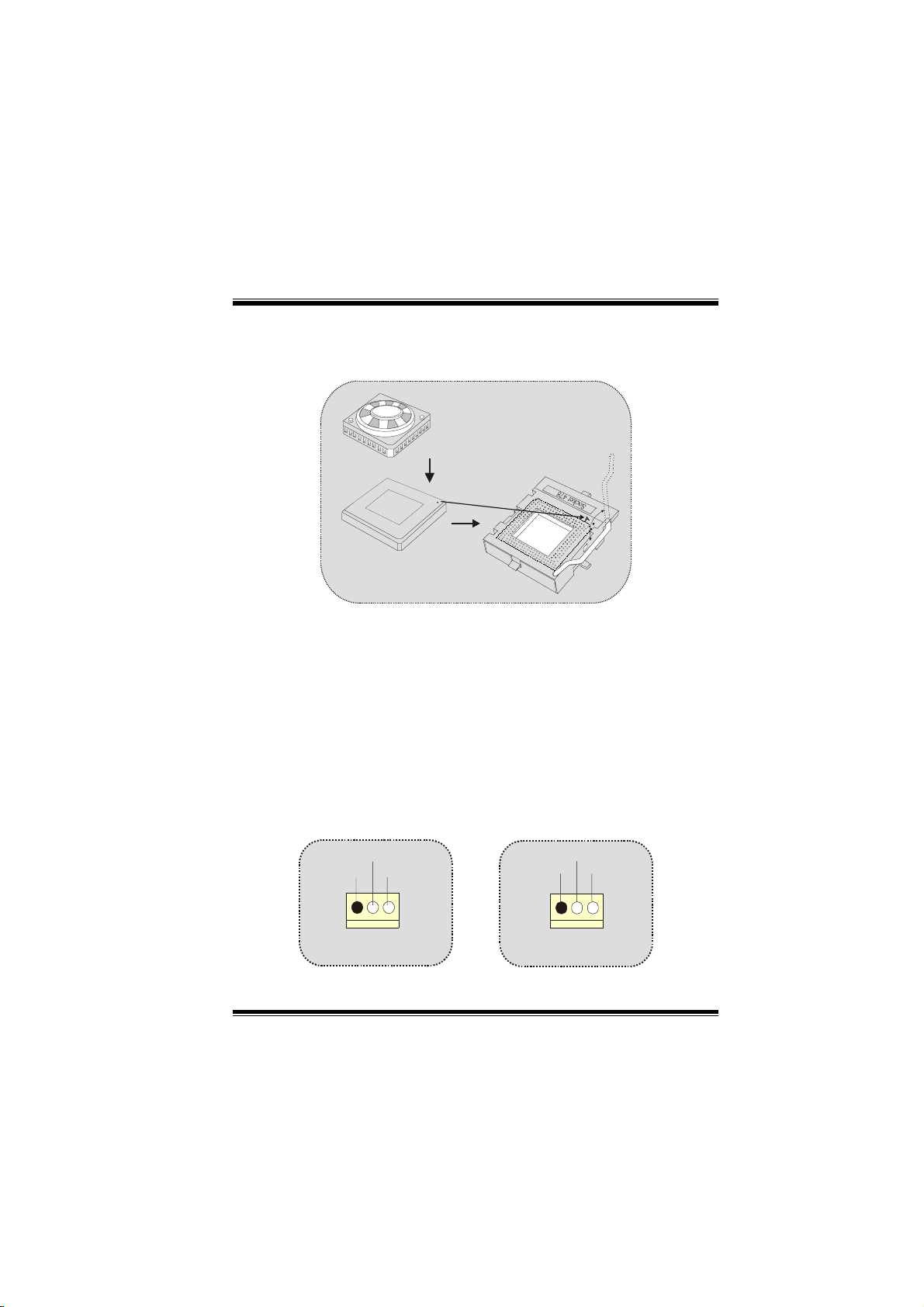

CPU Installation
1. Pull the lever sideways away from the socket then raise the lever up
to 90-degree angle.
2. Locate Pin A in the socket and lock for the white dot or cut edge in
the CPU. Match Pin A with the white dot/cut edge then insert the
CPU.
3. Press the lever down. Then Put the fan on the CPU and buckle it
and put the fan’s power port into the JCFAN1, then to complete the
installation.
CPU/ System Fan Headers: JCFAN1/ JSFAN1
CPU
JCFAN1 JSFAN1
Ground12V
Sense
1
Ground12V
Sense
1
4

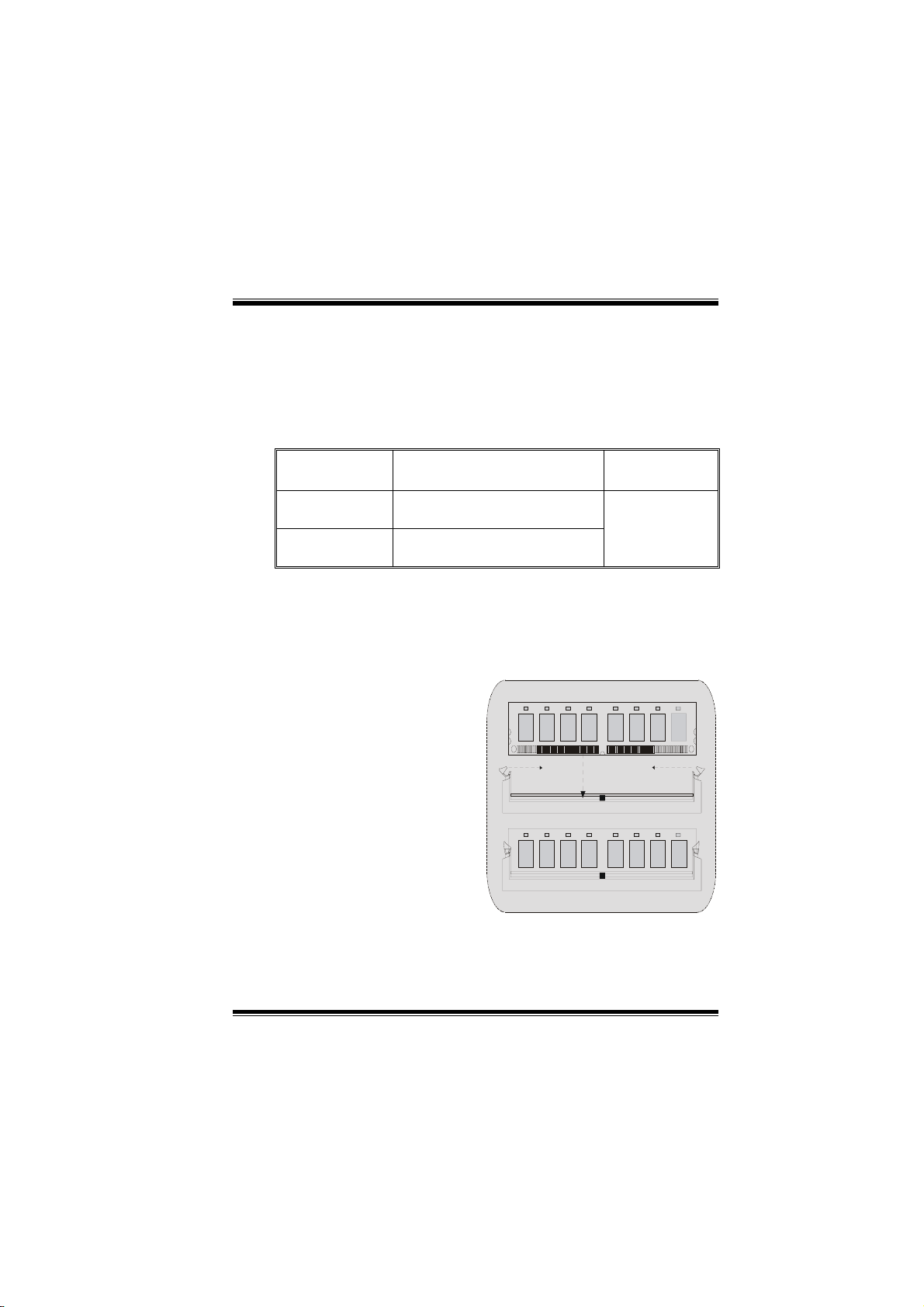

DDR DIMM Modules: DDR1-2
DRAM Access Time: 2.5V Unbuffered DDR 200/266 MHz Type
required x16 not support .
DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184
pin)
DIMM Socket
Location DDR Module Total Memory
Size (MB)
DDR 1 64MB/128MB/256MB/512MB/1GB
*1
DDR 2 64MB/128MB/256MB/512MB/1GB
*1
Max is
2GB
* The list shown above for DRAM configuration is only for reference.
How to install a DIMM Module
1. The DIMM socket has a
“ Plastic Safety Tab”, and the
DIMM memory module has an
“Asymmetrical notch”, so the
DIMM memory module can only
fit into the slot in one direction.
2. Push the tabs out. Insert the
DIMM memory modules into the
socket at a 90-degree angle, then
push down vertically so that it will
fit into the place.
3. The Mounting Holes and plastic
tabs should fit over the edge and
hold the DIMM memory modules
in place.
5
Jumpers, Headers, Connectors & Slots
Hard Disk Connectors: IDE1/ IDE2
The motherboard has a 32-bit Enhanced PCI IDE Controller that
provides PIO Mode 0~4, Bus Master, and Ultra DMA / 33/ 66/ 100
functionality. It has two HDD connectors IDE1 (primary) and IDE2
(secondary).
The IDE connectors can connect a master and a slave drive, so you can
connect up to four hard disk drives. The first hard drive should always be
connected to IDE1.
Floppy Disk Connector: FDD1
The motherboard provides a standard floppy disk connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This
connector supports the provided floppy drive ribbon cables.
Communication Network Riser Slot: CNR1
The CNR specification is an open Industry Standard Architecture, and it
defines a hardware scalable riser card interface, which supports audio,
network and modem only (slave card only) .
(If the function CODEC is onboard, then the CNR slot only support
slave card. But if the H/W Audio is onboard, then the CNR slot
support only primary card . )
Accelerated Graphics Port Slot: AGP1
Unlike the mouse ports, keyboard ports and printer ports this
motherboard does not have built in video facilities and therefore requires
a video card for one of the expansion slots. Your monitor will attach
directly to that video card. This motherboard supports video cards for
PCI and ISA slots but is also equipped with an Accelerated Graphics
Port (AGP). An AGP card will take advantage of AGP technology for
improved video efficiency and performance, especially with 3D graphics.
Peripheral Component Interconnect Slots: PCI1-5
This motherboard is equipped with 5 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for
expansion cards, which has, supplanted the older ISA bus standard in
most ports. This PCI slot is designated as 32 bits.
6
Power Connectors: JATXPWR1/ JATXPWR2
DIMM Power Selection Connector: JDIMMVOLT1
(Optional)
It strongly recommended to set DDR DIMM voltage in default setting
2.5V, and it for over voltage function.
Wake On LAN Header: JWOL1
WOL1
1
5V_SB Wake up
Ground
JATXPWR1
(ATX Main Power Conn.)
JATXPWR1
(ATX Main Power Conn.)
JATXPWR2
(ATX 12V Power Conn.)
1
2
JDIMMVOLT
Jump Open==> 2.5V
Pin 1-2 on ==> 2.6V
Pin 3-4 on ==> 2.7V
Pin 5-6 on ==> 2.8V
Pin 7-8 on ==> 2.9V
(Default ==> 2.5V)
7
Front USB Header: JUSB2/ JUSB3(Optional)
/ JUSB4(Optional)
Basically JUSB1/2 supports USB1.1, but after adding an USB2.0 chip,
JUSB1/4(white) supports USB2.0.
Having an USB2.0 chip, JUSB1/4(white) supports USB2.0 and JUSB2/3
only supports USB1.1.
5V/ 5VSB Selection for USB: JUSBV1/2_3
/ JUSBV4(Optional)
5V/ 5VSB Selection for KB: JKBV1
JUSB2/3/4
2
1
Pin1,2 ==> +5V
Pin3,4 ==> Data(-)
Pin5,6 ==> Data(+)
Pin7,8 ==> Ground
Pin9 ==> KEY
Pin10 ==> NA
1
JUSBV1/2_3/4
Pin 1-2 on ==> 5V
Pin 2-3 on ==> 5V_SB
Pin 1-2 on ==> 5V
Pin 2-3 on ==> 5V_SB
1
JKBV1
8
5V/ 5VSB Selection for USB WAKE-UP: J1(Optional)
When VT6202 support 5V/5VSB Selection for USB WAKE-UP in on
mode, JUSB1 and JUSB4 will change to 5V_SB
Audio Subsystem: JAUDIO1/ JCDIN1
Front Panel Connector: JPANEL1
SPK
PWR_LED
HLED
SLP
RST
224
IR
123
IRON/OFF
SPK ==> Speaker Conn.
HLED ==> Hard Driver LED
RST ==> Reset Button
IR ==> Infrared Conn.
SLP ==> Sleep Button
PWR_LED ==> Power LED
ON/ OFF ==> Power-on Button
(+) (-)
(+) (-)(+)
1
J1
Pin 1-2 ==>
Pin 2-3 ==> off
on
1
2
JAUDIO1
(Front Audio Header)
1
JCDIN1
(CD-ROM Audio-In Header)
Andere Handbücher für P4 TDP
2
Inhaltsverzeichnis
Andere Biostar Hauptplatine Handbücher
Biostar
Biostar K8T800-A7A Bedienungsanleitung
Biostar
Biostar TA57A Benutzerhandbuch
Biostar
Biostar M6VCG Bedienungsanleitung
Biostar
Biostar TZ590-BTC DUO Bedienungsanleitung
Biostar
Biostar H61MU3B Benutzerhandbuch
Biostar
Biostar M7SXG Bedienungsanleitung
Biostar
Biostar B550MXC PRO Bedienungsanleitung
Biostar
Biostar A690E-IS Benutzerhandbuch
Biostar
Biostar A740G M2 PLUS SE - BIOS Benutzerhandbuch
Biostar
Biostar Z170GT7 Bedienungsanleitung
Biostar
Biostar TA870U3+ Benutzerhandbuch
Biostar
Biostar TF7025-M2 Bedienungsanleitung
Biostar
Biostar Z590GTA Bedienungsanleitung
Biostar
Biostar J1800MH2 Benutzerhandbuch
Biostar
Biostar B350GTX Bedienungsanleitung
Biostar
Biostar TP45E Combo Benutzerhandbuch
Biostar
Biostar H61MH Benutzerhandbuch
Biostar
Biostar G41D3 - SET UP Bedienungsanleitung
Biostar
Biostar TB150 PRO Bedienungsanleitung
Biostar
Biostar M7 VKG Bedienungsanleitung
Beliebte Hauptplatine Handbücher anderer Marken
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Bedienungsanleitung
Gigabyte
Gigabyte GA-9IVDT Bedienungsanleitung
Texas Instruments
Texas Instruments ADS8372EVM Bedienungsanleitung
Commell
Commell MS-C73 Bedienungsanleitung
IBT Technologies
IBT Technologies MB860 Bedienungsanleitung
Nvidia
Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung
