Biostar P4SDQ Bedienungs- und Montageanleitung

FCC Statement and Copyright

This equipment has been tested and found to comply with the limits of a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. There is no guarantee that interference will not occur in a

particular installation.

The vendor makes no representations or warranties with respect to the

contents here of and specially disclaims any implied warranties of

merchantability or fitness for any purpose. Further the vendor reserves the

right to revise this publication and to make changes to the contents here of

without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole is not allowed without

first obtaining the vendor’s approval in writing.

The content of this user’s is subject to be changed without notice and we

will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

ENGLISH..................................................................................................... 1

P4SDQ Features ................................................................................................................1

Package contents..............................................................................................................1

Layout of P4SDQ...............................................................................................................2

CPU Installation.................................................................................................................3

DDR DIMM Modules: DDR1-2 ...........................................................................................4

Jumpers, Headers, Connectors & Slots..........................................................................5

ESPAÑOL ................................................................................................. 10

Características del P4SDQ .............................................................................................10

Contenido del Paquete....................................................................................................10

Disposición del P4SDQ................................................................................................... 11

Instalación de la CPU......................................................................................................12

Módulos DDR DIMM: DDR1-2.........................................................................................13

Conectores, Cabezales, Puentes y Ranuras.................................................................14

TROUBLE SHOOTING............................................................................. 19

SOLUCIÓN DE PROBLEMAS ................................................................. 20

iip

iio

English

P4SDQ Features

 Use SiS 651/ SiS 962L Chipset, ITE 8705, LAN Phy (optional).

 Contains on board I/O facilities, which include one serial port, a VGA port, a

parallel port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB

ports, a LAN port (optional) and a game port.

 Supports the Intel Pentium 4®(Socket 478) processor up to 2.8GHz.

 Supports Ultra DMA 133/100/66/33, four IDE hard disk drives, PIO mode 4,

and Master mode.

 Supports up to 2 DDR 200/266/333 MHz (without ECC) devices, running at

533 MHz Front Side Bus frequency.

 Supports one CNR Slot (Type B only), three 32-bit PCI Bus Slots, and one

AGP Slot.

 Complies with PC Micro-ATX form factor specifications.

 Supports popular operating systems such as Windows 2000, Windows ME,

Windows XP, LINUX and SCO UNIX.

 Intel®AC’97 2.2 compatible.

 High S/N ratio meets PC 99 requirements.

 Support USB1.1 and USB2.0 (Optional).

Package contents

 HDD Cable X 1, FDD Cable X 1, Fully Setup Driver CD X 1

 USB Cable X 2 (Optional)

 Rear I/O Panel for Micro-ATX Case X 1 (Optional)

iip

iio

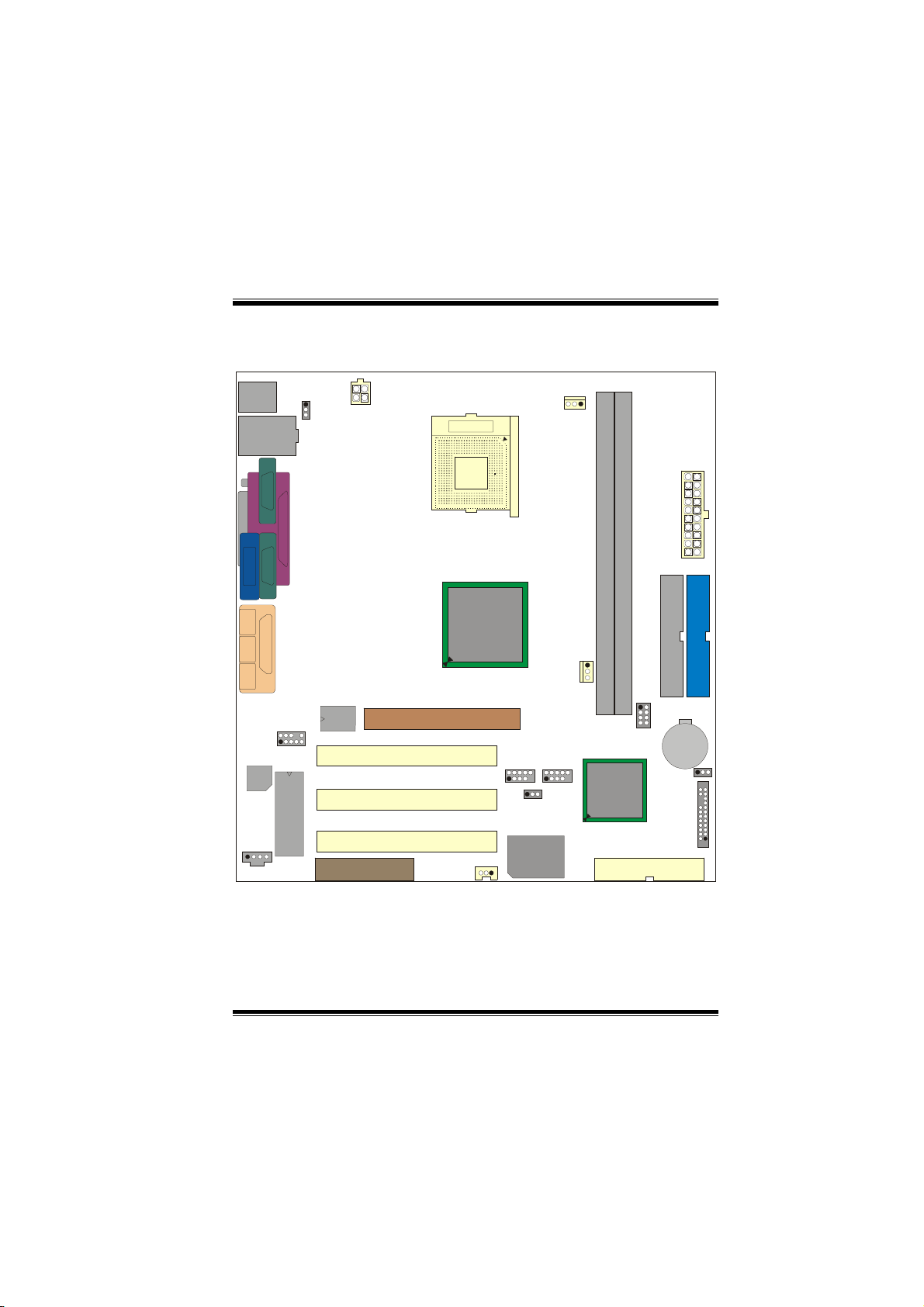

Layout of P4SDQ

JUSBLAN1

DDR1

DDR2

JAUDIO1 PCI1

PCI2

PCI3

JATXPWR1

CNR1

JWOL1

AGP1

JSFAN1

FDD1

IDE2 IDE1

ITE I/O

BIOS

JCDIN1

JATXPWR2

JCFAN1

SIS 651

Socket 478

JUSBV2

JUSB1

JUSBV1

CODEC

JDIMMPWR1

JCMOS1

SIS

962L

JPANEL1

2324

BAT1

LAN

PHY

JKBMS1

JAUD GAME1

Mouse

USB & LAN

JCOM1

JVGA1

COM1

Parallel Port

VGA1

Game Port

SP-OUTMIC-IN

LINE-IN

COM2

JCOM2

JUSB2

JPRNT1

iip

iio

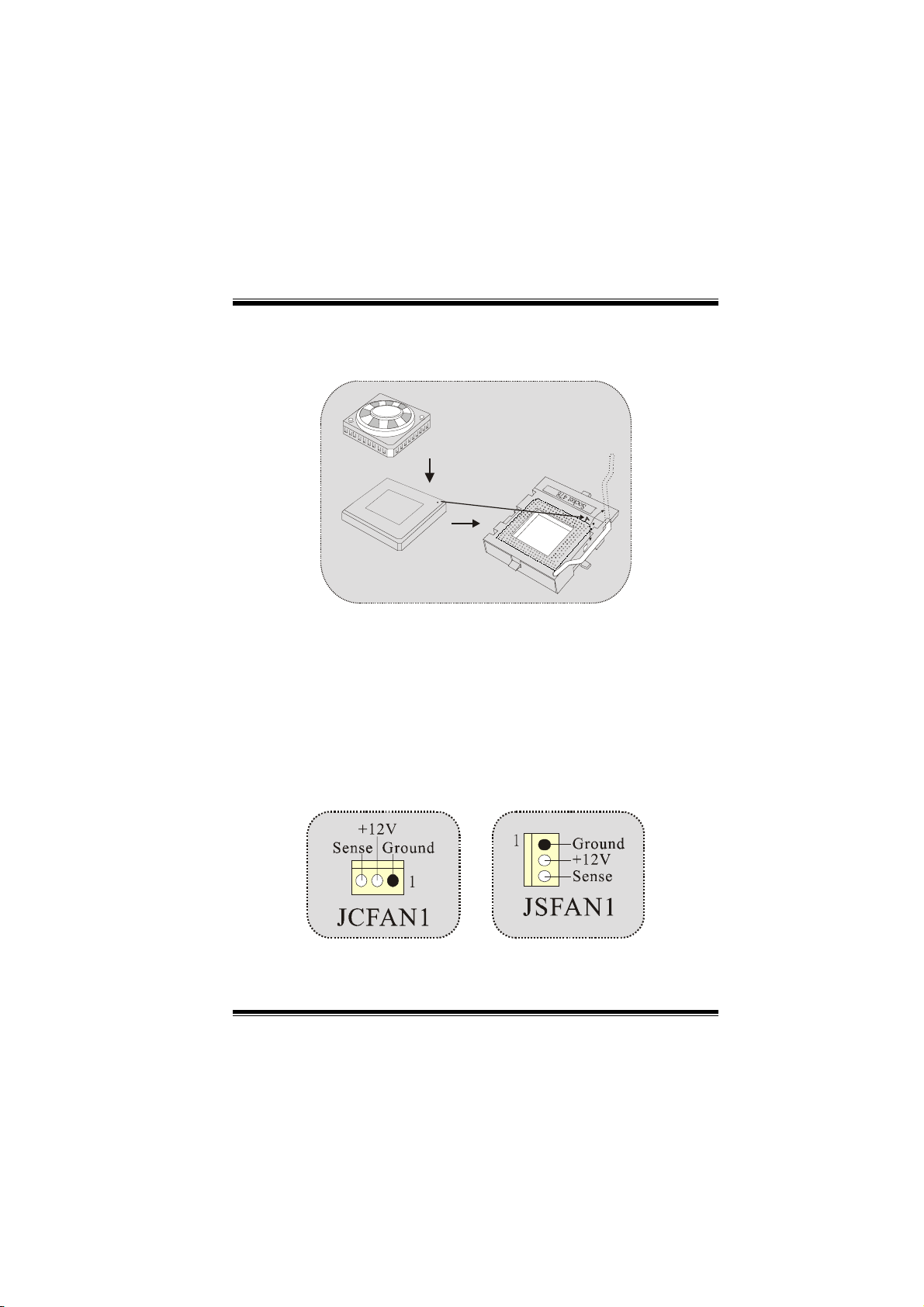

CPU Installation

1. Pull the lever sideways away from the socket then raise the lever up

to 90-degree angle.

2. Locate Pin A in the socket and lock for the white dot or cut edge in

the CPU. Match Pin A with the white dot/cut edge then insert the

CPU.

3. Press the lever down. Then Put the fan on the CPU and buckle it

and put the fan’s power port into the JCFAN1, then to complete the

installation.

CPU/ System Fan Headers: JCFAN1/ JSFAN1

CPU

iip

iio

DDR DIMM Modules: DDR1-2

DRAM Access Time: 2.5V Unbuffered DDR 200/266/333 MHz Type

required.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184

pin)

DIMM Socket

Location DDR Module Total Memory

Size (MB)

DDR 1 64MB/128MB/256MB/512MB/1GB

DDR 2 64MB/128MB/256MB/512MB/1GB

Max is

2GB

* The list shown above for DRAM configuration is only for reference.

How to install a DIMM Module

1. The DIMM socket has a

“ Plastic Safety Tab”, and the

DIMM memory module has an

“Asymmetrical notch”, so the

DIMM memory module can only

fit into the slot in one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle, then

push down vertically so that it will

fit into the place.

3. The Mounting Holes and plastic

tabs should fit over the edge and

hold the DIMM memory modules

in place.

iip

iio

Jumpers, Headers, Connectors & Slots

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that

provides PIO Mode 0~4, Bus Master, and Ultra DMA / 33/ 66/ 100 / 133

functionality. It has two HDD connectors IDE1 (primary) and IDE2

(secondary).

The IDE connectors can connect a master and a slave drive, so you can

connect up to four hard disk drives. The first hard drive should always be

connected to IDE1.

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This

connector supports the provided floppy drive ribbon cables.

Accelerated Graphics Port Slot: AGP1

Your monitor will attach directly to that video card. This motherboard

supports video cards for PCI slots, but it is also equipped with an

Accelerated Graphics Port. An AGP card will take advantage of AGP

technology for improved video efficiency and performance, especially

with 3D graphics.

Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it

defines a hardware scalable riser card interface, which supports audio,

network and modem only.

Peripheral Component Interconnect Slots: PCI1-3

This motherboard is equipped with 3 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for

expansion cards, which has, supplanted the older ISA bus standard in

most ports. This PCI slot is designated as 32 bits.

iip

iio

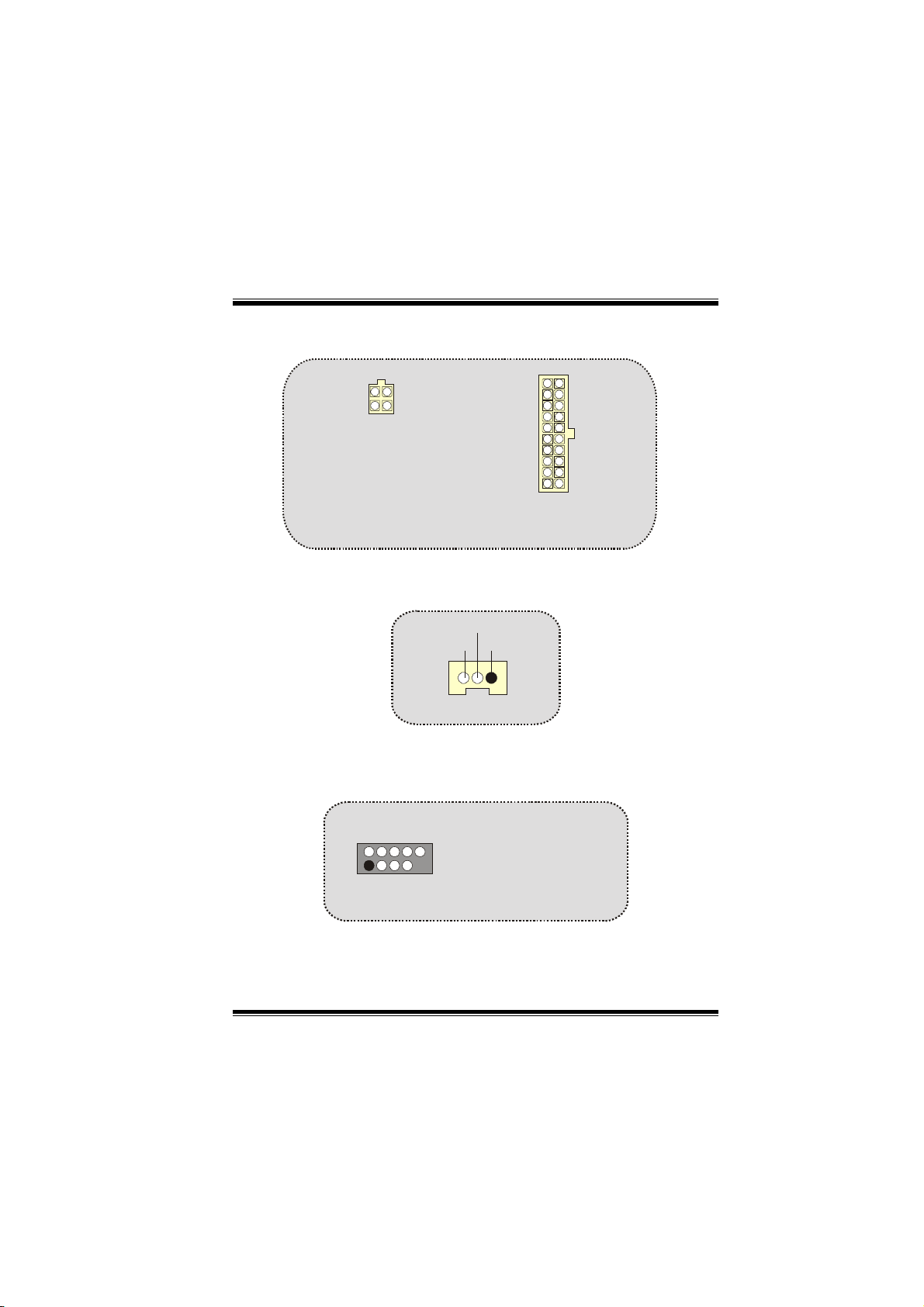

Power Connectors: JATXPWR1/ JATXPWR2

Wake On LAN Header: WOL1

Front USB Header: JUSB1/ JUSB2

JATXPWR1

(ATX Main Power Connector)

JATXPWR2

(ATX 12V Power Connector)

WOL1

5V_SBWake up

Ground

JUSB1/2

Pin1,2 ==> +5V

Pin3,4 ==> Data(-)

Pin5,6 ==> Data(+)

Pin7,8 ==> Ground

Pin9 ==> KEY

Pin10 ==> NA

iip

iio

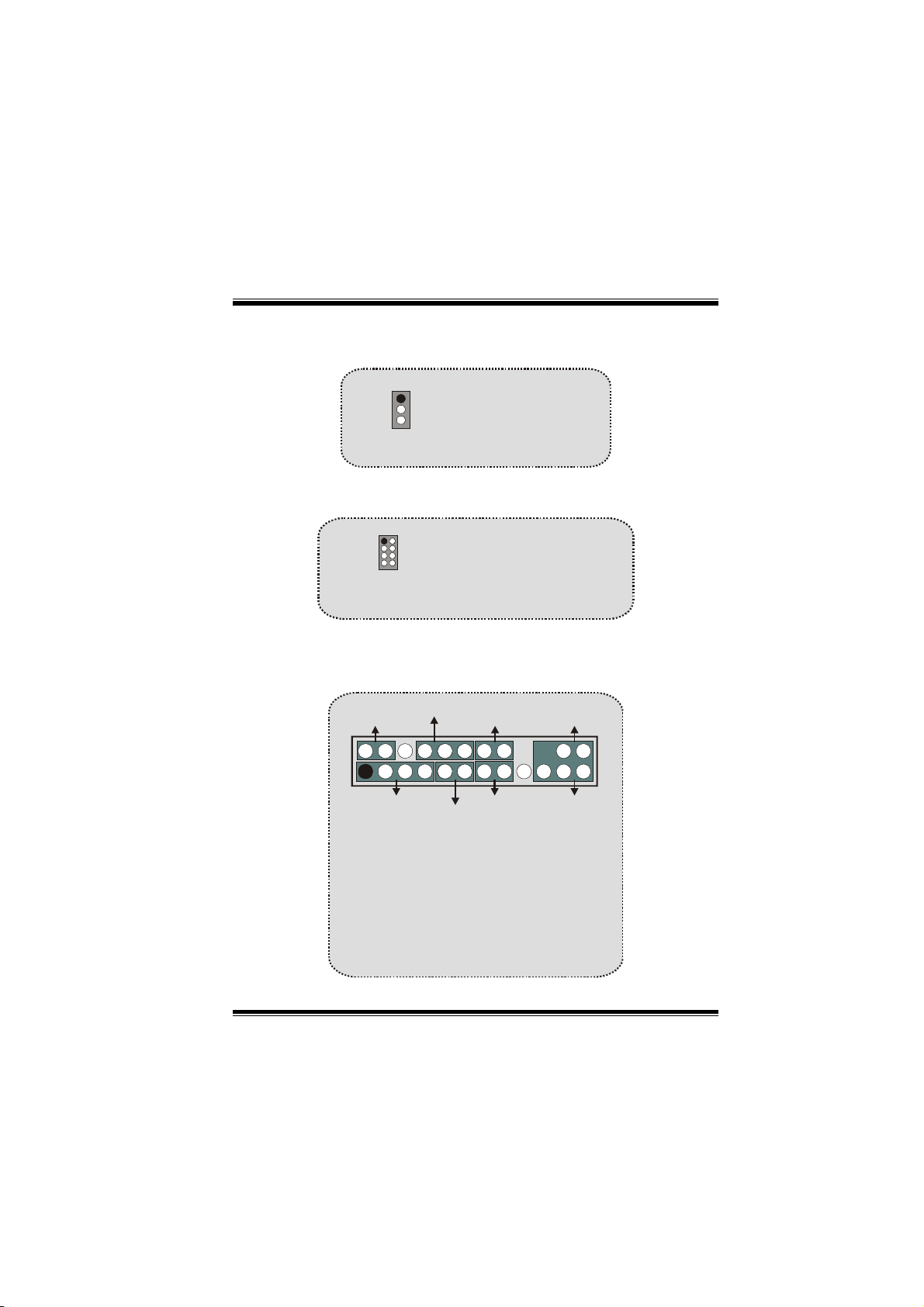

5V/ 5VSB Selection for USB: JUSBV1/ JUSBV2

DIMM Power Selection Connector: JDIMMPWR1

 It is for over voltage function.

Front Panel Connector: JPANEL1

JUSBV1-2

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JDIMMPWR1

Jump open ==> 2.5V

Pin 1-2 ==> 2.6V

Pin 3-4 ==> 2.7V

Pin 5-6 ==> 2.8V

Pin 7-8 ==> 2.9V

SPK

PWR_LED

HLED

SLP

RST

224

123

IRON/OFF

SPK ==> Speaker Conn.

HLED ==> Hard Driver LED

RST ==> Reset Button

IR ==> Infrared Conn.

SLP ==> Sleep Button

PWR_LED ==> Power LED

ON/ OFF ==> Power-on Button

(+) (-)

(+) (-)(+)

iip

iio

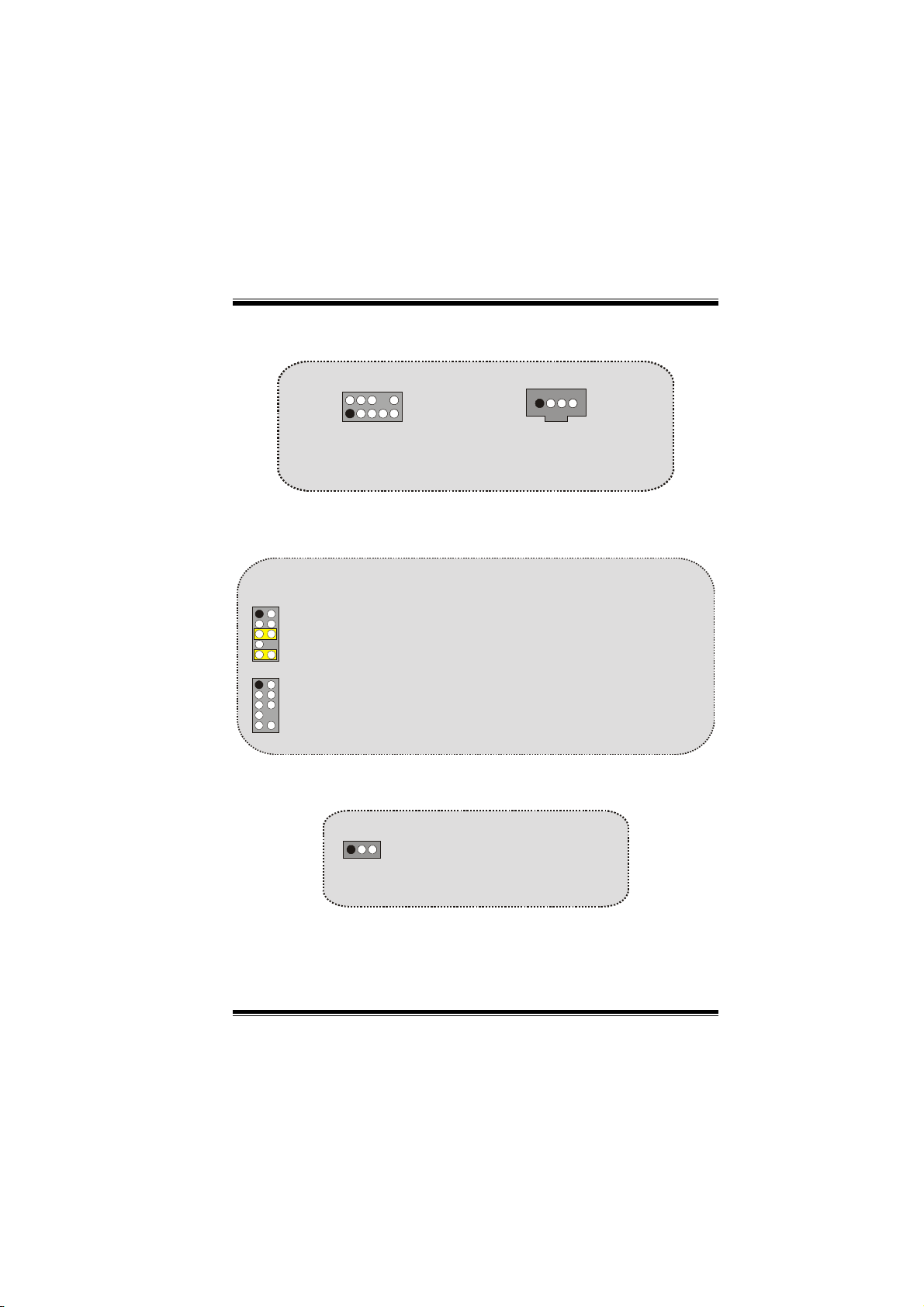

Audio Subsystem: JAUDIO1/ JCDIN1

Clear CMOS Jumper: JCMOS1

Front Panel Audio Connector/ Jumper Block

910

Audio line out signalsare routed

to the back panel audioline outconnector.

Pin 5 and 6

==>

Pin 9 and 10

910

Audio line out and mic in signals are

available for front panel audio connectors.

JCMOS1

Pin 1-2 on ==> Normal Operation

(default)

Pin 2-3 on ==> Clear CMOS Data

JAUDIO1

(Front AudioHeader)

JCDIN1

(CD-ROM Audio-In Header)

JAUDIO1

(Front AudioHeader)

JCDIN1

(CD-ROM Audio-In Header)
