Viotech 3200+ BIOS Manual

BIOS Setup ................................................................................................ 1

1 Main Menu ............................................................................................. 3

2 Advanced Menu...................................................................................... 6

3 PCIPnP Menu....................................................................................... 15

4 Boot Menu............................................................................................. 18

5 Chipset Menu ....................................................................................... 20

6 Performance Menu .............................................................................. 24

7 Exit Menu ............................................................................................. 28

Viotech 3200+ BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to CMOS RAM. The power of CMOS

RAM is s upplied by a battery so that it retains the Setup information when the power

is turned o ff.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and output

devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the

first stage of the booting process, loading and executing the operating system. Some

additional features, such as virus and password protection or chipset fine-tuning

options are also included in BIOS.

The rest of this manual will to guide you through the options and s ettings in BIOS

Setup.

Plug and Play Support

This AMI BIOS supports the Plug and Play Version 1.0A specification.

EPA Green PC Support

This AMI BIOS supports Version 1.03 of the EPA Green PC specification.

APM Support

This AMI BIOS s upports Version 1.1&1.2 of the Advanced Power Management

(AP M) specific ation. Power management features are implemented via the Sys tem

Management Interrupt (SMI). Sleep and Suspend power management modes are

supported. Power to the hard disk drives and video monitors can also be managed by

this AMI BIOS.

ACPI Support

AMI ACP I BIOS suppo rt Vers io n 3.0 of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management and

device configuration capabilities as defined in the ACPI specification, developed by

Microsoft, Intel and Toshiba.

Viotech 3200+ BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component

Interc onnect) local bus spec ific ation.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

Supported CPUs

This AMI BIOS supports the NanoBGA2 CPU.

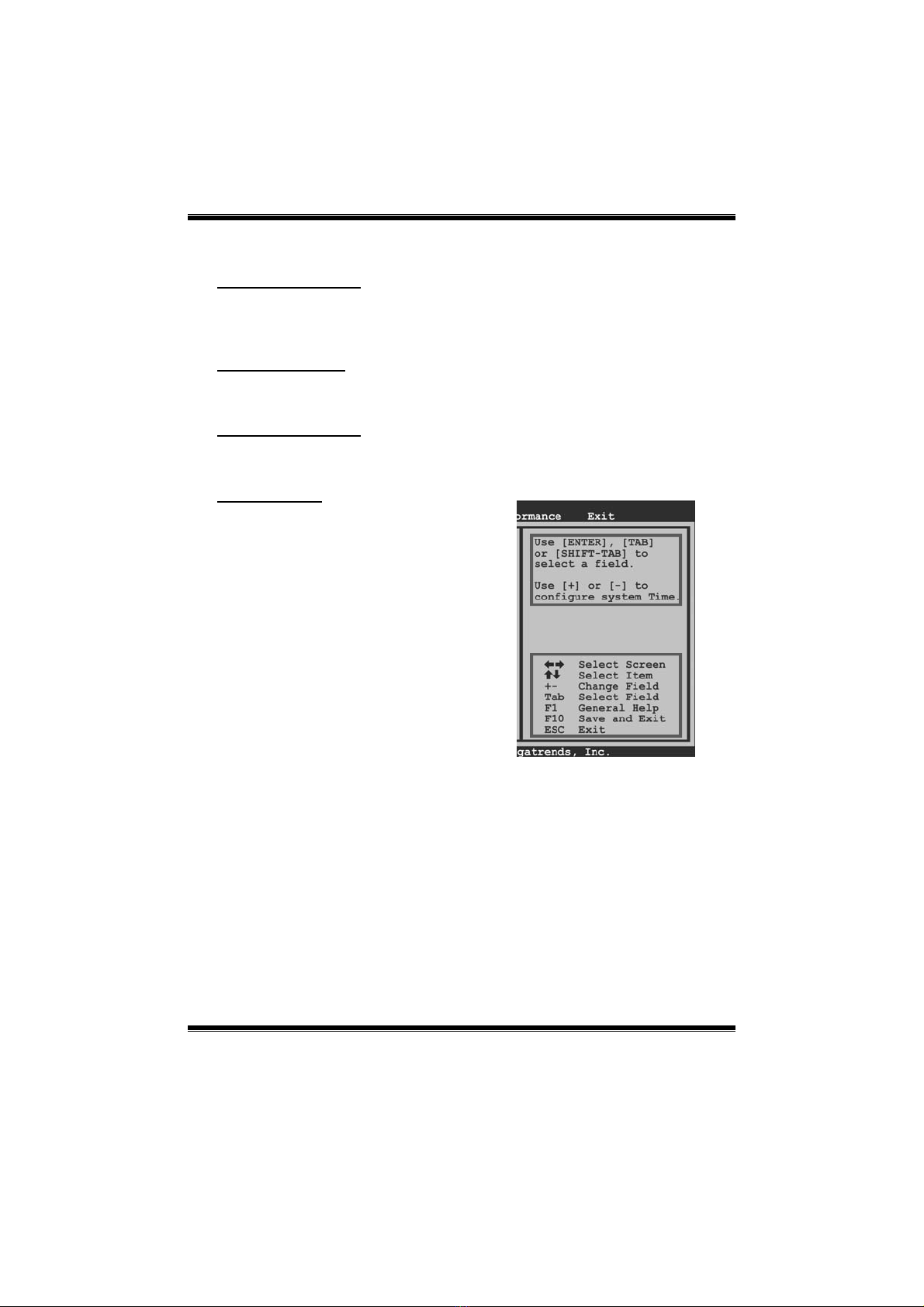

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter the BIOS setup utility.

In the BIOS setup utility, you will see

General Help description at the top right

corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use these keys to select item and c hange

the settings.

Notice

zThe default BIOS settings apply for most conditions to ensure optimum performance

of the motherboard. If the system becomes unstable after changing any settings,

please load the default settings to ensure system’s compatibility and stability. Use

Load Setup Default under the Exit Menu.

zFor better sys tem perfo rmance, the BIOS firmware is being continuous ly updated.

The BIOS information described in this manual is for your reference only. The actual

BIOS information and settings on board may be slightly different from this manual.

zThe content of this manual is subject to be changed without notice. We will not be

responsib le for any mistakes found in this user’s manual and any s ystem damage that

may be c aused by wrong-s ettings.

General Help

Navigation Keys

Viotech 3200+ BIOS Manual

1 Main Menu

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen

providing an overview of the basic system information.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

System Overview

AMI BIOS

System Memory

[ :00:00]

System Date [Sat 01/01/2011]

> SATA Configuration

Version :01.01.01

Build Date:01/01/11

Size :

System Time 00

Exit

AMI BIOS

Shows system information including BIOS version and built date.

System Memory

Shows s ystem memory s ize, VGA shard memory will be excluded..

System Time

Set the s ystem internal c lock.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

Viotech 3200+ BIOS Manual

SATA Configuration

The BIOS will automatically detect the presence of SATA devices. There is a

sub-menu for each SATA device. Select a device and press <Enter> to enter the

sub-menu of detailed options.

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

SATA Configuration

Serial ATA IDE devices

> SATA 2

> SATA 1

While entering setup,

BIOS auto detects the

presence of SATA

devices. This displays

the status of auto

detection of SATA

devices.

SATA 1/2

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Select the type

of device connected

to the system.

SATA 1

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Auto]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

The BIOS detects the informatio n and values of respective devices, and these

info rmation and values are s ho wn b elow to the name o f the sub-menu.

Viotech 3200+ BIOS Manual

Type

Select the type of the IDE/SATA drive.

Options: Auto (Default) / CDROM / ARMD / Not Installed

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block (Multi-Sector Transfer)

Enable or disable multi-sector transfer.

Options: Auto (Default) / Disabled

PIO Mode

Select the PIO mode.

Options: Auto (Default) / 0 / 1 / 2 / 3 / 4

DMA Mode

Select the DMA mode.

Options: Auto (Default) / SWDMA0 ~ 2 / MWDMA0 ~ 2 / UDMA 0 ~ 6

S.M.A.R.T

Set the Smart Monitoring, Analysis, and Reporting Technology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Viotech 3200+ BIOS Manual

2 Advanced Menu

The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system to malfunction.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to malfunction.

> SuperIO Configuration

> Smart Fan Configuration

> Power Configuration

> PCI Express Configuation

> USB Configuration

> Hardware Health Configuration

> CPU Configuration

Exit

CPU Configuration

This item shows the CPU information that the BIOS automatically detects.

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Enabled: CPU speed

is set to minimum.

Disable: CPU speed

is set to maximum

Configure advanced CPU settings

Module Version:01.0D

Manufacturer:VIA

VIA Namp :2007@1600MHz

Frequency :1.60GHz

FSB Speed :800MHz

Cache L1 :128 KB

Cache L2 :1024 KB

Ratio Actual Value:8

VIA Processor Power Management[Enabled]

Viotech 3200+ BIOS Manual

VIA Processor Power Management

Enabled: Enable CPU Power Management function; Dis abled: Disable CPU Power

Management function.

Options: Enabled (Default) / Disabled

SuperIO Configuration

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Allows BIOS to Select

Serial Port1 Base

Addresses.

Configure ITE8728 Super IO Chipset

Serial Port1 Address [3F8/IRQ4]

Serial Port1 Mode [Normal]

Parallel Port Address [378]

Parallel Port Mode [Normal]

Parallel Port IRQ [IRQ7]

Restore on AC Power Loss [Power Off]

Serial Port1 Address

Select an address and corresponding interrupt for the first and second serial ports.

Options: 3F8/IRQ4 (Default) / 2F8/IRQ3 / 3E8/IRQ4 / 2E8/IRQ3 /Disabled

Serial Port1 Mode

Select a mode for Serial Port 1.

Options: Normal (Default) / IrDA / ASK IR

Parallel Port Address

This item allows you to determine access onboard parallel port controller with which

I/O Address.

Options: 378 (Default) / 278 / 3BC / Dis abled

Viotech 3200+ BIOS Manual

Parallel Port Mode

This item allows you to determine how the parallel port should function.

Options: Normal (Default) Using Paralle l port as Standard Printer Port.

EPP Using Parallel Port as Enhanced Parallel Port.

ECP Using Parallel port as Extended Capabilities Port.

ECP+EPP Using Parallel port as ECP & EPP mode.

ECP Mode DMA Channel

This item allows you to select parallel port ECP DMA.

Options: DMA3 (Default) / DMA0 / DMA1

Parallel Port IRQ

This item allows you to select the IRQ for the onboard parallel port.

Options: IRQ7 (Default) / IRQ5 / Disabled

Restore on AC Power Loss

This setting specifies how your system should behave after a power fail or interrupts

occurs. By choosing Disabled will leave the computer in the power off state.

Choosing Enabled will restore the system to the status before power failure or

interrupt occurs.

Options: Power Off (Default) / Power ON / Last State

Smart Fan Configuration

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

When you choice smart

fan mode,

please run the

calibration to define

the Fan parameters for

Smart Fan control

Smart Fan Configuration

CPU Smart Fan [Disabled]

Smart Fan Calibration

Control Mode

Fan Ctrl OFF( C)

Fan Ctrl On( C)

Fan Ctrl Start value

Fan Ctrl Sensitive

Viotech 3200+ BIOS Manual

CPU Smart Fan

This item allows you to control the CPU Smart Fan function.

Options: Disabled (Default) / Auto / 3Pin / 4Pin

Smart Fan Calibration

Choose this item and then the BIOS will auto test and detect the CPU fan functions

and show CPU fan speed.

Control Mode

This item provides several operation modes of the fan.

Options: Manual (Default) / Quiet / Performance

Fan Ctrl OFF(℃)

If the CPU Temperature is lower than the set value, the fan will turn off.

Options: 0~127 (℃) (W ith the interval of 1℃)

Fan Ctrl On(℃)

CPU fan starts to work when the temperature arrives this set value.

Options: 0~127 (℃) (W ith the interval of 1℃)

Fan Ctrl Start Value

When CPU temperature arrives to the set value, the CPU fan will work under Smart

Fan F unction mod e.

Options: 0~127 (With the interval of 1)

Fan Ctrl Sensitive

Increasing the value of slope PWM will rais e the speed of CPU fan.

Options: 0~127 (With the interval of 1)

Inhaltsverzeichnis

Andere Biostar Hauptplatine Handbücher

Biostar

Biostar H61M U3 Bedienungsanleitung

Biostar

Biostar N3700NH Benutzerhandbuch

Biostar

Biostar M7VIS Bedienungsanleitung

Biostar

Biostar G31D-M7 Benutzerhandbuch

Biostar

Biostar U8868 Benutzerhandbuch

Biostar

Biostar TH55XE - BIOS Bedienungsanleitung

Biostar

Biostar H61B Bedienungsanleitung

Biostar

Biostar Hi-Fi B150Z5 Bedienungsanleitung

Biostar

Biostar NF720D A2G PLUS - BIOS Bedienungsanleitung

Biostar

Biostar 945P-A7A Benutzerhandbuch

Biostar

Biostar N4SLI-A9 Benutzerhandbuch

Biostar

Biostar P41D3 - BIOS Bedienungsanleitung

Biostar

Biostar M7 SUA Bedienungsanleitung

Biostar

Biostar A520MH 3.0 Bedienungsanleitung

Biostar

Biostar P31-A7 Benutzerhandbuch

Biostar

Biostar TZ75MXE Benutzerhandbuch

Biostar

Biostar Z590GTA Bedienungsanleitung

Biostar

Biostar BIH11-AHA Bedienungsanleitung

Biostar

Biostar I86PE-A7 Benutzerhandbuch

Biostar

Biostar J4105TH Bedienungsanleitung

Biostar

Biostar B350ET2 Bedienungsanleitung

Biostar

Biostar B250GT6 Bedienungsanleitung

Biostar

Biostar P4VMA-M Benutzerhandbuch

Biostar

Biostar A740G M2 PLUS SE - BIOS Benutzerhandbuch

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
