Bischoff & Bischoff ROTEGO Bedienungsanleitung

Enjoy mobility.

Bedienungsanleitung

Enjoy mobility.

Instruction Manual

Rotego

Bischoff & Bischoff GmbH | 25.04.2016

Rotego | Rollator Rollator | Rotego

5. Use 12

6. Technical data 14

7. Maintenance tips for users 15

7.1. Cleaning and disinfection 15

7.2. Rollator check by the user 16

7.2.1. Brake Inspection 16

7.2.2. Checking the tyres 16

8. Maintenance tips for retailers 17

9. Storage/shipping 17

10. Transfering the rollator 18

11. Disposal 18

12. Warranty 19

Index

1. Introduction 4

1.1. Signs and symbols 4

2. Important safety Instructions 5

2.1. General safety instructions 5

2.2. Indications / Contraindications 5

2.3. Purpose 6

2.4. Declaration of conformity 6

2.5. Resposibility 6

2.6. Service life 6

3. Description of product and contents 7

3.1. Inspection on delivery 7

3.2. Type plate and serial number 8

3.3. Contents 9

3.4. Summary 9

4. Assembly/adjustments 10

4.1. Unfolding 10

4.2. Folding 10

4.3. Korb anbringen 10

4.4. Adjusting the push handles 11

4.5. Adjusting / activating the brakes 11

4.6. Wheels and tyres 12

Bischoff & Bischoff GmbH | 25.04.2016

Rotego | Rollator Rollator | Rotego

Important! This is especially useful information on

a given subject.

Warning! These are especially safety-relevant

instructions. Follow the directions in the manual!

1. Introduction

Dear user,

By purchasing a B+B Rotego rollator, you are now the owner of a top-

quality German product that is setting new standards in terms of its

variability. This instruction manual is intended to help you become

more familiar with the operation and use of the rollator.

Please read and follow the instruction manual carefully before using

your new rollator for the first time. The instruction manual is an integral

and necessary component of the product. Keep the instruction manual

where you can refer to it, and if you transfer the rollator to another user,

please provide the manual to the new owner.

For visually impaired users, this document is available as a PDF file at

our website www.bischoff-bischoff.com.

Any repairs and adjustments require special technical training and may

therefore only be carried out by authorized B+B dealers.

1.1. Signs and symbols

2. Important safety Instructions

2.1. General safety instructions

• Max. load of Rotego: 130kg!

• Pinch risk! Be careful when folding up and unfolding the rollator.

Make sure that clothing and body parts are not pinched between

the folding parts of the rollator.

• Observe the minimum insertion depth of the handholds.

• Each brake affects only one wheel.

• The basket can carry a weight of max. 5 kg.

• Do not use aggressive or caustic detergents to clean the rollator!

• Check that the rollator is fully intact each time before using it.

Check that the brake is working.

• Have your mobility dealer check the brakes every six months!

• The surfaces of the rollator can heat up when exposed to direct

sunlight. There is a risk of injury.

2.2. Indications / Contraindications

• The rollator supports mobility-impaired users to walk, e.g. at home,

for shopping or walking outdoors.

• The seat allows the user to rest during longer periods of use.

• Only use the rollator on a level and firm surface.

• The rollator may not be used as an aid for climbing or for

transportation of heavy loads.

Bischoff & Bischoff GmbH | 25.04.2016

Rotego | Rollator Rollator | Rotego

2.3. Purpose

The rollator is intended to support mobility of persons with an impaired

ability to walk, in accordance with the above-mentioned indications.

Please note:

We are only able to issue a guarantee if the product is used in

accordance with the specified conditions and for the specified purpose.

2.4. Declaration of conformity

B+B, as manufacturer and solely responsible party, hereby declares that

the rollator Rotego complies with the requirements of the EC Directive

93/42.

2.5. Resposibility

We are only able to provide a warranty if the product is used in

accordance with the specified conditions and for the intended purposes.

If modifications, repairs or maintenance works are made, please make

sure only authorised persons perform these works in accordance to the

instructions of B+B.

2.6. Service life

If used as intended, and the safety, care and maintenance instructions

are observed, the expected service life is up to 5 years. Beyond this time

the rollator can be used continuously, provided it is in a safe condition.

3. Description of product and

contents

3.1. Inspection on delivery

All B+B rollators are subject to a proper final inspection in our house

and receive the CE mark.

The rollator is supplied in a special box. After unpacking save the box

if possible. You may need it later for storage or to return the product.

Assembly, adjustment to your body size and first instructions are taken

care of by your qualified mobility dealer.

If delivered by rail or a forwarding agent, the product is to be checked

with regard to transportation damage at once in the presence of the

shipper.

Check the contents for completeness and make sure nothing is

damaged. Should you find any irregularities or damage, please contact

our customer service (Tel.: +49 700 6000 7070).

Bischoff & Bischoff GmbH | 25.04.2016

Rotego | Rollator Rollator | Rotego

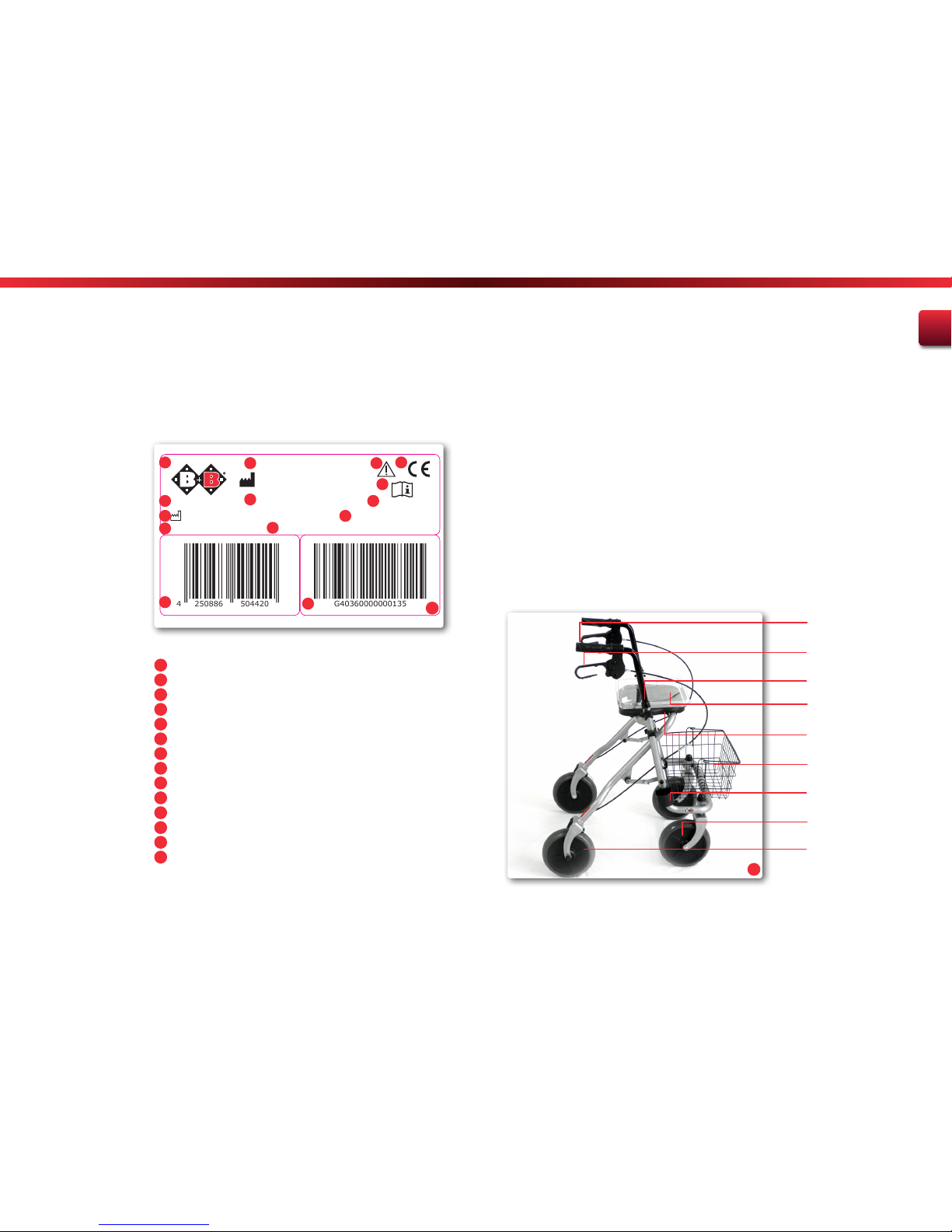

3.2.Type plate and serial number

The type plate (Fig. 1) and serial number are located on the bottom of

the frame.

Manufacturer‘s logo

Manufacturer‘s information

Caution! - Follow instructions for use

CE mark

Important! - Follow instructions for use

Model designation

Application class

Model number

Date of manufacture

Carrying capacity of the basket

Maximum load capacity

Required dimensions

EAN 13 item number

Serial number

Bischoff & Bischoff GmbH

Becker-Göring-Straße 13

D - 76307 Karlsbad

Telefon 0700 - 60007070

CE Sticker & EAN Codes (Size 80 mm x 23 mm)

Rollator

EAN 13 SN

Payload of the basket: 5kg

Max. user weight: 130kg

Angle of push handles max.: 0°

Max. height of push handles: 950mm

Max. width: 580mm

Model: Rotego Indoor and Outdoor Rollator

2016-01

Model no.: 4036

AB C

3.3.Contents

After receiving the goods, please check the contents for completeness

right away. The content consists of:

• Outer package

• Rollator pre-assembled

• Instruction manual

• Basket

• Tray

3.4.Summary

Product overview Rotego (Fig. 2):

Handles

Brakes

Handhold

Tray

Seat

Basket

Cane holder

Steered wheel

Fixed wheel

Bischoff & Bischoff GmbH | 25.04.2016

1110

Rotego | Rollator Rollator | Rotego

4. Assembly/adjustments

4.1. Unfolding

• Position the rollator in the travel direction.

• Release the locking brakes (see sec. 4.5.).

• Tip the B+B rollator towards yourself until the load is taken off the

steered wheels and press the handles downwards at the same time

with a gentle jolt.

• To lock the folding mechanism, now fold the seat plate tight to

your seat (Fig. 3). This locks the rollator.

4.2.Folding

• Position the rollator in the travel direction.

• Activate the locking brakes.

• Hold the rollator firmly with one hand on the handle (Fig. 4).

• Now grasp the slot provided in the seat plate and simply pull it

upwards. Ensure that neither body parts nor pieces of clothing

become pinched during the folding process.

4.3.Attach basket

• The rollator is unfolded. Activate the locking brakes.

• Position yourself against the travel direction in front of the rollator.

• The basket can be hung on the hooks on the left and right of the

rollator (Fig. 5) and sits on the frame.

• To remove the basket, simply grasp the carrying handle and pull it

up and off.

• Place the tray onto the seat from above in such a way that the four

plastic pins of the tray fit into the holes of the seat (Fig. 6).

4.4.Adjusting the push handles

• The rollator is unfolded. Activate the locking brakes.

• Turn the plastic screws on the handholds until the handles move

freely (Fig. 7).

• Position yourself behind the B+B rollator and allow your arms to

hang loosely downwards.

• Now adjust the push handles so that they are located at the height

of your wrists. Select the nearest hole in the push tube.

• Retighten the plastic screws after the adjustment procedure.

Observe the minimum insertion depth.

• Repeat this procedure on the other side.

• Check to make sure that both the push handles are at the same

height.

4.5.Adjusting / activating the brakes

Service brake

To activate the service brake, pull both handbrake levers upward on

the push handles upward (Fig. 8). Service and locking brake act on the

fixed wheels.

Locking brake

• Press down on both brake levers to activate the locking device

(Fig. 9).

• To release the locking brake pull both brake levers back into middle

position.

Bischoff & Bischoff GmbH | 25.04.2016

1312

Rotego | Rollator Rollator | Rotego

Adjusting the brakes

We recommend adjusting the brakes together with your mobility

dealer. If you have the necessary technical knowledge, you can do this

yourself as well.

The brake is set properly, if the brake pins do not touch the wheel and

the locking brake can be activated easily.

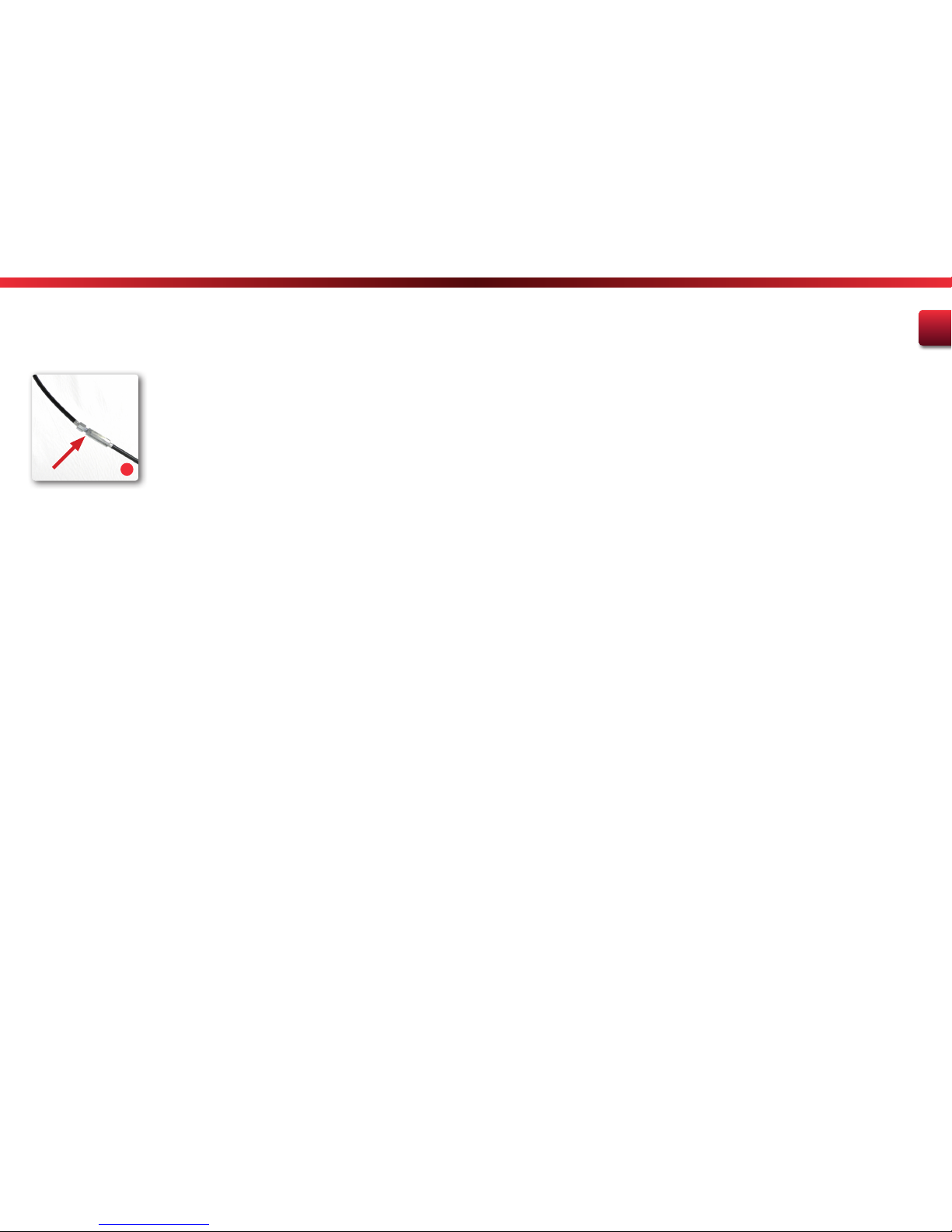

• Loosen the locknut (Fig. 11, arrow) so the adjustment nut can turn.

• Now turn the wide adjustment nut further inwards or outwards to

increase or decrease the braking effect.

• Retighten the locknut.

• Repeat the procedure on the other brake if necessary.

4.6.Wheels and tyres

Your rollator is equipped with flat-proof PU wheels 200 x 50 mm.

5. Use

Walking

Make your first attempts to walk with the rollator on a level, firm

surface. Familiarise yourself with the function of the brakes. Let

someone accompany you during this initial period.

For an anatomically correct gait, the push handles must be set at

proper height (see sec. 4.4.).

• Place yourself in the rollator so that your ankles are at the height of

the rear wheels.

• Stand with good posture.

• Grasp the push handles with both hands and your arms bent at a

slight angle.

When walking with the rollator try to stay as close as possible with

the body to the push handles. This increases the stability and safety

against tipping over; in addition, avoid a crooked back. Try to generally

walk in the rollator and not behind it. Take small steps and do not push

the rollator too far ahead.

You can determine the change of direction and speed by pushing

the rollator. Always use the brakes to slow down your movement. The

rollator could otherwise turn with the unbraked wheel and the braked

wheel, and could fall over.

Go around obstacles whenever possible. Try to use ramps or take lifts. If

this is not possible, the rollator must be carried over the obstacle. Find

a second person to help you do this, if possible.

The seat

The rollator is also designed to be used as a seat by the user for short

breaks. It is therefore equipped with a seating area. You must absolutely

activate the locking brakes before sitting down. The rollator could roll

away and you could fall.

Lifting points

You can lift the rollator on the grips or frame sections, in order to carry

it over obstacles or steps.

Bischoff & Bischoff GmbH | 25.04.2016

1514

Rotego | Rollator Rollator | Rotego

6. Technical data

Dimensions and weights

Type: Rollator

Colour: Silver

Model: 4036

Height (push handle height): 800 mm - 950 mm

Length: 600 mm

Folded: 340 mm

Width: 580 mm

Width between handles: 450 mm

Width of handles: 30 mm (support surface 50 mm)

Angle of push handles max.: 0°

Seat height: 605 mm

Seat width: 350 mm

Effective seat width: 450 mm

Turning radius: 735 mm

Weight: 8,8 kg including basket and tray

Max. load: 130 kg

Max. load of bag: 5 kg

Tyres

Rear wheels: 200 x 50mm

Steered wheels: 200 x 50mm

Material

Frame: steel, corrosion-resistant coating

Handles: PP

Seat: PP

Flammability: flame-retardant

Operating conditions

Temperature: 0 to 50 °C

Air humidity: 20 to 80 %

Storage conditions

Temperature: -20 to + 60 °C

Air humidity: 45 to 60 %

• Including basket, tray and cane holder

• Anatomically shaped handles

• Combined operating and locking brake

• Stable steel design, corrosion-resistant coating

• Non-rotating handholds

7. Maintenance tips for users

7.1. Cleaning and disinfection

• The frame and the paneling of the wheelchair can be cleaned with

a moist cloth. You can use a mild detergent for more stubborn dirt.

• The wheels can be cleaned with a wet synthetic fiber brush (do not

use a wire brush!)

• Push handles, arm pads and seat pads can be washed off. Use a

mild detergent.

• Use a disinfectant listed by VAH for disinfection.

Bischoff & Bischoff GmbH | 25.04.2016

1716

Rotego | Rollator Rollator | Rotego

7.2.Rollator check by the user

7.2.1.Brake Inspection

Make sure your brakes are operating properly before each use.

It should not be possible to push the rollator away while the brakes

are activated.

The rollator should be easy to drive without grinding noises and with

good direction stability when the brakes are released.

If you notice unusual behaviour when braking, inform your qualified

mobility dealer immediately and do not use the rollator.

7.2.2.Checking the tyres

Check whether the tyres are intact every time before driving.

If the tyre is damage, it must be repaired by an authorised dealer.

8. Maintenance tips for retailers

We recommend that the brakes of the rollator be inspected by the

mobility dealer every six months.

If faults or defects at the rollator are found, it must be returned to the

dealer for repair immediately.

The dealer can receive the required information and documentation for

repair and service on request. A training program is also available for

dealers.

B+B customer service is available at +49 (0)700/60007070.

9. Storage/shipping

If the rollator is to be stored or shipped,it is advisable to retain the

original packaging.

Your rollator will have an optimum protection against environmental

influences during storage and transport.

The rollator must be inspected in accordance to the

service plan and must be in good condition.

Bischoff & Bischoff GmbH | 25.04.2016

1918

Rotego | Rollator Rollator | Rotego

12. Warranty

The warranty covers all defects of the rollator that are demonstrably

due to material or manufacturing defects.

Any claim must be accompanied by the completely filled-out warranty

certificate.

Our products come with a statutory guarantee of 2 years. For

replacement devices and repairs, a warranty period of 1 year applies.

Please also observe the B+B care, warranty, hygiene and maintenance

instructions. Your qualified mobility dealer will be happy to provide

these to you.

If you wish to dispose the rollator yourself, please

contact a local recycling company for the disposal

regulations of your local jurisdiction.

10. Transfering the rollator

The Rotego rollator is suitable for re-use. For further use, the rollator

must first be thoroughly cleaned and disinfected in accordance with

the attached care and maintenance instructions. Subsequently the

product has to be inspected to establish its general condition and any

wear or damage by an authorised dealer and repaired if necessary.

Please also observe the B+B care, warranty, hygiene and maintenance

instructions. Your qualified mobility dealer will be happy to provide

these to you.

11. Disposal

If the rollator is no longer used and you wish to dispose it, please

contact your dealer.

Warning! Non-observance of the instruction

manual, improper maintenance and in particular

any technical changes and supplements (added

fittings) without the approval of B+B will generally

lead to forfeiture of warranty and product liability

claims.

Inhaltsverzeichnis

Andere Bischoff & Bischoff Mobilitätshilfe Handbücher

Bischoff & Bischoff

Bischoff & Bischoff RL 120 SL Bedienungsanleitung

Bischoff & Bischoff

Bischoff & Bischoff Senio Bedienungsanleitung

Bischoff & Bischoff

Bischoff & Bischoff B Bedienungsanleitung

Bischoff & Bischoff

Bischoff & Bischoff Rollator B Bedienungsanleitung

Bischoff & Bischoff

Bischoff & Bischoff Scooter Agil Bedienungsanleitung

Bischoff & Bischoff

Bischoff & Bischoff RL 120 Bedienungsanleitung

Bischoff & Bischoff

Bischoff & Bischoff Senio SRL Bedienungsanleitung

Bischoff & Bischoff

Bischoff & Bischoff RL-smart Bedienungsanleitung

Bischoff & Bischoff

Bischoff & Bischoff ToGo Bedienungsanleitung

Bischoff & Bischoff

Bischoff & Bischoff Rollator B Bedienungsanleitung

Bischoff & Bischoff

Bischoff & Bischoff Rollator RL-smart Bedienungsanleitung

Bischoff & Bischoff

Bischoff & Bischoff Delta B Bedienungsanleitung

Beliebte Mobilitätshilfe Handbücher anderer Marken

Alber

Alber Scalamobil iQ Bedienungsanleitung

Ferno

Ferno CCT-PX Bedienungsanleitung

HEPRO

HEPRO Gripo Bedienungsanleitung

Otto Bock

Otto Bock Pheon 3R62 Bedienungsanleitung

NRS Healthcare

NRS Healthcare M11090 Bedienungsanleitung

Medline

Medline MDS86835DSHEC Installationsanleitung

Guldmann

Guldmann Twin Turner II Bedienungsanleitung

Drive

Drive ROOMBA Bedienungsanleitung

Gate

Gate Balder Bedienungsanleitung

Decon wheel

Decon wheel TNS Notos Bedienungsanleitung

ExoAtlet

ExoAtlet ExoAtlet-II Bedienungsanleitung

Invacare

Invacare Storm Series Bedienungsanleitung

Rhythm Healthcare

Rhythm Healthcare B3800F Bedienungsanleitung

AMF-BRUNS

AMF-BRUNS PROTEKTOR Bedienungsanleitung

Drive DeVilbiss Healthcare

Drive DeVilbiss Healthcare OTTER Bedienungsanleitung

Rhythm Healthcare

Rhythm Healthcare C500U Bedienungsanleitung

Lumex

Lumex RJ4200A Bedienungsanleitung

Rebotec

Rebotec Jumbo Bedienungsanleitung
