BIXOLON SRP-770/UPS Bedienungsanleitung

KN04-00016A

Rev. 1.05

USER’S MANUAL

SRP-770/UPS, SRP-770-999

LABEL PRINTER

www.samsungminiprinters.com

Safety Precautions

In using the present appliance, please keep the following safety

regulations in order to prevent any hazard or material damage.

Violating following instructions can cause serious injury or death.

Do not plug several products in one

multi-outlet.

This can provoke over-heating and a fire.

If the plug is wet or dirty, dry or wipe it

before usage.

If the plug does not fit perfectly with the

outlet, do not plug in.

Be sure to use only standardized

multi-outlets.

You must use only the supplied adapter.

It is dangerous to use other adapters.

Do not pull the cable to unplug.

This can damage the cable, which is the

origin of a fire or a breakdown of the printer.

Keep the plastic bag out of children’s reach.

If not, a child may put the bag on his head.

Do not plug in or unplug with your hands

wet.

You can be electrocuted.

Do not bend the cable by force or leave it

under any heavy object.

A damaged cable can cause a fire.

If you observe a strange smoke, odor or

noise from the printer, unplug it before

taking following measures.

Switch off the printer and unplug the set

from the mains.

After the disappearance of the smoke, call

your dealer to repair it.

WARNING

PROHIBITED

ONLY SUPPLIED ADAPTER

PROHIBITED

TO UNPLUG

PRINTER

Violating following instructions can cause slight wound or damage the appliance.

Keep the desiccant out of children’s

reach.

If not, they may eat it.

Install the printer on the stable surface.

If the printer falls down, it can be broken

and you can hurt yourself.

Use only approved accessories and do

not try to disassemble, repair or remodel

it for yourself.

Call your dealer when you need these

services.

Do not use the printer when it is out of

order. This can cause a fire or an

electrocution.

Switch off and unplug the printer before

calling your dealer.

Do not let water or other foreign objects

in the printer.

If this happened, switch off and unplug the

printer before calling your dealer.

CAUTION

PROHIBITED

PRINTER

DISASSEMBLING

PROHIBITED

PRINTER

PROHIBITED

PRINTER

DEALER

TO UNPLUG

Table of Contents

1. Unpacking & Repacking.........................................................................5

2. Samsung Label Printer ...................................................................6

3. Connecting the Power Supply......................................................7

4. Connecting the Interface Cable .................................................. 8

5. Installing or Replacing the Paper Roll......................................9

6. Setting the Dip Switches .............................................................10

7. The Self Test.....................................................................................12

8. The hex Dump Mode......................................................................13

9. The Peel-off ......................................................................................14

10. Using Fan Fold Paper ..................................................................15

11. Cleaning Head ...............................................................................16

12. Driver Install Guide.....................................................................17

I. To install SRP-770 windows driver

II. To use USB interface

III. Tip & Trouble shooting

13. The trouble shooting Table ......................................................30

1. Unpacking & Repacking

Your printer box should include these items. If any items are damaged or missing,

please contact your dealer for assistance.

Note : Please keep the packing materials(①,②,④,⑥) for future repacking to send

a printer for repairs.

SRP-770

Thermal label Printer

Quick Guide

Samsung

Label Printer SRP-770

ⓒ

Label Craft

Dynamic Label

Design Software

Software and

Documentation

V1.1

InstallSoftware

1. Insert the CD into the

CD-ROM drive.

2. Follow the on -screen

instructions to install

the program.

Label Printer

⑧User’s Manual & CD ⑨Label

(Paper)

⑦Power Cord

⑤Printer (SRP-770)

③Power Supply

④Pe-bag

①Printer Box

②Cushion

(

Bottom

)

⑥Cushion

(

)

※You can repack the printer package in above numeric order(①~⑨)

⑦USB Cable

⑦Parallel Cable

⑦Clean Pen

2. Samsung Label Printer

Feed Button

Cover Peel-of

Status Indicator

Cover Open/Close

Power Switch

Printer Head

Paper Holder

Paper Guide

Peel-off Sensor

Paper(gap) Sensor Paper Adjuster

Power Connector

Interface Connectors

(RS-232C, IEEE1284, USB)

Dip Switch

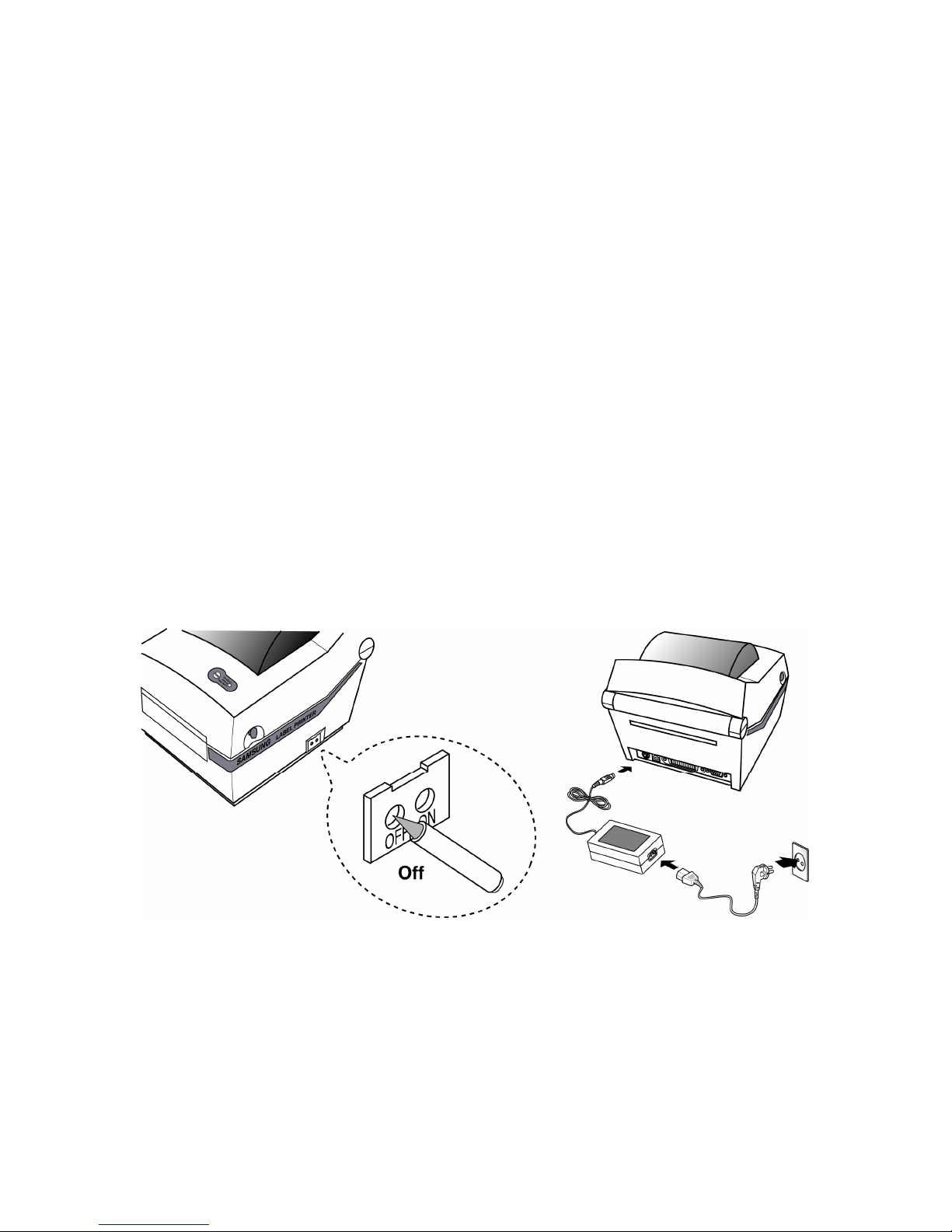

3. Connecting the Power Supply

CAUTIONS:

When connecting or disconnecting the power supply from the printer, make sure that

the power supply is not plugged into an electrical outlet. And the power supply’s

rated voltage and your outlet’s voltage do not match, contact your dealer for

assistance. Then do not plug in the power cord. Otherwise, you may damage the

power supply or the printer.

1. Make sure that the printer’s power switch is turned off, and the power supply’s

power cord is unplugged from the electrical outlet.

2. Check the label on the power supply to make sure that the voltage required by the

power supply matches that of your electrical outlet.

3. Plug in the power supply’s cable as shown below. Notice that the flat side of the

plug faces down.

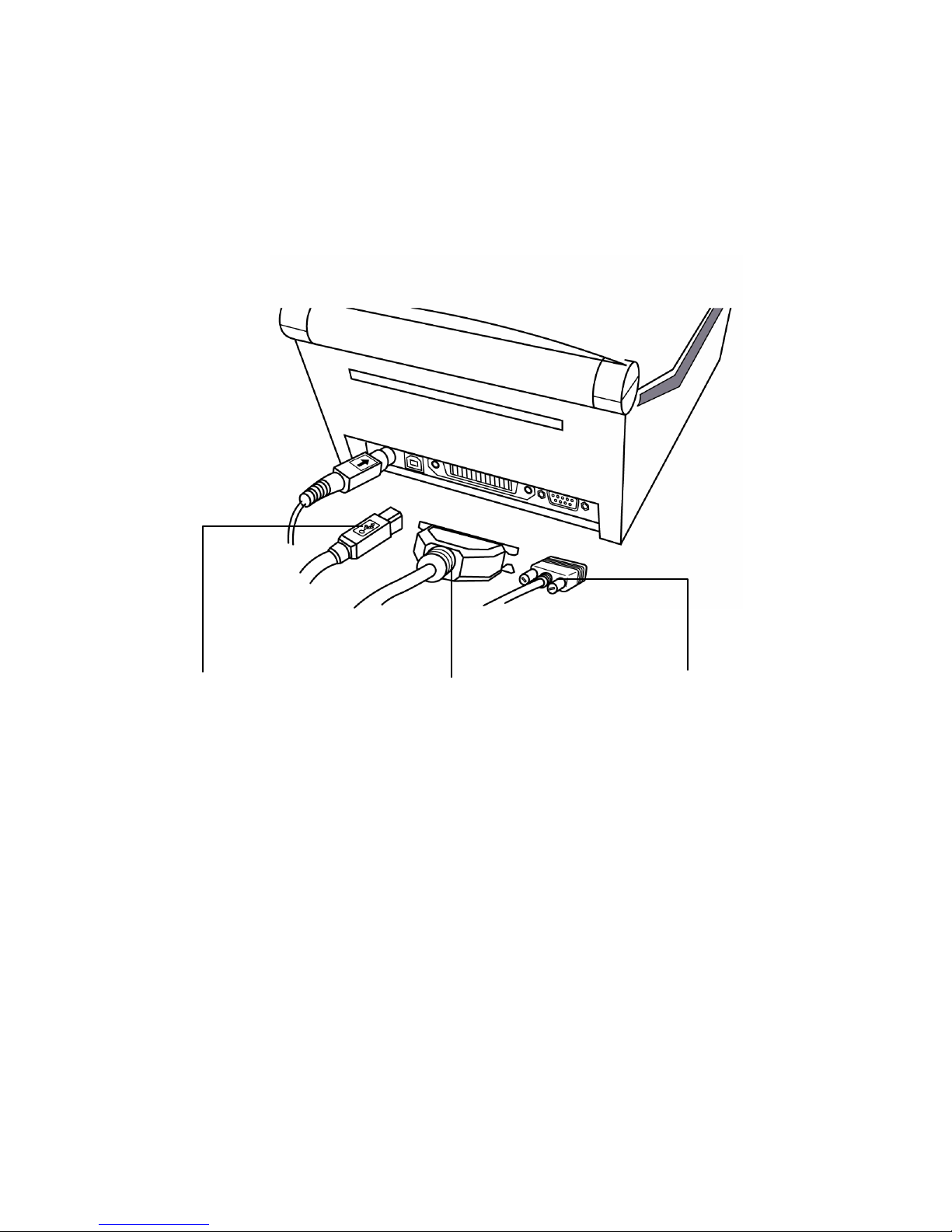

4. Connecting the Interface Cable

Universal Serial Bus

(USB) Serial Interface

RS-232 default

setting is 19200 baud,

no parity, 8 data bits

and 1 stop bit

Parallel Interface

Installing or Replacing the Paper Roll

①Open Cover ②Open Guides

③Install Roll

⑤Close Cover

④Close Guides to the Width of the paper
