BIXOLON BK3-31 Bedienungsanleitung
User’s Manual
BK3-31
KIOSK PRINTER
Rev. 1.00
http://www.bixolon.com
BK3-31
Introduction
BK3-31 printers have been designed to be connected to various types of kiosk system.
※
The main features of the printer
1. KIOSK PRINTER
2. Low-noise thermal transfer method printing
3. Maximum 250mm/s printing speed
4. External size
- Diameter Φ 80: 130 x 130 x 91 (W x D x H)
- Diameter Φ 102: 130 x 137 x 99 (W x D x H)
- Diameter Φ 120: 130 x 144 x 105 (W x D x H)
5. Serial/USB communication
6. Equipped with data buffer (receives print data even while printing)
7. Can print a range of barcodes
8. Range of printing density selectable(controlled with virtual memory switch management)
It is advisable to read the contents of this manual carefully before using the printer for the first
time.
※
Use only authorized supplies that can be trusted!
- We are not responsible for quality and service for damage caused by the use of
unauthorized products(or recycled ones).
Safety Information
Warning: Warnings must be heeded carefully in order to prevent serious
physical harm.
Caution: Cautions must be heeded in order to prevent minor injuries, equipment
damage, or data loss.
Rev. 1.00 - 2 -
BK3-31
Table of Contents
1. Installing Printer and Getting Started.................................................................................4
1-1 Unpacking.........................................................................................................................4
1-2 Interface............................................................................................................................5
1-2-1 Serial Interface: Dsub 9P Type (RS-232C)............................................................5
1-2-2 Serial Interface: Connector 5P Type (RS-232C) ...................................................6
1-3 Power Supply Port and Connecting Power Supply ...........................................................7
1-4 Reconfiguration of Printer..................................................................................................9
1-4-1 DIP Switch 1..........................................................................................................9
1-4-2 MSW (Memory Switch) .......................................................................................10
1-5 Product Part Names........................................................................................................16
1-6 Installing & Replacing Paper...........................................................................................17
1-7 Adjusting Near End Sensor.............................................................................................20
1-8 Removing Paper Jam......................................................................................................21
1-9 Using Printer Functions...................................................................................................22
2. Self-Test..............................................................................................................................23
3. Cleaning Printer..................................................................................................................26
4. Specifications.....................................................................................................................27
Rev. 1.00 - 3 -
BK3-31
1. Installing Printer and Getting Started

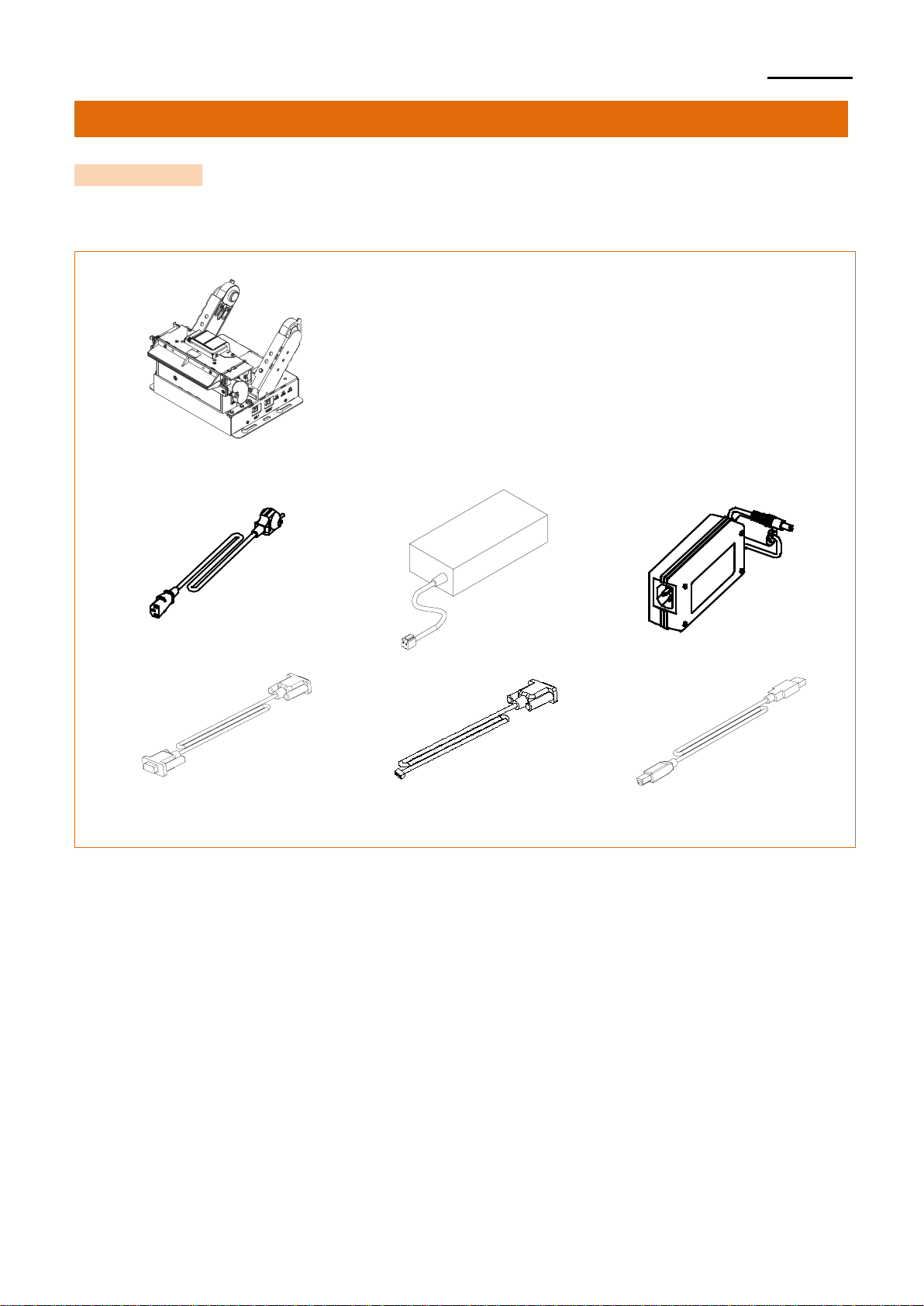

1-1 Unpacking
• Check the following contents list, and contact your dealer for assistance if any item is
missing or incorrect.
- Product
BK3-31
- Optional Components
Power Cord
AC/DC Adaptor(2P)
AC/DC Adaptor(5P)
v
Serial Cable
(9pin - 9pin) Connecter Cable
(5pin – 9pin) USB A-B Cable
Rev. 1.00 - 4 -
BK3-31
1-2 Interface
• Connect the printer to the host computer using the right interface cable that complies with
the specifications of the interface
1-2-1 Serial Interface: Dsub 9P Type (RS-232C)
DSUB 9pin
Pin No.
Signal Name Direction Function
1
NC
-
-
2
RxD
Input
Receive Data
3
TxD
Output
Transmit Data
4
DTR
Output
Data Terminal Ready
5
GND
-
Signal Ground
6
DSR
Input
Data Set Ready
7
RTS
Output
Ready To Send
8
CTS
Input
Clear To Send
9
NC
-
-
Caution After turning off the power switch of printer, connect and discon
nect the communication cable.
○
5○
4○
3○
2○
1
○
9○
8○
7○
6
USB Port
Serial Cable Port
Power Port
Rev. 1.00 - 5 -
BK3-31
1-2-2 Serial Interface: Connector 5P Type (RS-232C)
DSUB 9pin
Pin No.
Signal Name Direction Function
1
CTS
Input
Clear To Send
2
RxD
Input
Receive Data
3
TxD
Output
Transmit Data
4
RTS
Output
Ready To Send
5
GND
-
Signal Ground
Caution After turning off the power switch of printer, connect and disco
nnect the communication cable.
⑤①
USB Port
Connector Cable Port
Power Port
Rev. 1.00 - 6 -
BK3-31
1-3 Power Supply Port and Connecting Power Supply
1) Make sure the product is turned off before connecting the power supply.
2) Connect the power cable with the flat side pointing downward of the printer, as shown in
the diagram below.
Power Port
Power Cable
Rev. 1.00 - 7 -
BK3-31
Caution
- Only use a power supply provided by Bixolon. Bixolon shall
bear no responsibility for damage caused by using a third-party
power supply.
- Check the power supply’s label to check its electronic specs.
- When removing the power supply, make sure you have a firm
grasp of the plug terminal of the power cable and the printer
and pull horizontally.
- When connecting or disconnecting power, make sure to remove
the power supply from the power outlet before removing.
- Pay attention to the direction in which you insert the power
cable.
Warning Do not connect a voltage out of the specifications of the power
supply. It can cause damage to the product or a fire.
O
X
O
X
Rev. 1.00 - 8 -
BK3-31
1-4 Reconfiguration of Printer
• This product supports dip switch. In order to change the product settings, change the dip
switch setting or use the virtual memory switch utility. Use virtual memory switch
management function for self-diagnosis.
1-4-1 DIP Switch 1
Switch
Function
ON
OFF
Default
1-1
Baud rate selection
(bps)
* Refer to following Table 1
OFF
1-2
OFF
1-3
-
-
-
OFF
1-4
Black mark mode
Enable
Disable
OFF
* Table 1 – Baud rate (bps) selection
Baud rate (bps)
1-2
1-1
Default
115,200
OFF
OFF
115,200
38,400
OFF
ON
19,200
ON
OFF
9,600
ON
ON
* Flow control, data length, and parity bits can be changed via virtual memory switch settings.
(Refer to MSW 8).
Rev. 1.00 - 9 -
BK3-31
1-4-2 MSW (Memory Switch)
1) MSW 1
Switch
Function
ON
OFF
Default
1-1
Select print
speed * Refer to following Table 2
OFF
1-2
OFF
1-3
OFF
1-4 -- -OFF
1-5 -- -OFF
1-6
Select print
density * Refer to following Table 3
OFF
1-7
OFF
1-8
OFF
* Table 2 – Print speed selection
Print speed
1-3
1-2
1-1
Default
250mm/s
OFF
OFF
OFF
250mm/s
230mm/s
OFF
OFF
ON
200mm/s
OFF
ON
OFF
170mm/s
OFF
ON
ON
150mm/s
ON
OFF
OFF
130mm/s
ON
OFF
ON
120mm/s
ON
ON
OFF
100mm/s
ON
ON
ON
* Table 3 – Print Density Selection
Print Density
1-8
1-7
1-6
Default
Density Level 4
(Darkest)
OFF OFF OFF
Density Level 4
Density Level 3
OFF
OFF
ON
Density Level 2
OFF
ON
OFF
Density Level 1
OFF
ON
ON
Rev. 1.00 - 10 -
