BIXOLON SLP-TX420 Versionshinweis

Windows Driver Manual

Label Printer

Rev. 1.00

SLP-TX420 / TX420E

SLP-TX423 / TX423E

http://www.bixolon.com

SLP-TX420x/TX423x

Rev. 1.00

- 2 -

■Table of Contents

1. Manual Information........................................................................................................3

2. Operating System (OS) Environment...........................................................................3

3. Windows Driver Preparation.........................................................................................3

4. Windows Driver Installation..........................................................................................4

4-1 Installing on Windows XP/Server 2003.......................................................................4

4-1-1 Via Serial or Parallel Port......................................................................................4

4-1-2 Via USB Port ........................................................................................................8

4-1-3 Via Network Port.................................................................................................14

4-2 Installing Windows VISTA/Server 2008/7/8/Server 2012..........................................18

4-2-1 Via Serial or Parallel Port....................................................................................18

4-2-2 Via USB Port ......................................................................................................22

4-2-3 Via Network Port.................................................................................................26

5. Detailed Windows Driver Settings..............................................................................30

5-1 Printing Preferences.................................................................................................30

5-2 Adding new paper size..............................................................................................31

6. Specifications...............................................................................................................33

6-1 Resolution.................................................................................................................33

6-2 Paper Size................................................................................................................33

SLP-TX420x/TX423x

Rev. 1.00

- 3 -

1. Manual Information

This Windows Driver Installation Manual provides information on installation, detailed

specifications, and usage of the printer’s Windows Driver according to PC operating

system (OS).

We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and

quality of all our products. In following, product specifications and/or user manual content

may be changed without prior notice.

2. Operating System (OS) Environment

The following operating systems are supported for usage.

Microsoft Windows XP (32bit, 64bit)

Microsoft Windows Server 2003 (32bit, 64bit)

Microsoft Windows VISTA (32bit, 64bit)

Microsoft Windows Server 2008 (32bit, 64bit)

Microsoft Windows Server 2008 R2 (64bit)

Microsoft Windows 7 (32bit, 64bit)

Microsoft Windows 8 (32bit, 64bit)

Microsoft Windows Server 2012 (64bit)

3. Windows Driver Preparation

The Windows Driver is included in the enclosed CD, and Latest file versions can be

downloaded from the BIXOLON website.

(www.bixolon.com)

SLP-TX420x/TX423x

Rev. 1.00

- 4 -

4. Windows Driver Installation

4-1 Installing on Windows XP/Server 2003

4-1-1 Via Serial or Parallel Port

1) Double-click the Windows Driver installation file.

2) Click the “Next” button.

SLP-TX420x/TX423x

Rev. 1.00

- 5 -

3) Select the COM or LPT (Which one you want to use) port to be used and click

the “Next” button.

4) When the following message box appears, click the “Continue Anyway” button.

SLP-TX420x/TX423x

Rev. 1.00

- 6 -

5) Clicking the ”Yes” button will reboot the PC.

6) Open the printer properties window in the Windows OS.

7) Click the “Port Settings” button in the ”Ports” tab.

SLP-TX420x/TX423x

Rev. 1.00

- 7 -

8) Match the communication settings to those of the printer.

(The communication settings of the printer can be performed by conducting a self-test.)

9) Click the “Print Test Page” button and check printing status.

10) Proper installation of the driver is indicated if the test page is printed normally.

SLP-TX420x/TX423x

Rev. 1.00

- 8 -

4-1-2 Via USB Port

1) Double-click the Windows Driver installation file.

2) Click the “Next” button.

SLP-TX420x/TX423x

Rev. 1.00

- 9 -

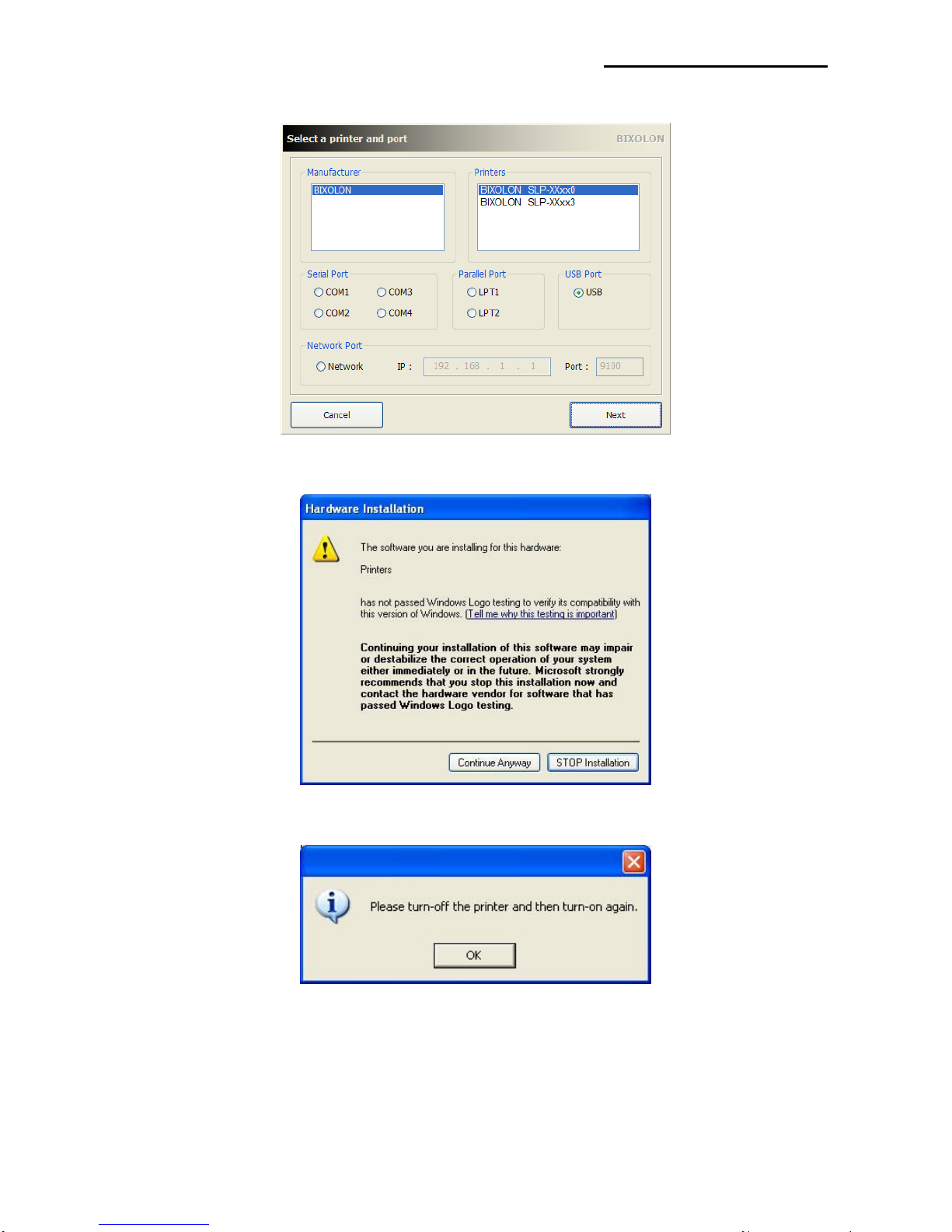

3) Select USB and click the ”Next” button.

4) When the following message box appears, click the “Continue Anyway” button.

5) Click the ”OK” button.

6) Turn on the printer.

SLP-TX420x/TX423x

Rev. 1.00

- 10 -

7) When the New Hardware Wizard appears for the installation of the Windows Driver,

select the option as shown below and click the “Next” button.

8) Click the “Next” button.
