BIXOLON SPP-L310 Bedienungsanleitung

Wi-Fi Connection Manual

SPP-L310

Rev. 1.00

http://www.bixolon.com

Rev. 1.00

- 2 -

Wi-Fi Connection Manual

■

Table of Contents

1. Manual Information........................................................................................................3

2. Precautions ....................................................................................................................3

3. How to Connect..............................................................................................................4

3-1 Android Soft AP mode (default)..................................................................................6

3-2 iOS Soft AP mode (default) ........................................................................................7

3-3 How to change infrastructure mode............................................................................8

4. Factory Reset...............................................................................................................10

Rev. 1.00

- 3 -

Wi-Fi Connection Manual

1. Manual Information

This WLAN manual provides information on the connection of wireless network with the

mobile printer.

2. Precautions

2-1 The printer has to be within 100m(Out door) from AP(Access point) to connect

WLAN. Although 35m is able to communicate in door, WLAN could be affected by

environment to be shorten.

The printer's Status LED shows the connection status of the wireless LAN.

- Green : Indicates that the wireless LAN is connected normally

- Red : Indicates that the WLAN password is wrong

- Off : Indicates that theAP of the set SSID is not nearby

2-2 The maximum separating distance may be shortened if transmission obstacles, such

as cement walls, are present

2-3 If a device (such as a microwave oven, wireless LAN, etc.) that uses the same

frequency is present, transmission may be interrupted. Separate the printer and

Bluetooth-enabled device from such interrupting devices by a distance of at least 5m.

Rev. 1.00

- 4 -

Wi-Fi Connection Manual

3. How to Connect

WLAN can be configured through the printer’s WLAN interface. Likewise, WLAN can also

be configured though the printer’s Serial/USB interfaces.

(1) Connecting Printer

1) Serial / USB cable

Connect Serial/USB cable to Printer, PC device.

When Serial cable use, baudrate between Device and printer should be the same.

2) WLAN

Connect to the AP (Access Point) configured in Infrastructure mode in order to connect to

the LAN/wireless network

Infrastructure mode

In order to configure the network between the wireless host device and the printer, set the

printer to Soft AP Mode.

Soft AP mode

A P

Rev. 1.00

- 5 -

Wi-Fi Connection Manual

(2) Checking Network Setting

Self-test

While the printer is turned off, turn on the printer while pressing the feed button.

The printer setting values will then be printed.

Power

FEED

Rev. 1.00

- 6 -

Wi-Fi Connection Manual

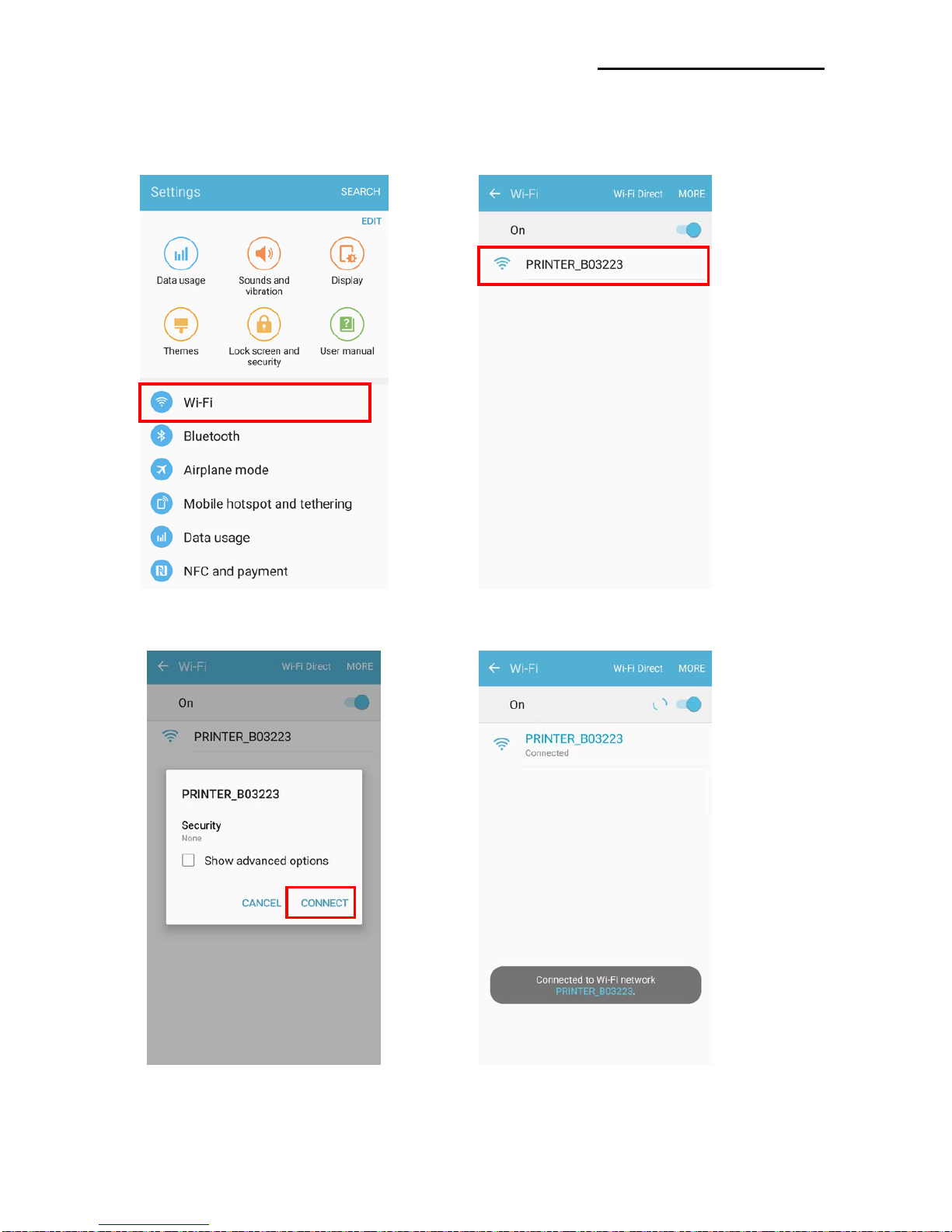

3-1 Android Soft AP mode (default)

1) Select “Wi-Fi”. 2) Select the printer to connect

3) Select “CONNECT”. 4) Wi-Fi communication is available.

Rev. 1.00

- 7 -

Wi-Fi Connection Manual

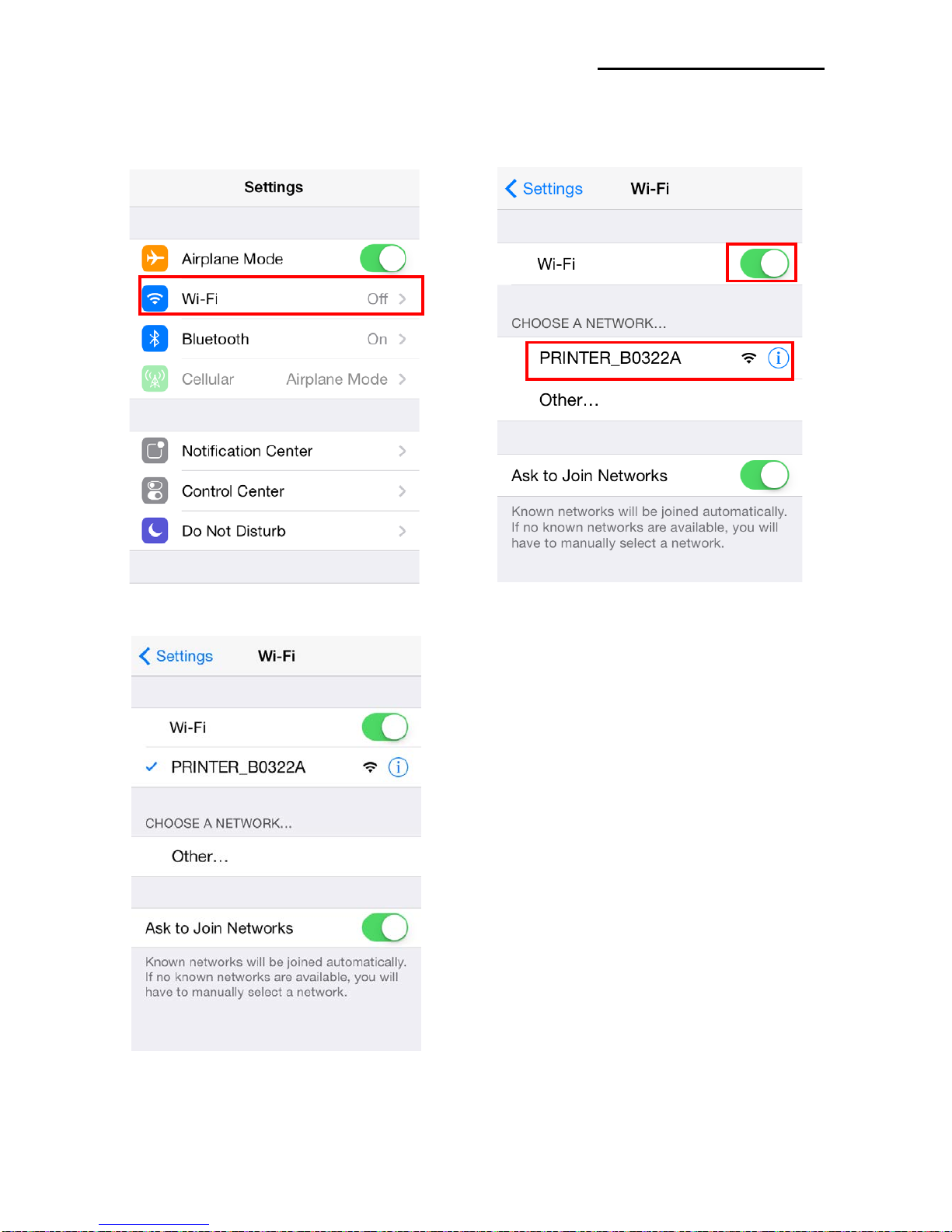

3-2 iOS Soft AP mode (default)

1) Select “Wi-Fi”. 2) Wi-Fi ON and Select the printer to connect

3) Wi-Fi communication is available

Rev. 1.00

- 8 -

Wi-Fi Connection Manual

3-3 How to change infrastructure mode

1) Enter the IP address of the printer in the address bar, and the following login window will

pop up. Enter the ID and Password set for the printer, and then click [LOG IN] (Default

User Name: admin, Password: password)

2) Select “Wireless” to change Wi-Fi mode.

Rev. 1.00

- 9 -

Wi-Fi Connection Manual

3) Select “infrastructure”, and set SSID, WLAN Security Type.

4) Reboot the Printer.

Rev. 1.00

- 10 -

Wi-Fi Connection Manual

4. Factory Reset

This function changes the WLAN settings of the printer to the initial factory settings.

Method

Open the paper cover, press the FEED button, press the printer power button to turn on

the printer, and close the cover when a beep sounds.

“Hexadecimal Dump”

“To terminate Hexadecimal dump”

“press FEED button three times!!”

“To change WLAN setting values”

“factory default”

“press POWER button three times!!”

When the above message is printed, press the power button 3 times.

Factory Reset Values

System

Printer Name

*Printer model

Printer Port Num

9100

User ID

admin

User Password

password

Enc / Auth

Encryption

None/Open

Network

Network Mode

Soft AP mode

SSID

PRINTER_{MAC address}

Inactivity time

IP Assignment Method Manual (DHCP server)

IP, Subnet, Gateway

IP : 192.168.1.1

Subnet : 255.255.255.0

Gateway : 192.168.1.2

Specification

Feature

Implementation

Operation Mode

Infrastructure, Soft AP, Ad-hoc, Wi-Fi Direct

Wireless Standard

IEEE 802.11b/g/n, IEEE 802.11a/b/g/n

Range

Up to 100m free space (Outdoor)

Security

WEP64/128

WPA1/2 – PSK

WPA 1/2 – Enterprise

(EAP-TLS, EAP-TTLS, PEAP, LEAP, EAP-FAST)

Management

WLAN Configuration tool, HTTP, Smart connection APP
