36" GRIDDLE
COOKING STATION
Parts & Assembly
MODEL
Before proceeding, make certain
that you read and understand the
Owner’s Manual included with
your griddle.
Hazardous fire or explosion may
result if instructions are ignored.
It is the consumer’s responsibility
to see that the griddle is prop-
erly assembled, installed, and
maintained. Failure to follow the
instructions in this manual could
result in bodily injury and/or
property damage.
SAFETY ALERT KEY
Read and follow all of the notices
found throughout the manual.
INSTALLER/ASSEMBLER:
Leave these instructions with consumer.
CONSUMER:
Keep this manual for future reference.
TO REGISTER your Blackstone product please go to
www.blackstoneproducts.com/register-griddle
Model Number _____________________________
Serial Number______________________________
Date Purchased ____________________________
!DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
!WARNING
Indicates the possibility of serious
bodily injury if the instructions
are not followed.
!CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
36” Griddle Cooking Station | Parts & Assembly
PARTS & ASSEMBLY
ILLUSTRATED PARTS LIST
01. Body (1 piece) 02. Griddle top (1 piece) 03. Le side shelf (1 piece) & Right
side shelf (1 piece)
04. Bottom shelf (1 piece) 05. Shelf Hooks (3 pieces) 06. Hood (1 piece) & Handle (1 piece)
& Grommets (2 pieces)
07. Ignition button (1 piece) &
Control knobs (4 pieces) 08. Handle (1 piece) & Grease
Cup (1piece) 09. Right shelf
brackets
(2 pieces)
10. Le shelf
brackets
(2 pieces)
11. Paper towel holder (1 piece)
& Washers (2 pieces) 12. Propane tank hanger (1 piece) &
Propane tank holder (1 piece) 13. Swivel wheels (2 pieces) &
Locking caster wheels (2 pieces)
14. Small Thumbscrews (2 pieces) 15. Hardware Pack (1 piece)
1. M6x12 bolt (13 pieces)
2. Knobs (4 pieces)
3. M6x70 bolt (1 piece)
4. M6 Nut (1 piece)
5. M8x14 bolt (4 pieces)
6. M8x19 bolt (2 pieces)
7. Washer (4 pieces)
8. Large Thumbscrew (1 piece)
9. Medium Thumbscrew (1 piece)
10. Nut (2 pieces)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
a
a
bb
MODEL:#1899MODEL:#1899MODEL:#1899
36” Griddle Cooking Station | Parts & Assembly
01
ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
Griddle assembly involves large components; therefore, it is advised to have
two people assemble the unit.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench
STEP 01
Remove the griddle body from the packaging and lay it upside down on a
smooth, at surface with the help of another person.
Rotate the legs into a vertical position. Install the two (2) xed wheels
(le wheels) with two small thumbscrew and two (2) swivel wheels (right
wheels) with a wrench. Be sure that swivel wheels are in locked postion
when attaching.
!CAUTION
Two people are recommended for
the assembly of this product.
!WARNING
The manufacturer has made every
eort to eliminate any sharp
edges. However, you should
handle all components with care
to avoid accidental injury.
Some parts may contain sharp
edges, especially as noted
in these instructions. Wear
protective gloves if necessary.
!WARNING
The use of alcohol, prescription
or non-prescription drugs may
impair the consumer’s ability
to properly assemble or safely
operate the appliance.
36” Griddle Cooking Station | Parts & Assembly
02
STEP 02
Place the bottom shelf and secure it with one (1) large thumbscrew to
between the two legs on the le. Use one (1) small thumbscrew to attach the
shelf and the propane tank holder in between the two lockable castor wheels
on the right. Then, attach the propane tank hanger with one (1) M6X70 bolt
and one (1) M6 nut.
STEP 03
With the help of another person, place the griddle on it’s feet. Then, install
the paper towel holder by sliding it into the slot beneath the right side shelf.
Secure it using two (2) M6X12 screws and (2) washers. Next, push the knobs
into place and, aer putting in the battery, screw on the ingition button (be
careful not to over tighten).
STEP 04
Install the handle to the griddle body with four (4) M6X12 screws.
Insert one AA battery (not included)
into the battery socket with the
positive terminal facing out, and
then screw on the Ignition Button
until tight; be careful not to
over tighten.
36” Griddle Cooking Station | Parts & Assembly
03
STEP 05

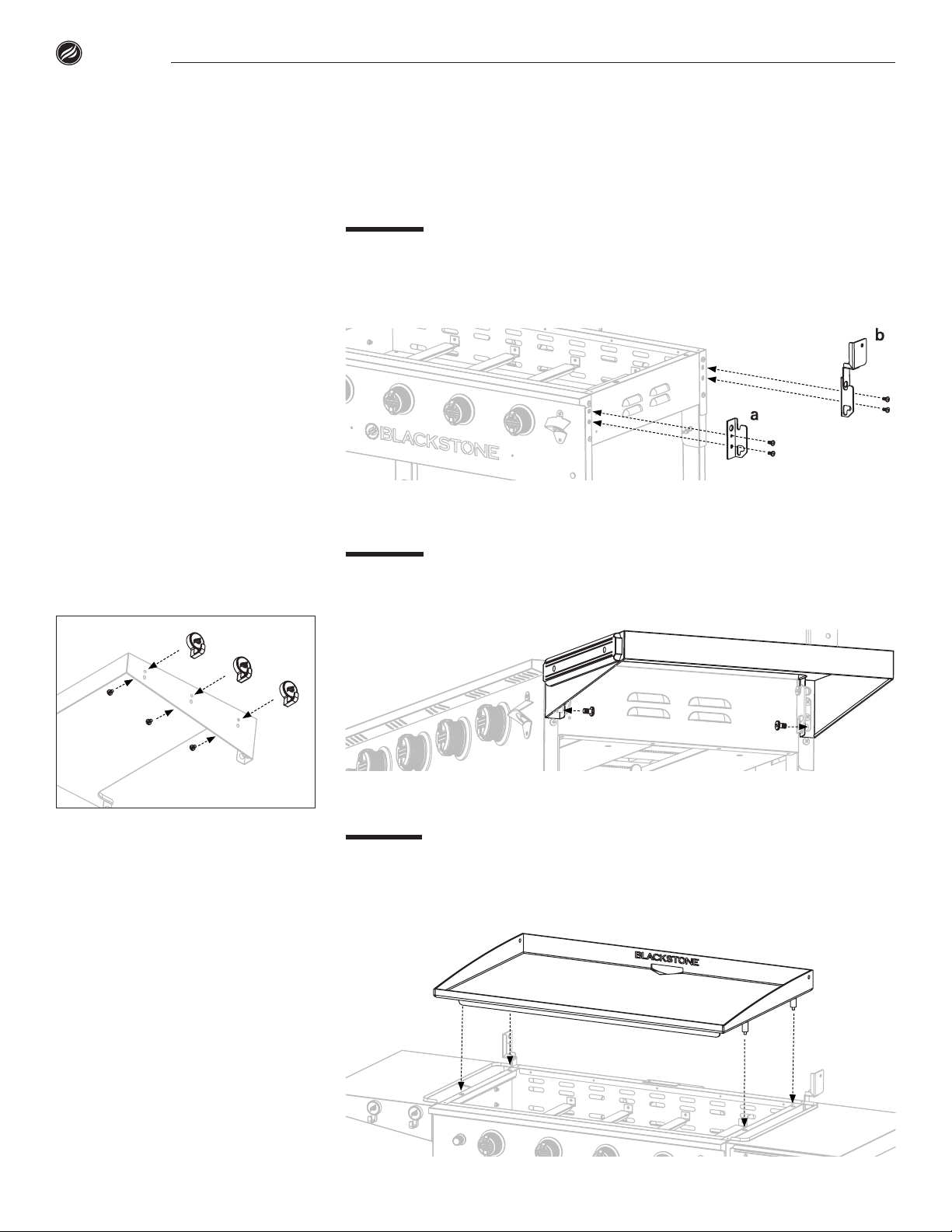

Attach two (2) side shelf brackets to the right side of the griddle unit with
four (4) M6X12 bolts. Then repeat this step on the le side of the griddle unit
with four (4) M6X12 screws.
STEP 06
Install the right side shelf on to the griddle body with two (2) M8 screws.
Repeat this step with two (2) M8 screws on the le side of the unit.
STEP 07
With the help of another person, place the griddle top onto the griddle body.
Be sure that the pins are securely inserted in the corresponding holes. Place
the grease cup onto the rear of the unit.
Attach the three (3) metal hooks
to the le side shelf with three (3)
M6x8 screws.
36” Griddle Cooking Station | Parts & Assembly
04
STEP 08
Attach the handle to the griddle hood with two (2) grommets and two (2)
M6x16 screws.
STEP 09
Place the hood on the griddle top and align the holes with the side shelf
brackets. Attach the hood to the brackets using two (2) M8x19 bolts, two (2)
washers and two (2) M8 nuts.
STEP 10
Proceed to seasoning instructions in the Owner’s Manual. Enjoy cooking
outdoors on your Blackstone 36” Cooking Station!
NEED HELP? Call Blackstone Information
Center for missing parts, assembly or and
operation questions: 435-252-3030
or email us at:
support@blackstoneproducts.com
Place the grease cup on the back of
the griddle body in the center of the
back panel.
36” Griddle Cooking Station | Parts & Assembly
05
