Important safety information

For user safety and to avoid property damage, read through this manual and follow these

safety instructions to use the product correctly.

yDo not disassemble, repair, or modify the product yourself.

Doing so may cause re, electric shock, or malfunction. For internal inspection and repair,

contact the service center.

yDo not adjust the product while driving.

Doing so may cause an accident. Stop or park your car in a safe place before installing and

setting up the product.

yDo not operate the product with wet hands.

Doing so may cause electric shock.

yIf any foreign matter gets inside the product, detach the power cord immediately.

Contact the service center for repair.

yDo not cover the product with any material.

Doing so may cause external deformation of the product or re. Use the product and

peripherals in a well-ventilated location.

yIf the product is used outside the optimal temperature range (-20°C  70°C/-4°F  158°F),

performance can decline or malfunctions may occur.

yWhen entering or exiting a tunnel, when directly facing into bright sunlight, or when

recording at night without lighting the quality of recorded video may deteriorate.

yIf the product is damaged or the power supply is cut due to an accident, video may not be

recorded.

yDo not remove the microSD card while the microSD card is saving or reading data.

The data can be damaged or malfunctions may occur.

yDo not press the LCD screen with a sharp object.

yDo not press the LCD screen too rmly.

FCC Compliance Information

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at the user’s

own expense.

Finally, any changes or modications to the equipment by the user not expressly approved by

the grantee or manufacturer could void the user's authority to operate such equipment.

In the box

Check the box for each of the following items before installing the BlackVue dashcam.

Front camera Quick start guide

Hardwire cable Power cord

Bracket microSD Card

microSD card adapter Rear camera

Rear camera

connection cable Pry tool

Cable clips (8 EA) External GPS

(Optional)

At a glance

The following diagrams explain each part of the BlackVue dashcam.

Front camera

Front security LED

: Blinks white slowly in normal mode or event standby

mode.

: Blinks white quickly:

(i) when an event is being recorded (impact detected);

(ii) in parking mode.

Mic

Speaker

18.5 mm

31.8 mm

Power switch

microSD card

slot cover

GPS connection port

Rear camera connection port

DC in (power connector)

99.5 mm

60.1 mm

GPS LED

: Blue LED is on when GPS is on; blinks when there is no GPS signal.

LED is o when no GPS is connected.

Recording LED

: Red LED is on in normal mode, event standby mode and when

saving a parking recording (motion detected).

Red LED blinks when an event is being recorded (impact detected).

Red LED is o in parking standby mode.

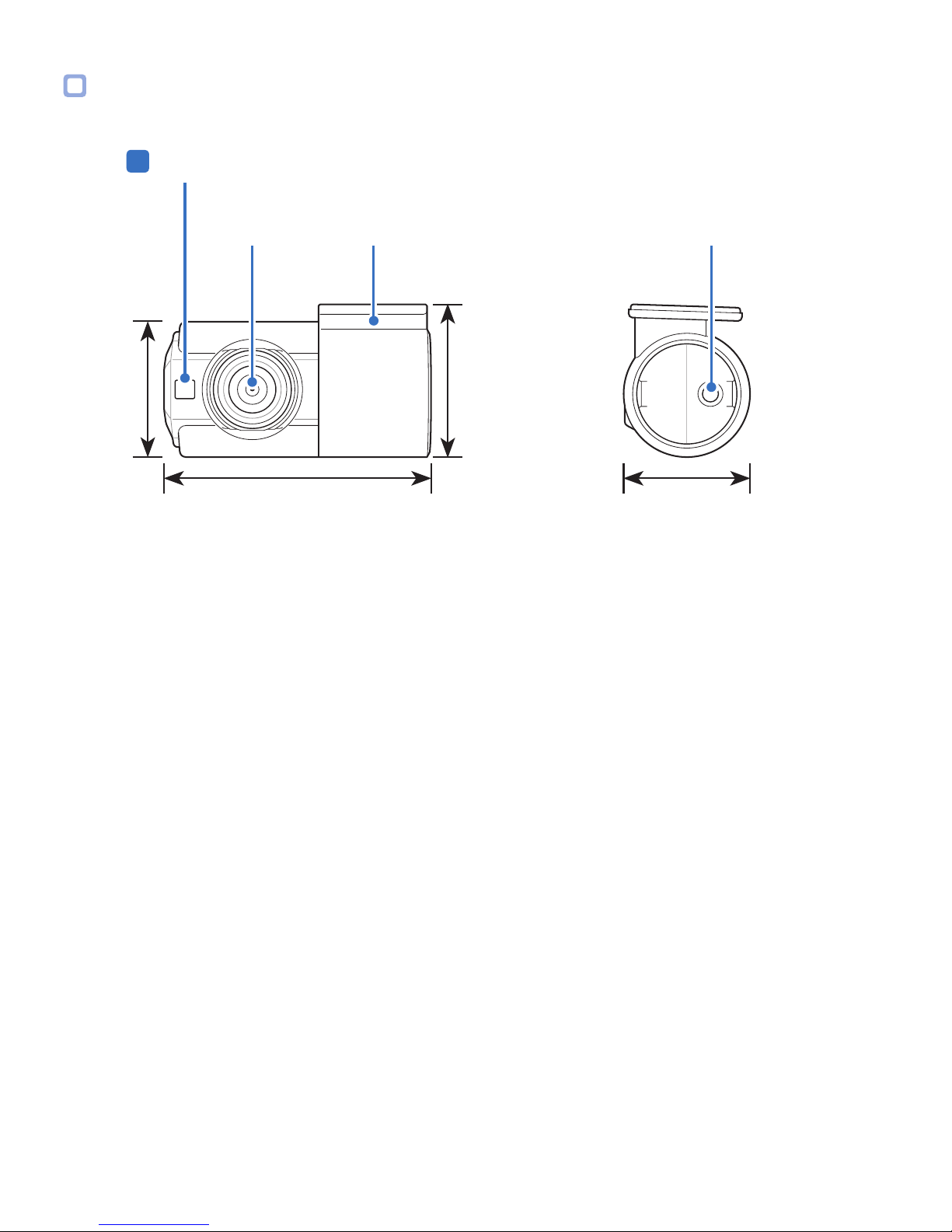

Rear camera

Rear security LED

: Blue LED blinks when rear and front cameras are connected.

Front camera

connection port

Mounting bracketCamera lens

51.3 mm 29.2 mm

29.7 mm

25.6 mm

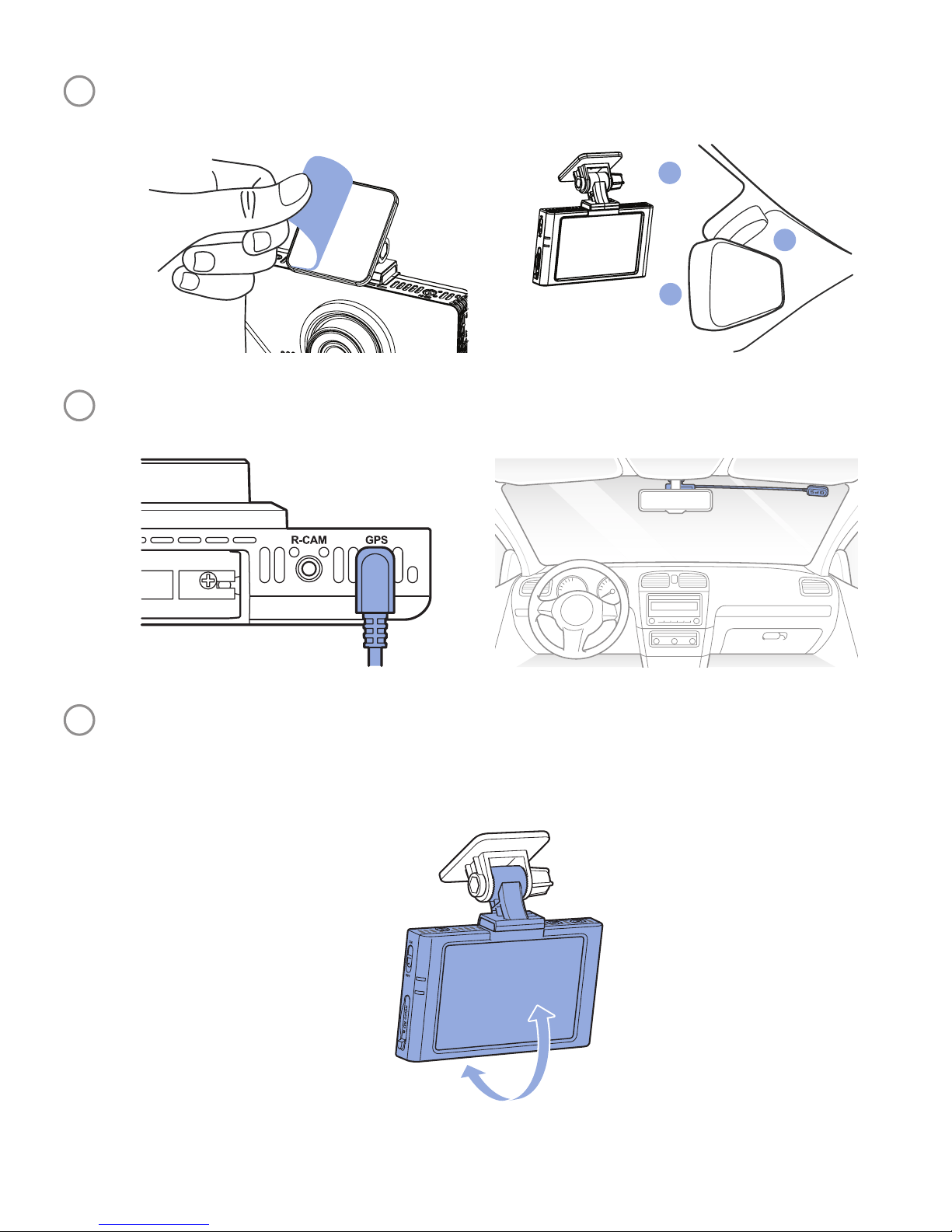

STEP 1 Install and power up

Install the front camera behind the rear view mirror. Install the rear camera at the top of

the back windshield. Remove any foreign matter and clean and dry the windshield before

installation.

Warning

yDo not install the product in a location where it can obstruct the driver's eld of

vision.

ATurn o the engine and make sure accessory power is o. Flick the power switch to

the o position.

Open the cover of the microSD card slot, gently push the card into the slot until it

locks into place and close the cover.

BPeel o the plastic lm from the lens. Peel o the protective lm from the double-

sided tape and attach the front camera to the windshield behind the rear-view mirror.



COptional GPS receiver: Plug in the GPS receiver and attach it in a corner of the

windshield. Tuck the cable into the windshield trim using the pry tool.

DAdjust the angle of the lens by loosening the nut and rotating the front camera. We

recommend pointing the lens slightly downwards (≈10° below horizontal), so as to

record video with a 6:4 road to background ratio. After installation the camera angle

can be adjusting in real time with the LCD screen on.

EPeel o the protective lm from the double-sided tape and attach the rear camera

to the rear windshield. Adjust the angle of the lens by rotating the body of the rear

camera.

FConnect the front camera (‘R CAM’ port) and the rear camera using the rear camera

connection cable.

GUse the pry tool to lift the edges of the rubber window sealing and molding and tuck

in the rear camera connection cable.

Rear camera connection cable
