Blaze BLZ-2PRO Bedienungsanleitung

Blaze Outdoor Products Instructional Book

Page | 1

Blaze Outdoor Products Instructional Book

Page | 2

WARNING

I) Do not store or use gasoline or other flammable

liquids or vapor in the vicinity of this or any other

appliance

2) A LP cylinder not connected for use shall not be

stored in the vicinity of this or any other appliances.

USE & CARE GUIDE

BLZ-2PRO(NG/LP),

BLZ-3PRO(NG/LP), BLZ-4PRO(NG/LP)

ATTENTION:

INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THECONSUMER.

CONSUMER: PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

AND BEFORE INSTALLING

OR OPERATING.

- CONTACT INFORMATION -

Blaze Outdoor Products: 6620 Greenwell Springs Rd,

Baton Rouge, LA 70805USA

Phone: 866-976-9510

CustomerService@BlazeGrills.com

BLAZEGRILLS.COM

DANGER - IF YOU SMELL GAS:

I) Shut off the gas supply to the appliance at its source.

2) Extinguish any open flames.

3) Open grill hood to release any accumulation of gas

vapor.

4) If a gas odor persists, Keep away from your

appliance and contact your gas supplier or fire

department immediately.

Blaze Outdoor Products Instructional Book

Page | 3

Table of Contents

I. BBQSpecifications 5-7

II. General Safety and InstallationWarnings 8-12

i. Location ofAppliance 12-13

III. Electrical Safety and InstallationWarnings 14-15

IV. Gas Safety and InstallationWarnings 15-17

i. Checking for Gas Leaks 17-19

ii. Unpacking Unit 19

V. Gas Connections 19

i. Natural Gas Requirements 19

ii. Liquid Propane Gas and TankRequirements 19

iii. Transporting and Storing LP Gas 20-21

VI. Installing the Appliance in a BBQIsland 22

i. Outdoor Kitchen Ventilation 23-24

ii. Building BBQ Instructions 24-25

iii. Building BBQ Specifications 26

iv. Installation Diagrams 27

VII. First Time Operation 28

i. Lighting theAppliance 28-29

ii. Manually Lighting theAppliance 29-30

iii. Flame Adjustment 30-31

Blaze Outdoor Products Instructional Book

Page | 4

VIII.Cleaning yourAppliance 31-32

IX. Optional Infrared Sear Burner 32-33

X. Fuel Conversion 34

i. Gas Regulator 35

ii. NG – LP RegulatorConversion 35

iii. Main Burner 36

iv. Rear Burner 36

XI. WarrantyRegistration 37

XII. Grill Parts 38

XIII. Product Serial Number 39

XIV.Blaze Product Registration 40

Blaze Outdoor Products Instructional Book

Page | 5

THIS MANUAL APPLIES TO THE FOLLOWING BLAZE GRILLS:

Model: BLZ-3PRO / 3 BURNER

Cutout Dimensions

10 1/2″H x 32 1/4″W x 23 5/8”D

/” / ″

BTU Output

18,000 BTU per Burner x3

Infrared Back Burner

10,000 BTU

Total BTU

64,000

Primary Ignition

Push N’ Turn Flame Thrower

Secondary Ignition

Flash Tube

Cooking Grid

Dimensions

30 13/16 x 19 15/16

Total Cooking Area

816 sq.in

(includes warming rack)

Flame Tamer

Flame StabilizerGrid

Zone Cooking

Removable Heat

Zone Separators

Rotisserie Kit

(Motor & Forks) Included

Burner

Commercial Quality

Cast Stainless Steel

Gas Type

Each grill contains an

NG/LP Orifice Kit

Warranty

*Limited Lifetime – Defects in

manufacturing and

workmanship. Cooking grids,

Flame Tamers, Heat Zone

Separators, stainless housing,

valves, and stainless burners

against rust- through.

*1 Year – Ignition Components,

Electronics and Lighting systems

*Appliances must be

registered within 30 days of

purchase to validate this

warranty.

*See warranty section

for details.

Model: BLZ-2PRO / 2 BURNER

Cutout Dimensions

10 1/2″H x 24 7/8″W x 23 5/8”D

BTU Output

18,000 BTU per Burner x2

Infrared Back Burner

10,000 BTU

Total BTU

46,000

Primary Ignition

Push N’ Turn Flame Thrower

Secondary Ignition

Flash Tube

Cooking Grid

Dimensions 24 1/2" X 19 15/16"

Total Cooking Area

630 sq.in

(includes warming rack)

Flame Tamer

Flame Stabilizer Grid

Zone Cooking

Removable Heat Zone

Separators

Rotisserie Kit

(Motor & Forks)

Included

Burner

Commercial Quality Cast

Stainless Steel

Gas Type

Each grill contains an NG/LP Orifice

Kit

Warranty

*Limited Lifetime – Defects in

manufacturing and workmanship.

Cooking grids, Flame Tamers, Heat

Zone Separators, stainless housing,

valves, and stainless burners against

rust- through.

*1 Year – Ignition Components,

Electronics and Lighting systems

*Appliances must be registered within

30 days of purchase to validate this

warranty.

*See warranty section for

details.

Blaze Outdoor Products Instructional Book

Page | 6

THIS MANUAL APPLIES TO THE FOLLOWING BLAZE GRILLS:

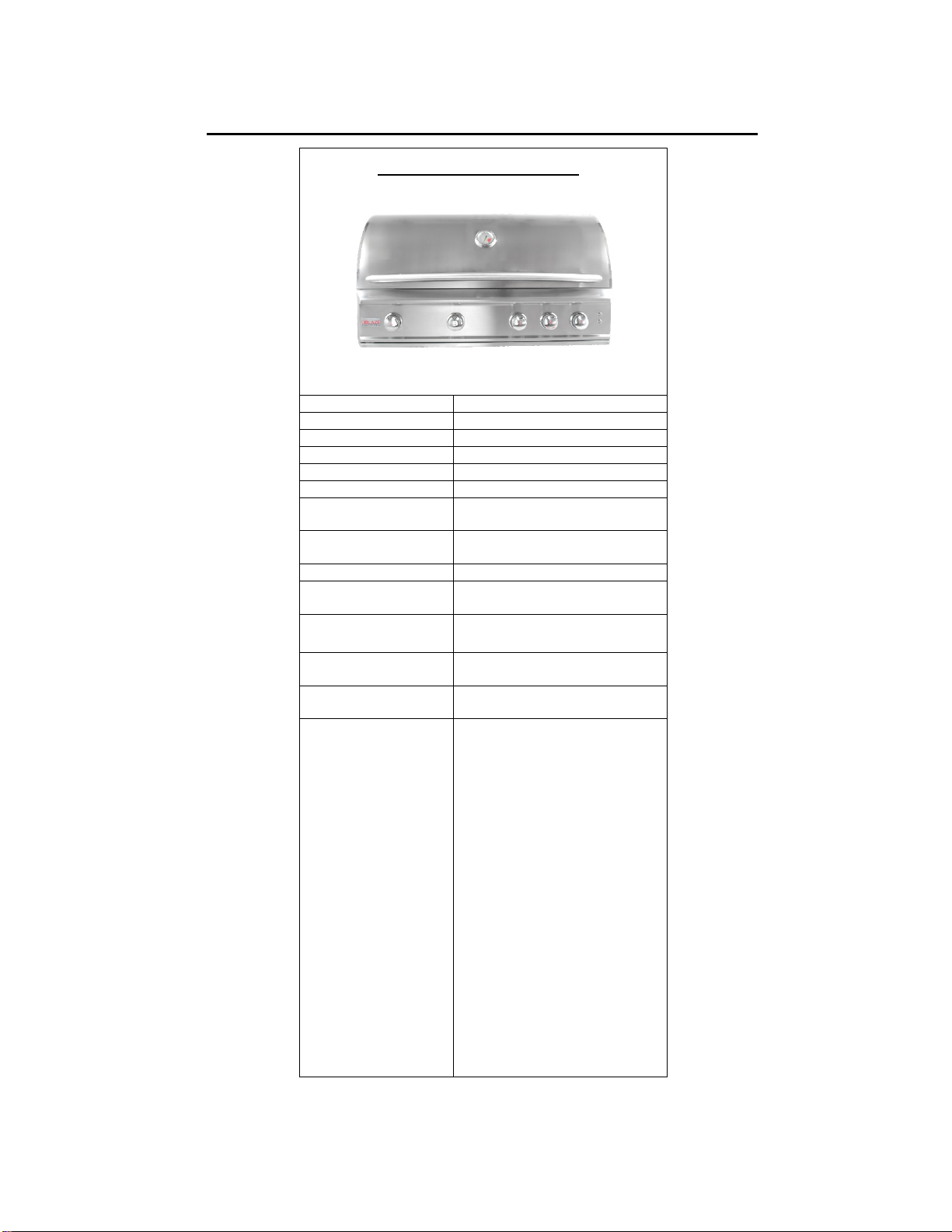

Model: BLZ-4PRO / 4 BURNER

Cutout Dimensions

10 1/2″H x 42 1/2″W x 23 5/8”D

/” / ″

BTU Output

18,000 BTU per Burner x4

Infrared Back Burner

10,000 BTU

Total BTU

82,000

Primary Ignition

Push N’ Turn Flame Thrower

Secondary Ignition

Flash Tube

Cooking Grid

Dimensions

40 x 19 15/16

Total Cooking Area

1050 sq.in

(includes warming rack)

Flame Tamer

Flame StabilizerGrid

Zone Cooking

Removable Heat

Zone Separators

Rotisserie Kit

(Motor & Forks) Included

Burner

Commercial Quality

Cast Stainless Steel

Gas Type

Each grill contains an

NG/LP Orifice Kit

Warranty

*Limited Lifetime – Defects in

manufacturing and

workmanship. Cooking grids,

Flame Tamers, Heat Zone

Separators, stainless housing,

valves, and stainless burners

against rust- through.

*1 Year – Ignition Components,

Electronics and Lighting systems

*Appliances must be

registered within 30 days of

purchase to validate this

warranty.

*See warranty section

for details.

Blaze Outdoor Products Instructional Book

Page | 7

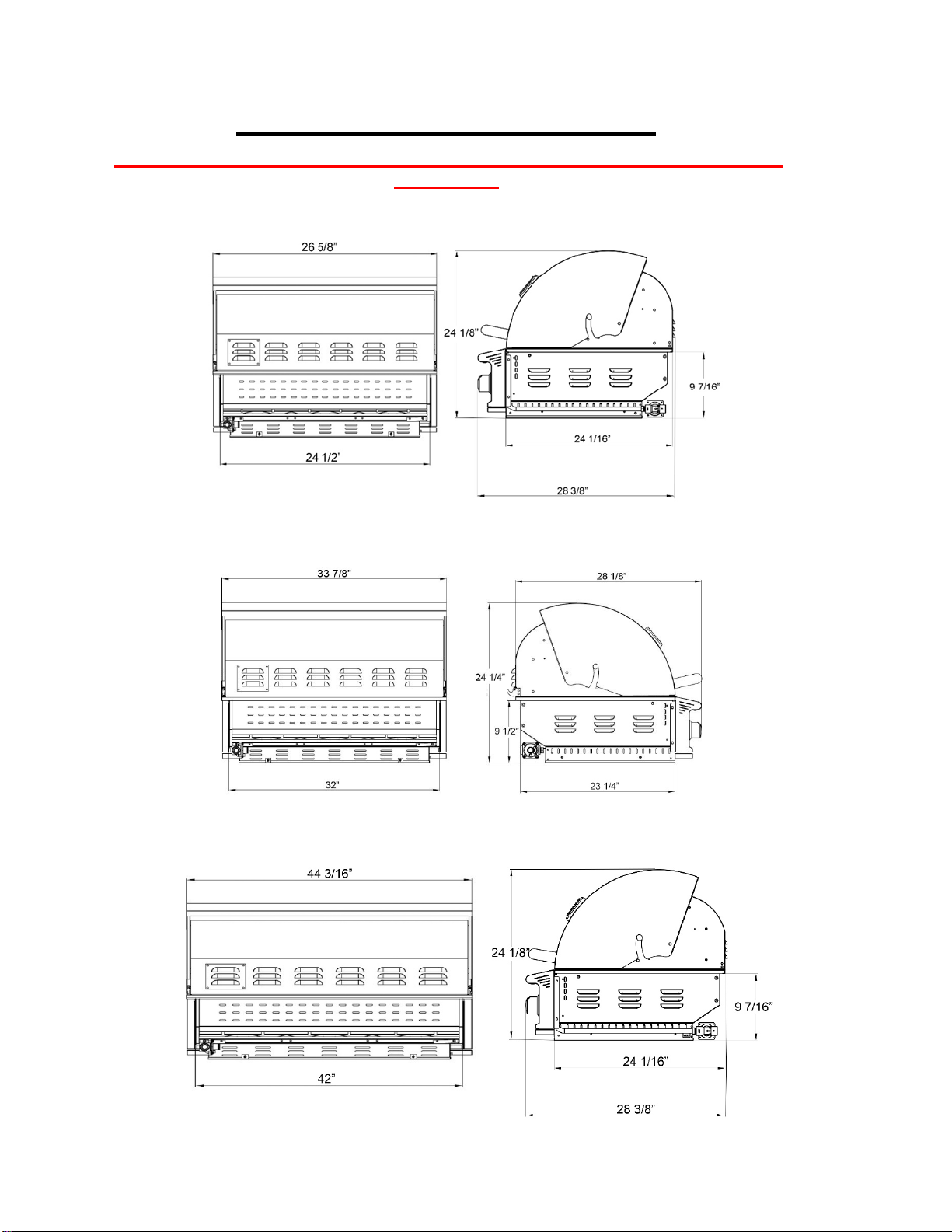

BBQ SPECIFICATIONS

NOTE: ALWAYS have equipment measured by Contractor before beginning

any project.

2 Burner

3 Burner

4 Burner

Blaze Outdoor Products Instructional Book

Page | 8

IMPORTANT SAFETY INFORMATION

Please read this manual carefully and before using your BLAZE GRILL to ensure proper operation,

installation, servicing and to reduce the risk of fire, burn hazard and or other injury. This manual

should be retained for your information

NOTE:

Improper installation and service or maintenance may cause property damage, injury or death.

Do not operate this appliance without having read this manual

All gas installations and gas conversions must be performed by a qualified technician or authorized service

agent.

NOTE: This appliance is not intended for commercial use.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. If odor continues, immediately

call your gas supplier or your fire department.

General Safety and Installation Warnings

Safe operation of the BLAZE GRILL depends upon its proper installation. Only a qualified professional installer

and service technician must perform adjustments and service of the grill. Proper location and proper use is

essential to insure safe and continued trouble-free operation. Any non-approved alterations made to the

appliance will void the product’s warranty.

NOTE: The manufacturer cannot be held responsible for damage or injury caused by improper use ofthis

appliance.

Blaze Outdoor Products Instructional Book

Page | 9

When using your Blaze appliance, please read and follow these basicprecautions:

To reduce the risk of fire, electric shock, or injury, read and follow these basic precautions before

installing/operating your

appliance.

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury orproperty

damage. Read the installation, operating and maintenance instructions thoroughly before installing orservicing

this equipment.

EXPLOSION HAZARD

Do not use the appliance as storage area for flammable materials. Keep area clear and free fromcombustible

materials, gasoline, and other flammable vapors and liquids. Failure to do so can result in death, explosion, orfire.

APPLIANCE

INSTALLATION

This gas appliance must be installed in accordance with all local codes.

installation

planned

area

with

local

codes,

the

gas

appliance

must

installed

accord

with

the

National

Fuel

Gas

Code

ANSI

Z223.1

and

storage

and

handling

liquefied

petroleum

gases,

ANSI/NFPA

CSA

B149.1

natural

gas

and

propane

installation

code.

CALIFORNIA PROPOSITION 65 WARNING

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which are

known to the State of California to cause cancer and birth defects or other reproductive harm. For more information

go to: www.P65Warnings.ca.gov

Blaze Outdoor Products Instructional Book

Page | 10

In Massachusetts: All gas products must be installed using a “Massachusetts” licensed plumber or gasfitter. A “T” handle type

manual gas valve must be installed in the gas supply line to this appliance. This applies to permanently installed natural gas

and propane installations. This does not apply to propane portable installations using a 20 pound tank.

Have an ABC Fire Extinguisher accessible at all times. Never attempt to extinguish a grease fire with water

or other liquids.

IMPORTANT: Consult the AHJ (Authority Having Jurisdiction) or local contractor of any uncertainty.

This unit is for outdoor use only!

Do not operate in a building, garage or any other enclosed areas. This could result in carbon monoxide buildup

which could

result in injury or death. Grills are not designed or intended for installation near a window or vent that goes into the house.

For proper operation, burners must be aligned with the valve orifice and seated in the bracket slots. This is

accomplished

by first placing the burner tube shutter hole securely over the valve orifice and ensuring the male posts on the rear of the

burner rests in the opening in the grill chassis. Failure to do so could result in a fire and injury.

BEWARE OF SPIDERS

CAUTION: BURNER TUBES MUST BE INSPECTED AND CLEANED BEFORE EACH USE.

Spiders and small insects occasionally spin webs or make nests in the burner tubes. These webs can lead to a gas flow obstruction, which

could result in a fire in and around the burner tubes. This type of fire is known as “FLASH-BACK” and can cause serious damage to your

appliance and create an unsafe operating condition for the user. Although an obstructed burner tube not the only cause “FLASH-BACK”

it is the most common cause, and frequent inspection and cleaning of the burner tubes is necessary.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Blaze Grill Handbücher

Blaze

Blaze BLZ-3 Bedienungsanleitung

Blaze

Blaze BLZ-2PRONG Bedienungsanleitung

Blaze

Blaze BLZ-SB1 Bedienungsanleitung

Blaze

Blaze BLZ-3-NG Bedienungsanleitung

Blaze

Blaze BLZ-KMDO-2-ROTIS Bedienungsanleitung

Blaze

Blaze BLZ-3-CART Bedienungsanleitung

Blaze

Blaze BLZ-PB-LP Bedienungsanleitung

Blaze

Blaze BLZ-4LTE Bedienungsanleitung

Blaze

Blaze BLZ-ELEC-21 Bedienungsanleitung

Blaze

Blaze BLZ-4LBMNG Bedienungsanleitung

Blaze

Blaze BLZ-5LTE Bedienungsanleitung

Blaze

Blaze BLZ-5LTE2NG Bedienungsanleitung

Blaze

Blaze BLZ-4LTE2MG-NG Bedienungsanleitung

Blaze

Blaze BLZ-3PRO Bedienungsanleitung

Blaze

Blaze BLZ-KMDO-SDSH Bedienungsanleitung

Blaze

Blaze BLZ-3-NG Bedienungsanleitung

Blaze

Blaze BLZ-4LTE2MG Bedienungsanleitung

Blaze

Blaze BLZ-3BSK-RG Bedienungsanleitung

Blaze

Blaze BLZ-4-CHAR Bedienungsanleitung

Blaze

Blaze BLZ-4 Bedienungsanleitung

Blaze

Blaze BLZ-3-NG Bedienungsanleitung

Blaze

Blaze BLZ-3-NG Bedienungsanleitung

Blaze

Blaze BLZ-SB1-LP Bedienungsanleitung

Beliebte Grill Handbücher anderer Marken

Orbegozo

Orbegozo GR 2300 Bedienungsanleitung

bora

bora PT11 Bedienungsanleitung

Klarstein

Klarstein 10031664 Bedienungsanleitung

Garland

Garland MWE3W Bedienungsanleitung

Char-Broil

Char-Broil 463722714 Bedienungsanleitung

Nexgrill

Nexgrill 720-0830HK Bedienungsanleitung

Kenmore

Kenmore 415.16123800 Bedienungsanleitung

Camp Chef

Camp Chef PG24CLAU Bedienungsanleitung

Tucker Barbecues

Tucker Barbecues GTR Series Montageanleitung

Monogram

Monogram ZGG540NCP1SS Bedienungsanleitung

Equipex

Equipex Sodir Savoy Bedienungsanleitung

Gaggenau

Gaggenau VR 414 610 Bedienungsanleitung

Miele

Miele KM 408-1 Bedienungsanleitung

George Foreman

George Foreman GGR50B Bedienungsanleitung

AOG

AOG T series Bedienungsanleitung

Gorenje

Gorenje TG2000CB Bedienungsanleitung

Weber

Weber Genesis Silver-B Permamount NG 051701 Bedienungsanleitung

Glen

Glen SA 3037 Bedienungsanleitung
