Blizzard Lighting ProPar V12 Bedienungsanleitung

Blizzard Lighting, LLC

www.blizzardlighting.com

Waukesha, WI USA

Page 2

TABLE OF CONTENTS

ProPar™ V12 1

1. Getting Started 3

What’s In The Box? 3

Getting It Out Of The Box 3

Powering Up! 3

Getting A Hold Of Us 3

Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4

2. Meet The ProPar™ V12 5

Main Features 5

Optical Specs 5

Luminous Intensity Chart 5

The ProPar™ V12 Pin-up Picture 6

3. Setup 7

Fuse Replacement 7

Connecting A Bunch Of ProPar™ V12 PAR Cans 7

Data/DMX Cables 7

Cable Connectors 8

3-Pin??? 5-Pin??? Huh? 8

Take It To The Next Level: Setting up DMX Control 8

Fixture Linking (Master/Slave Mode) 9

Mounting/Rigging 9

4. Operating Adjustments 10

Navigating The Control Panel 10

Control Panel Menu Structure 11

DMX Mode 12

DMX Personalities 12

ID Address Selection 14

Temperature Control Functions 14

Edit Programs & Scenes 15

Advanced Setup Functions 15

Color Temperature-Based White Balance 16

Menu Key Protection 17

Static Color Display 17

Automatic Programs 17

Run Mode 17

Troubleshooting 18

5. Appendix 19

A Quick DMX Lesson 19

Keeping Your ProPar™ V12 As Good As New 20

Returns (Gasp!) 20

Shipping Issues 20

Tech Specs 21

Page 3

1. GETTING STARTED

What’s In The Box?

 •1xProPar™V12ProfessionalLEDPARFixture

 •ThisLovelyUserManual

Getting It Out Of The Box

CongratulationsonpurchasingoneofthecoolestprofessionalLEDParxtures

anywhere! Now that you’re the proud owner of a ProPar™ V12 (or hopefully, V12’s!),

you should carefully unpack the box and check the contents to ensure that all parts are

present and in good condition. If anything looks as if it has been damaged in transit,

notify the shipper immediately and keep the packing material for inspection. Again,

pleasesavethecartonandallpackingmaterials.Ifaxturemustbereturnedtothe

factory,itisimportantthatthexturebereturnedintheoriginalfactoryboxand

packing.

Powering Up!

Allxturesmustbepowereddirectlyoffaswitchedcircuitandcannot be run off a

rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer

channel is used solely for a 0% to 100% switch.

AC Voltage Switch -Notallxtureshaveavoltageselectswitch,sopleaseverifythat

thextureyoureceiveissuitableforyourlocalpowersupply.Seethelabelonthe

xtureorrefertothexture’sspecicationschartformoreinformation.Axture’s

listed current rating is its average current draw under normal conditions. Check the

xtureordevicecarefullytomakesurethatifavoltageselectionswitchexiststhatitis

set to the correct line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line

voltage applied. Damage to your xture may result if the line voltage applied

does not match the voltage indicated on the voltage selector switch. All

xtures must be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something is wrong, just give us a call or send an email. We’ll be happy to

help, honest.

Blizzard Lighting

N16 W23390 Stoneridge Dr. Ste E

Waukesha, WI 53118 USA

www.blizzardlighting.com

414-395-8365

Email: [email protected]

Disclaimer:Theinformationandspecicationscontainedinthisdocumentaresubject

to change without notice. Blizzard Lighting™ assumes no responsibility or liability

for any errors or omissions that may appear in this user manual. Blizzard Lighting™

reserves the right to update the existing document or to create a new document to

correct any errors or omissions at any time. You can download the latest version of this

document from www.blizzardlighting.com.

Author: Date: Last Edited: Date:

J. Thomas 2/20/2013 J. Thomas 2/20/2013

Page 4

SAFETY INSTRUCTIONS

•PleasekeepthisUserGuideforfutureuse.Ifyouselltheunittosomeone

else, be sure that they also receive this User Guide.

•ALWAYSmakesurethatyouareconnectingtothepropervoltage,andthat

the line voltage you are connecting to is not higher than that stated on the

decalorrearpanelofthexture.

•Thisproductisintendedforindooruseonly.

•Topreventriskofreorshock,donotexposexturetorainormoisture.

•Makesuretherearenoammablematerialsclosetotheunitwhileoperating.

•Theunitmustbeinstalledinalocationwithadequateventilation,atleast

20in(50cm)fromadjacentsurfaces.Besurethatnoventilationslotsare

blocked.

•ALWAYSdisconnectfromthepowersourcebeforeservicingorreplacingfuse

and be sure to replace with same fuse size and type.

•ALWAYSsecurextureusingasafetychain.NEVERcarrythexturebyits

cord. Use its carrying handles.

•DONOToperateatambienttemperatureshigherthan104°F(40°C).

•Intheeventofaseriousoperatingproblem,stopusingtheunitimmediately.

NEVER try to repair the unit by yourself. Repairs carried out by unskilled people

can lead to damage or malfunction. Please contact the nearest authorized

technical assistance center. Always use the same type spare parts.

•NEVERconnectthedevicetoadimmerpack.

•Makesurethepowercordisnevercrimpedordamaged.

•Neverdisconnectthepowercordbypullingortuggingonthecord.

•Avoiddirecteyeexposuretothelightsourcewhileitison.

Caution! There are no user serviceable parts inside the unit. Do not

open the housing or attempt any repairs yourself. In the unlikely event

yourunitmayrequireservice,pleasecontactBlizzardLightingat

[email protected].

Page 5

2. MEET THE PROPAR™ V12 FLAT LED PAR

MAIN FEATURES:

•UserselectableDMXpersonalitymodes

•FixtureIDaddressassignmentandoperation

•Built-inautomatedprogramsviamaster/slave

•Userdenedprograms/scenesanduploadfeature

•Fixturetemperaturedisplayandprotectionsettings

•Presetoruseradjustablewhitebalancesettings

•Menukeyprotectionsettings

•EasytouseLEDdigitalcontrolpanel

•3-pinmaleinputand3-pinfemaleoutput

•Dualmountingyokeallowsexibilityinpositioning

OPTICAL:

•BeamAngle:25°,FieldAngle:29°

•LightSource:12*15-watt,5-in-1RGBWALEDs

•Flicker-freeconstant-currentLEDdriver

Luminous Intensity:

Lux/Meter All Red Green Blue Amber White

1 Meter 18,750 2,730 5,480 4,530 1,600 6,410

2 Meter 5,690 890 1,630 1,470 520 1,930

CONTROL:

•USITTDMX-512(3/4/5/6/7/12-Channels)

•3-pinInput/Output

•LED4-buttoncontrolpanel

Page 6

Figure 1: PROPAR™ V12 Pin-Up Picture

Figure 2: The Rear Connections

AC Power In

DMX In DMX Out

LED

Control Panel

12x 5-in-1 RGBAW LED’sDual Mounting

Yokes & Locking

Knobs

Die-Cast

Aluminum Housing

Page 7

3. SETUP

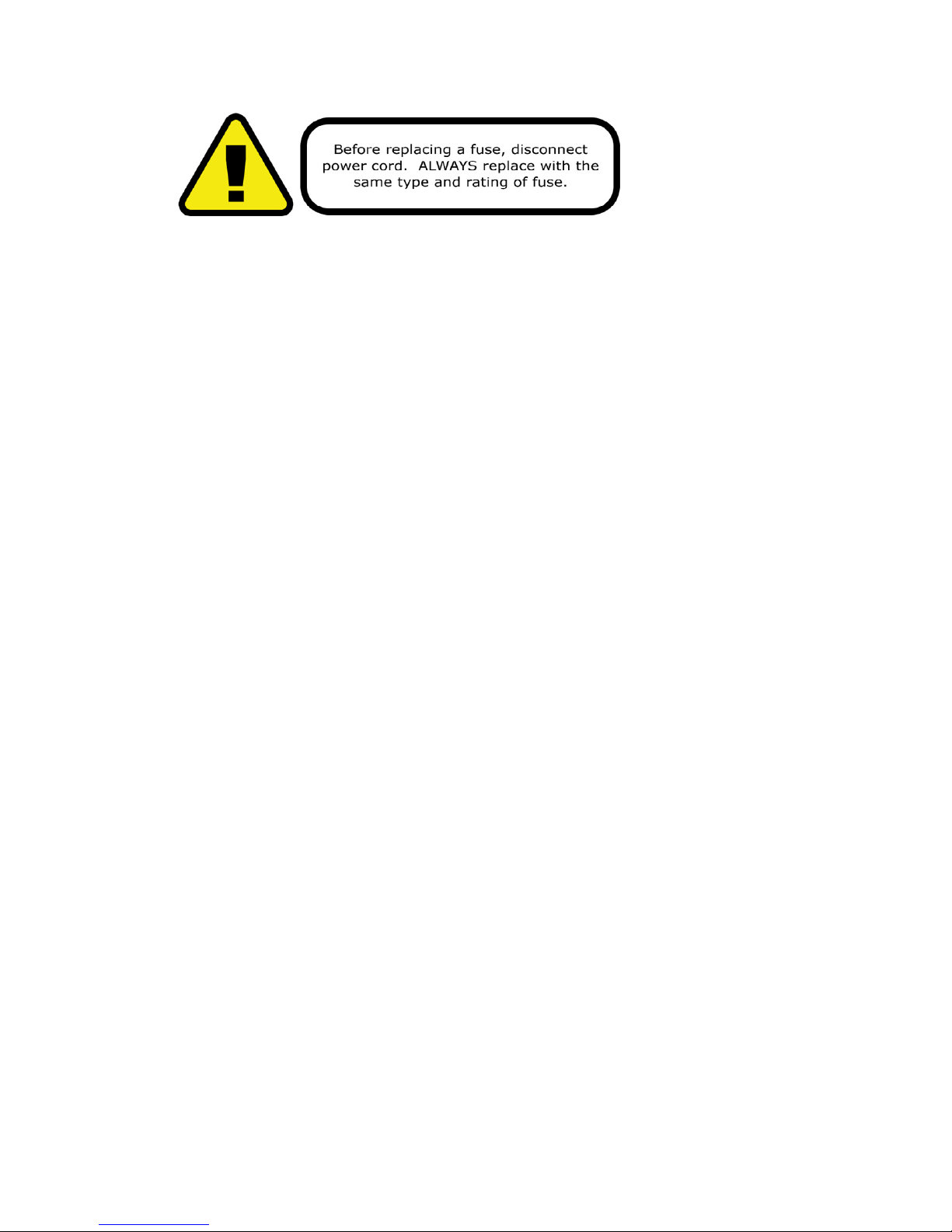

Fuse Replacement

CAUTION! The ProPar™ V12 utilizes a high-output switch-mode

power supply with an internal fuse. Under normal operating

conditions,thefuseshouldnotrequirereplacement.Thefuseiseld

replaceable,howeveritisanadvancedproceduresuitedtoqualied

individuals.ShouldyourProPar™V12fuserequirereplacement,

please contact Blizzard Lighting for instructions, or to return your unit

for service.

Connecting A Bunch of ProPar™ V12 Fixtures

You will need a serial data link to run light shows using a DMX-512

controllerortorunshowsontwoormorexturessettosyncin

master/slave operating mode. The combined number of channels

requiredbyallthexturesonaserialdatalinkdeterminesthenumber

ofxturesthedatalinkcansupport.

Fixtures on a serial data link must be daisy chained in one single line.

Also,connectingmorethan32xturesononeserialdatalinkwithout

the use of a DMX optically-isolated splitter may result in deterioration

of the digital DMX signal.

The maximum recommended cable-run distance is 500 meters (1640

ft).Themaximumrecommendednumberofxturesonaserialdata

linkis32xtures.

Data/DMX Cabling

Tolinkxturestogetheryou’llneeddatacables.Youshouldusedata-

gradecablesthatcancarryahighqualitysignalandarelessproneto

electromagnetic interference.

Forinstance,Belden©9841meetsthespecicationsforEIARS-

485 applications. Standard microphone cables will “probably” be

OK, but note that they cannot transmit DMX data as reliably over

long distances. In any event, the cable should have the following

characteristics:

2-conductor twisted pair plus a shield

Maximum capacitance between conductors – 30 pF/ft.

Maximum capacitance between conductor & shield – 55 pF/ft.

Maximum resistance of 20 ohms / 1000 ft.

Nominal impedance 100 – 140 ohms

Page 8

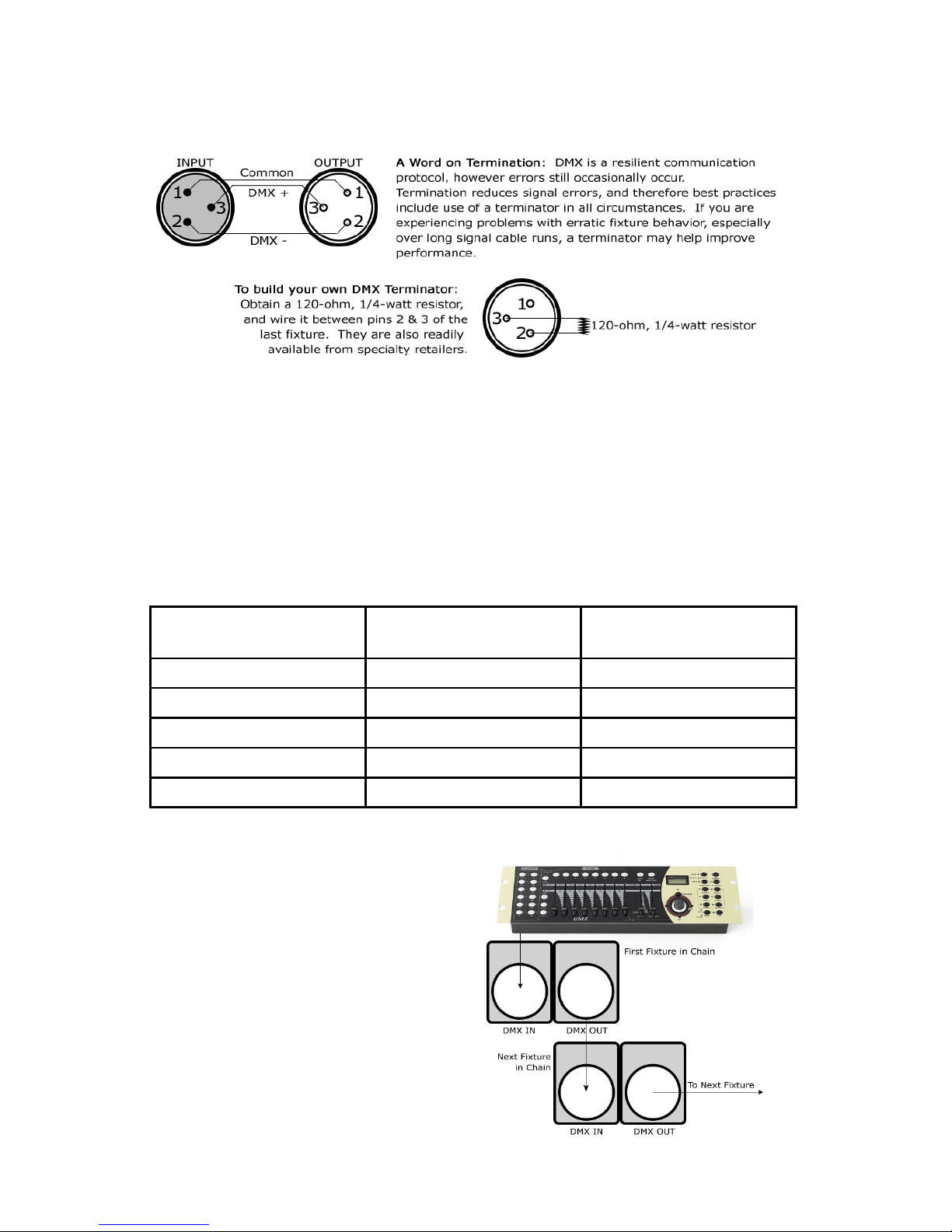

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR

connector on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the

xture’schassisground.Groundingthecommoncancauseaground

loop,andyourxturemayperformerratically.Testcableswithan

ohm meter to verify correct polarity and to make sure the pins are not

grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.

They are widely available over the internet and from specialty retailers. If you’d like to build your own,

the chart below details a proper cable conversion:

Conductor 3-Pin Female

(Output)

5-Pin Male

(Input)

Ground/Shield Pin 1 Pin 1

DMX Data (-) Pin 2 Pin 2

DMX Data (+) Pin 3 Pin 3

Not Used. No Connection. No Connection.

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the

DMX cable to the female connector (output)

on the controller.

Step 2: Connect the female connector of

theDMXcabletotherstxture’smale

connector (input). Note: It doesn’t matter

whichxtureaddressistherstone

connected. We recommend connecting the

xturesintermsoftheirproximitytothe

controller, rather than connecting the lowest

xturenumberrst,andsoon.

Step 3:Connectotherxturesinthechain

from output to input as above. Place a DMX

terminatorontheoutputofthenalxture

to ensure best communication.

Page 9

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3 pin connector side of the

DMX cable to the output (female) 3 pin connector of

therstxture.

2. Connect the end of the cable coming from

therstxturewhichwillhavea(female)3pin

connectortotheinputconnectorofthenextxture

consisting of a (male) 3 pin connector. Then,

proceed to connect from the output as stated above

totheinputofthefollowingxtureandsoon.

A quick note: Often,

the setup for Master-

Slave and Standalone

operationrequiresthat

therstxtureinthe

chain be initialized for

this purpose via either

settings in the control

panel or DIP-switches.

Secondarily,thextures

that follow may also

requireaslavesetting.

Check the “Operating Adjustments” section in this manual for

completeinstructionsforthistypeofsetupandconguration.

Mounting & Rigging

ThisxturemaybemountedinanySAFEpositionprovidedthereis

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

xtureusingasuitable“C”or“O”typeclamp.Theclampshouldbe

ratedtoholdatleast10xthexture’sweighttoensurestructural

stability. Do not mount to surfaces with unknown strength, and ensure

properly“rated”riggingisusedwhenmountingxturesoverhead.

Adjusttheangleofthexturebylooseningbothknobsandtiltingthe

xture.Afterndingthedesiredposition,retightenbothknobs.

•Whenselectinginstallationlocation,takeintoconsiderationlamp

replacement access (if applicable) and routine maintenance.

•SafetycablesMUSTALWAYSbeused.

•Nevermountinplaceswherethexturewillbeexposedtorain,

high humidity, extreme temperature changes or restricted ventilation.

Page 10

4. OPERATING ADJUSTMENTS

The Control Panel

All the goodies and different modes possible with the ProPar™ V12

areaccessedbyusingthecontrolpanelontherearofthexture.

There are 4 control buttons below the LED display which allow you to

navigate through the various control panel menus.

<MENU>

Is used to navigate to the previous higher-level menu item.

<ENTER>

Isusedtoselectandconrm/storethecurrentselection.

<UP>

Scrolls through menu items and numbers in ascending order.

<DOWN>

Scrolls through menu items and numbers in descending order.

The Control Panel LED Display shows the menu items you select from

the menu map on page #11. When a menu function is selected, the

displaywillshowimmediatelytherstavailableoptionfortheselected

menu function. To select a menu item, press <ENTER>.

Press the <MENU> button repeatedly until you reach the desired

menu function. Use the <UP> and <DOWN> buttons to navigate the

menu options. Press the <ENTER> button to select the menu function

currently displayed, or to enable a menu option. To return to the

previous option or menu without changing the value, press the

<MENU> button.

Inhaltsverzeichnis

Andere Blizzard Lighting Beleuchtungsausrüstung Handbücher

Blizzard Lighting

Blizzard Lighting Kontrol 5 Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting G70 Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting ICE 30 Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting THE PUCK RGBA LED PAR Can Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting ROCKER PANEL RGBAW Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting BladeRunner RGBW Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting COLORISE Infiniwhite Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting G-Max 150 Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Node:b RGBAL Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting The Puck RGB Unplugged Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting snokontrol Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Motif Sketch Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Torrent 90 Beam Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Puck Pro Zoom EXA Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting PixelStorm COB Mini Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting HotStik 5 COB Mini Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Puck CSI Xtreme Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting HUSH PAR Infiniwhite 500 Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting SkyBox EXA Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting SPOTMAN Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting the puck pro zoom Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Switch Blade X3 Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting MAX L Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting HUSH PAR Theatrik Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
