Please read first!

Dear customer,

With the purchase of this appliance, which

is offering a load capacity of up to 6 kg,

you have made a decision for up-to-date

dryer technology – high quality, long serv-

ice life, high reliability and an optimum in

operating convenience.

•At first, please check if the appliance

was received undamaged.

• If a transport damage is noticed, notify

your supplier immediately; do not op-

erate the appliance!

These operating instructions...

…are intended to help you operate this

appliance quickly and safely.

•Read the instructions – before installa-

tion and initial operation of this appli-

ance.

•Pay special attention to the safety in-

formation.

•Keep the instructions for future refer-

ence.

•If you sell this appliance pass on the

instructions to the new owner.

Explanatory note on symbols

Throughout these instructions the follow-

ing symbols are used:

High voltage! Risk of electric shock!

Risk of other personal injury or proper-

ty damage.

Important information or useful ad-

vise.

CONTENTS

Machine Overview ..............................2

Safety First...........................................3

Disposal ...............................................3

Installation...........................................3

The proper location ..........................3

Vent exhaust air out of doors!...........4

Built-under installation......................4

Washer/dryer combination ...............5

Levelling...........................................5

Changing hinge position ..................5

Electrical connection.........................5

The first time ....................................5

Before Drying ......................................5

What can be dried............................5

What must not be dried....................6

The right amount .............................6

The door ..........................................6

Programmes ........................................6

Programme selector..........................6

Standard programmes......................6

Special programmes ........................7

Timed programmes .........................7

Optional Functions..............................8

Buzzer mute ....................................8

Child-proof lock................................8

Time delay ..........................................8

Aborting a time-delay .......................9

Programme progress indicator...........9

Indicator lamp.....................................9

After drying.........................................10

Fluff filter ..........................................10

Drum ribs .........................................10

AT A GLANCE ......................................11

Preparation and start ........................11

Changing the programme................11

Aborting a programme.....................11

Adding more laundry........................11

Laundry final drying..........................11

Programme end ...............................11

Programme table ................................12

Trouble Shooting ................................13

Technical Specifications /

Energy Consumption ..........................14

XT0004E.FM

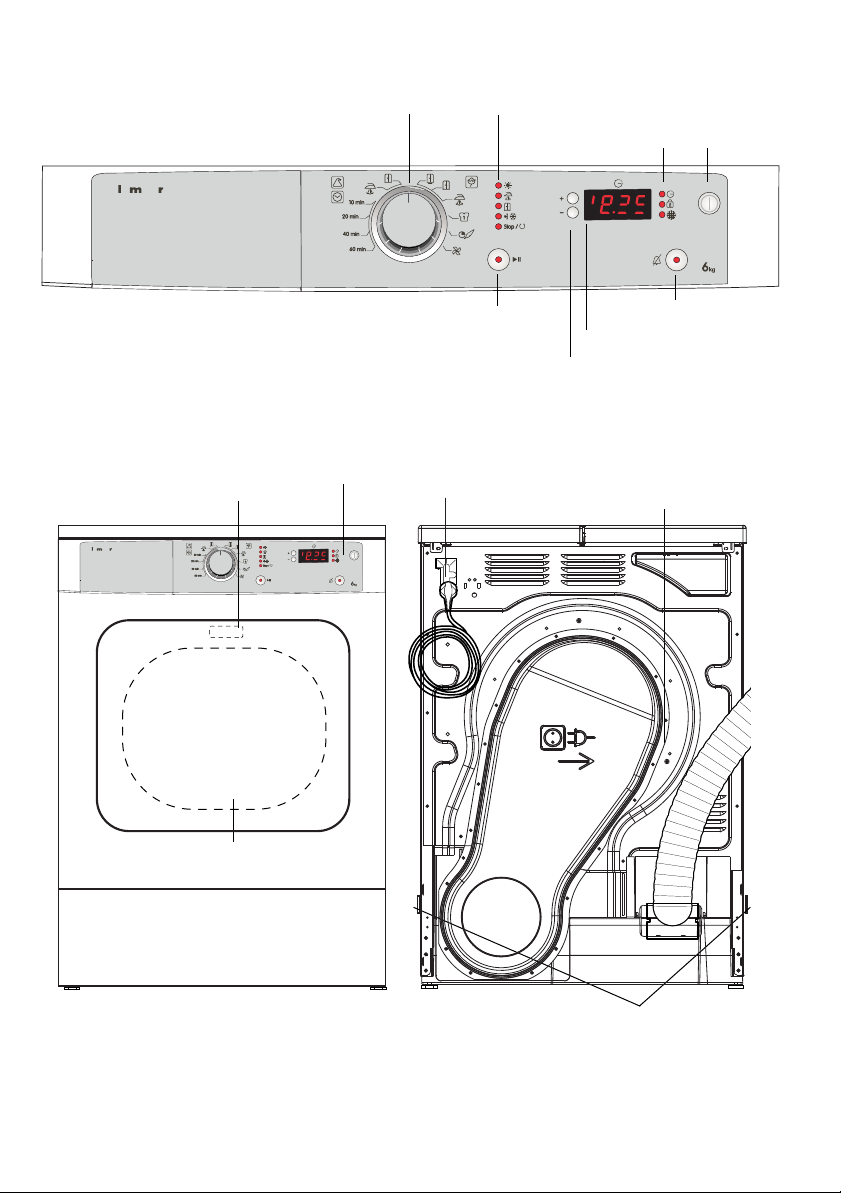

Machine Overview

Control panel

Levelling feet

Power cable

Programme selector Programme progress indicator

Indicator lamps

Display

Start/Pause/Cancel button

Rating label

Exhaust outlets

Vent tube

Time delay buttons

Fluff filter

(inside the door)

Buzzer cancel button

On/Off button

Safety First

Intended use

•This appliance shall only be used for

drying and airing of clothing labelled

suitable for tumble drying.

•The care information in the clothing

must be followed.

•This appliance is not intended for

commercial use.

Safety information

Operate appliance only in well venti-

lated, low dust rooms. Do not block or

cover the appliance's vent slots.

• This appliance must be connected to a

properly installed earthed outlet, pro-

tected by a fuse of adequate capacity.

Do not operate the appliance if the

power cable or power cable plug are

damaged or the appliance shows any

other faults! Risk of electric shock!

•Never touch the power cable plug

with wet hands! Never pull on the ca-

ble to unplug, always pull on the plug

only.

Do not reach into the drum while the

appliance is heating up. Risk of scald-

ing by the hot and moist textiles!

•Keep children away from the appli-

ance! Electric appliances are no toys.

Textiles treated with cleaning materials

or having been dry cleaned must not

be dried in the appliance after-

wards.The vapours generated may

cause a risk of fire or explosion, poison-

ing hazard or damage to the appliance!

•Periodically clean all important parts

of the appliance (see "After drying…").

Operating safety, drying time and en-

ergy consumption depend on such

periodical cleaning.

•In case of malfunctions which cannot

be rectified by the information con-

tained in this manual:

Turn appliance OFF, unplug, notify

the customer service.

Never attempt to repair the appliance

yourself! You could endanger your

own life and the life of other users!

Only authorised electricians, such as

our service technicians, are permitted

to repair electric appliances.

Disposal

Where to leave the packaging?

The plastic wrapping must not get in-

to the hands of children! Risk of suffo-

cation!

The packaging is made of materials which

can be recycled.

• Separate the packing material by type:

– Styropor®parts and plastic wrap-

ping go to a valuable substance col-

lection point;

– battens go into bulky refuse.

The packaging is not to be disposed of

in the regular household refuse!

What to do with the old appliance?

Dispose of your old appliance in an envi-

ronmentally friendly manner.

•Ask you dealer or your local refuse col-

lection service how to best dispose of

your old appliance.

Before giving the appliance into bulky

refuse, disconnect it from the mains,

cut off the power cable and disable

the door lock – so children will not be

endangered.

Installation

The proper location

For drying the appliance requires a suffi-

cient supply of clean, cool room air.

Do not operate the appliance together

with furnaces (gas-, oil-, coal-fired) or

fireplaces. The airflow may aspirate their

exhaust fumes, withdraw oxygen and

extinguish flames. Poisoning hazard!

Operate the appliance only in well

ventilated, low dust rooms. Do not

block or cover the appliance's vent

slots.

The floor must have a sufficient load-

bearing capacity! If, for example, you

are stacking a washer and the dryer,

this combination can – when loaded –

reach a total weight of 160 kg.

Important:

•Place appliance on an even and level

floor only.

•Do not stand appliance on the power

cable.

• Keep at least 1 cm distance to walls or

other furniture.

Vent exhaust air out of doors!

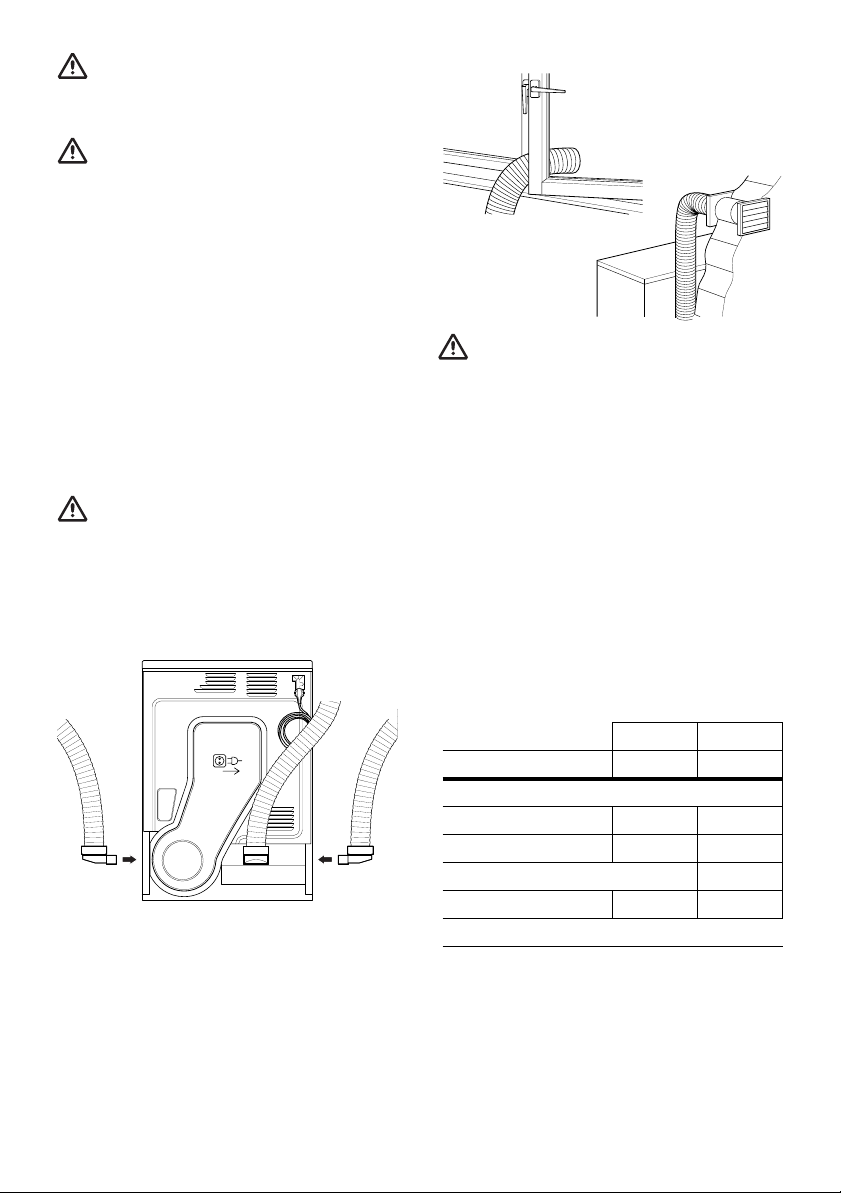

The appliance has three exhaust outlets, at

the rear and the side panels; the side out-

lets are closed by removable covers.

The exhaust air should not be simply

led into the room, since the high hu-

midity may cause longterm damage

to walls and furniture.

•Connect the vent tube with the 90°

offset connector or the straight one

to one of the exhaust air outlets.

•The two other outlets not used must

be closed by the covers.

The vent tube

– can be run through an open window

to the outside;

– can be connected to a wall-mount

vent.

The exhaust air must not be led into

flues or chimneys of fireplaces. Check

with your chimney sweeper or heating

engineer.

•Instead of the vent tube vent pipes

can be used. The diameter should be

at least 10 cm.

•Tube or pipe, respectively, should be

routed in the straightest and most di-

rect pathoutdoors, i.e. with the fewest

number of elbows and turns, as these

hamper airflow.

•The maximum length of a straight

routed tube/pipe is given in the chart

below.

• For each elbow and other obstructions

the respective value shown is to be de-

ducted from the maximum length.

Built-under installation

This appliance can be installed under a

worktop.

• For this a special top cover is required

(stock no. AP 2000), available at the

customer service or specialised trade.

Hose Pipe

Max. length 8.0 m 10.0 m

less…

1 elbow 45° – 1.0 m – 0.3 m

1 elbow 90° – 1.8 m – 0.6 m

1 elbow 90° short turn – 2.7 m

1 wall-mount vent*– 2.0 m – 2.0 m

*with automatic louvers

Only authorised specialists are permit-

ted to carry out a built-under installa-

tion. Risk of electric shock!

Washer/dryer combination

This appliance can be put on top of any of

our washing machines.

•A special stacking kit is required (stock

no. MBS 2000), available at the cus-

tomer service or specialised trade.

Levelling

•Adjust feet until the appliance is level

and does not rock. Checking with a

spirit level is recommended.

Important:

•Adjust by the feet only, do not use

wooden wedges or similar. Never re-

move the feet!

Changing hinge position

If you wish to open the door to the other

side, you can have the hinge position

changed from left hand to right hand or

vice versa by our customer service.

Electrical connection

Connect the appliance to a properly in-

stalled earthed outlet, protected by a fuse

of adequate capacity.

Important:

•The connection must conform to the

applicable regulations in your country

and of your local Electricity Board.

• The power cable plug must be accessi-

ble after installation.

•For a firmly fixed connection a master

switch with at least 3 mm contact

clearance must be used.

•Voltage and fuse rating of the appli-

ance is stated on the rating label (on

the rear panel and behind the door).

•The stated voltage must match with

your mains voltage.

•Connection by extension cables or trail-

ing sockets is not permitted.

Note down the appliance's model and

identification number from the rat-

ing label, in case you need help from

customer service.

A damaged power cable must be re-

placed by an authorised qualified elec-

trician. Until the appliance has been

repaired it must not be operated! Risk

of electric shock!

The first time

•To remove any possible residue from

production wipe out the drum with a

moist cloth before the first drying cycle.

• During the first drying cycle there may

be an annoyance caused by bad smell.

Before Drying

What can be dried

•The laundry should be spin-dried as

much as possible – to the extent per-

missible for the respective fabric.

Always observe the care symbols

shown on the garment labels!

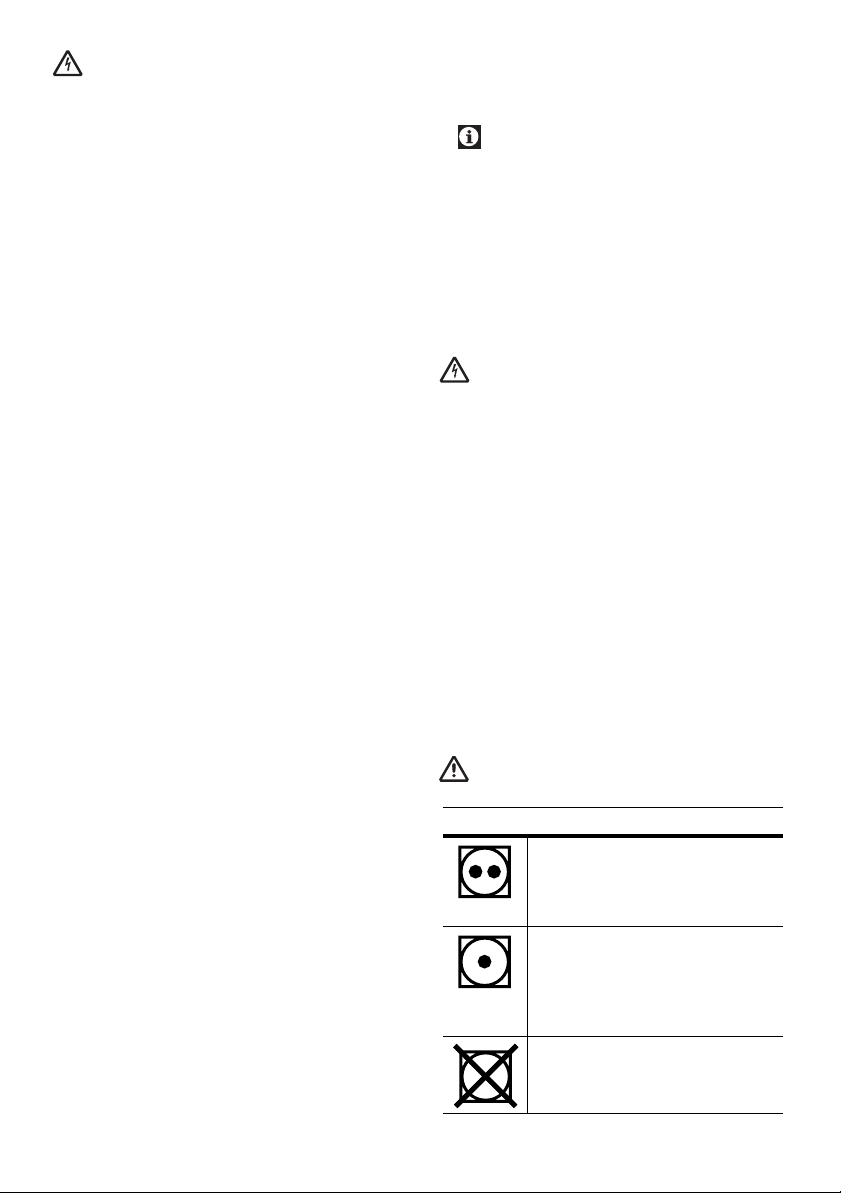

Care symbols for drying

Suitable for drying at high

temperature:

Hot wash / coloured cottons,

cotton, linen

Suitable for drying at re-

duced temperature:

Easy-care synthetics (polyes-

ter, polyamide); mixed fabrics

(with cotton)

Drying in dryer not possible:

Sensitive fabrics (viscose, silk,

etc.); curtains

•When connecting to the mains, make

sure the On/Off button is in Off position.

•The current of the appliance can be

set according to the electrical

infrastructure and fuse rating of your area.

To change the current from 16 A to 10 A:

Set the programme selector to >One

piece<. Press the buzzer cancel button for

3 seconds. 16 will appear on the display.

Press - button, 10 will appear on display,

the appliance is set to 10 A.

To change the current from 10 A to 16 A:

Follow the same route, this time press + to

change it to 16 A.

hooks and eyes.

The door

• To open, push the door.

• Put laundry loosely in the drum.

• Close the door; push against the door

until you hear the door lock engage.

Take care no textiles are caught by the

door.

ard or damage to the appliance!

What must not be dried

Do not load dripping wet laundry in

the dryer. The dryer may be damaged,

and the energy consumption will be

excessively high.

– Sensitive fabrics (silk, curtains, etc.)

may crease.

– Downfilled textiles (pillows, duvets)

are not suitable.

– Air-tight (rubberized) textiles.

– Foam or rubber parts (shoulder pads

and the like) might deform and dam-

age laundry or appliance.

– Textiles that were treated with clean-

ers or dry-cleaned.

The vapours generated may cause a

risk of fire or explosion, poisoning haz-

The right amount

•The maximum load capacity depends

on the textile type and the corre-

sponding drying programme.

Please note the information given in

the "Programme Table"! Overloading

the drum has an adverse effect on the

drying result.

Always try to utilise the maximum

load capacity.

Programmes

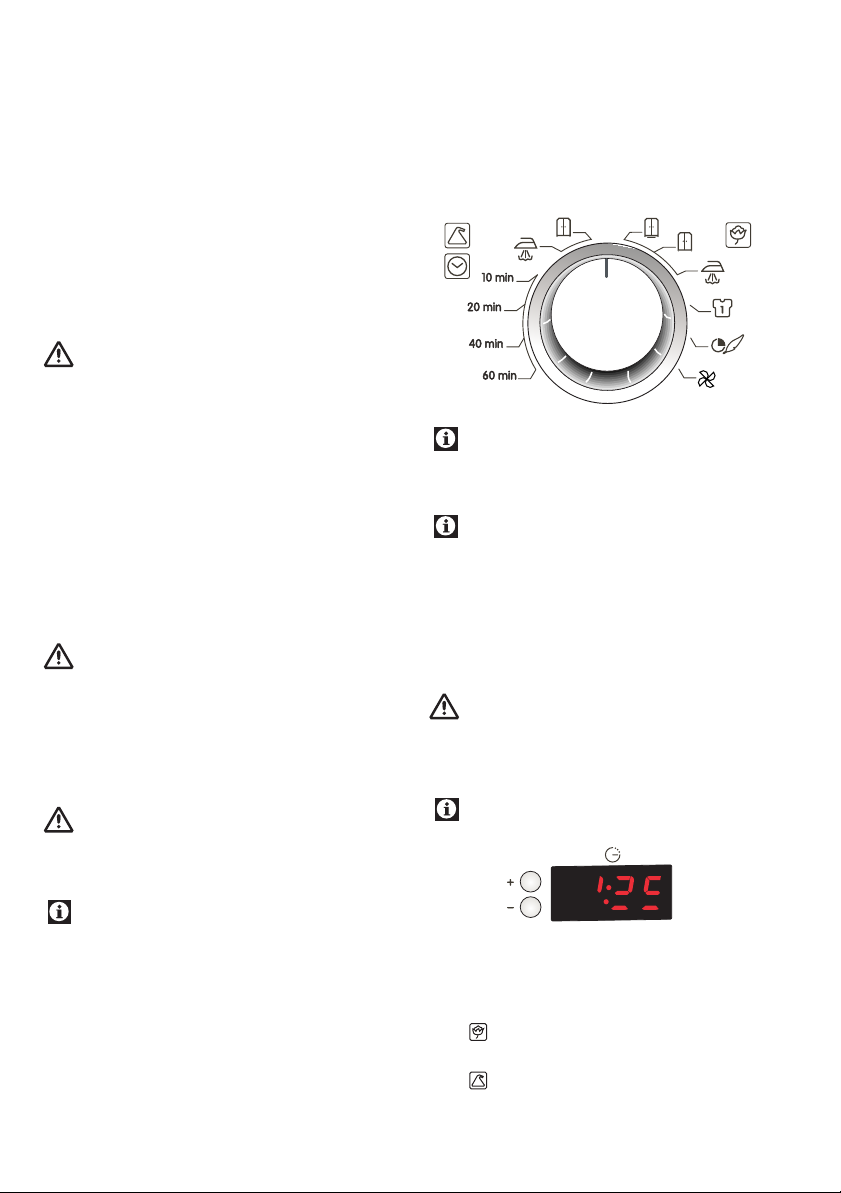

Programme selector

The programme selector can be turned ei-

ther clockwise or counter-clockwise.

•Remove metal parts (buckles, etc.) or

put textiles in a linen bag or similar.

•Empty pockets, remove all foreign ob-

jects (coins, pens, etc.). Close zippers,

•Tumble dry only textiles labelled ac-

cordingly – and only with the appro-

priate drying programme.

•If possible load textiles of the same

kind; thin tea towels will dry much

quicker than thick bath towels.

For detailed information about the individ-

ual drying programmes, refer to the "Pro-

gramme table".

Always choose a programme suitable

for the textile type.

Observe the care symbols shown on

the garment labels!

Pushing the On/Off button, the ap-

pliance is turned on; the programme,

however, will start only when the

>Start< button is pressed.

When changing to a different pro-

gramme the programme must be

stopped first; in that case the >Start<

button must be pressed for 2 sec. in

order to cancel programme.

The display will show the remaining time

during the programs.

Standard programmes

Depending on the textile type, several

standard programmes are available:

– Cottons:

Drying at high temperature.

– Easy-care:

Drying at reduced temperature.

Each standard programme offers different

drying levels to be chosen.

Select drying level only as high as ab-

solutely necessary. This will treat the

textiles with care and limits the energy

consumption.

Special programmes

A number of special programmes are also

available:

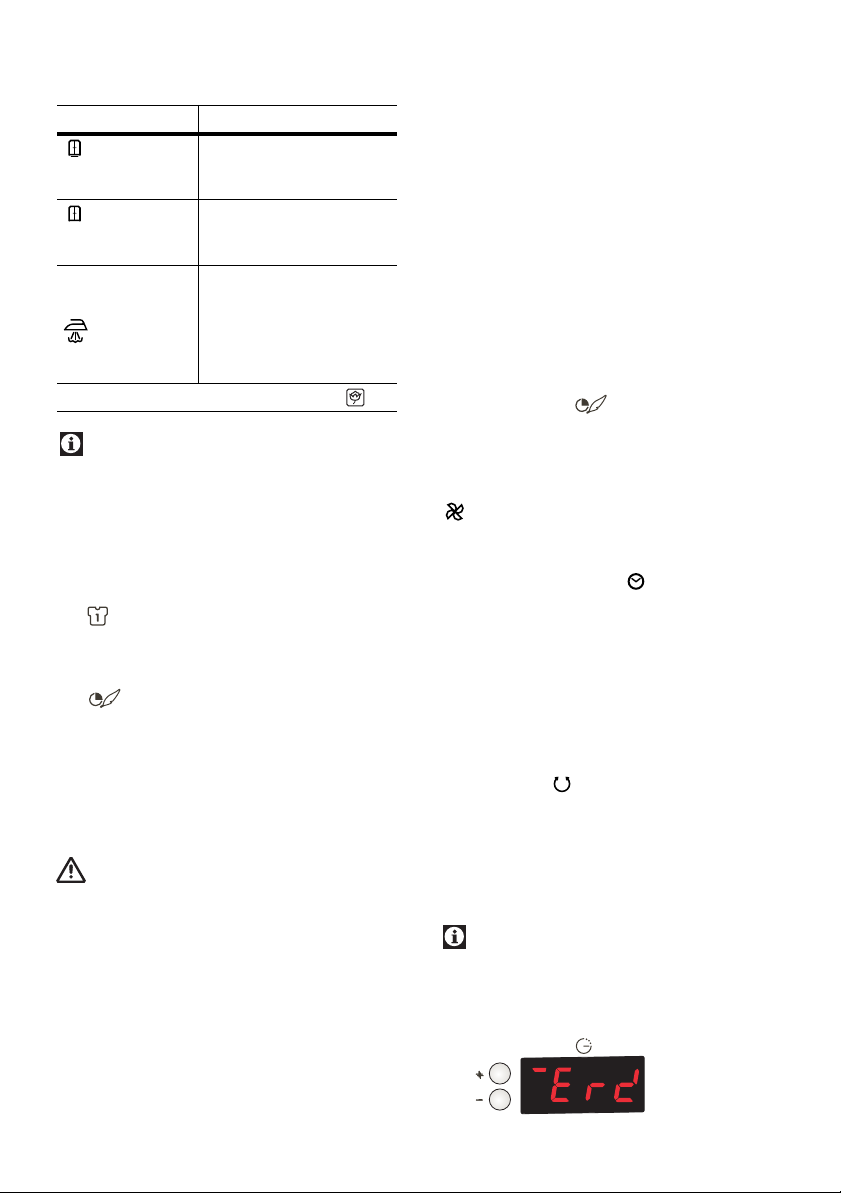

Drying level Result

Extra dry* thick, multi-layer tex-

tiles: dried ready for

the linen cupboard

Linen cup-

board dry regular textiles: dried

ready for the linen cup-

board

Ironing dry requiring regular iron-

ing

*only for White/coloured cottons

Timed programmes

For final drying or airing your washing sev-

eral timed programmes are available.

– 60min, 40min, 20min, 10min

Drying at a reduced temperature; the

drying cycle will always end after the

chosen time has elapsed, irrespective

of the drying level.

–Short Delicate Program

Extra gentle drying at an reduced tem-

perature and limited programme du-

–

Textiles marked with P ( chemical cleaning)

or must be handwashed can be treated in

this programme by using special care

products. Cleaning respectively fluffing of

pulls, throusers, dresses, jackets, costumes,

etc. is achieved. The care products are

adapted for use for clothes in cotton, mixt

fibres, wool, silk and linen.

By using a sheet impregnated with a special

active solution, small stains can be removed

before to introduce the laundry piece into the

dryer. In case of bigger sized and already dry

or crusted stains the cleaning by professionals

is recommended.

The active solution sheet removes also bad

smellings during the program ( e.g. cigarette

smoke).

For extrem sensitive textiles the use of a laundry

bag is recommended.

Application:

1. Before fluffing in the dryer all small and fresh

stains must be removed.

2. Introduce 1 to 4 pieces into the drum or first

into the laundry bag.

3. Select on program selector the program

“Short Delicates”.

4. When program is finished, take laundry

pieces out from the drum or the laundry bag

and place them over a hanger to avoid creasing.

Anti-crease

If the textiles cannot be removed from the

dryer after completion of the drying cycle,

this anti-creasing cycle will automatically start,

separate and smooth your drying to reduce

creasing.

sounds. And display will show a bar

rotating during this stage.

Throughout this anti-crease stage the

drum rotates briefly every 25 seconds

for 2 hours; at the same time a buzzer

Fluff/Refresh:

–

For refreshing or airing, for all types of fabrics.

One Piece

Drying at reduced temperature in 30 min.

up to 1.5 kg load, for all types of fabrics.

ration of approx. 20 minutes. Textiles

such as fine textiles, delicate underwear

and accessories like scarf can be dried

by this programme.

Tumble dry only textiles labelled

accordingly.

The child lock will deactivate all the

buttons exept the On/Off button.

Buzzer Cancel

At programme end and throughout the

anti-crease stage (see above) a buzzer

sounds.

• If this is inconvenient to you, press this

button to mute the buzzer.

•There is no need to press the button

again for the next drying cycle, be-

cause the dryer remembers this setting.

Child-proof lock

With the child-proof lock the appliance

can be made child-proof.

To activate the child-proof lock:

Press and hold both buttons indicated

by the arrows for approx. 5 seconds,

until the child lock indicator lights on.

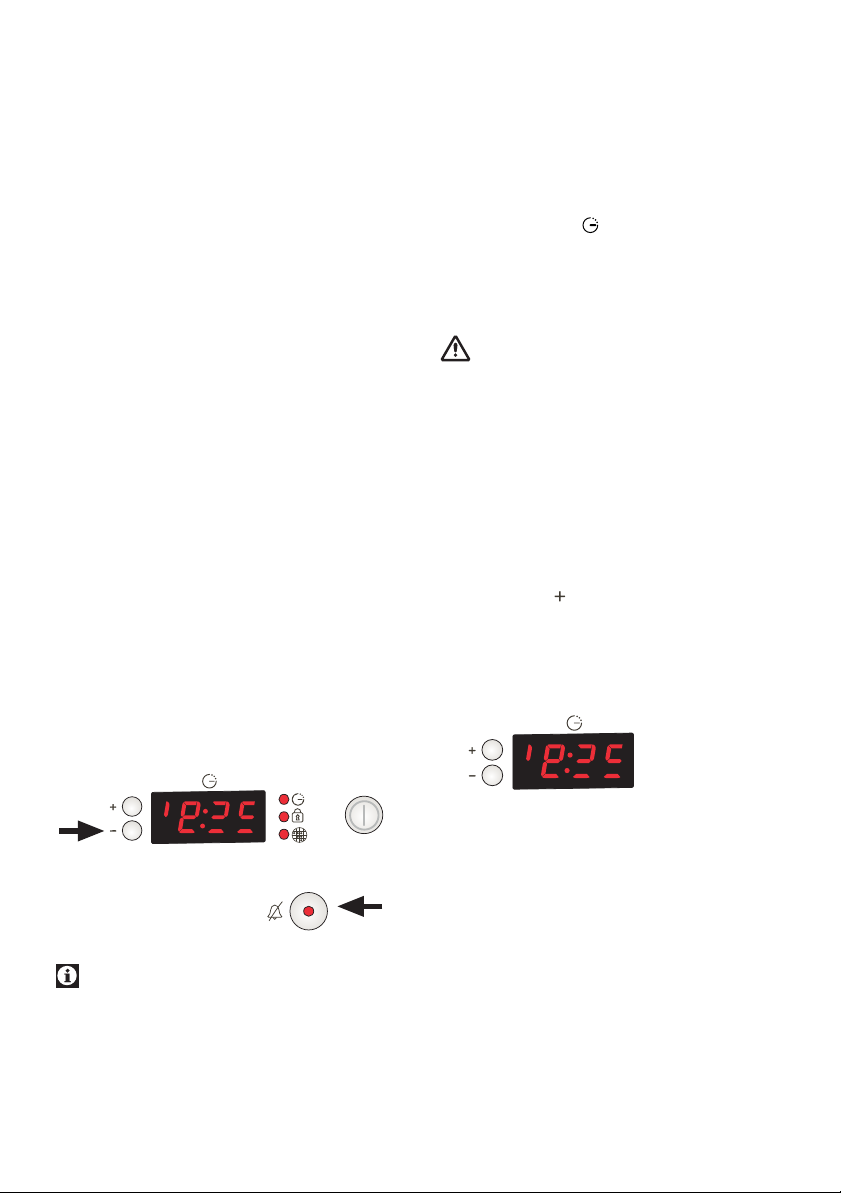

Time delay

Using the delay-timer function the pro-

gramme start can be delayed up to

19 hours.

As the appliance will then dry unat-

tended – i.e. acting as heater – you

should prepare and set the dryer with

special care!

Here's how to proceed:

1. Check to see that

– the vent slots are not blocked,

– the fluff filter is cleaned,

– the vent tube is correctly fitted.

2. Load laundry and close the door.

3. Set programme selector.

If the delay-timer is activated the time

delay indicator on the right of the display

flashes.

To deactivate the child-proof lock:

Press and hold both buttons indicated

by the arrows for approx. 5 seconds,

until the child lock indicator is off.

Optional Functions

• If the buzzer sound is inconvenient, it

can be muted (see below).

• You may remove the textiles at any

time and end the programme.

There is no need to press the button

again for the next drying cycle, be-

cause the dryer remembers this setting.

5. Press the >Start< button.

This function can be set during the

programme or in non-usage and standby.

4. Press the button on the left of the

display until the desired delay is reached.

(each press to + or - buttons will

increase or decrease the delay for

1 hour)

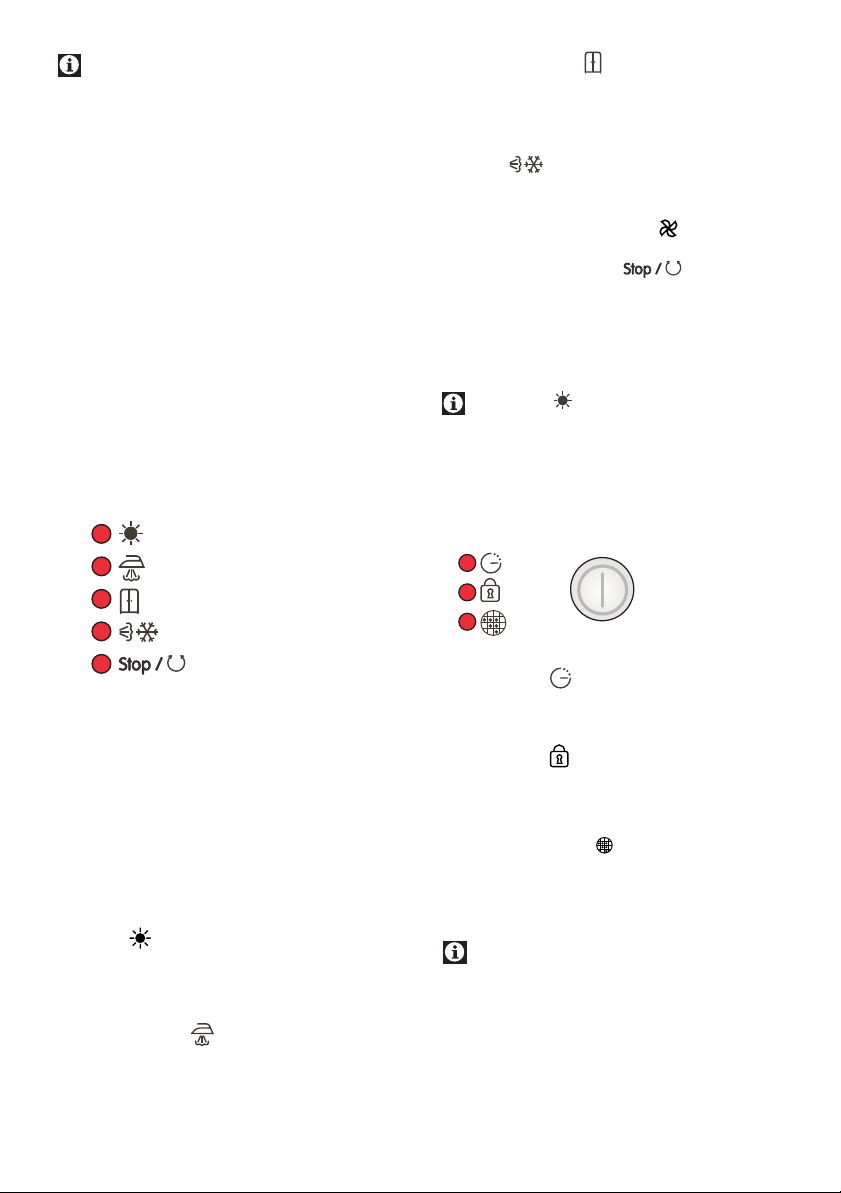

Programme progress

indicator

This row of indicators indicate the progress

of the running programme.

• When the programme is running, one

of the indicators is illuminated

indicating the current programme

stage:

>Drying <

– is illuminated during the actual heat-

ing phase of a drying programme.

>Airing

– is illuminated during the 8 minute

cooling down stage or the pro-

gramme >Fluff/Refresh < was chosen.

During the time-delay period more

laundry can be added.

After adding, the >Start< button must

be pressed again.

>Stop/Anti-Creasing

– is illuminated when the programme

end is reached

flashes while the anti-crease stage is

active.

Indicator lamps

>Child Lock <

– is illuminated when the child lock is

activated.

>Cupboard Dry <

– is illuminated when the clothes reached

Cupboard Dry level.

>Clean Fluff Filter <

– is illuminated at programme end to

remind you to clean the fluff filter (see

"Fluff filter").

If Clean Fluff Filter indicator is

flashing during the programme

see "Trouble shooting".

Aborting a time-delay

An active delay timer can be stopped at

any time:

Press the >Start< button for 2 seconds until

the time delay indicator is off.

•When you set a programme and press

the start button, one of the indicators

will light indicating that the program

is started.

–flashes when the time delay option is active.

>Time delay <

>Ready to Iron <

– is illuminated when the clothes reached

Iron Dry level.

If Drying lamp indicator is

flashing a misoperation or fault has

occurred (see "Trouble shooting").

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Blomberg Trockner Handbücher

Blomberg

Blomberg DV 16540 Service-Handbuch

Blomberg

Blomberg TKF 1330 Bedienungsanleitung

Blomberg

Blomberg TKF 7431 Bedienungsanleitung

Blomberg

Blomberg DHP24404W Bedienungsanleitung

Blomberg

Blomberg TKF 7451 AG 50 Bedienungsanleitung

Blomberg

Blomberg TKF 8451 A 50 Bedienungsanleitung

Blomberg

Blomberg LTIP07310 Bedienungsanleitung

Blomberg

Blomberg DHP 24400W Bedienungsanleitung

Blomberg

Blomberg TKF 8451 AG 50 Bedienungsanleitung

Blomberg

Blomberg TKF 7454 WE 30 Bedienungsanleitung

Blomberg

Blomberg TKF 8451 Bedienungsanleitung

Blomberg

Blomberg LTH 38420 W Bedienungsanleitung

Blomberg

Blomberg TKF 7231 Bedienungsanleitung

Blomberg

Blomberg TROCKNER TAF 7230 A Bedienungsanleitung

Blomberg

Blomberg TKF 7350 Bedienungsanleitung

Blomberg

Blomberg LTH3842W Bedienungsanleitung

Blomberg

Blomberg TKF 8451 SGC 30 Bedienungsanleitung

Blomberg

Blomberg DV 16540 NBL00 Bedienungsanleitung

Blomberg

Blomberg TGE983WTX0 Bedienungsanleitung

Blomberg

Blomberg TKF 1230 Bedienungsanleitung

Blomberg

Blomberg TKF 8461 AGC Bedienungsanleitung

Blomberg

Blomberg TKF 1350 Bedienungsanleitung

Blomberg

Blomberg TROCKNER TKF 7330 A Bedienungsanleitung

Blomberg

Blomberg LTK 28021 W Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
