KGM4881

KGM4881PX

Refrigerator

User Manual

Please read these instructions first before using your appliance

Thank you for choosing a Blomberg appliance.

Please take some time to read this user manual before using your appliance, to

ensure you know how to safely operate the controls and functions.

Carefully follow all unpacking and installation instructions to ensure the appliance

is correctly connected and fitted prior to use.

Please write your product model and serial number on the last page of this user

manual, and store in a safe location close to the appliance for easy future reference.

This user manual may also be applicable for several other models. Differences

between models will be listed.

If you have any questions or concerns, please call our contact centre or find help

and information online at www.blomberguk.com

Explanation of symbols

Throughout this user manual the following symbols are used:

CImportant information or useful tips.

AWarning against dangerous conditions for life and property.

BWarning against electric voltage.

1 Your refrigerator 4

2 Warnings 5

For models with water dispenser .......6

Electrical Requirements .....................6

Warning! This Appliance Must Be

Earthed .............................................7

Energy Saving Tips............................7

Compliance with WEEE Directive and

Disposing of the Waste Product: .......8

Compliance with RoHS Directive: ......8

Package information..........................8

3 Installation 9

Transportation Instructions.................9

Installation Instructions ......................9

Changing the illumination lamp .......10

Reversing The Doors .......................11

4 Before operating 13

Final Check .....................................13

5 Using your refrigerator 14

Fridge Compartment Storage Advice15

Placing the food ..............................15

Defrosting of the appliance ..............15

Defrosting........................................17

A) Fridge Compartment ...................17

B) Freezer Compartment .................18

Icematic and ice storage container ..18

Using the water dispenser ...............19

Filling the water dispenser's tank .....19

Drip tray ..........................................21

6 Maintenance and cleaning 22

7 Do's and Don'ts 23

Problem Solvıng ..............................24

CONTENTS

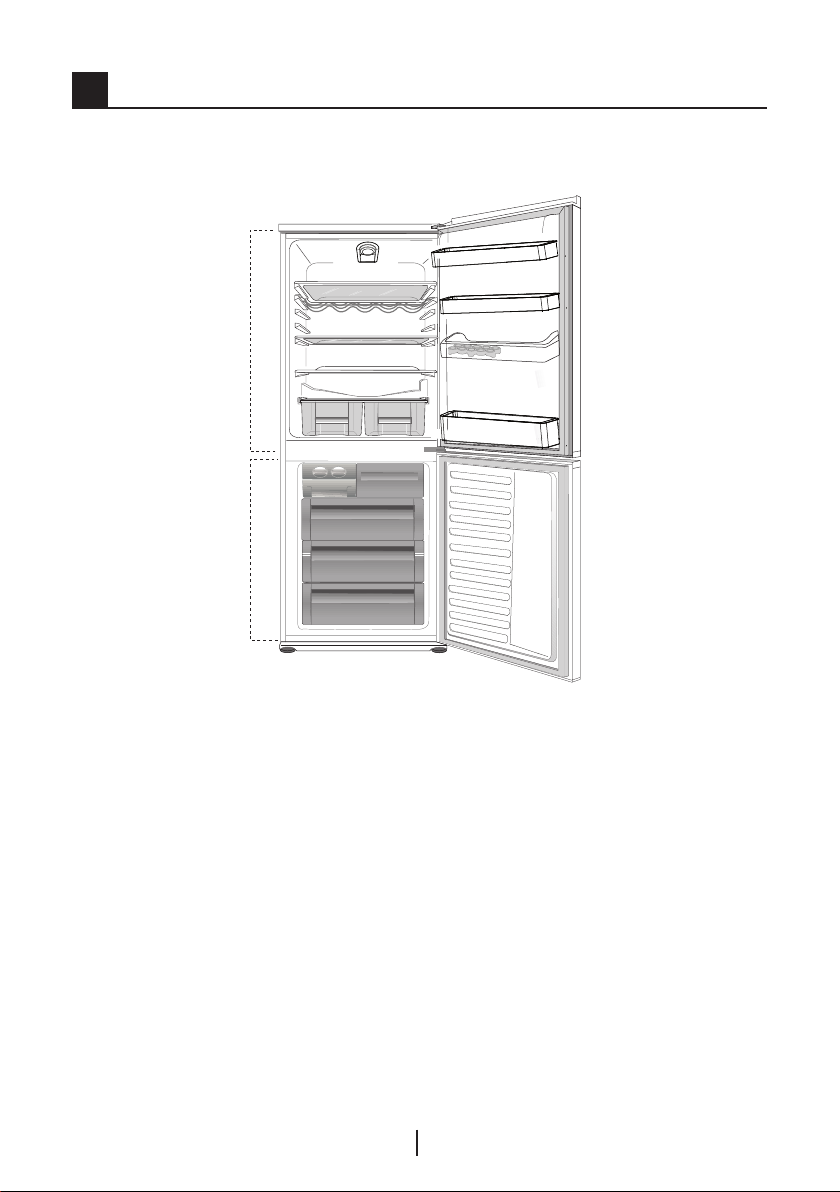

1Your refrigerator

CFigures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

Congratulations on your choice of a BLOMBERG quality Appliance which

has been designed to give you service for many years.

1. Door Shelves (Small bottles,cans,

tubes)

2. Egg Tray

3. Bottle shelf

4. Adjustable Front Feet

5. Freezing and Storage (store fresh

food to be frozen lower down)

6. Twist & Serve ice cube trays and

ice cube storage tray (Make and store ice

cubes)

7. Crisper bins (for fresh fruit and

vegetables)

8. Crisper cover

9. Adjustable Shelves

10. Bottle rack (White wine)

11. Thermostat knob

12. Fridge compartment

13. Freezer compartment

* May not be available in all models

10*

2Warnings

• DO NOT connect your

appliance to the electricity

supply until all packing and

transit protectors have been

removed.

• Leave to stand for at least 4

hours before switching on to

allow compressor oil to settle if

transported horizontally.

• If you are discarding an old

refrigerator with a lock or latch

fitted to the door, disable the

lock/latch, ensure that it is left

in a safe condition to prevent

the entrapment of young

children.

• This appliance must only be

used for its intended purpose

i.e the storing of edible

foodstuff.

• Do not dispose of the

appliance on a fire. At

BLOMBERG, the care and

protection of our environment

is an ongoing commitment.

This appliance which is among

the latest range introduced is

particularly environment friendly.

Your appliance contains non

CFC / HFC natural substances

in the cooling system (Called

R600a) and in the insulation

(Called cyclopentane) which

are potentially flammable if

exposed to fire. Therefore,

take care not to damage, the

cooling circuit / pipes of the

appliance in transportation and

in use. In case of damage do

not expose the appliance to fire

or potential ignition source and

immediately ventilate the room

where the appliance is situated.

• We suggest you contact your

local authority for disposal

information and facilities

available.

• To obtain the best possible

performance and trouble free

operation from your appliance

it is very important to carefully

read these instructions.

• On delivery, check to make

sure that the product is not

damaged and that all the parts

and accessories are in perfect

condition.

• Ensure that the plug remains

readily accessible. Do not use

multiple adapter or extension

cable.

• Failure to observe these

instructions may invalidate your

right to free service during the

guarantee period.

• Keep ventilation openings, in

the appliance enclosure or in

the built-in structure, clear of

obstruction.

• Do not use mechanical devices

or other means to accelerate

the defrosting process, other

than those recommended by

the manufacturer.

• Do not damage the refrigerant

circuit.

• Do not use electrical

appliances inside the food

storage compartments of the

appliance, unless they are of

the type recommended by the

manufacturer.

• We suggest you keep these

instructions in a safe place for

easy reference.

• This appliance can be used

by children aged from 8 years

and above and persons with

reduced physical, sensory

or mental capabilities or

lack of experience and

knowledge if they have

been given supervision or

instruction concerning use of

the appliance in a safe way

and understand the hazards

involved.

• Children should be supervised

to ensure that they do not play

with the appliance.

For models with water

dispenser

• Pressure for cold water inlet

shall be maximum 90 psi (6.2

bar). If your water pressure

exceeds 80 psi (5.5 bar), use a

pressure limiting valve in your

mains system. If you do not

know how to check your water

pressure, ask for the help of a

professional plumber.

• If there is risk of water hammer

effect in your installation,

always use a water hammer

prevention equipment in

your installation. Consult

Professional plumbers is

you are not sure that there is

water hammer effect in your

installation.

• Do not install on the hot water

inlet. Take precautions against

of the risk of freezing of the

hoses. Water temperature

operating interval shall be 33°F

(0.6°C) minimum and 100°F

(38°C) maximum.

• Use drinking water only.

Electrical Requirements

Before you insert the plug into

the wall socket make sure that

the voltage and the frequency

shown on the rating plate inside

the appliance corresponds to

your electricity supply.

Rating label is on the left hand

side of inner liner.

We recommend that this

appliance be connected to the

mains supply via a

suitable switched and fused

socket. The appliance must be

positioned so that the plug is

accessible.

Should the mains lead of the

appliance become damaged or

should it need

replacing at any time, it must be

replaced by a special purpose

made mains lead which can only

be obtained from a BLOMBERG

Authorised Service Agent.

FITTED WITH

BS 1362 13A FUSE ALWAYS

FIT BS 1362 REPLACEMENT

CARTRIDGE FUSE

GREEN &

YELLOW

GREEN

BLUE

BLACK

BROWN

RED

22mm.

6mm.

6mm. 32mm.

12mm.

FUSE

CORD GRIP

Warning! This Appliance

Must Be Earthed

If the fitted moulded plug is not

suitable for your socket, then the

plug should be cut off and an

appropriate plug fitted. Destroy

the old plug which is cut off as a

plug with bared cord could cause

a shock hazard if inserted into a

socket elsewhere in the house.

The moulded plug on this

appliance incorporates a 13

A fuse. Should the fuse need

to be replaced an ASTABEAB

approved BS 1362 fuse of the

same rating must be used. Do

not forget to refit the fuse cover.

In the event of losing the fuse

cover the plug must not be used

until a replacement fuse cover

has been fitted. Colour of the

replacement fuse cover must be

the same colour as that visible

on the pin face of the plug. Fuse

covers are available from any

good electrical store.

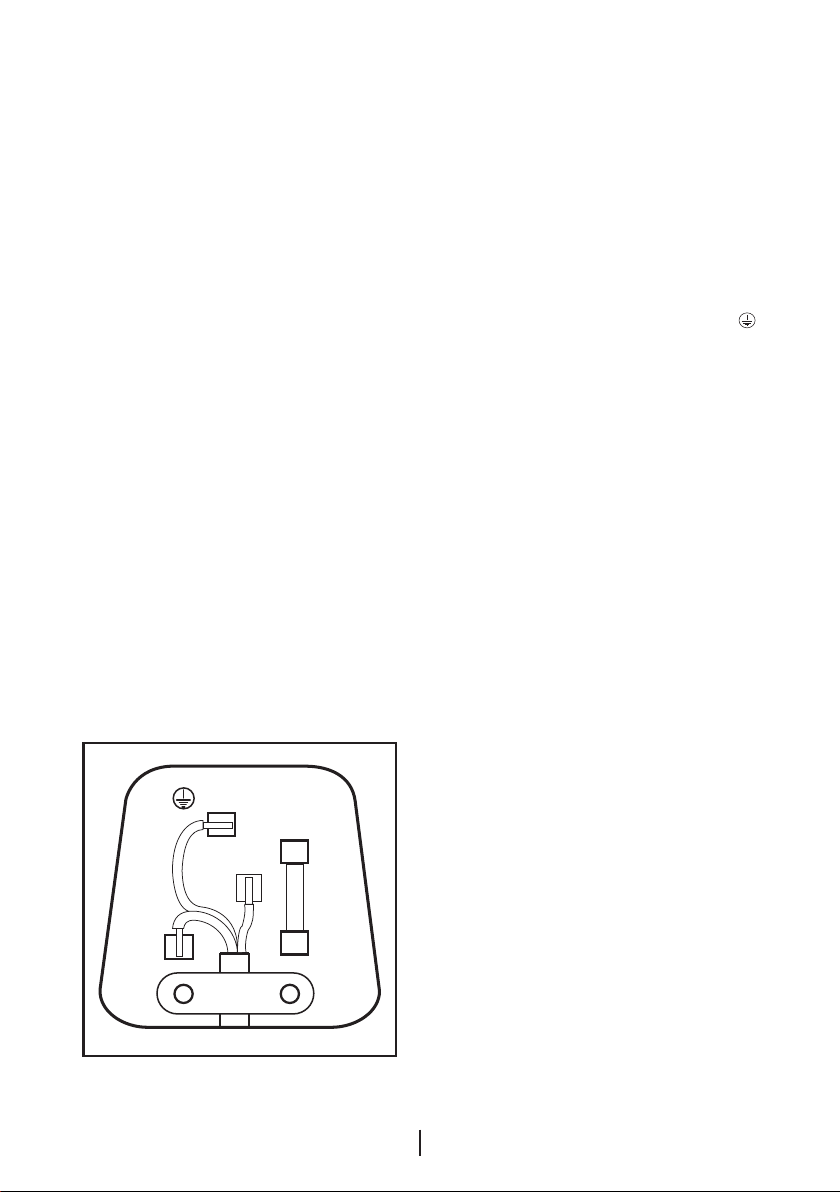

Important! Fitting A Different

Plug

As the colours of the wires in

the mains lead of this appliance

may not correspond with the

coloured markings identifying the

terminals in your plug proceed

as follows: (See diagram).

1. Connect the green-yellow or

green (Earth) wire to the terminal in the

plug marked ‘E’ or with the symbol

or coloured green and yellow or green.

2. Connect the blue (Neutral) wire

to the terminal in the plug marked ‘N’

or coloured black.

3. Connect the brown (Live) wire to

the terminal in the plug marked ‘L’ or

coloured red.

4. With alternative plugs a 13 A

fuse must be fitted either in the plug or

adaptor or in the main fuse box. If in

doubt contact a qualified electrician.

Energy Saving Tips

1. Ensure your appliance is

installed in a well ventilated area.

2. Ensure the time between buying

chilled/frozen food and placing them

in your appliance is kept at minimum,

particularly in summer. We recommend

you use a cool bag or a special carrier

bag to carry perishable food.

3. Do not leave the door (s) of your

appliance open longer than necessary

and ensure they are closed properly

after each opening.

4. Defrost frozen food in the fridge,

so that frozen food acts as an ice pack

to assist cooling in fridge.

Compliance with WEEE

Directive and Disposing of

the Waste Product:

Thisproduct complies

with EU WEEE

Directive (2012/19/

EU). This product

bears a classification

symbol for waste

electrical and electronic

equipment (WEEE).This product

has been manufactured with

high quality parts and materials

which can be reused and are

suitable for recycling. Do not

dispose of the waste product

with normal domestic and other

wastes at the end of its service

life. Take it to the collection center

for the recycling of electrical and

electronic equipment. Please

consult your local authorities to

learn about these collection

centers.

Compliance with RoHS

Directive:

The product you have

purchased complies with EU

RoHS Directive (2011/65/EU).

It does not contain harmful and

prohibited materials specified in

the Directive.

Package information

Packaging materials of the

product are manufactured

from recyclable materials in

accordance with our National

Environment Regulations. Do

not dispose of the packaging

materials together with the

domestic or other wastes. Take

them to the packaging material

collection points designated by

the local authorities.

3Installation

Transportation Instructions

1. The appliance should be

transported only in a vertical upright

position. The packing as supplied

must be intact during transportation.

2. If during the course of transport

the appliance has to be transported

horizontally, it must only be laid on its

right hand side when standing in the

frontof the appliance. After bringing

it to upright position,it must not be

operated for at least 4 hours to allow

the system to settle.

3. Failure to comply with the

above instructions could result in

damage occuring to the appliance.

The manufacturer will not be held

responsible if these instructions are

disregarded.

4. The appliance must be

protected against rain, moisture and

other atmospheric influences.

5. When positioning your appliance

take care not to damage your flooring,

pipes, wall coverings etc. Do not move

the appliance by pulling by the door or

handle.

6. Empty any water in the drain

tray before moving. See section

‘Defrosting’ and ‘Care & cleaning’ for

further information.

7. Make sure that the defrost water

pipe at the back of the product is fixed

to the plastic evaporating pan on the

top of the compressor, to avoid defrost

water spillage on the floor.

8. The appliance must be

protected against rain, moisture and

other atmospheric influences.

“Important: Care must be taken

while cleaning / carrying the appliance

to avoid touching the bottom of the

condenser metal wires at the back of

theappliance as you might injure your

fingers and hands.

“Important: This appliance is not

designed for stacking with any

otherappliance.When positioning your

appliance, take care not to damage

your flooring, pipes,wall coverings etc.

“Important: Care must be taken

while cleaning / carrying the appliance

to avoid touching the bottom of the

condenser metal wires at the back of

the appliance as you might injure your

fingers and hands.

Do not attempt to sit or stand on top

of your appliance as it is not designed

for such use. You could injure yourself

or damage the appliance.

“Important: Make sure that mains

cable is not caught under the appliance

during and after carrying / moving the

appliance, to avoid the mains cable

becoming cut or damaged.”Do not

allow children to play with the appliance

or tamper with the controls.

Installation Instructions

1. Fitted the two plastic wall

spacers supplied onto the condenser

at the back of the appliance by rotating

1/4 turn.

WARNING:

Do not locate extension

sockets or charging

transformers/power supplies or

Lithium-Iron battery operated

products adjacent to the compressor

as they could overheat.

2. Locate the appliance on a

smooth surface.

3. To ensure it is standing upright

adjust the two front feet by turning

clockwise or anti-clockwise, until it is

in firm contact with the floor. Correct

6. Fit the front grille supplied

with your appliance as shown in the

diagram.

Plug receptacle

adjustment of feet avoids excessive

vibration and noise.

4. A special receptacle is supplied

to store the mains plug during transit.

The receptacle is fixed at the back

of the cabinet on the side of the

compressor. Gently remove the plug

from the receptacle. Never pull the

mains cord, you may damage the

appliance. In case of transportation,

ensure you locate the plug in the

receptacle provided to avoid transit

damage.

5. The space in the room where

the appliance is installed must not be

smaller than 10 cubic metres.

Changing the illumination

lamp

To change the Bulb/LED used for

illumination of your refrigerator, call your

AuthorisedService.

The lamp(s) used in this appliance

is not suitable for household room

illumination. The intended purpose of

this lamp is to assist the user to place

foodstuffs in the refrigerator/freezer in

a safe and comfortable way.The lamps

used in this appliance have to withstand

extreme physical conditions such as

temperatures below -20 °C.

(only chest and upright freezer)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Blomberg Kühlschrank Handbücher

Blomberg

Blomberg KSM 9510 A+ Bedienungsanleitung

Blomberg

Blomberg KND 9920 PD Bedienungsanleitung

Blomberg

Blomberg BRFB 1452SSN Bedienungsanleitung

Blomberg

Blomberg KND 9653 XA++ Bedienungsanleitung

Blomberg

Blomberg TSM1750u Produktinformationsblatt

Blomberg

Blomberg TSM 1541 i A+ Bedienungsanleitung

Blomberg

Blomberg KND464VW Bedienungsanleitung

Blomberg

Blomberg SST4455VI Bedienungsanleitung

Blomberg

Blomberg SSM 9450 X A+ Bedienungsanleitung

Blomberg

Blomberg KND9800XBR Bedienungsanleitung

Blomberg

Blomberg KWD2330X Bedienungsanleitung

Blomberg

Blomberg KND 9950 XDA+ Bedienungsanleitung

Blomberg

Blomberg KQD 1253 XN Bedienungsanleitung

Blomberg

Blomberg KQD 1360X Bedienungsanleitung

Blomberg

Blomberg DND 9977 P Bedienungsanleitung

Blomberg

Blomberg SSM1420XN Bedienungsanleitung

Blomberg

Blomberg BRFB 1150 Bedienungsanleitung

Blomberg

Blomberg MKND 9860 A+ Bedienungsanleitung

Blomberg

Blomberg KSM 9520 A+ Bedienungsanleitung

Blomberg

Blomberg KQD 1620 GB Bedienungsanleitung

Blomberg

Blomberg FRM1940A+ Bedienungsanleitung

Blomberg

Blomberg SSM4450 Bedienungsanleitung

Blomberg

Blomberg BRFB1312SS Bedienungsanleitung

Blomberg

Blomberg BRFB1050FFBIN Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
