Instruction manual

TSM 1541

Fridge with

Freezer Compartment

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you

with many years of good service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future reference.

This manual

• Will quickly help you to use your appliance properly and safely.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

• Important information or useful usage tips.

• Warning against dangerous conditions for life and property.

• Warning against electric voltage and shock hazard.

This product bears the selective sorting symbol for waste electrical and

electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimize its impact on

the environment. For further information, please contact your local or regional

authorities.

Electronic products not included in the selective sorting process are potentially

dangerous for the environment and human heatlh due to the presence of

hazardous substances.

Recycling

1 Your refrigerator 3

2 Warnings 4

ELECTRICAL REQUIREMENTS ......... 5

WARNING! THIS APPLIANCE MUST

BE EARTHED .................................... 5

ENERGY SAVING TIPS...................... 6

3 Installation 7

TRANSPORTATION INSTRUCTIONS. 7

INSTALLATION INSTRUCTIONS........ 7

REVERSING THE DOORS................. 9

4 Before operating 12

Final Check ..................................... 12

5 Using your refrigerator 13

TEMPERATURE CONTROL AND

ADJUSTMENT................................. 13

DEFROSTING.................................. 14

6 Maintenance and

cleaning 17

7 Do's and Don'ts 18

8 How To Obtain Service 19

9 Guarantee Details 20

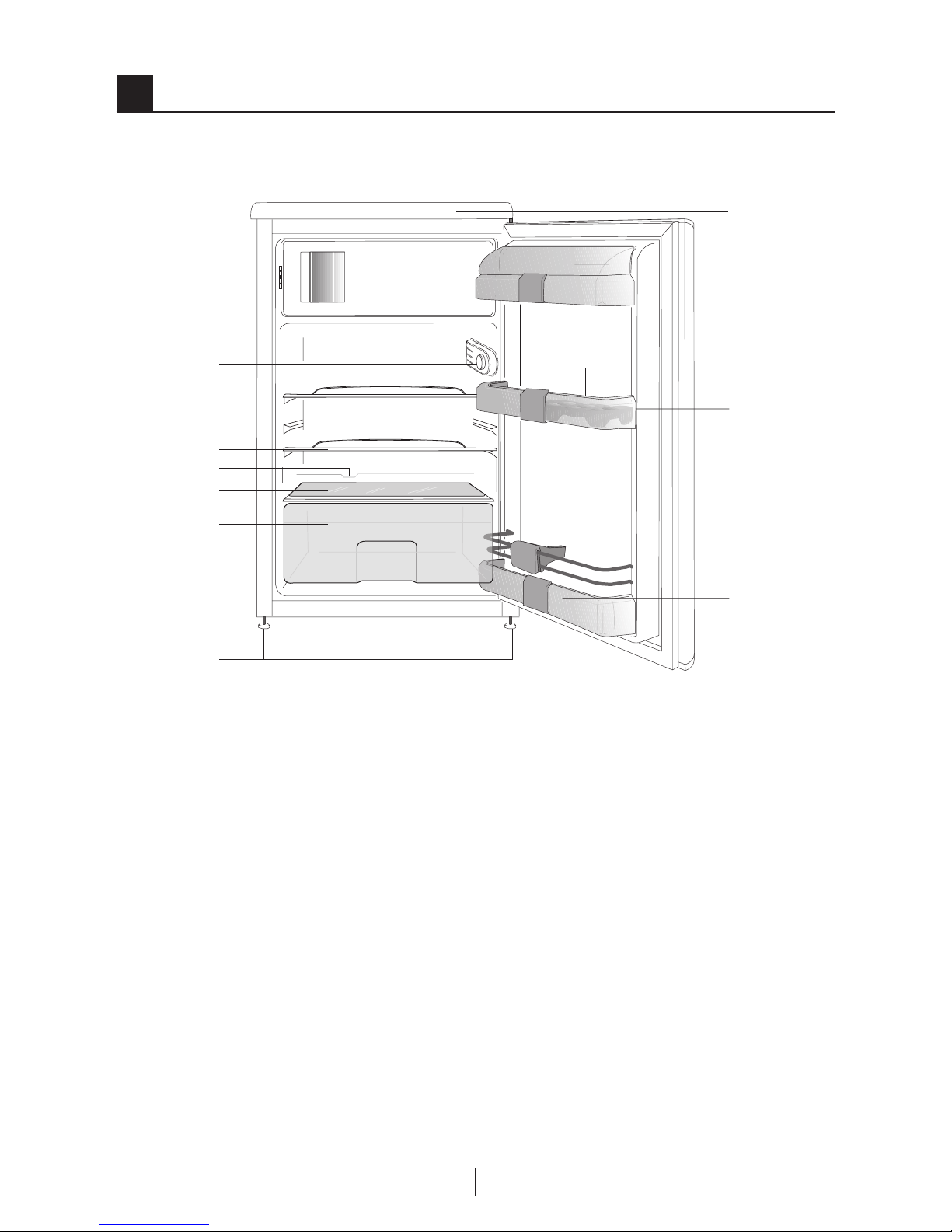

1Your refrigerator

Freezing compartment & ice tray

Interior light -Thermostat knob

Movable shelves

Defrost water collection channel-Drain tabe

Crisper cover

Crisper

Adjustable front feet

Congratulations on your choice of a BLOMBERG quality Appliance which has

been designed to give you service for many years.

CFigures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

Dairy compartment

Door shelves

10.

Eggy tray

11.

Bottle shelf

12.

Bottle gripper

13.

Top trim

2Warnings

•DO NOT connect your appliance to

the electricity supply until all packing

and transit protectors have been

removed.

• Leave to stand for at least 4

hours before switching on to allow

compressor oil to settle if transported

horizontally.

• If you are discarding an old

refrigerator with a lock or latch fitted

to the door, disable the lock/latch,

ensure that it is left in a safe condition

to prevent the entrapment of young

children.

• This fridge/freezer must only be used

for its intended purpose i.e the storing

and freezing of edible foodstuff.

• Do not dispose of the appliance on

a fire. At BLOMBERG, the care and

protection of our environment is an

ongoing commitment. This appliance

which is among the latest range

introduced is particularly environment

friendly. Your appliance contains non

CFC / HFC natural substances in the

cooling system (Called R600a) and in

the insulation (Called cyclopentane)

which are potentially flammable

if exposed to fire. Therefore, take

care not to damage, the cooling

circuit / pipes of the appliance in

transportation and in use. In case of

damage do not expose the appliance

to fire or potential ignition source and

immediately ventilate the room where

the appliance is situated.

• We suggest you contact your local

authority for disposal information and

facilities available.

• See Installation Instructions on on

page 7 for information on suitable

location.

• To obtain the best possible

performance and trouble free operation

from your appliance it is very important

to carefully read these instructions.

• On delivery, check to make sure that

the product is not damaged and that

all the parts and accessories are in

perfect condition.

• Ensure that the plug remains readily

accessible. Do not use multiple

adapter bar or extension cable.

• Failure to observe these instructions

may invalidate your right to free service

during the guarantee period.

• Keep ventilation openings, in the

appliance enclosure or in the built-in

structure, clear of obstruction.

• Do not use mechanical devices

or other means to accelerate the

defrosting process, other than those

recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances

inside the food storage compartments

of the appliance, unless they are

of the type recommended by the

manufacturer.

• We suggest you keep these

instructions in a safe place for easy

reference.

• This appliance is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience

and knowledge, unless they have

been given supervision or instruction

concerning use of the appliance by a

person responsible for their safety.

• Children should be supervised to

ensure that they do not play

with the appliance.

ELECTRICAL

REQUIREMENTS

Before you insert the plug into the wall

socket make sure that the voltage and

the frequency shown on the rating

plate inside the appliance corresponds

to yourelectricity supply.

Rating label is on the left hand side of

fridge inner liner.

We recommend that this appliance be

connected to the mains supply via a

suitable switched and fused socket.

The appliance must be positioned so

that the plug is accessible.

Should the mains lead of the appliance

become damaged or should it need

replacing at any time, it must be

replaced by a special purpose made

mains lead which can only be obtained

from a BLOMBERG Authorised Service

Agent.

WARNING! THIS APPLIANCE

MUST BE EARTHED

If the fitted moulded plug is not

suitable for your socket, then the plug

should be cut off and an appropriate

plug fitted. Destroy the old plug which

is cut off as a plug with bared cord

could cause a shock hazard if inserted

into a socket elsewhere in the house.

The moulded plug on this appliance

incorporates a 13 A fuse. Should

the fuse need to be replaced an

ASTABEAB approved BS 1362 fuse

of the same rating must be used. Do

not forget to refit the fuse cover. In the

event of losing the fuse cover the plug

must not be used until a replacement

fuse cover has been fitted. Colour

of the replacement fuse cover must

be the same colour as that visible on

the pin face of the plug. Fuse covers

are available from any good electrical

store.

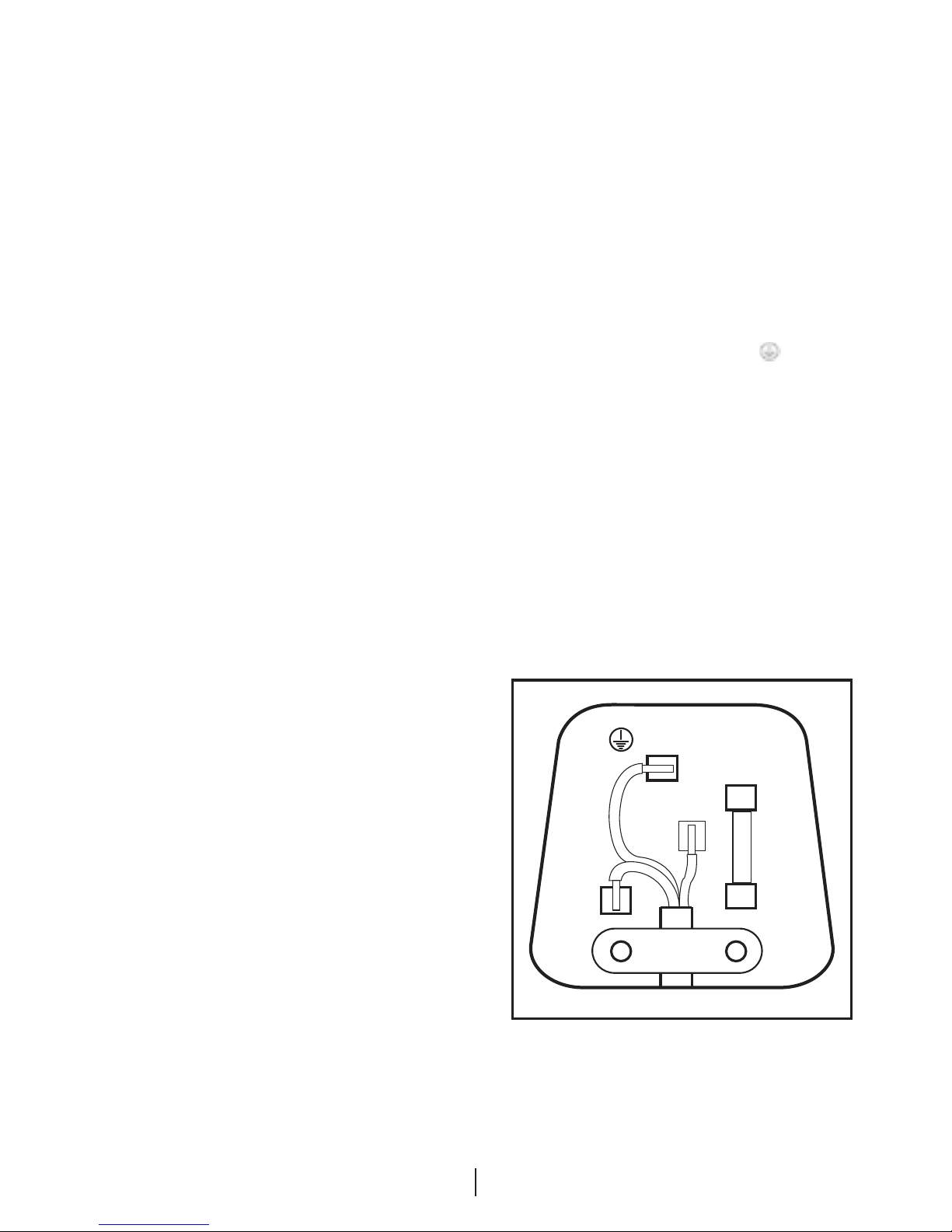

IMPORTANT! FITTING A

DIFFERENT PLUG

As the colours of the wires in the

mains lead of this appliance may

not correspond with the coloured

markings identifying the terminals in

your plug proceed as follows: (See

diagram).

1. Connect the green-yellow or green

(Earth) wire to the terminal in the plug

marked ‘E’ or with the symbol or

coloured green and yellow or green.

2. Connect the blue (Neutral) wire to

the terminal in the plug marked ‘N’ or

coloured black.

3. Connect the brown (Live) wire to

the terminal in the plug marked ‘L’ or

coloured red.

With alternative plugs a 13 A fuse must

be fitted either in the plug or adaptor

or in the main fuse box. If in doubt

contact a qualified electrician.

FITTED WITH

BS 1362 13A FUSE ALWAYS

FIT BS 1362 REPLACEMENT

CARTRIDGE FUSE

GREEN &

YELLOW

GREEN

BLUE

BLACK

BROWN

RED

22mm.

6mm.

6mm. 32mm.

12mm.

FUSE

CORD GRIP

ENERGY SAVING TIPS

1- Ensure your appliance is installed in

a well ventilated area.

2- Ensure the time between buying

chilled/frozen food and placing them

in your appliance is kept at minimum,

particularly in summer. We recommend

you use a cool bag or a special carrier

bag to carry frozen food.

3- Do not leave the door (s) of your

appliance open longer than necessary

and ensure they are closed properly

after each opening.

4- Defrost frozen food in the fridge

compartment, so that frozen food acts

as an ice pack to assist cooling in the

fridge.

3Installation

TRANSPORTATION

INSTRUCTIONS

1. The appliance should be

transported only in a vertical upright

position. The packing as supplied

must be intact during transportation.

2. If during the course of transport

the appliance has to be transported

horizontally, it must only be laid on its

right hand side when standing in the

frontof the appliance. After bringing

it to upright position,it must not be

operated for at least 4 hours to allow

the system to settle.

3. Failure to comply with the

above instructions could result in

damage occuring to the appliance.

The manufacturer will not be held

responsible if these instructions are

disregarded.

4. The appliance must be protected

against rain, moisture and other

atmospheric influences.

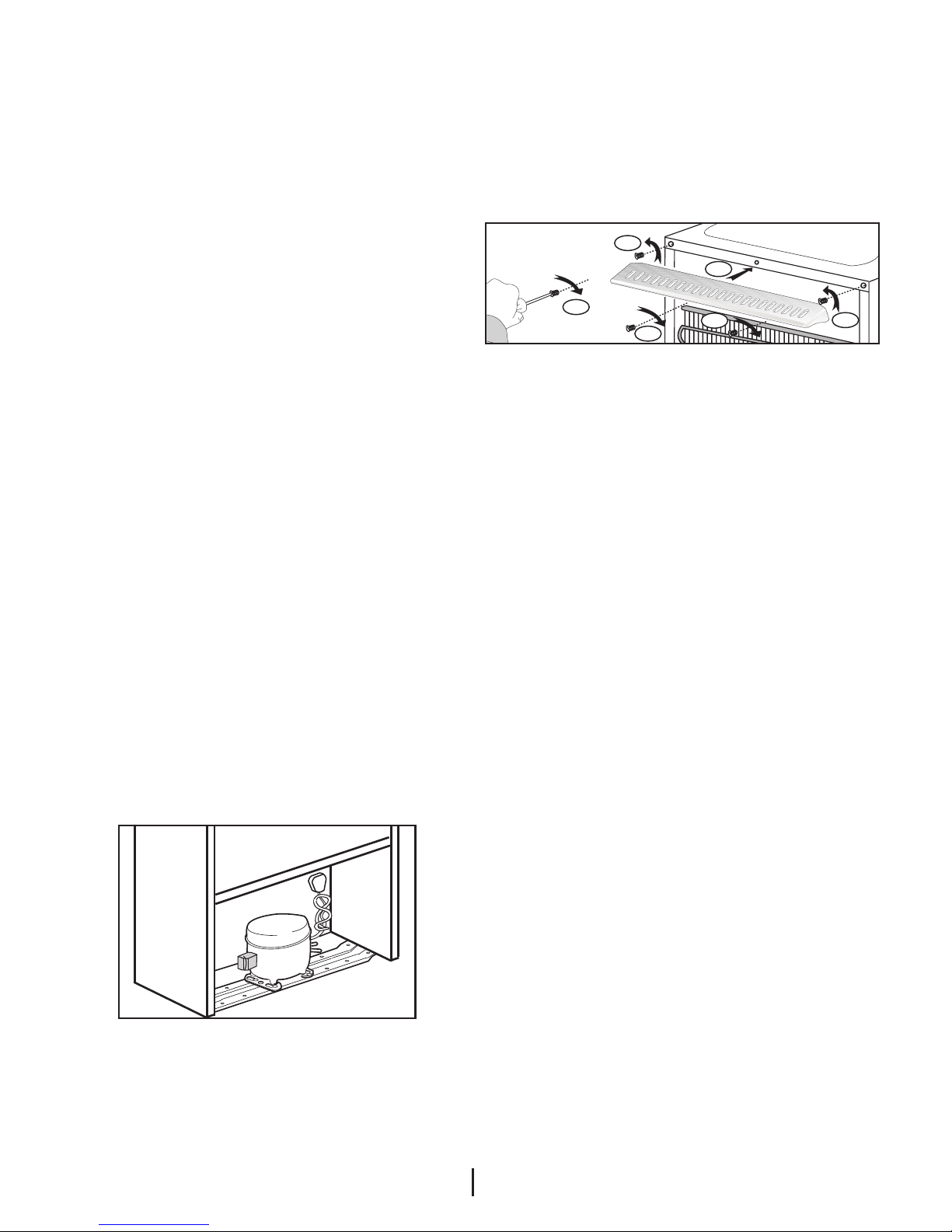

5. Empty any water in the drain

tray before moving see section

“Defrosting” and “Cleaning & Care”

for further information

IMPORTANT : Make sure the plastic

evaporating pan at the back of the

product collects water properly.

“IMPORTANT: Care must be taken

while cleaning / carrying the appliance

to avoid touching the bottom of the

condenser metal wires at the back of

theappliance as you might injure your

fingers and hands.

“IMPORTANT: This appliance is

not designed for stacking with any

otherappliance.When positioning your

appliance, take care not to damage

your flooring, pipes,wall coverings etc.

Do not move the appliance by pulling by

the door or handle.Do not attempt to sit

or stand on top of your appliance as it is

not designed forsuch use. You could injure

yourself or damage the appliance.

“IMPORTANT: Make sure that mains cable

is not caught under the applianceduring

and after carrying / moving the appliance,

to avoid the mains cablebecoming cut or

damaged.”Do not allow children to play

with the appliance or tamper with the

controls.

BLOMBERG declines to accept any liability

should the instructions not be followed.

INSTALLATION INSTRUCTIONS

1. If possible avoid placing the appliance

near cookers, radiators or in direct

sunlight as this will cause the compressor

to run for long periods. If installed next to a

source of heat or refrigerator, maintain the

following minimum side clearances:

From Cookers 2” (50 mm)

From Radiators 12” (300 mm)

From Refrigerators or Larder Fridge

1” (25 mm)

2. No gap is required at sides and top.

See item 3 below to ensure a gap is

obtained at the rear of the appliance. If

a gap is available on side and top, retain

it if possible as it would improve the air

circulation around the appliance.

3. Fit the two plastic wall spacers supplied with the

appliance rotating 1/4 turn to the condenser at the

back of the refrigerator (see diagram).

4. The fridge should be located on a

smooth surface. The two front feet can

be adjusted as required. To ensure that,

your fridge is standing upright adjust the

two front feet by turning clockwise or

anti-clockwise, until the product is in firm

contact with the floor. Correct adjustment

of feet avoids excessive vibration and

noise.

5. Refer to “Cleaning and Care”

section to prepare your appliance for

use.

6. This appliance has been designed

to operate in ambient temperatures

between +10 and +32 degrees C (50

and 90 degrees F). There fore if the

appliance is installed in an unheated /

cold room (E.g.: Conservatory /annex /

shed / garage etc.) then the appliance

may not operate and as a result the

storage time of food may be reduced.

7. A special receptacle is supplied to

store the mains plug during transit.

The receptacle is fixed at the back of

the cabinet, on the right hand side of

the compressor. (See diagram) Gently

remove the plug from the receptacle.

Never pull the mains cord, you may

damage the appliance. In the case

of transportation, ensure you locate

the plug in the receptacle provided to

avoid transit damage.

8. The space in the room where the

appliance is installed must not be smaller

than 10 cubic metres.

REVERSING THE DOORS

We recommend that you reverse doors

before switching on for the first time.

Tools required: Small and medium size

flat and cross-headed screwdrivers, a

pair of pliers.

Spare Parts supplied in the plastic

bag: The following parts, which are

exclusively for left hand side fitted

hinge operation are supplied in a

plastic bag with the appliance:

- Upper door top trim hinge covers –

there are 2 different parts, one for each

side of top trim.

- Upper door middle hinge bushing/

door stopper assembly.

We suggest you keep all the parts

supplied in the plastic bag and also

parts, which have been removed when

reversing doors, in a safe place for

possible future, re-use.

IMPORTANT: We suggest you ask

somebody to help you when moving

the appliance around and to hold

doors when removing / re-fitting

hinges and doors to avoid any injury

and damage to the product.

Please refer to diagrams supplied. To

follow numbers in brackets below,

refer to the main diagram.

1. Switch off the appliance at the

socket outlet and pull out the mains

plug.

2. Remove all food, loose items and

fittings from inside the appliance and

door shelves.

3. Carefully tilt the appliance on

its back side. (1) (You may need

somebody to help you.) Take care not

to damage the appliance by laying

on some protective material (e.g. its

original packaging). Make sure that

you tilt the appliance on its back side,

otherwise compressor oil may block

the pipes and you may damage the

appliance.

4. Unscrew and remove the LHS front

feet and bolt (2).

5. Unscrew the bolts and remove the

bottom hinge while holding the door

(3).

6. Remove the door carefully from the

top hinge by sliding down wards (4).

7. Reposition top hinge bushing and

blanking plug on the opposite side and

stand the door safely (5). You may find

it easier to remove the bushing and the

plug with the tip of a small screwdriver.

Take care not to mark the door.

8. Reposition the top hinge on the

opposite side (6 and 7).

9. To refit the door, locate the top

hinge in the door, attach to the cabinet

and hold the door (8).

10. Fit the bottom hinge (9). If

necessary adjust and then tighten the

bolts. Ensure, that the door opens

and closes easily and that there are

no gaps allowing air into the cabinet. If

there are gaps between the door seal

and the cabinet, adjust the door seal

by gently pulling away from the door

using fingers.

Andere Handbücher für TSM 1541

Inhaltsverzeichnis

Andere Blomberg Kühlschrank Handbücher

Blomberg

Blomberg KND 9651 A Plus Bedienungsanleitung

Blomberg

Blomberg KND 9860 XA++ Bedienungsanleitung

Blomberg

Blomberg DSM 1510 i Bedienungsanleitung

Blomberg

Blomberg KFD 9952 PXD Bedienungsanleitung

Blomberg

Blomberg BRFB1 22SS Series Bedienungsanleitung

Blomberg

Blomberg TSM1750u Produktinformationsblatt

Blomberg

Blomberg KGM4530 Bedienungsanleitung

Blomberg

Blomberg TSM 1541 i A+ Bedienungsanleitung

Blomberg

Blomberg KNM4563EI Bedienungsanleitung

Blomberg

Blomberg SSM 1550 Bedienungsanleitung

Blomberg

Blomberg KNE4564EVI Bedienungsanleitung

Blomberg

Blomberg SSM4450 Bedienungsanleitung

Blomberg

Blomberg DSM 9511 A+ Bedienungsanleitung

Blomberg

Blomberg BRFB1800SS Bedienungsanleitung

Blomberg

Blomberg SSM 1550 i Bedienungsanleitung

Blomberg

Blomberg KQD 1620 GB Bedienungsanleitung

Blomberg

Blomberg SOM 9651 P Bedienungsanleitung

Blomberg

Blomberg SSM1351I Bedienungsanleitung

Blomberg

Blomberg KQD 1327 PX Bedienungsanleitung

Blomberg

Blomberg DSM 1510 Bedienungsanleitung

Blomberg

Blomberg KQD 1360X Bedienungsanleitung

Blomberg

Blomberg KND 9653 A++ Bedienungsanleitung

Blomberg

Blomberg SND 9680 XA+ Bedienungsanleitung

Blomberg

Blomberg KWD 1330 X Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
