Blue Demon TRUE VIEW DIGITAL Bedienungsanleitung

Digital Product

TRUE COLOR

180° SIDE VIEW

AUTO DARKENING WELDING HELMET

TRUE VIEW

DIGITAL

TRUE VIEW PANO

*This product is a completely new design, with Digital control and low temperature

resistant, corrosion resistant, flame retardant, soft, light tight, intensity high and dur-

able.

*TRUE COLOR vision on the work piece both prior and during welding, which means

improved quality and higher efficiency.

*Overall-process protection against ultraviolet (UV) and infrared (IR ) radiation. TRUE

VIEW PANO is equipped with lithium battery and solar cells that extends the life of the

battery.

*The product is in full conformity with related ANSI, CE. CSA, AS/NZS safety stand-

ards.

INDEX

WARNING

CORRECT USE OF THE WELDING HELMET

OPERATING INSTRUCTION

ADJUSTMENT INSTRUCTION

TECHNICAL SPECIFICATIONS

ILLUSTRATION

DISASSEMBLY AND ASSEMBLY INSTRUCTIONS

TROUBLESHOOTING

SHADE NUMBER

TRUE VIEW PANO

WARNING

READ CAREFULLY AND UNDERSTAND THESE

INSTRUCTIONS BEFORE USING THE HELMET

TRUE VIEW PANO welding helmets are designed to protect the eyes and face from

sparks, spatter and harmful radiation under normal welding conditions. The welding

helmets may only be used for welding and not for other purposes. They are suitable

for use with virtually all welding process, except oxy-acetylene, laser and gas weld-

ing procedures. They will not protect against severe impact hazards, including frag-

ments from grinding disks, explosive devices or corrosive liquids. Machine guards

and appropriate protection must be used. Avoid work positions that could expose u-

nprotected areas of the body to sparks spatter, direct and/or reﬂected radiation. Use

adequate protection if exposure can not be avoided.

If the auto-darkening ﬁlter is cracked, stop using the helmet: UV/IR protection may

be compromised, resulting in burns to the eyes and skin.

During the welding process, heat and radiation are released.

• FUMES AND GASES can be dangerous to your health.

• Keep your head out of fumes.

• Use enough ventilation, exhaust at the arc, or both, to keep fumes and gases a-

way from your breathing zone and general area.

• ARC RAYS can injure eyes and burn skin.

• Before welding, always inspect helmet and ﬁlter lens to be sure they are ﬁtted p-

roperly, in good condition and not damaged.

• Check to see that the clear lens is clean and securely attached to the helmet.

• Always wear safety glasses or goggles under the welding helmet and protective

clothing, to protect your skin from radiation, burns and spatter.

• Ensure that optical radiation from other welder’s arcs in the immediate area do-

es not enter in from behind the helmet and auto-darkening ﬁlter.

Welding produces sparks and drops of molten metal that ﬂy in all directions.

• The protective helmet must be worn to avoid potentially serious physical damages.

• Appropriate additional safety clothing must be worn to protect the rest of the body.

TRUE VIEW PANO

CORRECT USE OF THE WELDING HELMET

• Before using the helmet, make sure that:

• the front cover lens, and the filter are in the correct position and correctly ﬁxed

in place;

• all the sensors and the cells are not obstructed;

• the protection ﬁlms on both screens are removed;

• the red light is off, otherwise change the batteries.

•Keep the ﬁlter viewing area as close as possible to the eyes during welding.

•When welding for extended periods, occasionally check the helmet and make

sure there are no signs of deformation or deterioration.

•Do not use the helmet without the transparent ﬁlter protections (internal and

external): non-observance may cause a safety hazard or irreparable damage to t-

he ﬁlter.

•Subjects with particularly sensitive skin must take extra care: materials that may

come into contact with the skin can cause allergic reactions.

•Check that the protection level matches your welding process. If the helmet pres-

ents operation problems, refer to the “troubleshooting” chapter; if the problem pe-

rsists, immediately stop using the helmet and contact the person in charge or a d-

istributor.

MAINTENANCE

•Regularly check the condition of the helmet and change any damaged parts.

•Replace the external/internal transparent ﬁlter protection if it is damaged.

•Do not immerse the ﬁlter in water or other liquids; do not use solvents to clean the

ﬁlter.

•Do not put any heavy tools/objects in or on the helmet in order not to damage the

ﬁlter or the protective screens.

• Keep the helmet away from ﬂames.

•The helmet must not fall down.

•Do not place the helmet too close to the welding area.

•Remove batteries when the helmet is not used fo a long time.

•Respect the temperature:

• use: -5°C (+23°F) ÷ +55°C (+131°F)

• storage: -20°C (-4°F) ÷ +70°C (+158°F).

TRUE VIEW PANO

•Place the helmet in a way that does not allow its dimension to deform, or the view-

ing ﬁlter to break.

•Do not allow the ﬁlter to come into contact with liquid and dirt.

•Do not open the ﬁlter container. Do not use any tools or other sharp objects to re-

move any components of ﬁlter or helmet.

•Do not use replacement parts other than those original ones: unauthorized modiﬁ-

cations and replacement parts will void the warranty and expose the operator to

the risk of personal injury.

CLEANING

Keep the ﬁlter, the sensor and the solar cell clean.

After using the helmet and before putting it away, it must be checked to verify integ-

rity and to eliminate any drops of molten metal.

The cartridge and the front cover lens must be cleaned at regular intervals with cle-

an cotton, a soft cloth or a special rag for lens. Do not use strong cleaning agents or

solvents: clean the inside and the outside of the helmet with a neutral disinfectant p-

roduct.

Non-observance of this regulation can expose the operator to health risks

and cancellation of the warranty.

We will not accept any liability if the welding helmet is used for other

purposes or if these instructions are disregarded.

TRUE VIEW PANO

OPERATING INSTRUCTION

Check the front cover lens to make sure that they are clean, and that no dirt is cove-

ring the sensors on the front of filter cartridge. Also check the front / rear cover lens

and the front lens retaining snap joint to make sure that they are secure.

Inspect all operating parts before each use for signs of wear or damage. Any scratc-

hed, cracked, or pitted parts should be replaced immediately before using again to

avoid severe personal injury.

Adjust headband so that the helmet is seated as low as possible on the head and cl-

ose to your face. Adjust helmet's angle when in the lowered position by pressing the

side adjustable button.

Do not make any modifications to either the welding lens or helmet, other than those

specified in this manual.

Failure to follow these warnings and/or failure to follow all of the operating instructio-

ns could result in severe personal injury.

TRUE VIEW PANO

ADJUSTMENT INSTRUCTION

TRUE VIEW PANO has three operating modes: GRIND,WELD and CUT. The specific

function of three operation modes parameters is shown in table 1.

Table 1 TRUE VIEW PANO function parameters of three operation modes

TRUE VIEW PANO in order to improve the convenience and comfort of users, add 4

optional features: Automatic Shade Number Adjust, Automatic Sensitivity Adjust, Aut-

omatic Delay Time Adjust and Gradual Return. The optional features of three operation

modes are shown in table 2.

Basic Functional Parameters

Advanced Function

GRIND

WELD

CUT

SHADE

Parameter SENS DELAY

3 No Display No Display

8~14 0~7

0~7

0~9

0~94~8

Mode

Note：1、From 0 to 9 gears of the delay time corresponds to 0.06s to 1.0s, 0 gear is

suitable for TAC welding;

2、In the function of Welding and Cutting modes, it can be setting different s-

ensitivity and delay time.

TRUE VIEW PANO

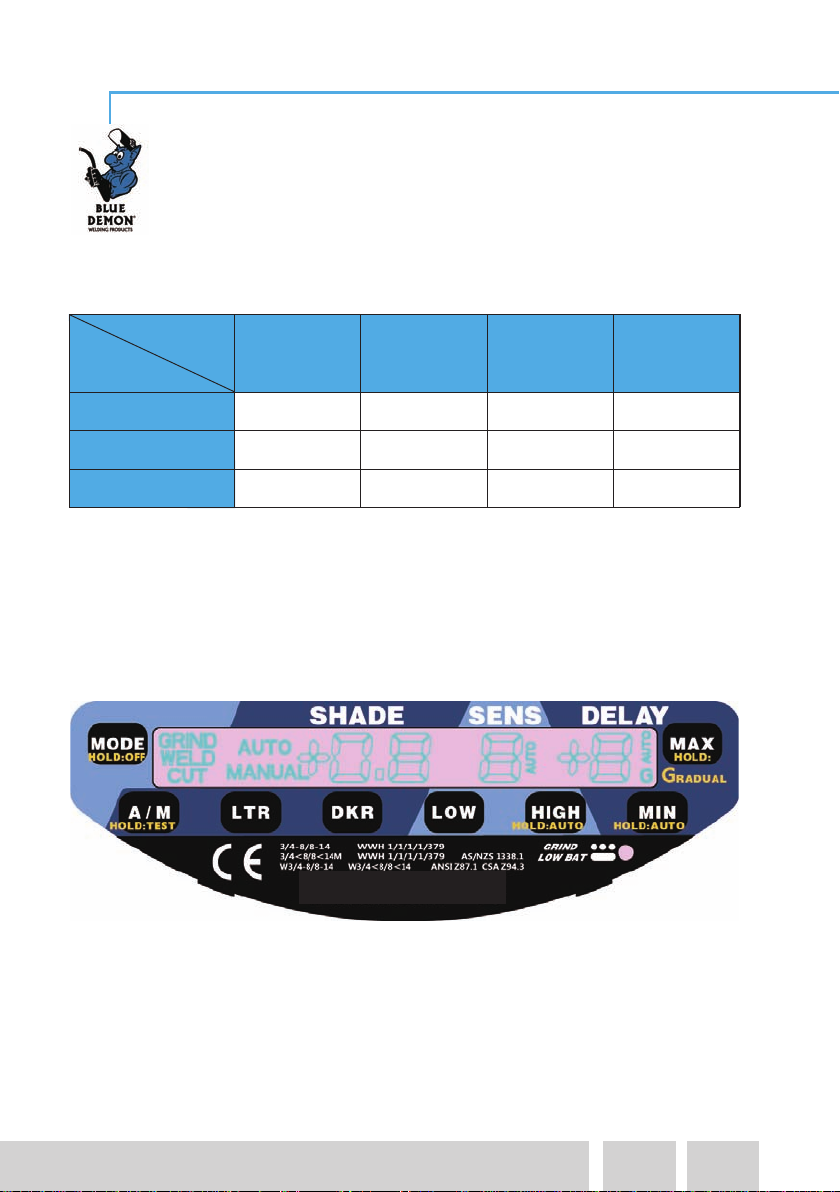

Figure 1 Display Area

GRIND

WELD

CUT

Yes

Automatic Shade

Number Adjust Sensitivity Adjust Delay Time Adjust Return

Automatic Automatic Gradual

Optional

Features

Mode

Table 2 TRUE VIEW PANO optional features of three operation modes

Function Definition Of The Display Area

Figure 1 is the display area, it has 8 function buttons,LCD display and LED lights,

which is explained next.

TRUE VIEW PANO

TRUE VIEW

Function Buttons

Function The usage the ButtonsButtons

MODE

HOLD: OFF

A/M

HOLD: TEST

HIGH

HOLD: AUTO

LTR

DKR

LOW

1.Short Press-Switching Mode：

GRIND—WELD—CUT—GRIND.

2.Long Press- Shut off display.

1.Short Press-Short press to switch the

mode. Release the button and press

again to switch mode again.

2.Long Press-Press over 1.5s to switch

OFF. (Note: In the OFF function, can p-

ress any button to wake up the display)

1.Short Press-In the welding mode

switch automatic or manual setting

the shade number.

2. Long Press-Test Function: Scr-

een Flashes—Grind—Cut—Weld.

1. Short Press-Short press to switch a-

utomatic or manual setting the shade n-

umber.

2.Long Press-Press over 1.5s to start t-

he TEST for one time.

1.Short Press-Decrease the shade

number.

2.Long Press-In the welding mode,

quickly decrease the shade number.

1.Short Press-Short press to decrease

the shade number. Release the button

and press again to decrease the shade

number again.

2.Long Press-Press over 1.5s to decre-

ase the shade number quickly.

1.Short Press-Increase the shade

number.

2.Long Press-In the welding mode,

quickly increase the shade number.

1.Short Press-Short press to increase

the shade number. Release the button

and press again to increase the shade

number again.

2.Long Press-Press over 1.5s to incre-

ase the shade number quickly.

Decrease the sensitivity. Short press to decrease the sensitivity.

Release the button and press again to

decrease the sensitivity again.

1.Short Press -Increase the sensiti-

vity.

2.Long Press - In the cut or weld m-

ode, set sensitivity automatically. (In

the process of automatic set sensiti-

vity, SENS area will be shown“AUTO”，

sensitivity numbers increase from 0

to 7 in turn）

1. Short Press-Short press to increase

the sensitivity. Release the button and

press again to increase the sensitivity

again.

2.Long Press-Press over 1.5s to set

sensitivity automatically for one time.

TRUE VIEW PANO
