D3000 (P/N: 100400-1)
Iridium/GPS Terminal
Installation Guide
Document # 100458
August 2007
Revision 1.1
August 07 Blue Sky Network
100458 D3000 Page 1
COPYRIGHT
Copyright 2007 Blue Sky Network
All rights reserved. No part of this manual may be reproduced, stored or distributed
without written permission of Blue Sky Network.
Blue Sky Network reserves the right to change or update specifications without notice.
Publication Date: June 2007
Information in this manual is current as of publication or revision date. Specifications and
operational details are subject to change without notice, at the discretion of Blue Sky
Network, LLC.
www.blueskynetwork.com
Phone: +1-858-551-3894
Fax: +1-858-551-3891
1298 Prospect Street, Suite 1D
La Jolla, CA 92037
Blue Sky Network August 07
2 D3000 100458
REVISION HISTORY
Revision
Number Date Author Document
Number Notes
- 06/13/2007 Monir Elias 100458 Initial Draft
1.1 07/26/2007 Monir Elias 100458 Added power information
and call to addendum
100459
August 07 Blue Sky Network
100458 D3000 Page 3
TABLE OF CONTENTS
REVISION HISTORY.......................................................................................................................................................... 2
INTRODUCTION................................................................................................................................................................. 4
APPLICATION.........................................................................................................................................................4
WARNING...........................................................................................................................................................4
SYSTEM DESCRIPTION & OPERATION....................................................................................................................... 5
General .................................................................................................................................................................5
System Components .............................................................................................................................................5
D3000 OVERVIEW............................................................................................................................................................... 6
Specifications........................................................................................................................................................6
Features.................................................................................................................................................................6
D3000 Installation ................................................................................................................................................7
Iridium/GPS Antenna (p/n 100430)....................................................................................................................11
Antenna Description...........................................................................................................................................12
Antenna Installation............................................................................................................................................13
POWER WIRING –INSTALLATION OPTIONS .........................................................................................................14
POWER-UP TEST ..................................................................................................................................................15
SERVICE ACTIVATION................................................................................................................................................... 16
Blue Sky Network August 07
4 D3000 100458
INTRODUCTION
APPLICATION
This guide is applicable to the following components:
Part Number Component Description
100400-1 D3000 Terminal
100420 D3000 ICB (Iridium/Cable/Bracket) Set
100430 Iridium/GPS Antenna
100431 Suction Mount for 100430 Antenna
100297 Cigarette Lighter Adapter
100459 “In-Vehicle Installation Options” Guide
Notes
WARNING
Information, drawings and wiring diagrams contained in this manual are intended as a
reference for engineering planning only. Drawings and wiring diagrams contained
herein do not represent any specific installation. It is the installer’s responsibility to
create installation drawings specific to the mobile asset.
August 07 Blue Sky Network
100458 D3000 Page 5
SYSTEM DESCRIPTION & OPERATION
General
The Blue Sky Network’s D3000 is an Iridium Satellite Packet Data Terminal. Roughly the
size of a car stereo, it can easily be installed on a land vehicle or a marine vessel for
instant global tracking and 2-way communication.
All data services are managed by the customer through our web-based SkyRouter or other
third-party applications (like Intergraph’s). Skyrouter offers global asset tracking, account
management features, such as user authorization, asset settings, messaging and billing
information.
System Components
- D3000 Terminal
- D3000 ICB Set
- Iridium/GPS Antenna (with integrated cables)
- Antenna Suction Mount (optional)
- Cigarette Lighter Adapter (optional)
Blue Sky Network August 07
6 D3000 100458
D3000 OVERVIEW
Specifications
Length 7.87” or 200 mm (9” or 228mm with ICB)
Width 3.22” or 82 mm (5” or 127mm with ICB)
Depth 1.5” or 38 mm (2.5” or 64mm with ICB)
Weight 1.1lb or 0.5Kg (2.0 lb or 0.9Kg with ICB)
Power Requirements 9VDC - 18VDC
Nominal Current 0.5A Continuous, 1.0A Peak at 12V
Operating Temperature Range -20 degrees C to + 70 degrees C
Iridium SBD Frequency L-Band
GPS Frequency L-Band
LED Indicator Power (ON/OFF)
I/O Ports 2 Serial Ports (RS-232)
Antenna Dual terminal GPS/Iridium combined
Features
Worldwide - The D3000 is a truly global satellite communication solution, based on the
Iridium satellite network.
GPS - The D3000 has an integrated GPS. Users can define position reporting intervals
via the unit, locally or remotely.
Asset Tracking - Directly from our web-portal, SkyRouter (www.blueskynetwork.com),
users can view the location of one or a fleet of mobile assets. Tracking data can also be
utilized by third party tracking solutions, like Integraph’s.
2-Way Messaging – The D3000 allows users to send and receive messages between
vehicles or between dispatch and vehicle.
August 07 Blue Sky Network
100458 D3000 Page 7
D3000 Installation
The location of the D3000 is at the discretion of the user. It is recommended that the unit is placed
somewhere in the vehicle’s dashboard, but consideration should be given to space, closeness to
driver, environmental conditions and distance from the antenna. There are three main
components needed for the D3000 installation efforts: a) D3000 Terminal; b) D3000 ICB Set; c)
Antenna; and d) Power. Below you will find a description of the D3000 Terminal and the ICB Set.
The Power and Antenna descriptions and installations are discussed in later sections.
D3000 Terminal
The D3000 Terminal (p/n 100400), discussed briefly early on this guide, consists of a device that,
in addition to tracking, displays incoming messages and initiates outgoing messages, transmitted
through a wireless communication system. Its rugged design, ergonomic user interface, full
programmability and extensive expansion options, make it the ideal mobile data terminal for
vehicles. It is built to withstand the extreme temperature range, vibrations and shock that a unit
operating within the vehicle environment must endure, ensuring the high level of reliability
required by a mission critical, mobile system.

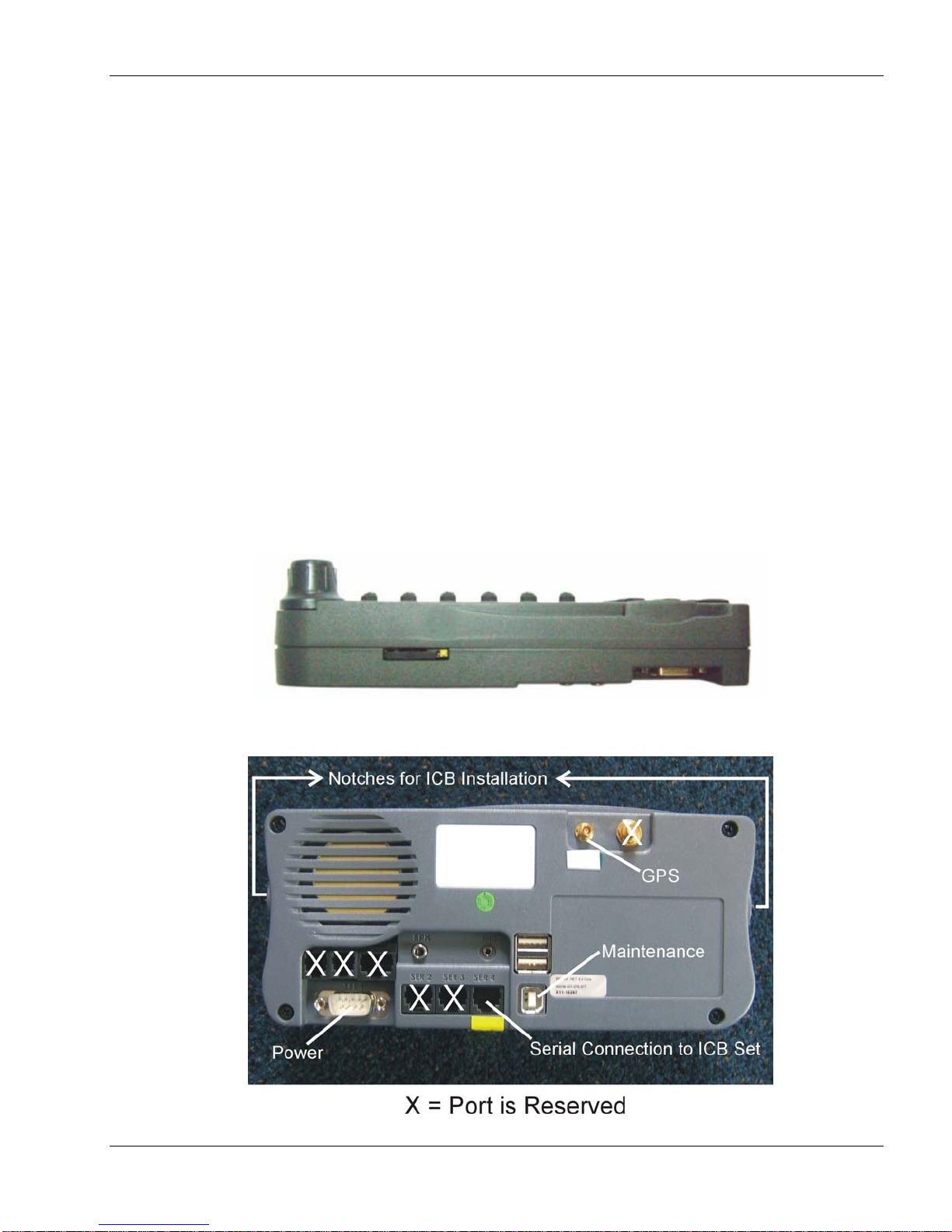

The D3000 terminal has a pair of notches in each side (right and left) of the unit, allowing a solid
link of the ICB Set (Mounting Bracket) to its sides. Please refer to D3000 Terminal + ICB
Integration section for more details.
D3000 Terminal
Dimensions: 200 x 82 x 38mm
Blue Sky Network August 07
8 D3000 100458
D3000 ICB (Iridium LBT, Cable, Bracket)
The D3000 ICB (p/n 100420, below) is pre-assembled and provided with each D3000 unit to be
installed. The ICB Set provides the D3000 unit with the following capabilities: power connection
(“red”), Iridium antenna (“blue”), serial communication (“yellow”) and bracket holes for mechanical
installation flexibility.
ICB Components (without the cable) Pre-Assembled D3000 ICB Set
The ICB can be assembled directly into any surface with the appropriate hole configuration or
bottom Velcro tape (for “Quick Install”). In addition, it can be used with a suction RAM mount,
which allows for higher mechanical flexibility and better visualization of the front panel. The Velcro
tape on the bottom of item 4 (above) is the quickest and easiest way to position the unit in a
dashboard, for example, but other installations using screws are also viable options.
In order to install the ICB in a “fixed” configuration over a surface (with screws), the installer will
need to first understand the configuration of the holes on the bracket (item 4, above). The drawing
in the next page shows the bracket details, including the dimensions of the four center holes (for
standard RAM mounts) and the two holes on each side (that can also be used to fix the unit).
